Bently Nevada 1900/65A-01-01-01-01-00 | Equipment Monitor

• Brand: Bently Nevada
• Full Model Number: 1900/65A-01-01-01-01-00
• Lifecycle Status: Legacy / Retired
• Core Function: Standalone general-purpose machinery monitoring and protection
• Top 3 Technical Specs: 110–220 VAC external power; attached display; DIN rail mounting
• I/O: 4 transducer inputs; 4 temperature inputs; 6 programmable relay outputs
• Approvals: Multiple approvals
• Communications: None — E00 configuration
• Base Module: 172323-01
• Stock & Condition: New Surplus / Tested Refurbished — physical stock confirmation required

The ordering code is significant here: A01 = 110–220 VAC external supply, B01 = attached display, C01 = DIN rail mount, D01 = multiple approvals, E00 = no communications.

Module 3: Obsolescence & Supply Chain Deep Dive

When an installed 1900/65A fails, sourcing a matching configuration can become more difficult than replacing a generic monitoring component. This particular 1900/65A-01-01-01-01-00 is not simply a base 1900/65A monitor; its code specifies the 110–220 VAC external power option, attached display, DIN rail mounting, multiple approvals, and no Modbus communications. The distinction matters during emergency procurement because substituting a visually similar unit with a different configuration can introduce unnecessary rewiring or commissioning work. The monitor itself provides four transducer inputs, four temperature inputs, six relay outputs, four 4–20 mA recorder outputs, and a buffered transducer output.

For an operating plant already built around the 1900/65A, a verified replacement can preserve the existing measurement architecture while avoiding the capital and engineering burden of a platform migration. Bently Nevada’s own documentation identifies the 1900/65A as a general-purpose monitoring platform, while a Bently Nevada lifecycle guide identifies the 1900/65A as the form/fit/function replacement for the earlier 1900/65 and lists the 2300 as the replacement path for several older 1900-series products. The TCO benefit is therefore strongest when the immediate objective is restoring an existing machine protection loop rather than redesigning the installation. —For obsolete hardware, inventory availability can be more valuable than nominal factory lead time.

Module 4: Compatibility & Replacement Matrix

The configuration structure is explicitly defined as 1900/65A-AA-BB-CC-DD-EE. For this part number, the five option fields resolve to power, display, mounting, approvals, and communications respectively.

Field Traps — Watch Out

• Power configuration mismatch: Do not replace this A01 unit with an A00 18–36 VDC configuration without reviewing the external supply arrangement. The two power selections are materially different.
• Communications assumption: This exact part is E00, no communications. A 1900/65A fitted with the optional Modbus communications configuration is not an exact functional match.
• Display and mounting mismatch: B01 specifies an attached display, while C01 specifies DIN rail mounting. A replacement carrying a different B or C code may require physical changes even when the underlying monitor is the same family.

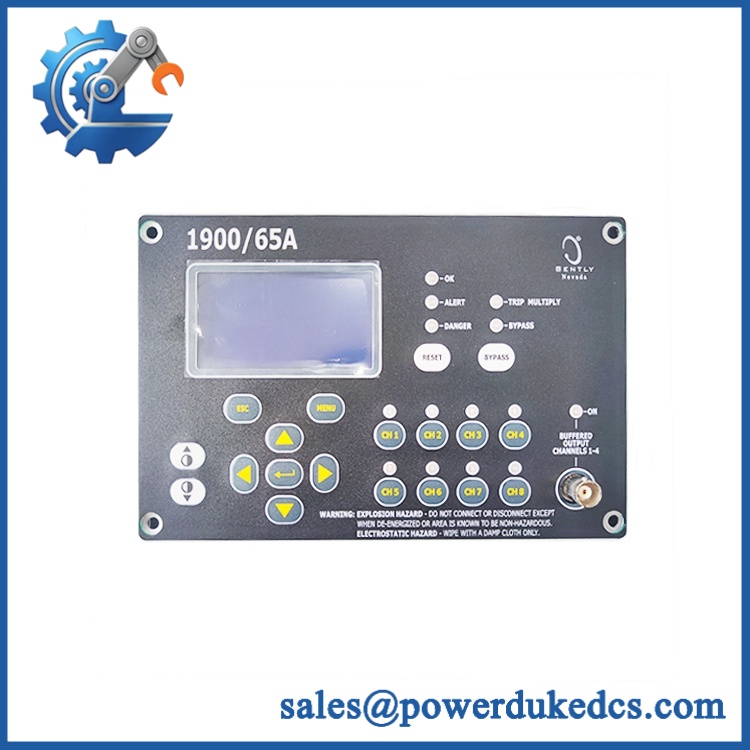

Bently Nevada 1900/65A-01-01-01-01-00

Module 5: Quality Assurance & Testing SOP

A legacy protection monitor should not be shipped on appearance alone. The test record should follow the serial-numbered unit.

1. Incoming Identity Check

• Verify Bently Nevada branding, model marking, and full ordering code.
• Confirm 1900/65A-01-01-01-01-00 against the procurement specification.
• Record serial number and manufacturing identifiers.
• Perform OEM anti-counterfeit visual inspection of enclosure, labels, connectors, display assembly, terminal blocks, and PCB markings.
• Inspect for corrosion, cracked plastics, bent terminals, contamination, heat damage, or unauthorized rework.

2. Configuration Verification

• Confirm A01 power configuration.
• Confirm attached B01 display.
• Confirm C01 DIN rail hardware.
• Confirm D01 approval marking.
• Confirm E00 absence of communications hardware/configuration.
• Photograph configuration labels before energization.

3. Electrical Inspection

• Inspect power-input circuitry and terminal condition.
• Verify grounding continuity.
• Perform applicable insulation checks under controlled laboratory conditions.
• Check for abnormal resistance or visible component degradation.

4. Power-On Self-Test

• Apply the correct supply arrangement through a controlled test setup.
• Perform power-on self-test (POST).
• Check RUN/ERR/status indications and record startup behavior.
• Verify the display initializes without fault indications.
• Monitor supply stability and abnormal current draw.

5. Functional I/O Testing

• Inject controlled test signals into the transducer channels.
• Verify temperature input response.
• Check relay actuation against programmed OK, Alert, and Danger conditions.
• Verify 4–20 mA recorder outputs.
• Verify buffered transducer outputs.
• Confirm alarm logic and channel status reporting.

6. Extended Stability Test

• Run the monitor under representative I/O load.
• Monitor operating temperature, supply behavior, display status, relay transitions, and output stability.
• Record test results against the unit serial number.
• Issue a signed QC/Test Report before final packing.

The documented architecture supports four transducer inputs and four temperature inputs, six programmable relays, four 4–20 mA outputs, and internal configuration storage in non-volatile memory.

Module 6: Procurement & Lifecycle FAQ

Q1. Is the Bently Nevada 1900/65A-01-01-01-01-00 genuinely in stock, and what is the emergency-shipping cutoff?
Physical stock should be confirmed against the exact six-field configuration before the PO is released. For emergency requirements, request a same-day dispatch commitment and carrier cutoff in writing. A generic “1900/65A in stock” statement does not prove that the A01/B01/C01/D01/E00 version is available.

Q2. How do you verify the condition and authenticity of this obsolete configuration?
Require serial-number traceability, photographs of the identification markings, enclosure and PCB inspection, OEM anti-counterfeit checks, power-on testing, I/O simulation, relay testing, and a documented QC/Test Report. For surplus inventory, functional evidence carries more procurement value than a cosmetic “new” description.

Q3. Does this exact configuration have a communications interface?
No. The final E00 code specifies no communications option. The 1900/65A platform can support Modbus through the E01 configuration or communications upgrade, but that should not be assumed for this exact part number.

Q4. What should engineers verify before issuing the PO?
Verify the complete ordering code, especially A01 power, B01 display, C01 mounting, D01 approvals, and E00 communications. Compare these fields with the failed unit’s label and installation drawing. Also verify existing sensor types, relay logic, alarm setpoints, and configuration records before commissioning.

Q5. Is the 1900/65A still a current product, and what is the long-term strategy?
For lifecycle planning, treat the 1900/65A as legacy/retired inventory rather than a normal current-generation procurement item. A current product page from Instrumart states that the 1900/65A is retired and identifies the 2300 Series as the recommended replacement; Bently Nevada continues to publish the 1900/65A documentation within its monitoring portfolio. For an existing installation, however, a verified like-for-like spare can be the lower-TCO choice when avoiding a forced migration is the immediate priority.
