Bently Nevada 3500/05-01-01-00-00-00 | 19 Inch System Rack

Description

• Brand: Bently Nevada
• Full Model Number: 3500/05-01-01-00-00-00
• Lifecycle Status: Current / Supported 3500 Series Rack
• Core Function: Full-size 3500 System Rack for mounting monitor modules and power supplies
• Top 3 Technical Specs: 19-inch EIA rack; 14 module positions; Full-size panel-mount configuration
• Stock & Condition: Physical stock verification required; New Surplus / Unused / Refurbished; Emergency dispatch subject to QA release

Module 3: Obsolescence & Supply Chain Deep Dive

A damaged or unavailable rack chassis can hold up an entire 3500 machinery-protection build even when every electronic module is already available. The Bently Nevada 3500/05-01-01-00-00-00 is the full-size, 19-inch 3500 System Rack with panel mounting, providing 14 available module positions for the 3500 monitoring platform. Bently Nevada describes the 3500/05 as the system rack that mounts monitor modules and power supplies while providing the internal power distribution and communication path between modules. The ordering code 01-01-00-00-00 corresponds to the full-size 19-inch rack, panel-mount option, no agency approval option, reserved field set to none, and no European compliance option.

For a plant expanding or restoring an existing 3500 installation, purchasing the correct rack can be significantly cheaper than redesigning the cabinet around another mounting architecture. The existing 3500 monitor modules, power supplies, and rack-interface hardware can remain within the established system when the chassis configuration is matched correctly. That reduces panel engineering, fabrication, rewiring, and commissioning work. The physical specification also matters during procurement: the full-size version is a 19-inch EIA rack with 14 module slots, and the panel-mount design requires a specific rectangular panel cutout. —A replacement rack should therefore be approved from the complete ordering code, not simply from the “3500/05” family name.

Module 4: Compatibility & Replacement Matrix

Estimated switch cost/time: If the replacement rack is already staged and the cabinet is accessible, allow approximately 2–6 hours for mechanical replacement, module transfer, power/interface verification, and final rack checkout. A new unit requiring physical inspection and expedited transportation may add 1–5 business days, depending on location and carrier cutoff. These are planning estimates.

Field Traps — Watch Out

• Rack size mismatch: The 01 rack-size code identifies the 19-inch full-size rack with 14 module positions. The 02 configuration is a 12-inch mini-rack with seven positions. These are not interchangeable.
• Mounting-code mismatch: The second 01 identifies the full-size panel-mount option. Rack-mount and bulkhead configurations use different codes and require different mechanical installation.
• Module placement: Bently Nevada specifies that power supplies and the Rack Interface Module must occupy the far-left rack positions. A mechanically correct chassis can still be assembled incorrectly.
• Internal barriers: If internal barriers are installed, the rack installation and earthing arrangement require additional review. Bently Nevada directs users to its separate internal-barrier documentation for this configuration.

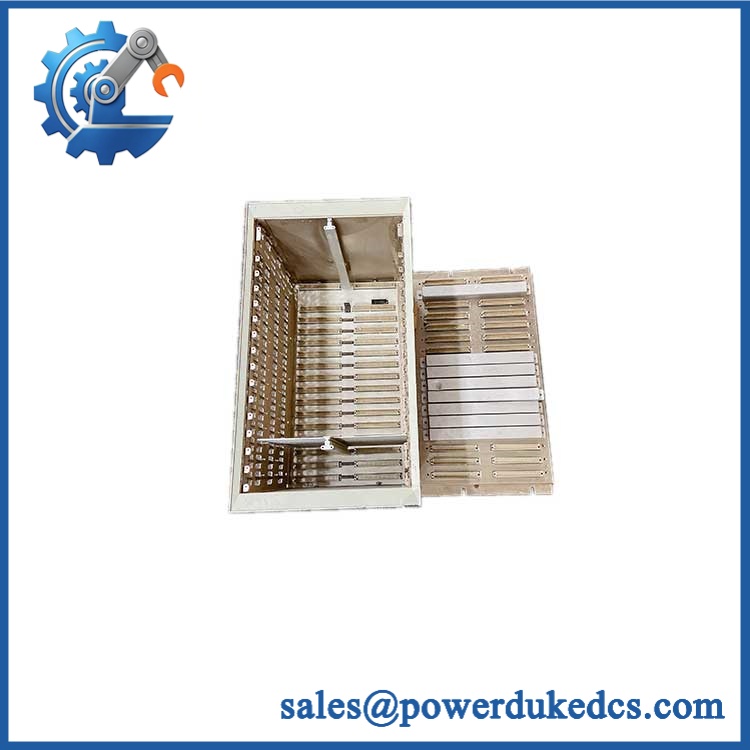

Bently Nevada 3500/05-01-01-00-00-00

Module 5: Quality Assurance & Testing SOP

The 3500/05 is a mechanical and electrical rack assembly, so incoming QA should verify dimensions, mounting integrity, backplane condition, and module interfaces before release.

• Part-number verification: Confirm 3500/05-01-01-00-00-00 against the rack label and procurement specification.
• OEM anti-counterfeit visual inspection: Inspect Bently Nevada identification, chassis markings, finish, machining quality, connector assemblies, and evidence of unauthorized modification.
• Physical condition inspection: Check the rack frame, mounting flanges, module guides, rear connectors, backplane, fasteners, and grounding points.
• Rack-size verification: Confirm the 19-inch full-size configuration with 14 available module positions.
• Mounting verification: Confirm the panel-mount configuration and compare the physical mounting dimensions with the approved cabinet drawing.
• Backplane inspection: Examine connector contacts, guide slots, PCB surfaces, bus structures, and accessible power-distribution paths for corrosion or mechanical damage.
• Continuity testing: Check applicable chassis grounding and accessible electrical paths before module installation.
• Power-distribution verification: Install the appropriate 3500 power supply and verify correct power distribution to representative rack positions.
• Communication-path testing: Install a compatible Rack Interface Module and monitor module, then verify expected rack-level communication.
• Module seating test: Confirm several representative modules seat fully, latch correctly, and maintain secure connector engagement.
• I/O interface inspection: Where rear I/O assemblies are used, verify connector alignment and mechanical retention.
• Power-on self-test (POST): Energize the populated test rack and verify normal startup behavior, module recognition, and expected status indications.
• I/O load testing: Operate representative installed modules under simulated load while monitoring rack power stability and abnormal heating.
• Extended observation: Run the populated rack long enough to identify intermittent backplane connections, connector instability, or thermal issues.
• Final QC release: Record full part number, rack dimensions, backplane inspection results, test-module configuration, photographs, condition grade, test date, and QC authorization.

Bently Nevada’s current 3500/05 documentation confirms the full-size rack dimensions as approximately 265.94 mm high × 482.60 mm wide, with a 19-inch EIA mounting envelope and 14 module positions.

Module 6: Procurement & Lifecycle FAQ

Q1. Is the Bently Nevada 3500/05-01-01-00-00-00 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be verified against the exact six-field ordering code before the PO is accepted. Since rack configurations differ by size, mounting, and compliance option, the actual chassis should be identified before an emergency-shipping commitment is made.

Q2. How do you guarantee the condition and authenticity of the 3500/05-01-01-00-00-00?
Require full ordering-code verification, OEM visual inspection, chassis and backplane examination, dimensional checks, grounding inspection, representative module seating tests, and populated-rack power/communication testing. Photographs of the actual rack and identification markings should remain with the procurement record.

Q3. Can another 3500/05 rack replace the 3500/05-01-01-00-00-00?
Not automatically. The ordering code defines rack size, mounting method, agency approval, reserved configuration, and European compliance. A 19-inch rack-mount version or a mini-rack may require cabinet modification even though both belong to the 3500/05 family.

Q4. Does the rack require firmware compatibility checks?
The chassis itself does not require a firmware flash. The installed monitor modules and Rack Interface Module determine the applicable software and firmware considerations. Note that Bently Nevada specifies 3500/01 software version 2.70 or later for the 3500 Mini-Rack; this requirement is relevant to the mini-rack configuration rather than the full-size rack identified here.

Q5. What warranty and return terms should be written into the PO?
Specify exact ordering-code conformity, rack-size and mounting conformity, backplane condition, DOA coverage, mechanical-damage coverage, return authorization, inspection period, and traceability requirements. For refurbished inventory, require photographs and a documented electrical/mechanical inspection record before shipment.
