Description
- Brand: Bently Nevada
- Full Model Number: 3500/22M 138607-01 10AG
- Lifecycle Status: Discontinued / Obsolescence-risk
- Core Function: Transient Data Interface (TDI) for 3500 Machinery Protection Systems
- Top 3 Technical Specs: 3500/22M TDI | Ethernet host interface | Static and transient dynamic data collection
- Stock & Condition: Physical stock confirmation required | New Surplus / Tested Refurbished by lot | Emergency dispatch subject to inventory and carrier cutoff
Module 3: Obsolescence & Supply Chain Deep Dive
A failed 3500/22M TDI can leave the protection rack operational while disrupting the transfer of machinery data to configuration and condition-monitoring software. Bently Nevada 3500/22M 138607-01 is the Standard Transient Data Interface that combines the rack-interface functions of the 3500/20 RIM with data-collection capability for steady-state and transient information. It interfaces with M-series monitors and transfers collected data to host software through the rack communication path. The exact 10AG marking should be verified against the physical nameplate, since the core catalog number is 138607-01 and published records identify revision-level variants separately.
For an installed 3500 system, replacing the TDI can preserve existing monitor modules, rack wiring, software configuration, and data architecture without forcing a complete machinery-monitoring migration. The 138607-01 is now identified by suppliers as discontinued and replaced by 288055-01, which makes legacy stock particularly relevant when an older installation must remain unchanged. The TCO calculation should include outage exposure, configuration work, host-system verification, commissioning, and the cost of changing to the newer interface—not simply the purchase price. (For a scheduled shutdown, a physically verified legacy TDI can shorten recovery time when an exact hardware match is required.)
Module 4: Compatibility & Replacement Matrix
| Purchase Review Item | Engineering Guidance |
|---|---|
| Replacement Classification | Drop-in Replacement — conditional |
| Hardware Modification | None expected for an exact 138607-01 configuration match |
| Primary System | Bently Nevada 3500 Machinery Protection System |
| Module Type | Standard Transient Data Interface (TDI) |
| Primary Interface | Ethernet host communication |
| Data Function | Static data plus transient/dynamic data collection |
| Rack Position | Slot adjacent to the 3500 power supplies |
| Legacy Replacement | 288055-01 identified as successor in current supplier records |
| Typical Switch Time | ~2–6 labor hours plus communication verification |
| Typical Engineering Cost | Approximately 300–1,200 excluding DCS/host engineering and site travel |
| Recommended Migration Path | Record TDI part/revision → back up rack configuration → document network settings → replace → verify rack communication → confirm host data |
The 3500/22M TDI resides next to the power supplies and interfaces with M-series monitor modules to collect steady-state and transient dynamic data. The module provides the bridge between the 3500 rack and compatible configuration/condition-monitoring software.
Field Traps — Watch Out
- Revision and suffix mismatch: Verify the complete marking 138607-01 10AG from the installed unit. Do not approve a replacement based only on “3500/22M” or “138607-01.”
- Successor substitution: 288055-01 is identified as the replacement for 138607-01 in current supplier records, but that does not automatically mean it is acceptable for an installation requiring the original hardware. Confirm rack compatibility, configuration requirements, and project approval before substituting.

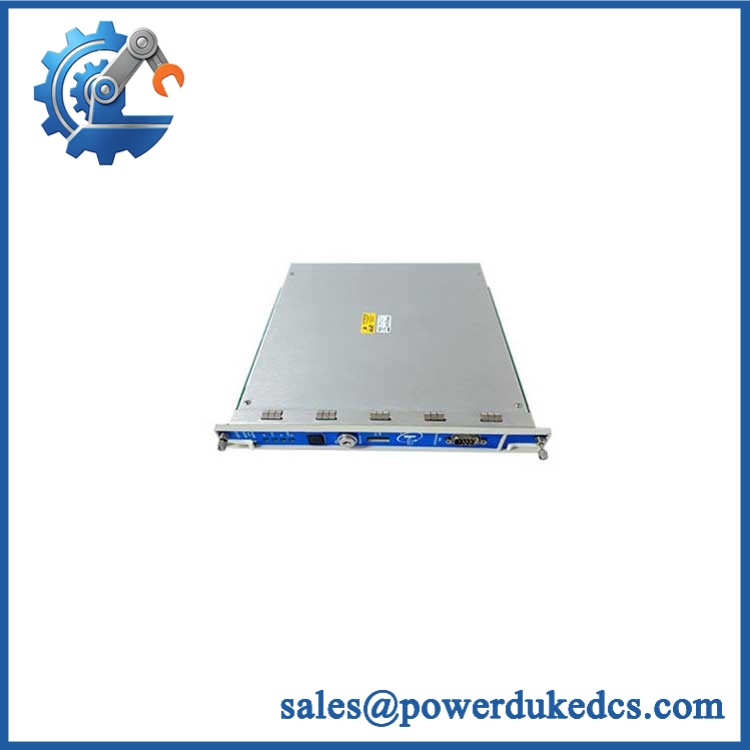

Bently Nevada 3500/22M 138607-01 10AG
Module 5: Quality Assurance & Testing SOP
A strict pre-shipment inspection for Bently Nevada 3500/22M 138607-01 10AG should include:
- Identity verification: Confirm the complete 138607-01 catalog number, 10AG marking, 3500/22M designation, serial number, faceplate labeling, and hardware revision.
- OEM anti-counterfeit visual inspection: Examine Bently Nevada markings, PCB identifiers, labels, connectors, key switch, solder quality, component placement, and evidence of unauthorized modification.
- Mechanical inspection: Check the enclosure, card edge, mounting hardware, connector interfaces, ventilation openings, and front-panel components.
- Power-on self-test (POST): Install the module in an approved 3500 test rack and verify normal startup diagnostics.
- LED verification: Confirm normal behavior of applicable OK, TX/RX, TM, and CONFIG OK indicators.
- Rack-interface test: Verify correct recognition and communication between the TDI and the 3500 rack.
- Ethernet communication test: Establish host communication and verify stable packet transfer through the applicable Ethernet interface.
- Data acquisition test: Confirm collection of representative static measurement data from connected monitor modules.
- Transient data test: Where the test environment supports it, simulate transient conditions and verify waveform/event data capture.
- Configuration-port test: Verify the intended local configuration interface and access behavior.
- System 1 communication test: Confirm that the host-side test environment can receive expected 3500 data through the TDI.
- Extended communication test: Monitor for resets, dropped connections, corrupted data, or intermittent communication faults.
- Final QC: Record serial number, hardware revision, LED results, communication results, data-acquisition results, condition grade, and packaging approval.
The 3500/22M is not simply a passive communication card. Its documented role includes rack interfacing and collection of steady-state and transient data, so QC should verify actual data transfer rather than stopping after a successful power-up.
Module 6: Procurement & Lifecycle FAQ
Is Bently Nevada 3500/22M 138607-01 10AG genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be confirmed against the exact 138607-01 10AG marking before PO release. Current supplier records show limited availability for 138607-01, with some listings describing it as in stock and others identifying it as discontinued. Emergency dispatch depends on physical inventory, payment clearance, export documentation, and the carrier’s pickup cutoff.
How do you verify the condition and authenticity of this discontinued TDI?
Require complete part-number and revision verification, OEM marking inspection, PCB and connector examination, power-up diagnostics, LED testing, rack-interface testing, Ethernet communication testing, and representative static/transient data verification. The supplied condition should be explicitly classified as New Surplus or Tested Refurbished.
Are there firmware or configuration issues engineers should check before issuing the PO?
Yes. Record the existing 3500/22M configuration, hardware revision, rack setup, Ethernet parameters, host communication settings, and installed M-series monitor population. The TDI is part of the rack data architecture, so a module that powers up normally may still require communication revalidation after installation.
Can 138607-01 10AG be installed as a direct replacement?
Treat it as a conditional drop-in replacement when the installed system uses the same 3500/22M architecture and the complete hardware identification matches. 288055-01 is listed as the successor to 138607-01, but any substitution should be reviewed separately rather than assumed equivalent.
What warranty and return terms should procurement require?
The quotation should specify the complete 3500/22M 138607-01 10AG identification, condition grade, serial traceability, pre-shipment communication-test scope, warranty period, DOA coverage, and return authorization procedure. For a discontinued TDI, the test record should remain tied to the exact serial-numbered unit supplied.
