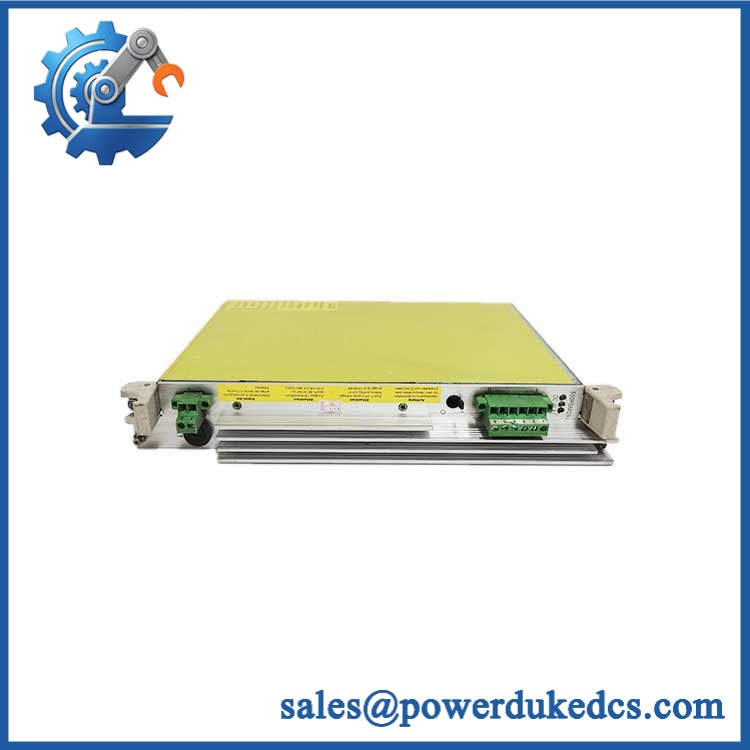

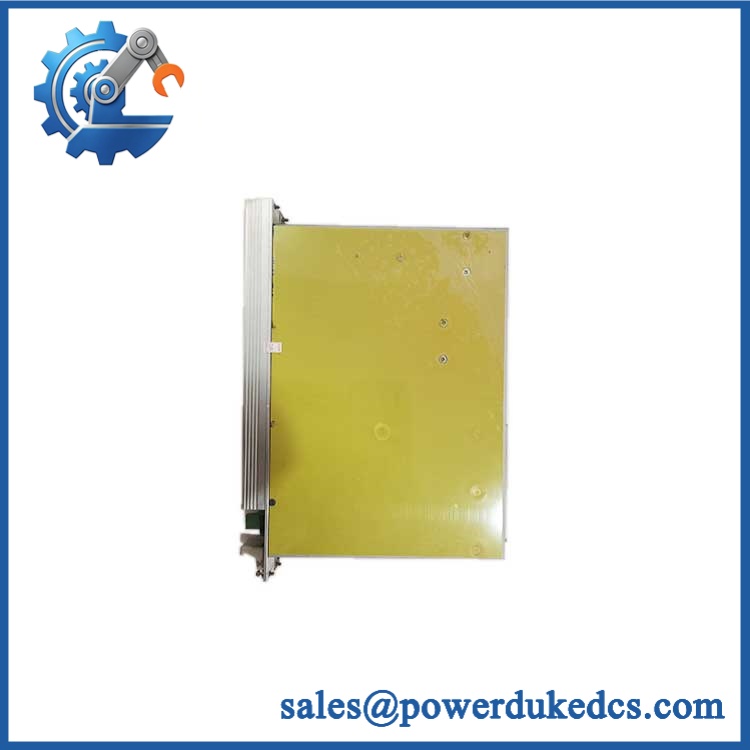

- ABB 500PSM03a 894-030375D 136-011100 | 500 Series PLC Power Module for Maintenance
2. At-a-Glance Executive Brief
- Model: 500PSM03a
- Part Numbers: 894-030375D / 136-011100
- Brand: ABB
- Series: Procontic 500
- Part Type: Power Supply Module
- Core Function: Supplies regulated power to the applicable ABB 500 Series control-system hardware and associated rack electronics.
- Key Specs: PSM03a power-supply configuration, Procontic 500 architecture, industrial rack installation, and legacy PLC power-management function.
- Primary Application: ABB 500 Series PLC racks, control cabinets, process automation systems, and legacy-system maintenance.
3. Product Introduction
A power-supply failure can bring down an entire PLC rack even when every CPU and I/O board is still functional. In a legacy Procontic installation, the correct power module is therefore a critical spare rather than an accessory.
The ABB 500PSM03a 894-030375D 136-011100 is a power-supply module associated with the ABB Procontic 500 automation family. The designations 894-030375D and 136-011100 should be retained together when identifying the hardware for procurement.
For maintenance teams, the power module should be checked as part of the complete rack architecture. Input supply, rack distribution, output rails, fuse/protection components, and downstream loading all affect system behavior (a weak power supply can also produce symptoms that initially look like I/O or CPU failures).
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | 500PSM03a |
| Primary Reference | 894-030375D |
| Additional Reference | 136-011100 |
| Product Family | Procontic 500 |
| Product Type | Power Supply Module |
| Module Designation | PSM03a |
| System Function | PLC / Rack Power Supply |
| Application | ABB 500 Series Control System |
| Installation | Procontic 500 Rack |
| Electrical Function | Power conversion and regulated system supply |
| Protection | Power-system protection according to module design |
| Application Environment | Industrial Control Cabinet |
| Part Classification | ABB Legacy Automation Spare |
| Replacement Type | Exact Hardware Match |
| Typical Use | PLC Rack / Control Cabinet |
| Procurement Use | Maintenance / Repair / Buffer Stock |
ABB 500PSM03a 894-030375D 136-011100
5. Application Scenarios & Pain Points
In a manufacturing plant operating an older ABB PLC rack, a PSM03a failure can remove power from multiple control modules simultaneously. Keeping a tested spare available can shorten the outage from a component-sourcing problem to a straightforward maintenance task.
For process-control cabinets, unstable supply voltage can create several misleading symptoms—communication loss, CPU resets, I/O dropouts, or unexpected module faults. Checking the power supply early in the troubleshooting sequence can prevent unnecessary replacement of healthy control cards.
During a planned shutdown, technicians can inspect the 500PSM03a, rack connections, terminal blocks, and protective components before restoring the PLC to service. This is particularly useful for systems that have remained energized continuously for many years.
In utility and power-related installations, legacy control hardware may remain in operation well beyond the original project schedule. A dedicated spare power module provides an additional layer of protection against aging electronic components and extended procurement lead times.
When cabinet temperatures exceed 50°C, inspect ventilation and heat accumulation around the power-supply section. Elevated temperature can accelerate component aging and may increase the frequency of intermittent power-related faults.
6. Common Error Codes & Diagnostic Symptoms
Symptom/Code: PLC rack completely loses power
→ Diagnosis: Check incoming supply, protective devices, rack wiring, and the 500PSM03a output. If the input is correct but the required rack supply is absent, the power module is a primary suspect.
→ Action: Isolate the system and replace the 500PSM03a after confirming the supply path.
Symptom/Code: Repeated CPU resets / system restarts
→ Diagnosis: Check for unstable input power, abnormal output voltage, excessive rack loading, loose terminals, and thermal stress. A deteriorating power supply can cause momentary voltage drops that reset the controller.
→ Action: Measure the supply under load and replace the power module if the output is unstable.
Symptom/Code: Multiple I/O modules drop out simultaneously
→ Diagnosis: A common power-supply or rack-distribution problem should be investigated before replacing individual I/O modules. Check the PSM03a output, rack connections, and common supply path.
→ Action: Correct the common power fault and replace the 500PSM03a when the module is identified as the source.
7. Cross-Reference & Lifecycle Migration
Product Identification
The complete procurement identification is:
- ABB Model: 500PSM03a
- Reference: 894-030375D
- Additional Reference: 136-011100
- Series: Procontic 500
- Function: Power Supply Module
- Application: 500 Series PLC / control rack
Use the complete 500PSM03a 894-030375D 136-011100 designation when requesting a quotation. Do not shorten the request to “500PSM” because different power-supply configurations can have different electrical characteristics and rack compatibility.
Compatibility
Before replacement, compare:
- Input voltage requirements
- Output voltage rails
- Output current capacity
- Rack connection
- Connector arrangement
- Mounting dimensions
- Protective-device configuration
- Existing system load
A power module with a similar physical appearance is not automatically suitable for the same rack.
Lifecycle Strategy
The Procontic 500 architecture is a legacy PLC platform. For sites that still depend on this equipment, power-supply spares deserve high priority because a failed supply can affect an entire rack rather than a single I/O channel.
A recommended buffer-stock record includes:
- Complete model and part numbers
- Hardware revision
- Host rack model
- Input supply
- Output specifications
- Installed load
- Test results
- Storage date
- Replacement history
For migration projects, retain a tested 500PSM03a spare until the associated Procontic 500 rack has been fully removed from service.
8. Field Engineer’s Tech Notes
Tech Note 1 — Measure the supply under load.
A power supply can show a normal voltage reading with no significant load and then collapse when the rack is energized. Check the relevant output rails under representative operating conditions before declaring the module healthy.
Tech Note 2 — Check the rack load before installing the replacement.
If the original power supply failed because of an overloaded or shorted downstream circuit, installing another PSM03a without identifying the cause can damage the replacement. Check I/O modules, wiring, and downstream loads first (especially after field modifications).
9. Strict QA & Testing SOP
- Part Number Verification
Confirm 500PSM03a / 894-030375D / 136-011100 against the purchase order. - Nameplate Inspection
Photograph all model, serial, and identification markings. - Visual Inspection
Check the housing, PCB, connectors, terminals, heat sinks, capacitors, and mounting hardware. - Component Inspection
Look for discoloration, damaged components, corrosion, contamination, and previous repair work. - Input Circuit Test
Perform appropriate resistance and continuity checks before applying power. - Controlled Power-Up
Energize the module using a controlled test setup with appropriate protection. - Output Voltage Test
Measure all applicable output rails at no-load and representative load conditions. - Load Test
Connect a suitable controlled load and monitor voltage stability. - Protection Test
Check applicable fuse/protection behavior and response to controlled test conditions. - Thermal Test
Monitor temperature during extended operation and check for abnormal heating. - Rack Compatibility Test
Where a suitable Procontic 500 rack is available, verify startup and power distribution to the associated system. - Extended Run Test
Operate the module continuously for an appropriate test period. - Final QA Record
Document identification, measured output values, load conditions, and test date. - ESD and Shock Protection
Package the electronic assembly in suitable anti-static and impact-resistant material.
Test videos can be provided when available, together with actual product photographs and inspection records.
10. Buyer’s FAQ
Q1. Can 500PSM03a be hot-swapped?
Do not assume hot-swapping capability. A PLC rack power supply should be replaced only after the applicable Procontic 500 maintenance procedure has been followed and the system has been placed in a safe maintenance state.
Q2. What do 894-030375D and 136-011100 represent?
They are identification references associated with the 500PSM03a power-supply assembly. Use both numbers when possible because they provide a more precise purchasing reference for the legacy hardware.
Q3. What should I check if the PLC keeps restarting?
Start with the common power path: incoming supply, protective devices, 500PSM03a input, output voltage under load, rack connections, and total load. If the output drops or fluctuates during operation, the power module should be investigated closely.
Q4. Can another 500 Series power supply replace it?
Do not select a replacement solely because it belongs to the 500 Series. Verify input requirements, output rails, current capacity, connector arrangement, mounting, and rack compatibility against 500PSM03a 894-030375D 136-011100.
Q5. Should a replacement power supply be tested before installation?
Yes. A controlled bench test should verify startup, output voltage, load stability, protection behavior, and thermal performance before the module is introduced into a production PLC rack.
Q6. What should I specify when requesting a quotation?
Use the complete identification: ABB 500PSM03a 894-030375D 136-011100. Include quantity, required condition, destination, and photos of the existing unit. For critical systems, request test records, actual nameplate photos, warranty terms, and return conditions.
