Description
- Brand: ABB
- Full Model Number: 07KT94 GJR5252100R3261
- System/Series Family: ABB Advant Controller 31 / Advant OCS
- One-Sentence Core Function: Central controller unit for Advant Controller 31 systems, executing control logic and coordinating local and distributed I/O
- Top 3 Hardcore Specs: Motorola 68030 32-bit CPU; 24 VDC supply; up to 256 I/O points
- Stock Status: New Surplus / Fully Tested Refurbished subject to actual inventory inspection
Module 3: Commercial-Technical Deep Dive
A failed ABB 07KT94 can stop a legacy Advant Controller 31 system even when the connected I/O and field wiring remain intact. The GJR5252100R3261 is identified as an Advant Controller 31 Basic Unit, used within ABB Advant Controller 31 and Advant OCS systems. Available technical references identify a Motorola 68030 32-bit processor, 24 VDC operating supply, and support for distributed control architectures. ABB’s own product documentation also identifies the 07 KT 94 as a Control 07 KT 94 platform, while the exact suffix must be matched because ABB produced multiple GJR5252100Rxxxx variants.
For replacement work, the economic advantage is preserving an existing controller platform instead of migrating the application to a newer PLC. Secondary technical references associate this exact GJR5252100R3261 configuration with approximately 1 MB program memory, 128 kB data memory, Ethernet and RS-232C communications, and up to 256 I/O points. These details should be treated as configuration references rather than universal specifications for every 07KT94 revision. The critical point during procurement is exact hardware identity: a 07KT94 with another ordering suffix may look interchangeable but can differ in memory, communications, I/O, or firmware compatibility.

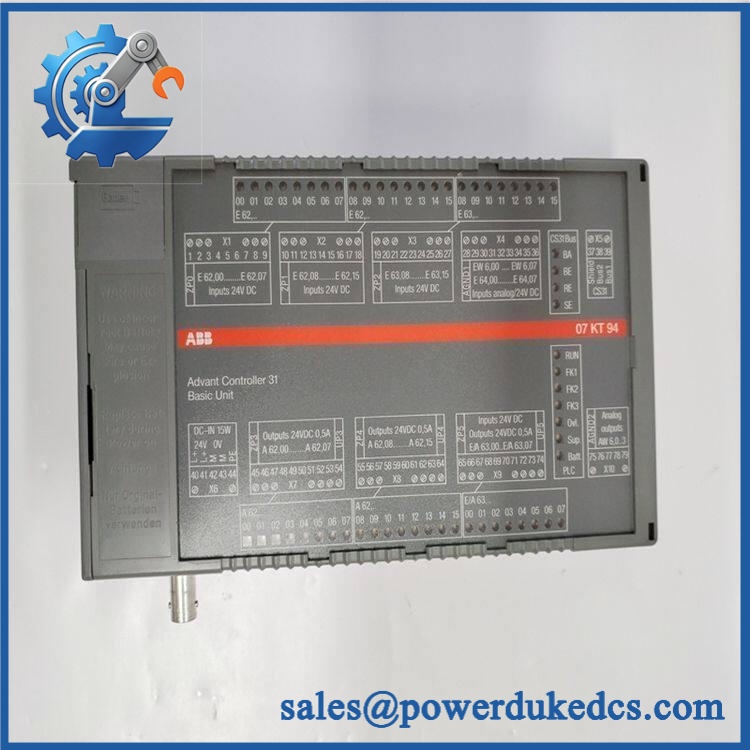

ABB 07KT94 GJR5252100R3261
Module 4: Compatibility & Installation Traps
Migration/Compatibility
- Replacement status: Configuration-specific ABB Advant Controller 31 Basic Unit / Control 07 KT 94.
- Logic rewrite: Normally not required for a like-for-like CPU replacement when the existing application, configuration, and connected I/O architecture are retained.
- Firmware flash: Configuration dependent. Record the existing firmware/software revision before replacement; do not overwrite it without confirming compatibility.
- Drop-in status: Potentially direct only when 07KT94 / GJR5252100R3261 matches the installed hardware revision and the existing controller configuration.
- Power: Available references identify 24 VDC supply for the 07KT94 family.
- Alternate identifiers: The 07KT94 family appears with multiple GJR5252100Rxxxx order numbers, so “07KT94” alone is insufficient for a controlled replacement.
⚠️ Field Traps (Watch Out)
- Part-number mismatch: Do not substitute another 07KT94 revision solely because the front label says 07KT94. The complete GJR5252100R3261 identifier is the safer procurement reference.
- Application/configuration loss: Before removing the original controller, preserve the available application program, configuration, communications parameters, and controller settings. A replacement CPU that powers up with factory/default data may still leave the plant unavailable.
- 24 VDC polarity: Verify the control-power polarity and supply voltage before energizing. A wiring mistake at the controller supply can damage the replacement immediately.
- Communication interface mismatch: Confirm the installed network architecture before assuming Ethernet or serial communications are implemented identically across all 07KT94 variants.
Module 5: Quality Assurance SOP
Before shipment, the ABB 07KT94 GJR5252100R3261 should undergo a controller-specific inspection sequence:
- OEM anti-counterfeit visual inspection — verify ABB markings, 07KT94 designation, complete GJR part number, PCB identification, connectors, housing, and label consistency.
- Mechanical inspection — inspect mounting points, terminal interfaces, connectors, ventilation openings, and PCB surfaces for impact, corrosion, contamination, or unauthorized repair.
- Configuration verification — confirm the complete identification and compare revision markings with the customer’s original unit.
- 24 VDC power verification — apply a controlled laboratory supply with current limiting before functional startup.
- Power-on self-test (POST) — energize the controller in an approved test rack and verify expected startup behavior and diagnostic/status indications.
- CPU and memory verification — confirm processor initialization and available memory according to the applicable configuration.
- I/O handshake verification — connect a compatible Advant Controller 31 I/O test configuration and verify controller-to-I/O communication.
- Communication verification — test applicable serial and Ethernet interfaces against the configured test environment.
- Application execution test — load a controlled test program where supported and verify deterministic execution, status handling, and I/O response.
- Watchdog and fault verification — verify controller diagnostic behavior under controlled fault conditions without connecting the test unit to a live process.
- Final QC record — document model, complete order number, firmware identification, test configuration, measurements, photographs, and packaging condition.
A PLC CPU should not be accepted because it merely powers on. Processor initialization, I/O communication, network access, application execution, and diagnostic behavior are the useful acceptance checkpoints.
Module 6: CRO-Driven Buyer FAQ
1. Is ABB 07KT94 obsolete, and how do I verify an authentic replacement?
The 07KT94 is a legacy Advant Controller 31 basic controller platform, and current industrial references continue to identify as the 07KT94 Advant Basic Controller Unit. For procurement, verify the complete marking, board revision, connector arrangement, and condition instead of purchasing against “07KT94” alone.
2. Can I hot-swap the 07KT94?
Do not assume hot-swap capability. This is the central controller of an Advant Controller 31 installation. Perform a controlled shutdown, isolate the 24 VDC supply, follow site LOTO procedures, and protect the controller and connected electronics against ESD before removal.
3. Will replacing the 07KT94 require rewriting the PLC application?
Usually not for a true like-for-like replacement, provided the original program and configuration are preserved and the replacement supports the same system architecture. The critical commissioning step is restoring the correct application, configuration, communications parameters, and I/O mapping.
4. What processor and power supply does the use?
Available technical references identify the 07KT94 as a 32-bit controller using a Motorola 68030 processor and a 24 VDC supply. One reference also lists approximately 1 MB program memory and 128 kB data memory for the configuration. Because ABB produced multiple 07KT94 order variants, verify the exact memory and communication configuration against the original unit before procurement.
5. What warranty and technical support are available?
Warranty duration should be stated according to the actual inventory condition, such as new surplus or tested refurbished. Technical support should cover exact part-number verification, Advant Controller 31 compatibility, firmware identification, application/configuration transfer, I/O communication checks, and documented pre-shipment testing. Live process commissioning and production database changes remain the responsibility of qualified controls personnel.
