ABB 07KT97 GJR5253000R0270 | Central Processing Unit PLC

Description

• Brand: ABB
• Full Model Number: GJR5253000R0270
• System/Series Family: ABB Advant Controller 31 / AC31
• One-Sentence Core Function: Central processing unit for ABB AC31 PLC systems with integrated I/O, CS31 bus, and Ethernet TCP/IP
• Top 3 Hardcore Specs: 24 digital inputs + 16 transistor outputs; 8 analog inputs + 4 analog outputs; 480 KB user-program memory with 256 KB user-data memory
• Stock Status: New surplus / fully tested refurbished, subject to exact inventory condition

ABB identifies GJR5253000R0270 as 07KT97, with the catalog description 07 KT 97 central processing unit. ABB documentation lists operation from 0 to +55°C, one CS31 bus, Ethernet TCP/IP, 50 kHz maximum hardware-counter input frequency, up to 1,024 digital I/O, and 256 KB user-data memory.

Module 3: Commercial-Technical Deep Dive

When an AC31 controller reaches end-of-life or its CPU fails during production, the limiting factor is often not I/O capacity but finding a controller with the same embedded architecture and communication interfaces. The ABB 07KT97 GJR5253000R0270 combines the CPU with local I/O and communications, making it a useful replacement for installed AC31 applications where preserving the existing control strategy matters. The documented configuration includes 24 × 24 VDC digital inputs, 16 × 24 VDC transistor outputs, 8 configurable analog inputs, and 4 analog outputs, while the communication architecture includes one CS31 bus and Ethernet TCP/IP.

The memory and processing specifications are more relevant to migration risk than headline CPU speed. ABB lists 480 KB for user-program storage and 256 KB for user data, while the legacy technical catalog specifies a nominal execution performance of 0.25 ms per 1 KB. The unit also supports a 50 kHz hardware-counter input frequency, useful for fast pulse-counting applications. With a documented operating range of 0 to +55°C, the controller fits typical industrial cabinet conditions, although cabinet temperature should still be checked at the actual mounting location rather than assumed from room temperature.

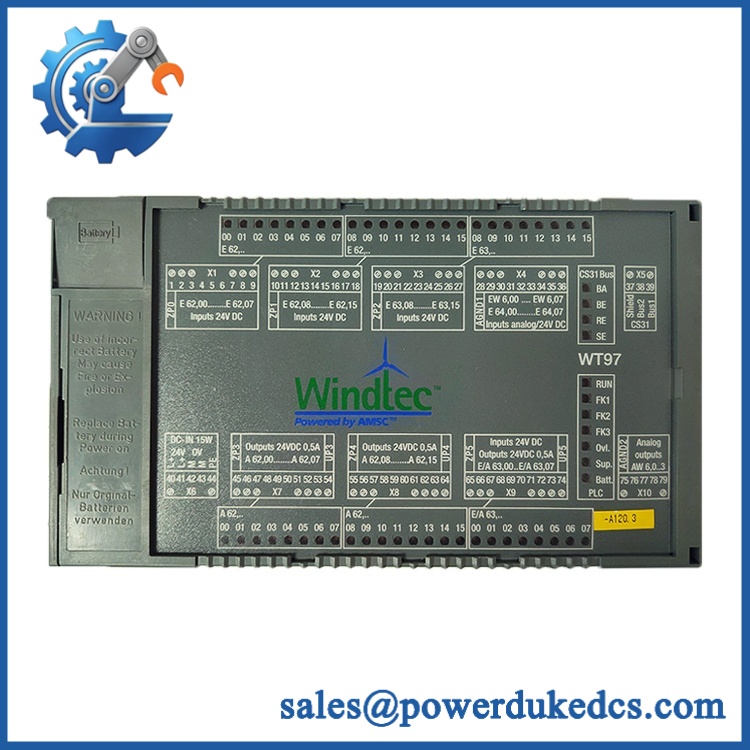

ABB 07KT97 GJR5253000R0270

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement type: Central processing unit for ABB Advant Controller 31 / AC31 systems.
• Firmware flash: May be required depending on the installed software revision and application backup. Do not assume two 07KT97 units are functionally identical solely from the front label.
• Logic rewrite: Normally not required for a same-model replacement when the original application and compatible project backup are available.
• Drop-in status: Mechanically and functionally suitable as a same-model replacement, subject to firmware, memory, communication configuration, and I/O settings.
• Programming environment: Historical AC31 documentation and product references associate the controller with ABB programming tools such as 907 AC 1131.
• Communication: Integrated CS31 system bus and Ethernet TCP/IP are part of the documented configuration.

⚠️ Field Traps (Watch Out)

1. Protect the existing application before swapping the CPU.
A replacement CPU is hardware-compatible only if the application image, retained data, firmware revision, and configuration are also compatible. Back up the current controller before removing it. Do not rely on memory retention alone.

2. Check the 24 VDC supply under load.
The 07KT97 is a 24 VDC controller. Measure supply voltage at the controller terminals during actual cabinet loading rather than checking an unloaded power supply. Voltage drop on long conductors or a marginal power supply can create symptoms that resemble CPU failure.

3. Do not treat every 07KT97 listing as the same hardware package.
Third-party records contain conflicting dimensions, weights, and environmental specifications. ABB’s current product data should take precedence for the core electrical specifications; use the physical unit and installed documentation for cabinet measurements.

4. Verify the field I/O assignment before reconnecting.
The CPU contains substantial onboard I/O: 24 digital inputs, 16 transistor outputs, 8 analog inputs, and 4 analog outputs. A wrong terminal assignment can produce valid-looking but incorrect process states immediately after commissioning.

Module 5: Quality Assurance SOP

Each ABB GJR5253000R0270 07KT97 unit should pass a documented pre-shipment inspection sequence:

• OEM anti-counterfeit visual inspection: Verify ABB branding, 07KT97 type designation, GJR5253000R0270 product ID, label quality, connector arrangement, housing construction, and visible revision markings.
• Part-number verification: Match GJR5253000R0270 against the purchase order and, where available, the installed controller BOM.
• Mechanical inspection: Check terminal blocks, connectors, DIN-rail mounting hardware, enclosure condition, ventilation openings, labels, and evidence of impact, corrosion, overheating, or unauthorized repair.
• Power-supply inspection: Verify the 24 VDC input path and inspect for damaged terminals, contamination, loose hardware, or abnormal resistance before energization.
• Power-on self-test (POST): Power the CPU in an approved test environment and verify expected startup behavior, diagnostic indicators, and absence of persistent controller faults.
• I/O verification: Exercise representative digital inputs, transistor outputs, analog inputs, and analog outputs against calibrated test equipment and record actual channel behavior.
• Communication handshake verification: Confirm CS31 bus communication and, where the test configuration supports it, Ethernet TCP/IP communication with the host system.
• Hardware counter verification: Where the test fixture permits, verify operation within the documented 50 kHz maximum hardware-counter input frequency.
• Memory check: Verify that the controller initializes correctly and that user-program and user-data memory areas are accessible without diagnostic errors.
• Final QC: Record the serial/identification data, photograph the nameplate, document test results, protect connectors, and package the CPU in ESD-safe material.

Module 6: CRO-Driven Buyer FAQ

1. Is ABB still a valid replacement for an installation?

ABB identifies as the 07KT97 central processing unit, and ABB technical material places this model in the /Advant Controller 31 family. It remains a relevant legacy spare where the installed control system requires this exact CPU architecture.

2. Can the 07KT97 be hot-swapped?

Do not assume hot-swap capability. CPU replacement should be performed with the controller isolated according to the applicable ABB maintenance procedure. The correct procedure also needs to address field I/O, retained memory, and the 24 VDC supply.

3. Does replacing require a program download?

A same-model CPU replacement will normally require restoration or verification of the application and configuration data. Whether a full program download is necessary depends on what remains available in the replacement CPU’s memory and the state of the original project backup. Always maintain a known-good application backup before replacement.

4. What are the key I/O and memory specifications?

The documented 07KT97 configuration provides 24 digital inputs, 16 transistor outputs, 8 analog inputs, and 4 analog outputs. ABB lists 480 KB user-program memory and 256 KB user-data memory; the analog input channels support voltage, current, and PT100 configurations.
