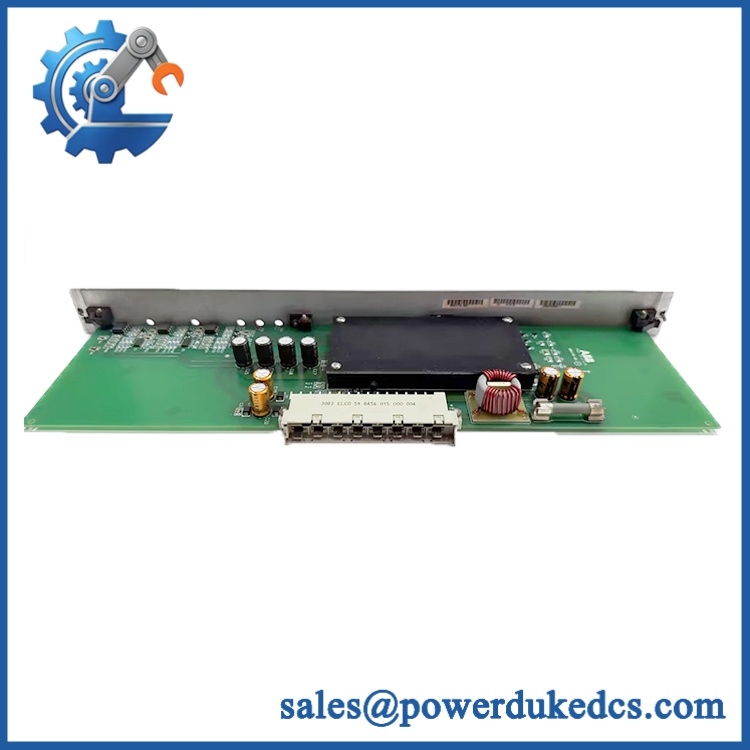

ABB 086370-001 | Original Replacement Module for ABB Accuray Systems

Description

• Model: ABB 086370-001
• Brand: ABB
• Series / Platform: ABB Accuray
• Part Type: PWA / PC Board / ECPSR Module
• Core Function: Provides the ECPSR board function associated with regulated +15 V and -15 V outputs within the applicable legacy automation architecture.
• Key Specs: 086370-001 product records identify the unit as “PWA, ECPSR, R.O. +15V,-15”. Other industrial references list it as an Accuray Module, with status LEDs and rack mounting.
• Product Category: ABB spare part / industrial automation PC board
• Lifecycle: Discontinued product; suitable inventory planning is important for installations that continue to operate the original Accuray hardware.

Product Introduction

Inside a legacy ABB control rack, an unavailable spare board can turn a relatively contained electronics fault into a prolonged maintenance outage. The ABB 086370-001 is identified as an ECPSR PWA and is associated with the ABB Accuray platform.

ABB’s OnCare Digital Assets database lists the exact product ID 086370-001 with the catalog description “PWA, ECPSR, R.O. +15V,-15.” Industrial automation references also classify the unit as an Accuray PC board/module, with rack-mount construction and status LEDs.

For maintenance teams supporting older ABB equipment, the part number is therefore important for legacy system maintenance, spare replacement, and lifecycle management. Keeping an exact-match board available can be useful when the installed architecture remains operational but the original component is no longer part of ABB’s current product portfolio.

Core Technical Specifications

ABB 086370-001

The ABB-derived product record provides the PWA, ECPSR, R.O. +15V,-15 description, product classification, weight, and ordering information. Radwell’s industrial listing identifies the unit as an ABB Accuray PC board, with 5–15 VDC, status LEDs, and rack mounting.

Application Scenarios & Pain Points

A refinery running a legacy control cabinet may retain 086370-001 as a maintenance spare because an electronics failure can interrupt a larger control function even when the surrounding rack remains serviceable. For long-running installations, exact spare availability becomes part of the maintenance strategy.

Within process-control equipment, the ECPSR board is associated with the specified +15 V / -15 V output function. A failed or unstable supply board can produce secondary symptoms across connected circuitry, making board-level troubleshooting important before replacing unrelated modules.

Power-generation facilities often operate equipment for decades. In such environments, a discontinued board can become a procurement bottleneck long before the complete control system reaches its planned replacement date.

For maintenance contractors supporting multiple legacy sites, maintaining several exact ABB part numbers reduces the time spent searching for obsolete electronics after an unexpected failure. A controlled spare pool is particularly useful when the installed fleet contains different board revisions.

At cabinet temperatures exceeding 50°C, technicians should pay close attention to thermal stress, connector condition, aging capacitors, and power-regulation components during inspection. Heat-related degradation can become more noticeable after extended operating periods.

Common Error Codes & Diagnostic Symptoms

Symptom/Code: +15 V / -15 V output abnormal
→ Diagnosis: The ECPSR power section or associated board circuitry may be affected. Check the incoming supply, board connections, and regulated output rails using the approved system test procedure.
→ Action: Replace the 086370-001 when board-level failure is established.

Symptom/Code: Status LEDs remain off after normal power application
→ Diagnosis: Inspect the rack supply, connector seating, board contacts, and PCB condition. If the host supply is present and the board remains inactive, the 086370-001 may require replacement.
→ Action: Install a tested replacement board.

Symptom/Code: Intermittent rack operation / recurring board dropout
→ Diagnosis: Inspect connectors, solder joints, power-regulation components, and thermal behavior. Intermittent operation can indicate degradation within the PCB assembly.
→ Action: Remove the suspect board for bench testing and replace it when the fault is isolated to the module.

Cross-Reference & Lifecycle Migration

Lifecycle Status

Discontinued / Legacy

Industrial product records identify ABB 086370-001 as discontinued by the manufacturer. The part remains listed in ABB’s OnCare Digital Assets database under the historical ABB product catalog.

For plants still operating the associated Accuray hardware, this makes buffer-stock planning particularly relevant. A practical strategy is to retain at least one tested spare for each critical installed board rather than waiting until a failure occurs.

Cross-Reference

The part number 086370-501 is listed by an industrial spare-parts source alongside 086370-001 and the same ECPSR PWA description.

For purchasing purposes:

• Primary part number: 086370-001
• Associated reference: 086370-501
• Functional designation: ECPSR
• Catalog description: PWA, ECPSR, R.O. +15V,-15
• Platform: ABB Accuray
• Firmware: This is a board-level PWA rather than a conventional programmable CPU module; firmware flashing is not a standard replacement procedure described for this part.
• Migration approach: Retain the exact 086370-001 where the existing system requires this board configuration.

When replacing a board in an operating rack, compare the part number, PCB revision, connector arrangement, mounting configuration, and host-system documentation before installation.

Field Engineer’s Tech Notes

Tech Note 1 — Check the board before energizing the rack.
Do not rely on the part number alone. Compare the replacement against the removed board, including connector locations, PCB markings, mounting points, and visible revision information. Legacy control hardware can contain closely related assemblies with different electrical functions.

Tech Note 2 — Protect the PCB from ESD.
Handle the 086370-001 using appropriate anti-static precautions. Keep the board inside its ESD-safe packaging until installation, and avoid touching exposed circuitry, connector contacts, or component leads. (A quick visual inspection is worthwhile before insertion.)

Strict QA & Testing SOP

A professional inspection process for ABB 086370-001 should include the following steps:

1. Part Number Check
   Confirm that the board label corresponds to 086370-001.
2. Nameplate Documentation
   Photograph the product label, serial information, PCB markings, and visible revision identifiers.
3. Visual PCB Inspection
   Examine the board for corrosion, cracked components, damaged connectors, burn marks, contamination, loose hardware, or previous repair work.
4. Connector Inspection
   Check connector housings and contacts for deformation, oxidation, contamination, or mechanical damage.
5. Component Inspection
   Inspect the power-regulation section, capacitors, resistors, protection components, and solder joints.
6. Electrical Pre-Test
   Perform appropriate resistance and continuity checks before controlled energization.
7. Controlled Power-Up
   Apply the specified test power using a suitable current-limited test setup.
8. Output Verification
   Measure the applicable regulated +15 V and -15 V rails and record the readings.
9. LED Verification
   Observe the board’s status indicators during startup and operation.
10. Functional Test
    Where the correct Accuray test environment is available, operate the board within the applicable rack configuration and monitor stability.
11. Thermal Observation
    Monitor the assembly during an extended test period to identify abnormal heating or intermittent behavior.
12. Final QA Record
    Record part number, serial number, inspection results, electrical readings, and test date.
13. ESD Packaging
    Place the tested board in anti-static packaging, add protective cushioning, and use a rigid shipping carton.

Test videos can be supplied when available, providing buyers with a visual record of the unit’s inspection and pre-shipment test condition.

Buyer’s FAQ

Q1. Can I hot-swap ABB 086370-001?

Treat the 086370-001 as a power-off replacement board unless the specific host-system documentation expressly permits energized replacement. Shut down and isolate the applicable equipment before removing the board, then follow the site’s approved lockout and electrical safety procedure.

Q2. How can I identify a genuine ABB 086370-001?

Check the ABB part number 086370-001, product labeling, PCB markings, physical construction, connector arrangement, and available manufacturing information. For a procurement transaction, request clear photos of the actual board rather than relying solely on a catalog image.

Q3. Is ABB 086370-001 still an active product?

The part is listed as discontinued in industrial product records. ABB’s historical product database still carries the 086370-001 record and its ECPSR description. This makes new-stock, unused, and professionally tested spare units valuable for maintaining older installations.

Q4. What warranty should I request?

For a replacement purchase, specify the warranty period and product condition directly on the quotation or purchase order. Ask whether the unit is new original, new surplus, or refurbished, and request the applicable test report and return terms.

Q5. Does 086370-001 require firmware configuration after replacement?

The 086370-001 is identified as an ECPSR PWA / PC board, rather than a conventional programmable controller CPU. Replacement work should therefore focus on correct board identification, electrical verification, physical installation, and compatibility with the existing Accuray architecture.
