Description
- Brand: ABB
- Full Model Number: 100472-012
- System/Series Family: ABB Process Automation / Spare Parts
- One-Sentence Core Function: Compact operator control panel providing local operator interaction with the associated ABB process-control equipment
- Top 3 Hardcore Specs: 180 mm length; 100 mm width; 20 mm height
- ABB Product Name: Operator Control Panel SP
- ABB Medium Description: Operator Control Panel MP
- Product Type: Spare Part
- Net Weight: 0.04 kg
- Gross Weight: 0.5 kg
- Minimum Order Quantity: 1 piece
- Made to Order: No
- Product Status: Spare Parts / Direct Inventory Item
- Stock Locations Reported: Menden, Germany; Wickliffe, Ohio, United States; Hong Kong; Singapore
- Stock Status: New Surplus / Factory Supply Subject to Availability

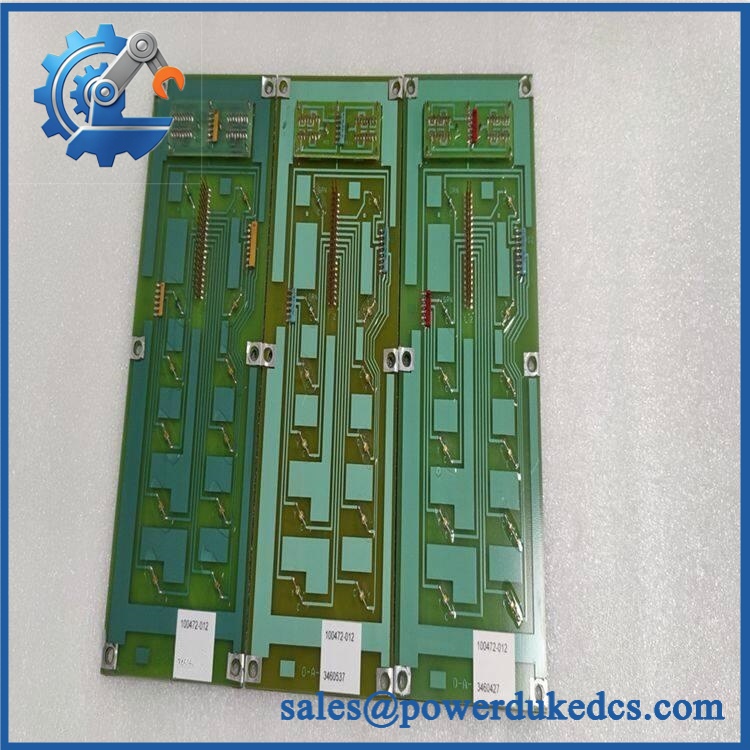

ABB’s product data identifies 100472-012 as OPERATOR CONTROL PANEL SP, with the medium description OPERATOR CONTROL PANEL MP. The published ABB-linked specifications list a net height of 20 mm, length of 180 mm, width of 100 mm, and net weight of 0.04 kg.
ABB 100472-012
Module 3: Commercial-Technical Deep Dive
When a local operator interface fails, replacing the entire control system is usually disproportionate to the actual fault. The ABB 100472-012 is identified as an Operator Control Panel SP, intended as a spare component within ABB process-automation equipment. Its compact mechanical envelope—180 mm × 100 mm × 20 mm with a listed net weight of only 40 g—makes exact physical identification important during maintenance. ABB’s own inventory-oriented product data classifies it as a spare part rather than a general-purpose PLC CPU or standalone process controller.
The commercial advantage is straightforward: a correct panel-level replacement preserves the installed operator-control architecture without forcing a redesign around a generic HMI. However, the public ABB record does not provide enough verified information to state the display technology, key count, electrical supply, communication protocol, connector pinout, or supported controller families with confidence. Several secondary listings describe the 100472-012 differently, including claims of RS-485 or Modbus RTU functionality, but those specifications are not established by the ABB inventory record reviewed here. For procurement, the complete part number, physical dimensions, label information, and mating-controller compatibility should therefore take priority over unsupported third-party electrical claims.
Module 4: Compatibility & Installation Traps
Migration/Compatibility
- Primary Function: ABB Operator Control Panel SP
- Catalog Number: 100472-012
- ABB Product Name: OPERATOR CONTROL PANEL SP
- Medium Description: OPERATOR CONTROL PANEL MP
- Product Type: Spare Part
- Mechanical Size: 180 × 100 × 20 mm
- Net Weight: 0.04 kg
- Replacement Type: Exact part-number replacement strongly preferred
- Controller Compatibility: Must be confirmed against the installed ABB equipment and original panel assembly
- Configuration: Application dependent; preserve existing panel/controller settings where supported
- Logic Rewrite: Normally not expected for an exact panel replacement, but controller-side configuration may require validation
- Electrical Specification: Verify from the equipment-specific ABB manual because the public inventory record does not establish a complete interface specification
⚠️ Field Traps (Watch Out)
1. Do not assume this is a generic HMI.
ABB categorizes 100472-012 as an Operator Control Panel SP spare part. A generic panel with similar dimensions is not automatically electrically or mechanically compatible.
2. Verify the rear connector and mounting arrangement before shipment.
The published ABB product record gives useful external dimensions but does not expose a complete connector pinout. Match the replacement against the existing panel’s rear-side connector configuration and mounting hardware.
3. Ignore unverified interface claims until the original equipment manual confirms them.
Some secondary listings describe the 100472-012 as an RS-485/Modbus RTU operator panel, while other records categorize it simply as an ABB spare operator panel. Treat protocol information as application-specific until confirmed from the installed equipment documentation.
Module 5: Quality Assurance SOP
Each available ABB 100472-012 should undergo a documented panel-level inspection and functional test before shipment:
- OEM anti-counterfeit visual inspection: Verify ABB identification, complete 100472-012 part number, panel markings, label quality, enclosure geometry, connector arrangement, and manufacturing identifiers.
- Part-number verification: Photograph the complete nameplate or identification label and confirm the exact 100472-012 designation.
- Mechanical inspection: Check the panel face, mounting points, enclosure, keys/buttons, display area, connector body, and fastening hardware for damage.
- Dimensional verification: Confirm the ABB-listed dimensions of approximately 180 × 100 × 20 mm where the customer’s installation requires exact fit.
- Weight verification: Record the measured unit weight against the listed 0.04 kg net weight where useful for traceability.
- Power-input inspection: Verify the panel’s actual supply requirements from the applicable ABB equipment documentation before applying power.
- Power-on self-test (POST): Connect the panel to an approved test fixture and verify normal initialization, display behavior, indicators, and operator inputs where supported.
- Key/input verification: Test every accessible key or operator input against the approved service procedure.
- Display verification: Confirm all display segments or visual indicators operate correctly where fitted.
- Communication handshake verification: Establish communication with the compatible ABB host system or test fixture and verify panel recognition.
- Control-command verification: Simulate representative operator commands and confirm correct transmission to the host without connecting uncontrolled production equipment.
- Alarm/status verification: Verify that representative status or alarm information is correctly presented on the panel where supported.
- Connector integrity test: Check continuity and mechanical retention of the applicable interface connector(s).
- Final QC record: Record catalog number, label data, dimensions, test fixture, display/input results, communication results, and technician sign-off.
- ESD-safe packaging: Protect the control panel against electrostatic discharge, impact, moisture, and cosmetic damage during shipping.
The ABB-linked inventory record also identifies Menden, Wickliffe, Hong Kong, and Singapore among stocked locations, which supports the classification of 100472-012 as an established spare-part item rather than a custom-built assembly.
Module 6: CRO-Driven Buyer FAQ
What is ABB 100472-012?
ABB 100472-012 is identified as an Operator Control Panel SP. ABB’s product data classifies it as a spare part and lists the associated medium description as Operator Control Panel MP.
What are the dimensions of ABB 100472-012?
ABB-linked product data lists approximately 180 mm length × 100 mm width × 20 mm height, with a net weight of 0.04 kg. These values are useful for replacement planning and cabinet clearance checks.
Is 100472-012 a PLC CPU or digital I/O module?
No. The strongest available ABB identification classifies it as an operator control panel spare part, not a PLC CPU or conventional digital I/O module. Some secondary websites assign unrelated automation specifications to the part, so those descriptions should not override the ABB product identity.
Can I replace 100472-012 with any similar ABB operator panel?
Not automatically. The correct replacement must match the host system, connector arrangement, mounting geometry, electrical interface, and controller-side configuration. Exact part-number matching is the preferred approach for a legacy panel spare.
Can the panel be replaced while the system is powered?
Do not assume live replacement. The correct procedure depends on the host ABB equipment and the panel’s actual electrical interface. Isolate the applicable control power and follow the equipment-specific maintenance procedure unless the OEM documentation explicitly permits powered replacement.
What warranty and technical support should I expect?
Warranty duration should be stated for the exact unit condition and test status on the quotation. Technical support should cover part-number verification, physical compatibility, host-system identification, connector review, installation guidance, and documented panel functional testing. Custom HMI development or application-specific control engineering should be treated separately unless explicitly included.
