ABB 1SFB536068D1011 | PSTB Soft Starter Main Control Board

Description

• Brand: ABB
• Full Model Number: 1SFB536068D1011
• System/Series Family: ABB PST / PSTB Softstarters
• One-Sentence Core Function: Main electronic control board for ABB PSTB-series softstarters, coordinating motor-start control, monitoring, protection, and user-interface functions
• Top 3 Hardcore Specs: PSTB control-board architecture; associated with PSTB570-600-70; 570 A / 208–600 VAC softstarter application
• Stock Status: New Surplus / Fully Tested Refurbished subject to actual inventory inspection

Module 3: Commercial-Technical Deep Dive

A failed control board inside a large softstarter can leave the entire motor starter unusable even when the SCR power section and bypass hardware remain intact. The ABB 1SFB536068D1011 is identified by industrial parts references as the main electronic card for the PSTB570-600-70 and as a motherboard/control board used across the PST/PSTB softstarter family. ABB’s current product data identifies the PSTB570-600-70 as a 570 A softstarter for 208–600 VAC main circuits, with 110–240 VAC, 50/60 Hz control supply.

The hard ROI is restoration of the existing softstarter architecture without replacing the complete power assembly. The associated PSTB570-600-70 provides adjustable ramp times up to 120 seconds, current-limit functionality, electronic overload protection, analog output capability, multiple signal relays, and FieldBus communication. The 1SFB536068D1011 is the electronic control layer behind those functions, so matching the exact board is critical. Technically, the board should not be selected solely by softstarter family; firmware, connector arrangement, board revision, and the exact PST/PSTB power rating all matter during replacement.

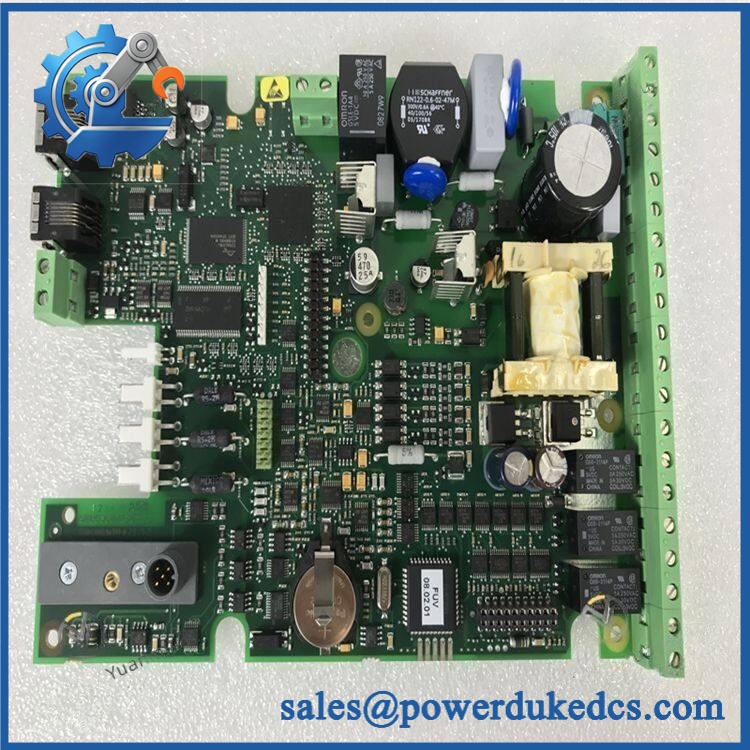

ABB 1SFB536068D1011

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: Configuration-specific ABB PST/PSTB softstarter main electronic control board.
• Logic rewrite: Normally not required for a direct board replacement when the same PST/PSTB model and original control configuration are retained.
• Firmware flash: Configuration dependent. Verify the installed program/firmware before commissioning; do not overwrite a functioning configuration without a documented reason.
• Drop-in status: Potentially direct for the correct PST/PSTB hardware revision, but board-level compatibility must be confirmed against the complete softstarter assembly.
• Known association: Industrial parts references identify 1SFB536068D1011 as the main electronic card for PSTB570-600-70.

⚠️ Field Traps (Watch Out)

• Wrong PSTB rating: The same physical board family can be associated with multiple PST/PSTB ratings. Confirm the existing softstarter type before installing the replacement; PSTB570-600-70 is a 570 A unit with a 208–600 VAC main-circuit range.
• Control-power mismatch: The associated uses a 110–240 VAC control supply according to ABB’s product data. Do not infer the board’s permissible supply range from a different PST/PSTB model.
• Live SCR cabinet exposure: Disconnecting the control board does not make the power section safe. The softstarter’s main circuit can be rated up to 600 VAC and stores hazardous energy; use controlled isolation and LOTO before removing the PCB.
• Connector/configuration mismatch: A board that mechanically fits can still be wrong for the installed PST/PSTB revision. Photograph the original connector positions and board markings before removal.

Module 5: Quality Assurance SOP

Before shipment, the ABB 1SFB536068D1011 should undergo a softstarter-control-board-specific inspection:

1. OEM anti-counterfeit visual inspection — verify ABB markings, complete part number, PCB identification, connector layout, component population, and board construction.
2. PCB condition inspection — check for corrosion, contamination, cracked solder joints, damaged terminals, overheated components, and unauthorized modifications.
3. Configuration verification — compare the board against the customer’s stated PST/PSTB model and, where available, photographs of the original board.
4. Power-on self-test (POST) — install the board in a compatible ABB softstarter test assembly and verify expected startup behavior, keypad/display communication, and status indications.
5. Control-interface verification — confirm communication between the control board and the compatible softstarter power stage.
6. Motor-start simulation — where a suitable test fixture exists, simulate representative start commands and verify control behavior without connecting a production motor.
7. Protection-function verification — check applicable overload, fault, ready, run, and protection indications against the test configuration.
8. Signal-output verification — where supported by the test setup, verify relay and analog signal functions.
9. Communication handshake verification — test the supported FieldBus/service interface when included in the equipment configuration.
10. Final QC record — document model number, board revision, firmware/program identification where accessible, test setup, measured results, photographs, and packaging condition.

For a softstarter control board, power-up alone is not a valid acceptance test. The board must communicate correctly with the power stage and demonstrate the expected start, protection, monitoring, and fault-handling functions.

Module 6: CRO-Driven Buyer FAQ

1. Is ABB 1SFB536068D1011 obsolete, and how do I verify an authentic replacement?

The part is legacy PST/PSTB softstarter control hardware and remains listed by industrial automation suppliers as a replacement/main electronic card. For procurement, verify the complete 1SFB536068D1011 number, PCB revision, connector arrangement, and the exact PST/PSTB softstarter model. Do not purchase based only on the phrase “PST control board.”

2. Can I hot-swap the 1SFB536068D1011?

No—do not assume hot-swap capability. The board is installed inside a softstarter containing potentially hazardous high-voltage power circuitry. For the associated , the main circuit is rated 208–600 VAC. Use a controlled shutdown, isolate all power sources, verify absence of voltage, and follow site LOTO procedures before removing the board.

3. Will replacing the board require reprogramming?

Not necessarily. A matching replacement can often retain the established softstarter configuration, but the board revision, programmed parameters, motor data, protection thresholds, and communication settings must be verified. Do not assume that a factory-default replacement will reproduce the customer’s existing motor-start profile.

4. Which softstarter is this board associated with?

Industrial parts documentation specifically identifies 1SFB536068D1011 as the main electronic card for . ABB identifies the as a 570 A, 208–600 VAC softstarter with a 110–240 VAC control supply.

5. What warranty and technical support are available?
