ABB 1SVR011700R0000 | CC-E/STD Analog Signal Converter

Description

• Brand: ABB
• Full Model Number: 1SVR011700R0000
• System/Series Family: CC-E Electronic Interface Products
• One-Sentence Core Function: Multifunction analog signal converter for converting standard voltage and current process signals
• Top 3 Hardcore Specs: 24 VDC supply; 0–5/0–10 V and 0/4–20 mA input/output ranges; 22.5 mm DIN-rail housing
• ABB Type: CC-E/STD
• Input Signals: 0–5 V, 0–10 V, 0–20 mA, 4–20 mA
• Output Signals: 0–5 V, 0–10 V, 0–20 mA, 4–20 mA
• Programming: DIP-switch configuration
• Mounting: DIN rail
• Protection: IP20
• Operating Temperature: 0°C to +60°C
• Dimensions: 22.5 × 75 × 107 mm
• Net Weight: 0.088 kg
• Product Status: Withdrawn / Obsolete
• Stock Status: New Surplus / Factory Sealed Subject to Availability

ABB identifies 1SVR011700R0000 as CC-E/STD, a standard multifunction signal converter with a 24 VDC supply. Its supported input and output ranges include 0–5 V, 0–10 V, 0–20 mA, and 4–20 mA. ABB’s catalog lists a net weight of 0.088 kg.

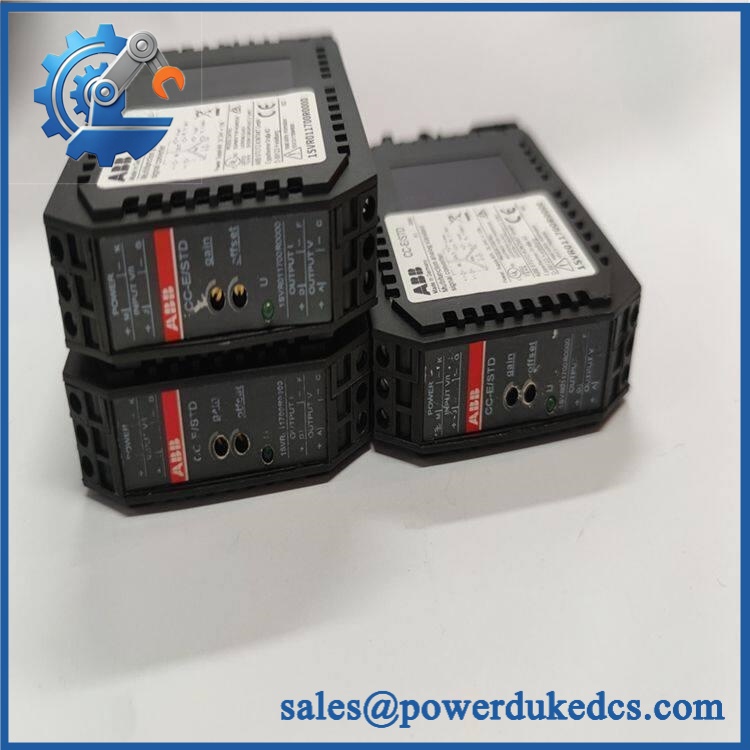

ABB 1SVR011700R0000

Module 3: Commercial-Technical Deep Dive

A bad analog interface can corrupt a control loop without taking the controller itself offline. The ABB 1SVR011700R0000 CC-E/STD is designed to sit between standard industrial analog signals and the receiving control circuit, converting selectable voltage and current ranges without requiring a separate converter for every signal type. The unit accepts 0–5 V, 0–10 V, 0–20 mA, or 4–20 mA and can provide the same four ranges at its output. Its 24 VDC control supply and narrow DIN-rail enclosure make it suitable for compact control cabinets where channel-level signal conditioning is required.

The physical specification is equally practical: ABB lists a 22.5 mm width, 75 mm height, 107 mm depth, and 0.088 kg net weight. The converter is configured by DIP switches, so a replacement is not necessarily electrically correct just because it powers up and passes one signal. The input type, output type, and associated scaling must match the original installation. One lifecycle point is important for procurement: ABB’s current lifecycle documentation lists 1SVR011700R0000 in the obsolete/discontinued CC-E product group, while distributor data also identifies the unit as withdrawn from the offer. For a legacy cabinet, verified surplus stock can therefore be more practical than redesigning the signal-conditioning stage.

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Primary Function: Multifunction analog signal conversion
• ABB Type: CC-E/STD
• Catalog Number: 1SVR011700R0000
• Supply: 24 VDC
• Input: 0–5 V, 0–10 V, 0–20 mA, 4–20 mA
• Output: 0–5 V, 0–10 V, 0–20 mA, 4–20 mA
• Mounting: DIN rail
• Configuration: DIP-switch selectable
• Physical Width: 22.5 mm
• Product Status: Withdrawn / Obsolete
• Replacement Type: Exact replacement preferred; no unconditional successor is established by the sources reviewed
• Logic Rewrite: Normally not required because this is a signal-conditioning device, but controller scaling and loop configuration must be verified
• Engineering Check: Confirm the original input/output signal combination before substitution

⚠️ Field Traps (Watch Out)

1. DIP-switch configuration is part of the device’s functional identity.
The CC-E/STD is a multifunction converter rather than a fixed-range isolator. Record the switch positions before removing the failed unit and reproduce the intended input/output configuration on the replacement.

2. Current and voltage loops must not be treated as interchangeable wiring.
A 4–20 mA transmitter loop and a 0–10 V signal require different terminal and configuration arrangements. Verify the actual field signal with a calibrated meter before setting the replacement converter.

3. Check cabinet temperature.
The distributor specification lists an operating range of 0°C to +60°C. A control cabinet operating above that range requires a different environmental assessment rather than assuming the converter is suitable because nearby PLC hardware is rated for a wider range.

4. Do not assume a newer CC-E-family code is a direct substitute.
ABB’s lifecycle documentation shows the original 1SVR011700R0000 in the discontinued CC-E group, but the sources reviewed do not establish a specific drop-in successor for this exact order code. Match the actual signal function before selecting an alternative.

Module 5: Quality Assurance SOP

Each available ABB 1SVR011700R0000 should undergo a documented signal-converter inspection and functional test before shipment:

• OEM anti-counterfeit visual inspection: Verify ABB identification, complete 1SVR011700R0000 catalog number, CC-E/STD designation, terminal markings, housing geometry, and manufacturing identifiers.
• Part-number verification: Confirm the exact order code and document any visible revision information.
• Mechanical inspection: Check the DIN-rail clip, housing, terminal blocks, adjustment/configuration elements, and enclosure for cracks or deformation.
• PCB condition inspection: Inspect accessible electronic areas for corrosion, contamination, cracked components, thermal damage, and evidence of previous repair.
• DIP-switch inspection: Record all configuration-switch positions before functional testing.
• Power-on self-test (POST): Apply controlled 24 VDC supply and verify normal startup behavior.
• Voltage-input testing: Apply calibrated 0–5 V and 0–10 V signals and verify the configured outputs.
• Current-input testing: Apply calibrated 0–20 mA and 4–20 mA signals and verify corresponding output behavior.
• Output verification: Measure voltage and current outputs using calibrated laboratory instruments and compare against the approved tolerance specification.
• Configuration verification: Test representative input/output combinations to confirm the converter responds correctly to the DIP-switch configuration.
• Loop-response check: Apply low, mid-scale, and full-scale signals and verify proportional output behavior.
• Power-supply observation: Monitor the 24 VDC input for abnormal current consumption or thermal behavior during continuous operation.
• Thermal observation: Verify stable operation within the published 0°C to +60°C operating range where environmental testing is available.
• Final QC record: Record catalog number, DIP-switch setting, input/output configuration, measured values, test instruments, trace information where available, and technician sign-off.
• ESD-safe packaging: Package the converter in ESD-protective material with mechanical protection for the terminal blocks and DIN-rail mounting mechanism.

The critical test is not simply “24 VDC applied and LED illuminated.” A credible report should state the actual input signal, configured output signal, measured output, and configuration-switch state. That provides the buyer with evidence that the converter was functionally tested for its intended signal-conditioning role.

Module 6: CRO-Driven Buyer FAQ

What is ABB 1SVR011700R0000?

ABB 1SVR011700R0000 is the CC-E/STD multifunction analog signal converter. It operates from 24 VDC and supports standard voltage and current input/output ranges used for industrial analog signal conditioning.

What signals can the CC-E/STD accept and output?

The documented ranges are 0–5 V, 0–10 V, 0–20 mA, and 4–20 mA for both input and output, subject to the selected configuration. The converter uses DIP-switch settings to establish the required function.

Is ABB 1SVR011700R0000 obsolete?

Yes. ABB’s lifecycle documentation places this order code within the discontinued/obsolete CC-E product group, and distributor information identifies the product as withdrawn from the offer. For legacy equipment, verified surplus or professionally tested stock can therefore be relevant for maintenance continuity.

Can I replace it with another analog signal converter?

Not by signal range alone. Match the input type, output type, supply voltage, isolation/function, DIP-switch arrangement, DIN-rail dimensions, and terminal configuration. A converter that supports 4–20 mA but uses a different terminal architecture or scaling method is not automatically a direct replacement.

Can the 1SVR011700R0000 be replaced while powered?

Do not treat it as a routine live-swap device. Isolate the 24 VDC control supply and the associated field signal circuits before replacement unless the plant procedure and applicable ABB documentation specifically authorize powered work.

What warranty and technical support should I expect?

Warranty duration should be stated for the exact unit condition and test status on the quotation. Technical support should cover part-number verification, input/output configuration, DIP-switch setup, installation guidance, and documented signal-conversion testing. Process-loop commissioning or controller-side scaling changes should be treated separately unless explicitly included.
