Description
- Brand: ABB
- Full Model Number: 3BHB003230R0101
- System/Series Family: ABB GVC704AE01 / Medium-Voltage IGCT Drive Systems
- One-Sentence Core Function: Gate-drive and power-control board used to control ABB IGCT semiconductor switching in medium-voltage converter systems
- Top 3 Hardcore Specs: GVC704AE01 designation; IGCT gate-control function; medium-voltage drive application
- Stock Status: New Surplus / Fully Tested Refurbished — exact board marking, revision, and assembly identity verified before shipment
Module 3: Commercial-Technical Deep Dive
A failed IGCT gate-drive board can disable a medium-voltage converter even when the main controller, fiber network, and power semiconductor remain intact. The ABB 3BHB003230R0101 is associated with the GVC704AE01 gate/control assembly used with ABB medium-voltage IGCT power stages. Current technical references identify it as a power-drive or gate-unit board responsible for generating the controlled drive signals required by the IGCT switching stage. This is a critical distinction: it is not simply another PLC or low-voltage drive control card.
Part-number discipline is especially important here because public references disagree about the associated 5SHX device. One source pairs 3BHB003230R0101 with 5SHX1060H0001, while another associates it with 5SHX1445H0001 / 3BHL000391P0101.That conflict means the installed drive nameplate, GVC704 revision, gate-unit marking, and connected IGCT identifier should be treated as the final compatibility criteria. For a production medium-voltage drive, confirming the complete stack assembly before shipment is far safer than selecting a replacement from the base GVC704 name alone.
Module 4: Compatibility & Installation Traps
Migration/Compatibility
- Replacement status: Configuration-specific gate-drive/power-drive board for ABB medium-voltage IGCT converter assemblies.
- Primary identification: 3BHB003230R0101, associated in current references with GVC704AE01.
- Application: Used within ABB medium-voltage drive power stages where IGCT devices require the corresponding gate-control circuitry.
- Firmware requirement: No routine field firmware flash should be assumed for the gate board itself. The critical parameters are the hardware revision, gate-unit type, optical/control interface, and matching IGCT stack.
- Logic rewrite: Not applicable as a PLC-program replacement. System commissioning should verify gate commands, status feedback, interlocks, and protection behavior after installation.
- Compatibility caveat: Do not assume every GVC704 variant uses the same IGCT device. Current references disagree on the associated 5SHX device for this exact product number.
⚠️ Field Traps (Watch Out)
- Gate-unit/device mismatch: A visually similar gate board can have different gate-drive characteristics or optical interfaces. Match the exact GVC704 revision and the connected IGCT part number.
- Fiber-optic damage: Inspect every optical fiber connector before commissioning. A gate board can power up normally while the drive remains blocked because command or status feedback is missing.
- Isolation assumptions: One current technical reference explicitly notes that the gate unit does not itself provide the required potential separation from the high-voltage semiconductor; the complete supply cable and output arrangement must meet the drive’s insulation requirements.
- Medium-voltage stored energy: Isolate the converter, discharge the DC link, verify zero energy, and follow the approved ABB maintenance procedure before handling the board.

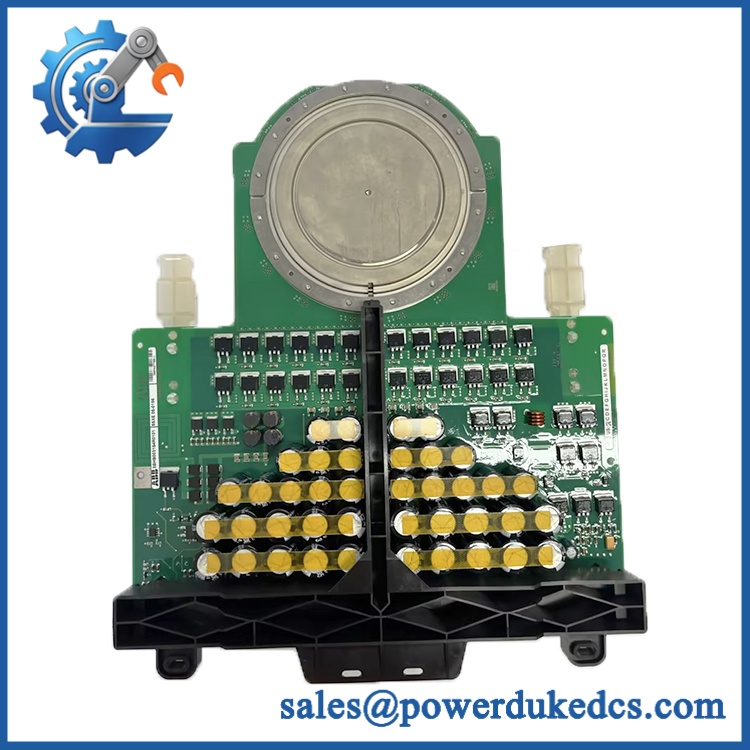

ABB 3BHB003230R0101 GVC704AE01
Module 5: Quality Assurance SOP
Our pre-shipment inspection for an ABB 3BHB003230R0101 / GVC704AE01 focuses on exact hardware identity and gate-control integrity:
- OEM anti-counterfeit visual inspection — verify ABB markings, 3BHB003230R0101 identifier, GVC704AE01 designation, revision markings, connectors, fiber interfaces, and PCB construction.
- Board identity capture — photograph every readable label and secondary marking before testing.
- Revision verification — compare the supplied revision with the customer’s removed board and, where available, the complete drive-stack documentation.
- PCB condition inspection — inspect solder joints, connectors, optical interfaces, capacitors, power components, contamination, corrosion, and thermal discoloration.
- Auxiliary-supply inspection — verify the board’s required low-voltage supply arrangement from the applicable ABB documentation before energization.
- Power-on self-test (POST) — apply controlled auxiliary power and observe startup current, status LEDs, diagnostics, and abnormal heating.
- Gate-drive verification — where an approved test fixture is available, verify the gate-control output using the manufacturer-approved method rather than improvised high-voltage testing.
- Optical-interface test — check command and status fiber paths for continuity and reliable communication with compatible test equipment.
- IGCT compatibility check — record the connected IGCT device identification and confirm that it corresponds to the gate-unit configuration before power-stage testing.
- Interlock verification — verify gate-blocking, enable, fault, and status-feedback paths under controlled conditions.
- Controlled power-stack test — where qualified medium-voltage test equipment is available, verify the complete gate-drive/IGCT assembly under controlled operating conditions.
- Thermal observation — monitor the gate unit for abnormal temperature rise, unstable status behavior, or intermittent optical communication.
- Configuration record — document board revision, associated IGCT part number, test fixture, measured values, and inspection photographs.
- Final QC review — cross-check all recorded identifiers against the customer’s requested drive configuration.
- ESD and mechanical packaging — use antistatic protection, fiber-connector protection, rigid cushioning, and moisture control before shipment.
The public record reliably identifies 3BHB003230R0101 as an ABB drive/gate-control board and associates it with , but the published IGCT pairing is inconsistent across secondary sources. That is why our acceptance process treats the complete gate-unit and IGCT stack identification as mandatory.
Module 6: CRO-Driven Buyer FAQ
1. Is ABB 3BHB003230R0101 obsolete, and how do I verify authenticity?
Current industrial spare-parts references identify 3BHB003230R0101 as an ABB drive/gate-control board, while Electrical.com lists it as discontinued by the manufacturer. Verify the complete ABB identifier, designation, board revision, optical connectors, and physical PCB layout before accepting a replacement.
2. Is 3BHB003230R0101 the same as the IGCT module itself?
No. The 3BHB number identifies the gate/control or power-drive board, while the associated 5SHX/3BHL identifiers refer to the power semiconductor. The two components must be treated as a matched converter-stack configuration.
3. Can 3BHB003230R0101 be hot-swapped?
Do not assume live replacement is permitted. This board operates in a medium-voltage IGCT converter environment, where stored electrical energy and high-voltage insulation constraints remain relevant even after the controller stops. Use the applicable ABB shutdown, discharge, isolation, and LOTO procedure before removal.
4. Which IGCT does 3BHB003230R0101 control?
Public references are inconsistent. One current source identifies 5SHX1060H0001, while another identifies 5SHX1445H0001 / 3BHL000391P0101.For procurement, the correct answer should come from the installed GVC704 revision, drive model, and physical IGCT marking rather than from a generic web listing.
5. What warranty and technical support should I expect?
Warranty duration should be stated on the quotation for the exact physical board supplied. Technical support should cover part-number verification, GVC704 revision matching, optical-interface checks, associated IGCT identification, installation guidance, and documented pre-shipment test results. It should not substitute for medium-voltage drive commissioning or qualified power-electronics service
