ABB 3BHB003387R0101 5SHX0845F0001 | IGCT Module for Drives

Description

• Brand: ABB
• Full Model Number: 3BHB003387R0101
• System/Series Family: ABB IGCT medium-voltage drive and converter hardware
• One-Sentence Core Function: Gate/control interface unit associated with the ABB 5SHX0845F0001 IGCT power semiconductor assembly
• Top 3 Hardcore Specs: 5SHX0845F0001 device association; 51 mm press-pack / 4.5 kV IGCT class; approximately 1.81 kg device weight
• Stock Status: New surplus / fully tested refurbished, subject to exact assembly and marking

Available technical references associate 3BHB003387R0101 with the 5SHX0845F0001 IGCT family and 3BHL000385P0101, with the latter listed as the product ID for the 51 mm / 4.5 kV IGCT module. Another technical listing specifically describes 3BHB003387R0101 as an IGCT controller or gate-unit-related assembly.

Module 3: Commercial-Technical Deep Dive

A semiconductor replacement is only useful when the associated gate-control hardware is correctly identified. ABB 3BHB003387R0101 is repeatedly cross-referenced with ABB’s 5SHX0845F0001 IGCT family and with 3BHL000385P0101, which is listed as a 51 mm / 4.5 kV coated IGCT module. Separate technical listings identify 3BHB003387R0101 as an IGCT controller or gate-unit assembly, so buyers should distinguish the control interface from the press-pack semiconductor itself before ordering.

For inventory planning, the associated 5SHX0845F0001 device is reported at approximately 1.81 kg, with a 51 mm package and 4.5 kV class. One technical source reports an 820 A RMS current at Tc = 85°C, 4,100 A surge current for 1 ms, 125°C maximum junction temperature, approximately 0.015 K/W junction-to-sink thermal resistance, and a 35 kN ±10% mounting force. Those figures apply to the 5SHX0845F0001 semiconductor, not automatically to the 3BHB003387R0101 assembly itself.

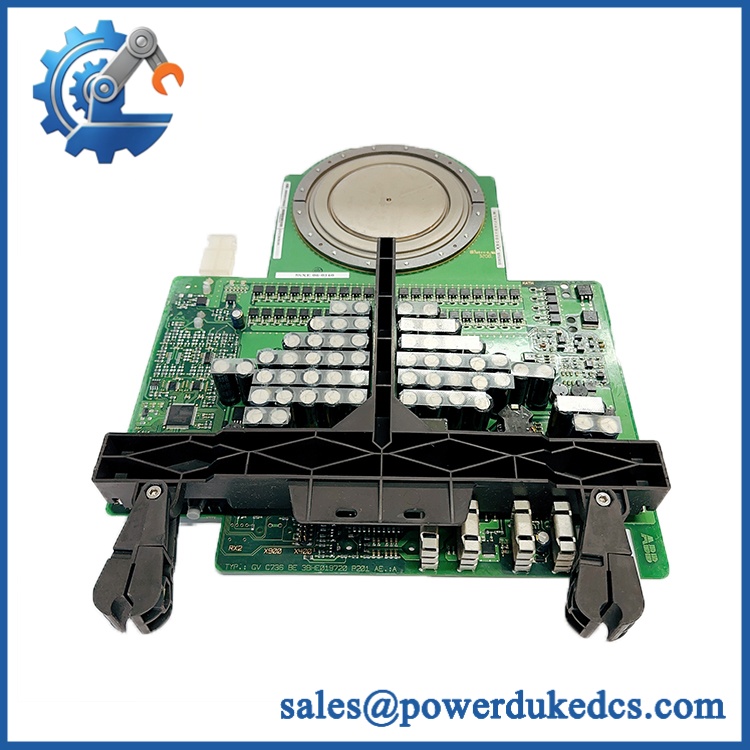

ABB 3BHB003387R0101 5SHX0845F0001

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement type: IGCT gate/control interface assembly associated with ABB 5SHX0845F0001 converter hardware
• Associated IGCT: 5SHX0845F0001
• Related ABB product ID: 3BHL000385P0101
• Firmware flash: Not applicable to the gate/interface hardware itself
• Logic rewrite: Not applicable to the semiconductor or gate-unit replacement itself
• Drop-in status: Only after exact converter and hardware-revision verification
• Electrical matching: Gate-drive characteristics, optical interface, auxiliary supply, protection functions, and the matched IGCT device must agree with the installed converter design

⚠️ Field Traps (Watch Out)

1. Do not confuse 3BHB003387R0101 with the IGCT itself.
Secondary catalogs pair 3BHB003387R0101 with 5SHX0845F0001, while ABB-related product listings identify 3BHL000385P0101 as the IGCT module product ID. Verify which physical component is actually required before releasing the spare.

2. Gate-drive matching is not optional.
The associated IGCT requires a compatible gate-drive circuit. A technically similar gate unit may have different pulse characteristics, optical interface requirements, protection thresholds, or auxiliary supply specifications. Do not substitute based solely on the 5SHX device family.

3. Press-pack installation requires controlled mechanical force.
For the associated 5SHX0845F0001 device, a published technical reference specifies 35 kN ±10% mounting force. That value belongs to the semiconductor assembly and should be confirmed against the applicable ABB installation procedure before use.

4. Medium-voltage isolation comes first.
These components belong to high-energy converter equipment. Follow the approved shutdown, lockout/tagout, grounding, and stored-energy discharge procedure for the actual ABB drive before accessing the power stack.

Module 5: Quality Assurance SOP

Each ABB 3BHB003387R0101 unit should pass a controlled pre-shipment inspection sequence:

• OEM anti-counterfeit visual inspection: Verify ABB markings, complete 3BHB003387R0101 identification, connector/interface geometry, PCB or gate-unit construction, and visible revision markings.
• Part-number verification: Record all visible identifiers, including 3BHB003387R0101, 5SHX0845F0001, 3BHL000385P0101, and any revision code where present.
• Mechanical inspection: Check the assembly for cracks, contamination, corrosion, damaged connectors, bent terminals, loose components, and evidence of thermal stress or unauthorized repair.
• Gate-interface inspection: Verify optical or electrical interface condition and inspect connector faces for contamination or physical damage.
• Electrical screening: Perform only approved low-energy or non-destructive tests appropriate to the exact assembly. Do not apply improvised gate pulses or high-voltage test signals.
• Power-on self-test (POST): Not applicable as a standalone PCB or gate interface. Where installed in an approved test fixture, verify expected converter control diagnostics and gate-unit status.
• Communication handshake verification: Validate the gate/control interface within a compatible converter test environment, confirming expected controller-to-gate-unit communication and diagnostic response where the architecture supports it.
• IGCT verification: For a complete 5SHX0845F0001 assembly, verify device identification and inspect the press-pack interfaces separately.
• Final QC: Photograph all identification markings, record inspection results, package the electronic assembly in ESD-safe material, and protect connectors against mechanical impact.

Module 6: CRO-Driven Buyer FAQ

1. What is ABB 3BHB003387R0101?

Available technical references identify 3BHB003387R0101 with ABB’s 5SHX0845F0001 IGCT family. Some catalogs describe it as an IGCT controller or gate-unit-related assembly, while others pair the number directly with the IGCT module. The physical nameplate and installed drive documentation should therefore control the final identification.

2. Is 3BHB003387R0101 the same as 5SHX0845F0001?

Not necessarily as a part-number definition. Current technical references commonly associate the two numbers, while 3BHL000385P0101 is separately listed as the product ID for the 5SHX0845F0001 51 mm / 4.5 kV IGCT module. Verify the exact physical assembly required for the repair.

3. Can 3BHB003387R0101 be hot-swapped?

Do not assume hot-swap capability. This hardware is associated with a high-power converter/IGCT system and should be replaced only after complete isolation, stored-energy verification, and the applicable ABB maintenance procedure.

4. What are the key specifications of the associated IGCT?

The associated 5SHX0845F0001 / 3BHL000385P0101 device is listed as a 51 mm / 4.5 kV coated IGCT, with approximately 1.81 kg net weight. A technical reference also reports 820 A RMS current at Tc = 85°C, 4,100 A surge current for 1 ms, and 35 kN ±10% mounting force. These numbers describe the semiconductor, not necessarily the 3BHB003387R0101 control assembly.

5. What warranty and technical support are provided?

Warranty duration should be stated on the quotation for the exact inventory condition supplied. Technical support should cover part-number identification, assembly cross-reference, inspection/test documentation, and compatibility review. Medium-voltage isolation, gate-drive commissioning, press-pack assembly, and energized testing require appropriately qualified personnel.
