Description
- Model: KUC711AE
- ABB Product ID: 3BHB004661R0001
- Part Type: Gate Unit Power Supply / GUSP
- ABB Catalog Description: KU C711 AE; GATE UNIT POWER S GUSP
- Product Net Weight: 2.36 kg reported by one ABB-related listing; verify the physical unit before freight calculation.
- Lifecycle: Legacy power-electronics spare; confirm the exact converter/drive application before replacement
Technical Introduction
The ABB 3BHB004661R0001 KUC711AE is identified as a Gate Unit Power Supply (GUSP), with ABB’s catalog description specifying “KU C711 AE; GATE UNIT POWER S GUSP.”
This distinction matters during procurement. The KUC711AE is associated with ABB power-electronics hardware, and the exact gate-unit assembly and system revision should be verified before substitution. Public listings also associate the part number with ABB power-control equipment, but some third-party descriptions conflict on its application and electrical specifications. For that reason, the ABB catalog identification should take precedence over unsupported generic specifications.
Engineer’s Takeaway: Match 3BHB004661R0001 + KUC711AE as a complete identification pair, then verify the target converter, gate-unit architecture, connectors, and hardware revision before installation.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Product ID | 3BHB004661R0001 |
| ABB Type Designation | KU C711 AE / KUC711AE |
| Catalog Description | GATE UNIT POWER S GUSP |
| Product Type | Gate Unit Power Supply |
| Application | ABB power-electronics / converter systems |
| Product Net Weight | 2.36 kg reported in ABB-related listing |
| Product Net Dimensions | Detailed OEM dimensions should be verified for the exact revision |
| Hardware Revision | Verify from installed unit |
| System Compatibility | Verify against converter/drive model and gate-unit configuration |

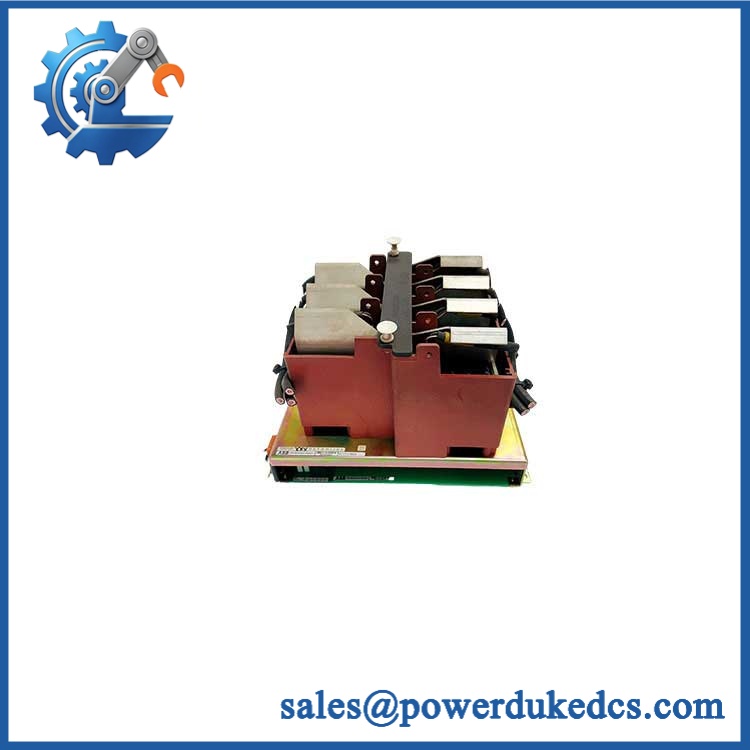

ABB 3BHB004661R0001 KUC711AE
ABB-related catalog data identifies the part and its GUSP designation, while publicly indexed third-party sources provide inconsistent dimensional and application information. For procurement, freight, and engineering documentation, use the physical unit and applicable ABB documentation as the controlling reference.
Field Engineer’s Tech Notes
1. Do not confuse this with a generic controller or rack power module.
ABB identifies the KUC711AE specifically as a Gate Unit Power Supply / GUSP. A third-party listing calling it a general AC800M power-control module is not sufficient evidence for interchangeability.
2. Gate-unit hardware requires exact system matching.
Before installation, compare the part number, gate-unit location, connector arrangement, cable routing, and revision information against the existing assembly. After isolation, verify that the applicable power-electronics circuit is fully discharged before handling the unit.
Adaptive QA & Testing Protocol
Incoming inspection begins with verification of the 3BHB004661R0001 / identification, product label, revision markings, connector condition, mounting points, and signs of overheating, contamination, corrosion, or physical damage.
Functional testing should be performed with the appropriate ABB power-electronics test arrangement. Depending on the host converter, checks may include controlled power-up, gate-unit power-rail verification, status/diagnostic indication, communication or interface checks, and confirmation that the associated converter recognizes the gate-unit assembly without generating hardware faults. Insulation and continuity checks should follow the applicable ABB service procedure rather than applying arbitrary high-voltage test levels to an electronic assembly.
Inspection photographs, test reports, and available test videos can be provided upon request.

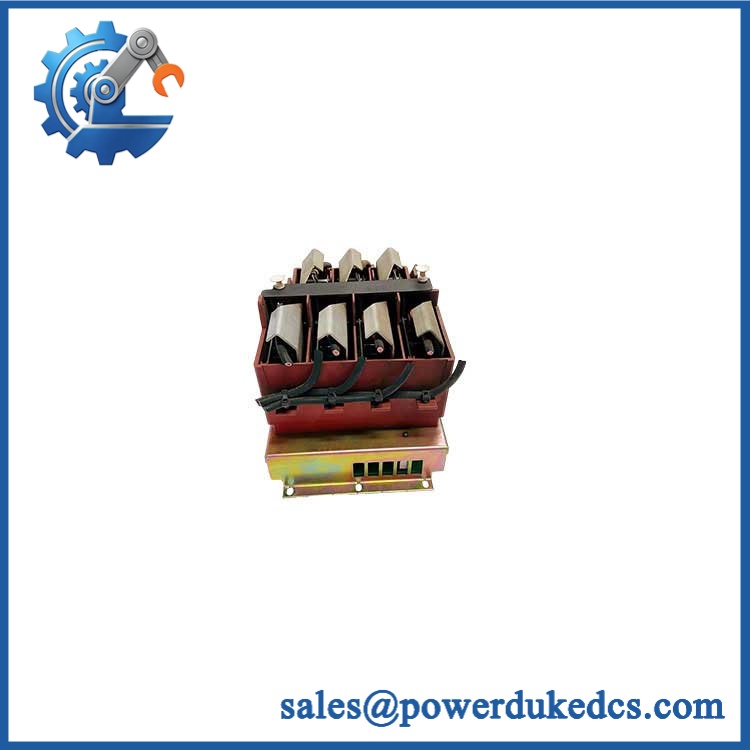

ABB 3BHB004661R0001 KUC711AE
Buyer’s FAQ
What is ABB 3BHB004661R0001 ?
ABB identifies 3BHB004661R0001 as KU C711 AE, with the catalog description Gate Unit Power Supply (GUSP).
Is a direct replacement for another ABB gate-unit power supply?
Not automatically. Verify the complete ABB Product ID, converter type, gate-unit configuration, hardware revision, and connector arrangement before approving a replacement.
Is the available unit new or refurbished?
Condition depends on the actual inventory. Request confirmation of new, New Surplus (NSFP), or refurbished status together with actual-part photographs and test status.
What are the lead time and warranty?
These depend on current stock and commercial terms. Ask for confirmed availability, estimated dispatch date, warranty period, and QA/test documentation with the quotation.
