- ABB 3BHB006716R0217 | Original SYN5302A-Z V217 Synchronizing Equipment
2. At-A-Glance Executive Brief
- Model: SYN5302A-Z, V217
- Part Number: 3BHB006716R0217
- Brand: ABB
- Series: SYNCHROTACT 5
- Part Type: Digital Synchronizer / Automatic Synchronizing Unit
- Core Function: Controls generator-to-grid or grid-to-grid synchronization by evaluating voltage, frequency, and phase conditions before breaker closing.
- Key Specs: SYNCHROTACT 5 platform; V217 hardware variant; automatic synchronization; 50/60 Hz power-system applications; dual-channel SYNCHROTACT architecture is available within the product family.
3. Product Introduction
In a generator switchgear system, closing the breaker before the generator and bus are properly synchronized can create severe electrical and mechanical stress. ABB SYN5302A-Z, V217, 3BHB006716R0217 is a digital synchronizing device from the SYNCHROTACT 5 family, designed for automatic synchronization and paralleling of generators and power systems.
The unit evaluates synchronization conditions before the switching operation, making it suitable for generator synchronization, power-line paralleling, and related switchgear applications. The SYNCHROTACT family supports applications across 50 Hz and 60 Hz systems, with specific variants also supporting other system frequencies.
For maintenance teams, the complete identification SYN5302A-Z, V217 / 3BHB006716R0217 is important. Several SYN5302 variants exist, including different V-number configurations, so substituting another SYN5302 model solely because the front-panel designation looks similar can create configuration and compatibility problems.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Product Family | SYNCHROTACT 5 |
| Model | SYN5302A-Z, V217 |
| Part Number | 3BHB006716R0217 |
| Product Type | Digital Synchronizer |
| Functional Type | Automatic Synchronizing Unit |
| Application | Generator and power-system synchronization |
| Synchronization Function | Automatic generator-to-grid / grid-to-grid synchronization |
| System Frequency | 50 / 60 Hz applications |
| Architecture | SYNCHROTACT digital synchronization platform |
| Communication | Product-family configurations support fieldbus and remote-service interfaces |
| Control Application | Generator paralleling and breaker synchronization |
| Typical System | Power generation / electrical switchgear |
| Hardware Variant | V217 |

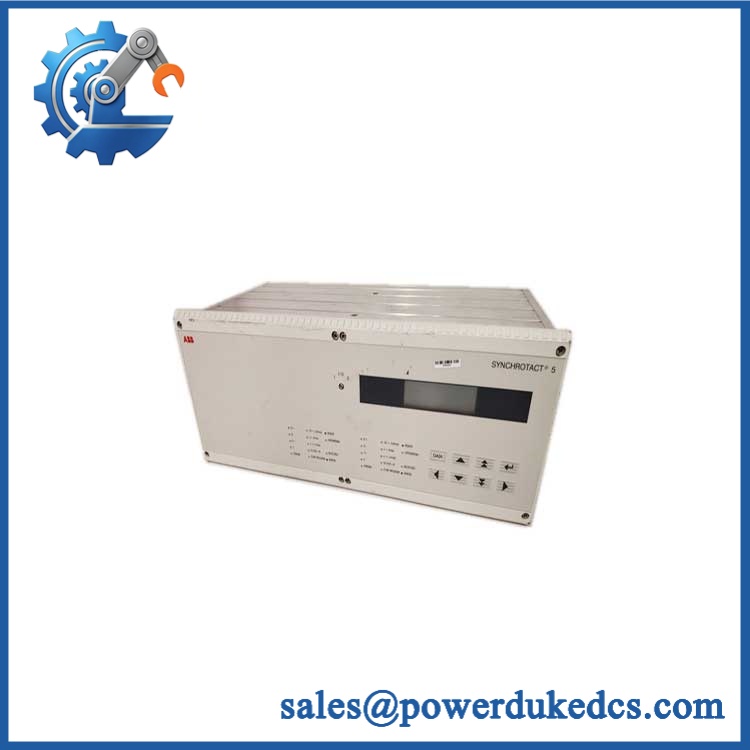

ABB 3BHB006716R0217
The model-to-part-number relationship is supported by multiple product listings identifying SYN5302A-Z, V217 as 3BHB006716R0217.
5. Application Scenarios & Pain Points
For generator synchronization, the critical requirement is accurate timing of breaker closing under acceptable voltage, frequency, and phase conditions. The SYN5302A-Z V217 is intended for this class of power-system control.
1. Power Generation Plants
During generator start-up and paralleling, the synchronizer evaluates the generator and network conditions before the circuit breaker is closed. This is useful for plants where generator synchronization is a routine operating sequence rather than a manual switching task.
2. Diesel and Gas Generator Sets
In standby or prime-power installations, automatic synchronization reduces dependence on manual phase matching. A typical 50 Hz or 60 Hz generator installation can use the appropriate SYNCHROTACT configuration for automatic paralleling.
3. Utility Substations
Where multiple feeders or generation sources must be paralleled, synchronization equipment helps coordinate breaker closing with the electrical system. (The exact switching scheme must still be validated against the station protection and control design.)
4. Industrial Power Networks
Large industrial facilities may operate multiple generators or connect captive generation to the utility grid. In such installations, a dedicated synchronizer can become a key component in the generator control and switchgear sequence.
5. Redundant Synchronization Architectures
The SYNCHROTACT 5 family includes dual-channel concepts using two microprocessor systems, supporting applications where synchronization availability is important. The exact architecture depends on the installed SYN5302 variant.
6. Common Error Codes & Diagnostic Symptoms
The available public sources do not provide a reliable model-specific numerical fault-code list for SYN5302A-Z V217. Diagnostic work should therefore begin with the actual synchronization symptoms and front-panel indications rather than assigning unsupported error numbers.
- Symptom/Code: Synchronization not achieved / breaker close command inhibited → Diagnosis: The generator and bus conditions may remain outside the configured synchronization window, such as excessive phase or frequency difference → Action: Check generator voltage, bus voltage, frequency measurement, phase sequence, and synchronizer configuration.
- Symptom/Code: Persistent synchronization deviation → Diagnosis: Incorrect voltage sensing, phase-reference wiring, frequency measurement, or parameter configuration can prevent the synchronizer from reaching the permissible window → Action: Verify VT/PT wiring and configuration parameters before replacing the synchronizer.
- Symptom/Code: Synchronizer communication or channel fault → Diagnosis: A communication-path problem, internal channel issue, or configuration mismatch may prevent normal system coordination → Action: Inspect power supply, communication connections, channel status, and configuration; replace the unit if the hardware fault is isolated.
7. Cross-Reference & Lifecycle Migration
Related SYN5302 Identifiers
The SYN5302 family contains multiple hardware variants. One published ABB-related parts reference identifies:
| Part Number | Associated Model |
|---|---|
| 3BHB006716R0217 | SYN5302A-Z, V217 |
| 3BHB006716R0277 | SYN5302A-Z, V277 |
| A1000380 | SYN5302 |

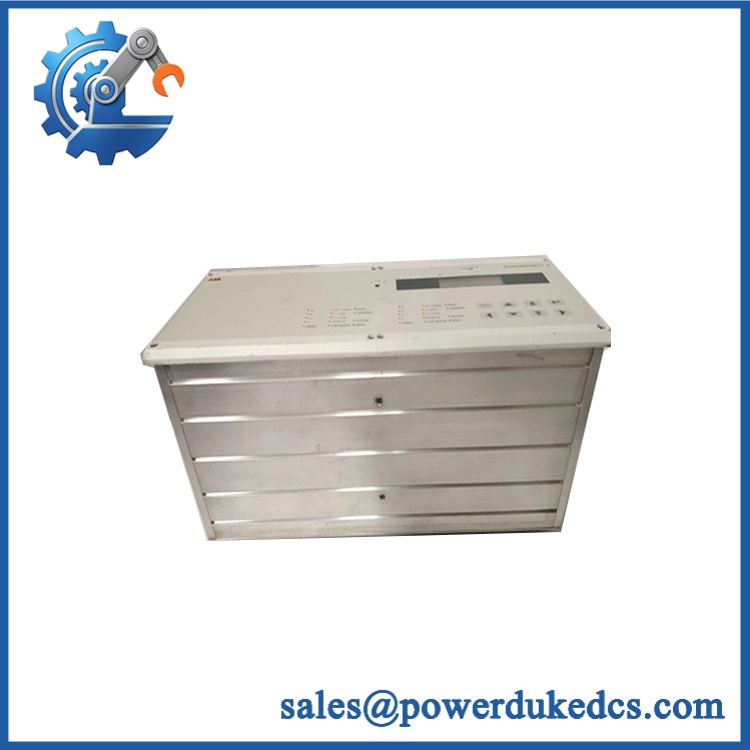

ABB 3BHB006716R0217
Compatibility
3BHB006716R0217 should be matched by the complete SYN5302A-Z V217 designation, not by the generic SYN5302 family name. V217 and V277, for example, are separate hardware identifiers.
A different SYN5302 revision should not be treated as a direct drop-in replacement until the electrical configuration, firmware/software compatibility, communication arrangement, and synchronization settings have been checked.
Firmware / Configuration
Replacement of a synchronizer can involve application-specific parameter configuration. Before commissioning, record the existing synchronization settings, including:
- Generator and bus voltage configuration
- Nominal frequency
- Phase sequence
- Slip-frequency settings
- Voltage and frequency limits
- Breaker closing characteristics
- Communication configuration
- Parameter-set assignment
Do not assume that transferring a physical unit automatically transfers the existing application configuration.
Lifecycle Status
Lifecycle: Legacy / Mature
The SYNCHROTACT 5 platform is an established ABB synchronization family rather than a newly introduced control platform. For installations that still depend on the V217 hardware variant, maintaining a tested spare can reduce outage exposure.
8. Field Engineer’s Tech Notes
Tech Note 1 — Check VT/PT phase wiring before condemning the synchronizer.
If the unit consistently refuses to synchronize, do not immediately replace the SYN5302. Verify generator-side and bus-side voltage measurements, phase sequence, nominal frequency, and sensing connections first. A single incorrect phase reference can produce a persistent synchronization failure.
Tech Note 2 — Record the configuration before changing the unit.
The synchronizer’s parameters directly affect breaker timing and synchronization behavior. Back up or document the existing configuration before replacement. (Do not rely on memory or default parameters when returning a generator to service.)
9. Strict QA & Testing SOP
For an ABB SYN5302A-Z V217 / 3BHB006716R0217, a practical QC procedure should include:
- Part Number Verification
Confirm the physical identification against 3BHB006716R0217 and SYN5302A-Z, V217. - Visual Inspection
Examine the housing, connectors, terminals, displays, labels, and accessible PCB areas for damage or contamination. - Revision Verification
Record the V217 designation and all visible hardware/firmware identification markings. - Power Supply Test
Apply the specified supply through an appropriate test setup and verify normal startup behavior. - Input Simulation
Use a calibrated synchronization test source to simulate generator-side and bus-side voltage/frequency signals. - Measurement Verification
Check whether the unit correctly recognizes voltage, frequency, phase relationship, and synchronization conditions. - Synchronization Logic Test
Verify the configured synchronization response using controlled phase and frequency differences. - Breaker Command Verification
Where the appropriate test rig is available, confirm the synchronizing output behavior against the configured breaker closing characteristics. - Communication Test
Verify applicable communication interfaces and status reporting when required by the installed system. - Final Documentation
Record serial number, hardware identification, test conditions, measured results, and inspection photographs. - ESD-Safe Packaging
Protect the electronic assembly with anti-static packaging and adequate shock protection for shipment.
Test videos can be provided with the inspection record when required.
10. Buyer’s FAQ
Q: Can I hot-swap the SYN5302A-Z V217?
A: Do not assume hot-swapping is permitted. Synchronization equipment is directly involved in generator and breaker control, so replacement should follow the applicable shutdown, isolation, and commissioning procedure.
Q: Is 3BHB006716R0217 the same as every SYN5302A-Z?
A: No. The complete identifier matters. 3BHB006716R0217 corresponds to SYN5302A-Z, V217, while other SYN5302 variants have different part numbers.
Q: What should I provide when requesting a replacement?
A: Provide the complete part number 3BHB006716R0217, model SYN5302A-Z, hardware version V217, plus photographs of the existing unit and its identification label. This helps prevent substitution with another SYN5302 variant.
Q: How can I verify a New Original unit?
A: Request photographs of the actual unit, ABB identification markings, complete part number, V217 designation, packaging, and traceability information. For a synchronization controller, matching the exact hardware identifier is more important than simply confirming the SYNCHROTACT family.
