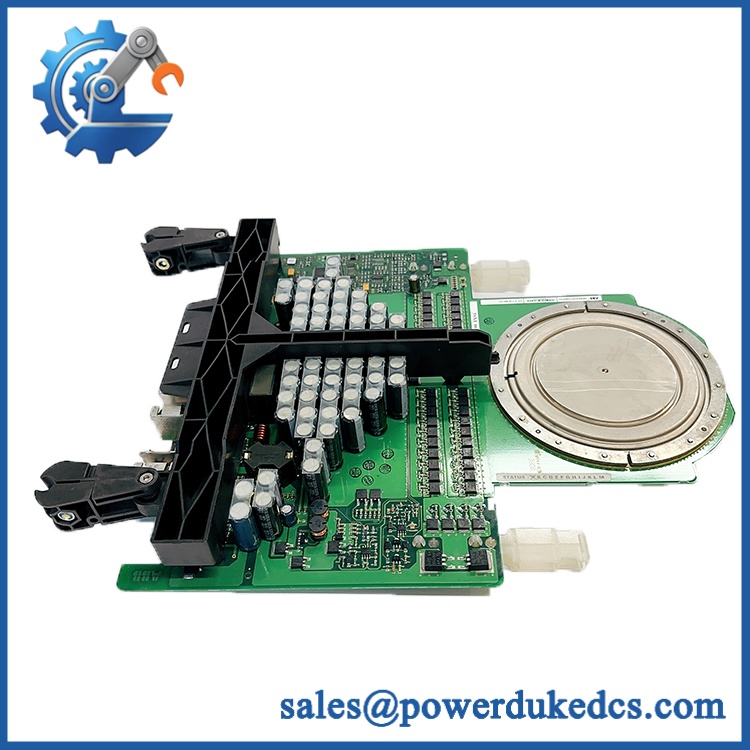

ABB 3BHB018104R0001 5SHX0660F0002 | RC-IGCT Module

Description

• Brand: ABB
• Full Model Number: 3BHB018104R0001 / 5SHX0660F0002
• System/Series Family: ABB ACS5000 Medium-Voltage Drive
• One-Sentence Core Function: Reverse-conducting IGCT power semiconductor used for high-power switching in ABB ACS5000 converter power stages
• Top 3 Hardcore Specs: 5SHX0660F0002 device designation; 66 mm IGCT package; RC-IGCT configuration
• Stock Status: New Surplus / Fully Tested Refurbished — exact device marking and package condition verified before shipment

Module 3: Commercial-Technical Deep Dive

A failed IGCT can remove an entire inverter phase from service while the ACS5000 control electronics remain operational. The ABB 3BHB018104R0001, corresponding to 5SHX0660F0002, is identified in current industrial spare-part references as an RC-IGCT used in the ABB ACS5000 medium-voltage converter family. The reverse-conducting IGCT combines the high-power switching function with reverse-conduction capability in a press-pack semiconductor structure. That makes exact device matching critical; this is a power-stage component, not a field-replaceable control PCB.

The 66 mm package designation is an important physical identification point, particularly when the installed ACS5000 power stack contains multiple semiconductor sizes. Current ABB-oriented component listings associate 3BHB018104R0001 specifically with 5SHX0660F0002, while other 5SHX devices in the same service family use different ABB order codes. Do not copy voltage, current, gate-drive, or cooling figures from another 5SHX device into the purchasing specification. For this part, the correct acceptance basis is the complete ABB order number, semiconductor marking, physical package, and the ACS5000 power-stack documentation.

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: Configuration-specific RC-IGCT replacement for compatible ABB power-converter assemblies.
• Official identification: 3BHB018104R0001, corresponding to 5SHX0660F0002. Current spare-part references identify it as an RC-IGCT for .
• Device type: Reverse-conducting integrated gate-commutated thyristor; do not confuse it with an IGBT module or a standard IGCT without reverse-conduction capability.
• Firmware requirement: None for the semiconductor itself. The installed gate unit, control electronics, protection system, and semiconductor configuration must remain matched.
• Logic rewrite: Not applicable to the semiconductor. Post-replacement commissioning belongs to the complete power stage.
• Device-size verification: The 0660 designation should be checked against the installed 66 mm class device before shipment; other 5SHX families use different package sizes and electrical characteristics.

⚠️ Field Traps (Watch Out)

• Wrong semiconductor substitution: Similar-looking 5SHX devices can have different electrical ratings, gate characteristics, and package dimensions. Never approve a substitute solely from visual similarity.
• Gate-unit compatibility: Verify the associated gate-drive unit and optical/control interface before installation. The semiconductor and gate-control arrangement function as a matched power-stage system.
• Clamping and thermal interface: Press-pack IGCT installation depends on the specified mechanical compression and heatsink interface. Surface contamination or incorrect clamping can create localized heating and premature failure.
• Medium-voltage isolation: Do not handle the device until the converter has been shut down, isolated, discharged, and independently verified at zero hazardous energy under the site’s approved LOTO procedure.
• ESD and handling: Protect gate/control interfaces and avoid mechanical impact to the ceramic package and contact surfaces.

ABB 3BHB018104R0001 5SHX0660F0002

Module 5: Quality Assurance SOP

Our pre-shipment inspection for an ABB 3BHB018104R0001 / 5SHX0660F0002 focuses on exact semiconductor identity and power-stack integrity:

1. OEM anti-counterfeit visual inspection — verify ABB markings, 3BHB018104R0001 product ID, 5SHX0660F0002 device marking, package geometry, coating, and manufacturing identifiers.
2. Device-marking capture — photograph all readable markings and record available lot or serial information.
3. Package-size verification — confirm the physical package corresponds to the 66 mm class associated with the 5SHX0660 designation.
4. Mechanical inspection — inspect ceramic surfaces, contact faces, coating, terminals, and mounting interfaces for cracks, chips, corrosion, impact, or contamination.
5. Contact-surface inspection — check both electrical contact interfaces for scratches, oxidation, foreign material, or deformation.
6. Electrical integrity screening — where an appropriately rated laboratory test fixture exists, perform approved device-level screening for abnormal leakage, short-circuit behavior, and other applicable checks.
7. Gate-interface verification — where supported by qualified equipment, verify the device’s gate/control interface using the approved test procedure.
8. Gate-unit matching — record the associated gate-drive unit and compare it with the power-stack documentation before release.
9. Thermal-path inspection — verify heatsink mating surfaces, cooling interfaces, and mechanical mounting requirements before any power-stage test.
10. Controlled switching test — where qualified high-power equipment is available, verify device switching behavior under controlled conditions while monitoring electrical and thermal response.
11. Extended observation — inspect for thermal drift, unstable gate behavior, abnormal leakage, or mechanical instability during the approved test cycle.
12. Traceability record — document product ID, device designation, lot information, test equipment, measured results, and inspection photographs.
13. Final QC review — compare every recorded identifier with the customer’s spare-parts requirement.
14. ESD and mechanical packaging — use antistatic protection, rigid cushioning, contact-surface protection, and moisture control before shipment.

Current references specifically associate 3BHB018104R0001 with 5SHX0660F0002 and identify the device as an . Other IGCTs in the same ABB spare-parts family have different order codes, so exact traceability is essential.

Module 6: CRO-Driven Buyer FAQ

1. Is ABB 3BHB018104R0001 obsolete, and how do I verify authenticity?

The part is associated with the legacy medium-voltage converter ecosystem and is currently found through industrial spare-parts channels. Product references identify 3BHB018104R0001 as the ABB order number for 5SHX0660F0002 RC-IGCT. Authenticity should be verified from both identifiers, the physical package, markings, and traceable inspection records.

2. Is 3BHB018104R0001 a PCB or a control board?

No. It is a power semiconductor device: an RC-IGCT. It belongs in the converter power stage and should not be confused with the control or gate-driver boards.

3. Can 3BHB018104R0001 be hot-swapped?

No routine live replacement should be assumed. The device is used in a medium-voltage converter power stage and may be exposed to hazardous voltage and stored energy. Follow the ABB maintenance procedure, DC-link discharge requirements, verified zero-energy checks, and site LOTO procedure before handling.

4. What is the difference between 5SHX0660F0002 and other 5SHX devices?

The 5SHX0660F0002 is a specific ABB RC-IGCT configuration associated with 3BHB018104R0001. Other 5SHX devices, such as 5SHX0845F0001 and 5SHX1060H0001, use different ABB order numbers and should not be assumed electrically interchangeable.
