ABB 3BHD000892R0461 | 91mm 6kV IGCT for ACS1000 Converters

Description

Module 1: High-Converting SEO Title Matrix

1.
2. ABB 3BHD000892R0461 5SHX1960L0001 IGCT Power Device
3. ABB 3BHD000892R0461 New Surplus 91mm IGCT Available
4. ABB 3BHD000892R0461 Replacement IGCT for ACS1000 Drives
5. ABB 3BHD000892R0461 OEM IGCT Power Semiconductor With Warranty

Module 2: The 10-Second Buyer’s Snapshot

• Brand: ABB
• Full Model Number: 3BHD000892R0461
• System/Series Family: ABB ACS1000 Medium-Voltage Converter

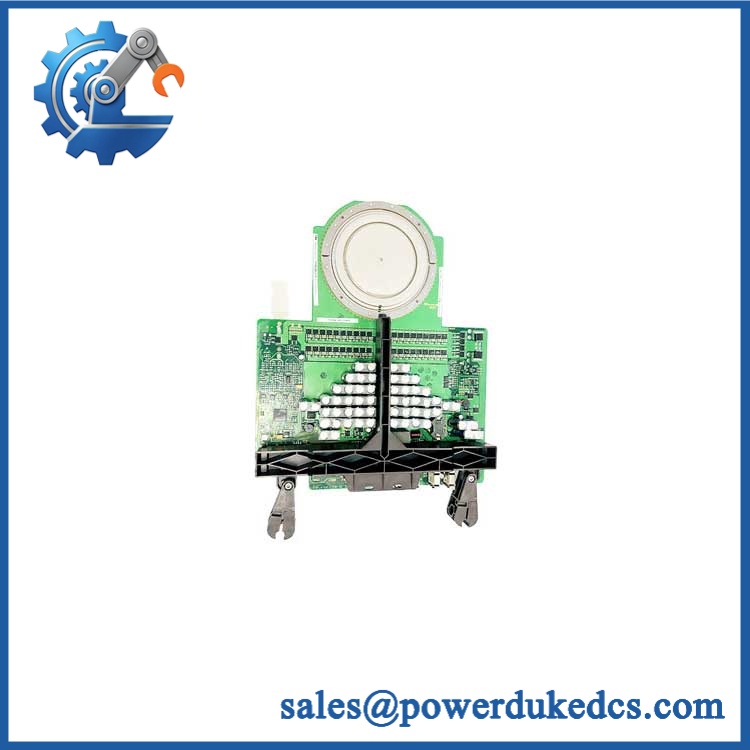

• One-Sentence Core Function: Press-pack IGCT power semiconductor used in the power-converter stack of ABB ACS1000 systems
• Top 3 Hardcore Specs: 91 mm package; 6 kV-class device; legacy RC type 5SHX1960L0001
• Stock Status: New surplus / unused replacement component, subject to exact device marking and inventory condition

The available procurement record identifies 3BHD000892R0461 as the old type for RC type 5SHX1960L0001, with the newer replacement identified as 3BHL000390P0104 / 5SHX1960004 for an ABB ACS1000 converter. The same record specifies a 91 mm / 6 kV IGCT assembly.

Module 3: Commercial-Technical Deep Dive

A failed IGCT can take an entire medium-voltage converter section offline. For an ABB ACS1000 installation, the 3BHD000892R0461 is a legacy press-pack IGCT identified with RC type 5SHX1960L0001. Its role is fundamentally different from a controller PCB: this is a power semiconductor installed within the converter stack, where electrical rating, gate-drive compatibility, cooling, and mechanical clamping all have to match. Available service records identify 3BHD000892R0461 as the old type and 3BHL000390P0104 / 5SHX1960004 as the newer replacement path.

The purchasing benefit is very specific—restoring an existing converter stack without replacing unrelated power assemblies. The documented device class is 91 mm / 6 kV, but that voltage designation alone is not enough for substitution. Current, gate characteristics, thermal interface requirements, stack geometry, and the associated gate unit must all agree. One field reference also describes the device as a press-pack component intended for ABB ACS1000 converter service. (The exact converter revision should control the final acceptance decision.)

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement type: Press-pack IGCT power semiconductor
• Primary application: ABB ACS1000 medium-voltage converter
• Legacy RC type: 5SHX1960L0001
• Firmware flash: Not applicable to the IGCT itself
• Logic rewrite: Not applicable to the semiconductor replacement
• Drop-in status: Not automatically guaranteed. Confirm the exact converter stack, gate unit, heat-sink arrangement, device marking, and approved ABB replacement path before installation.
• Documented replacement path: 3BHD000892R0461 → 3BHL000390P0104, with 5SHX1960004 identified as the newer IGCT type.


  ABB 3BHD000892R0461

⚠️ Field Traps (Watch Out)

1. Clamping force is a critical installation parameter.
A press-pack IGCT is not installed like a conventional bolt-mounted power transistor. The device is compressed between heat-transfer surfaces, so the approved axial force, stack hardware, and assembly sequence must be followed. Incorrect pressure can damage the semiconductor or produce poor thermal contact.

2. Do not substitute by package diameter alone.
A 91 mm press-pack device can still have different electrical, gate-drive, or thermal requirements. Match the complete device type and the corresponding ABB gate-control arrangement before commissioning.

3. Inspect the mating surfaces before installation.
Remove contamination and inspect both semiconductor contact surfaces and heat sinks for scratches, oxidation, uneven contact, or mechanical damage. A small assembly defect can become a significant thermal problem after the converter is loaded.

4. Verify the obsolete-to-current part-number relationship.
For this exact legacy number, available records identify 3BHD000892R0461 as the old type and 3BHL000390P0104 / 5SHX1960004 as the newer replacement. The replacement should be confirmed against the installed ACS1000 configuration before shipment or installation.

Module 5: Quality Assurance SOP

Each ABB 3BHD000892R0461 IGCT should pass a controlled pre-shipment inspection sequence:

• OEM anti-counterfeit visual inspection: Verify ABB identification, complete part number, RC/type marking, package construction, ceramic insulation, contact surfaces, and visible manufacturing markings.
• Part-number verification: Record 3BHD000892R0461 exactly and document any visible relationship to 5SHX1960L0001 and the current replacement 5SHX1960004.
• Mechanical inspection: Check the press-pack body, ceramic sections, contact faces, gate/auxiliary interface, package edges, and insulation surfaces for cracks, chips, deformation, corrosion, or impact damage.
• Contact-surface inspection: Confirm that the semiconductor mating faces are clean, flat, and free from foreign material before release.
• Electrical screening: Perform only approved non-destructive checks applicable to the exact IGCT type. Do not apply improvised high-voltage or gate-drive test signals.
• Gate-interface verification: Where an approved fixture exists, validate the gate-control interface using equipment designed for the specified device.
• Power-on self-test (POST): Not applicable to the semiconductor as an isolated component. POST belongs to the complete converter/control assembly after installation.
• Communication handshake verification: Not applicable to the IGCT itself. System-level verification should instead confirm proper gate-unit operation, converter diagnostics, protection status, and controller interaction.
• Final QC: Photograph the device identification, record the test and inspection results, use ESD-appropriate and impact-protective packaging, and retain traceability records with the shipment.

Module 6: CRO-Driven Buyer FAQ

1. What is ABB 3BHD000892R0461?

ABB 3BHD000892R0461 is a legacy IGCT press-pack power semiconductor associated with ABB ACS1000 converter equipment. Available records identify its old RC type as 5SHX1960L0001.

2. Is 3BHD000892R0461 still the current ABB part number?

Available service records identify it as an old type. The newer replacement path is listed as 3BHL000390P0104, with 5SHX1960004 as the newer IGCT type. Verify the replacement against the exact ACS1000 converter configuration before substituting the device.

3. Can this IGCT be hot-swapped?

No. This is a power semiconductor installed inside a medium-voltage converter stack. Replacement requires complete isolation, lockout/tagout, verification of stored-energy discharge, and the applicable ABB maintenance procedure.

4. What are the key specifications?

Available records identify the component as a 91 mm / 6 kV-class IGCT with legacy RC type 5SHX1960L0001. The current replacement record associates the newer device with 5SHX1960004. Exact current, gate-drive, thermal, and stack-specific ratings should be confirmed from the applicable ACS1000 documentation and device data rather than inferred from voltage class alone.

5. What warranty and technical support are provided?

Warranty duration should be stated on the quotation for the exact inventory condition supplied. Technical support should cover device identification, replacement cross-reference, physical inspection records, and compatibility review for the applicable ABB converter. Press-stack assembly, gate-drive verification, medium-voltage testing, and energized commissioning require appropriately qualified personnel.
