ABB 3BHE024577R0101 | AMC 34 Control Board OEM Spare

• Model: 3BHE024577R0101
• Brand: ABB
• ABB Type Designation: PP C907 BE: AMC34
• Board Identification: AMC 34 Control Board
• Product Family: ABB ACS2000 medium-voltage drive
• Part Type: Application and Motor Control PCB
• Equivalent Part Number: 68281059
• PCB Treatment: Varnished / coated control board
• Installation Location: ACS2000 incoming/control section
• Cabinet Quantity: 2 boards per cabinet in the ABB ACS2000 4 kV spare-parts catalog for the referenced configuration
• Approx. Physical Dimensions: Not reliably established from ABB’s published spare-parts catalog
• Estimated Shipping Weight: Not reliably established for the bare PCB; published commercial listings vary materially and should not be used for freight planning
• What’s in the Box: 3BHE024577R0101 control board only unless the PO explicitly includes connectors, cables, mounting hardware, or documentation
• Packaging: ESD shielding bag, rigid PCB support, connector protection, moisture-controlled carton

ABB’s ACS2000 spare-parts catalog identifies 3BHE024577R0101 as the AMC 34 Control Board, with 68281059 as the equivalent number. The catalog places two units in the incoming/control section of the referenced ACS2000 4 kV cabinet.

Product Introduction

Structure B — Architecture Hook

Inside an ABB ACS2000 medium-voltage drive, the 3BHE024577R0101 is the AMC 34 application and motor-control board, identified by ABB as PP C907 BE: AMC34. The board belongs to the drive’s incoming/control section and works as part of the control electronics rather than as a power-semiconductor assembly. ABB’s official spare-parts documentation identifies the exact part number and states that it is equivalent to 68281059.

For asset management, revision and application identity should stay attached to the physical board. ABB’s catalog places the 3BHE024577R0101 alongside the INT-2 board 3BHE024855R0101, 64-conductor ribbon cable, terminal hardware, power supply, and IOEC hardware, showing that this board is one element of a tightly defined control architecture. A like-for-like spare can avoid unnecessary control-panel rework, but the exact drive configuration and board equivalence must be verified before installation (especially where the installed cabinet has been modified since original commissioning).

Core Technical Specifications

ABB’s current spare-parts documentation continues to identify 3BHE024577R0101 as an AMC 34 control board for equipment. It also lists the board under both the master spare-parts table and the incoming/control-section breakdown.

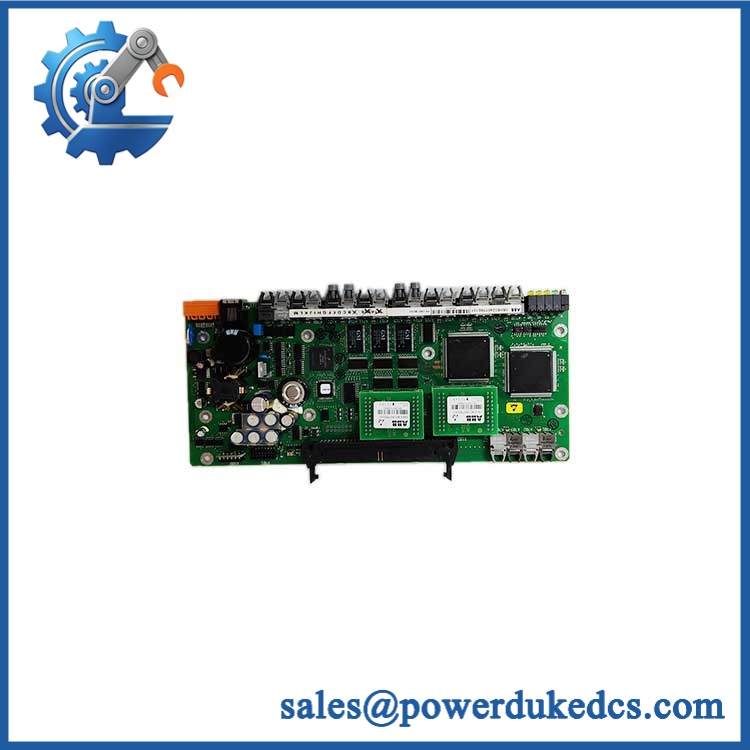

ABB 3BHE024577R0101

🚨 Global Compliance & Industry Certifications

For this board, certification claims should be tied to the complete drive configuration, applicable cabinet, and destination market.

• CE Mark: May apply to the complete drive equipment. Do not place a standalone CE claim on the PCB without the applicable declaration.
• UL/cUL: May apply to particular configurations and market versions. The exact certification must be verified against the drive nameplate and documentation.
• ATEX / IECEx: Do not assume hazardous-area certification for the control board. Installation in a classified area depends on the complete certified drive/cabinet arrangement.
• Marine Approvals: No specific DNV approval for this exact PCB was established from ABB’s spare-parts documentation.
• RoHS: The board may be subject to ABB product/environmental compliance requirements, but a revision-specific declaration should be retained for audit use.
• Functional Safety: Do not assign a SIL rating to AMC 34 itself. Any safety-function claim belongs to the complete engineered drive/control system.
• Electrical Safety: This board operates inside an MV-drive environment where hazardous voltages and stored energy may be present even after external power removal. Site lockout procedures are mandatory.

ABB’s published documentation identifies the board within the drive’s control electronics and also lists related electrical components, terminal blocks, circuit protection, and power hardware, reinforcing that certification must be evaluated at the equipment level.

Verify specific lot certifications with OEM.

🚨 Long-Term Storage & Asset Preservation Guide

Keep the AMC 34 board sealed in an ESD shielding bag. The varnished PCB surface provides environmental protection, but it does not eliminate static-discharge risk at connectors, memory devices, or other exposed electrical interfaces.

Preserve the connector and cable interface. Store the board with connector covers or equivalent protection where available. The AMC 34 is installed in a cabinet containing a 64-conductor ribbon cable and associated interface hardware, so damaged contacts can create commissioning problems even when the PCB itself is electrically sound.

Control humidity and condensation. A clean, dry indoor environment below approximately 60% RH is a sensible warehouse target where the exact ABB storage specification is not available. Use sealed packaging with desiccant and inspect the board edges, connector contacts, mounting points, and coated surface during scheduled asset audits.

Do not power-cycle shelf stock without a defined test protocol. Record the part number, ABB type designation, board revision, serial/date code, packaging condition, and last functional-test date. That information is far more useful during an outage than an unstructured “tested” inventory label.

Physical Installation Prerequisites

• System Match: Confirm the host equipment is an configuration approved for this AMC 34 board.
• Board Position: Verify the exact incoming/control-section slot against the cabinet drawing.
• Mating Hardware: Confirm the associated INT-2 board 3BHE024855R0101 and relevant 64-conductor ribbon cable arrangement where applicable.
• Power Isolation: Fully isolate the drive and follow the MV discharge and lockout procedure before accessing the control cabinet.
• DC Bus Safety: Do not begin PCB handling until the site’s verified DC-link discharge criteria have been met.
• Grounding: Verify protective-earth continuity and cabinet bonding before re-energization.
• Connector Handling: Inspect all board-to-cable interfaces for bent contacts, contamination, or cracked housings.
• Cooling: Keep cabinet airflow and heat-transfer paths clear. Do not obstruct ventilation with ribbon cables or field wiring.
• ESD: Use a grounded wrist strap and ESD-safe work surface when removing the board from its shielding bag.
• Mechanical Security: Verify retaining hardware is fully secured after insertion and that cable strain is not transferred to the PCB connectors.
• Commissioning: Confirm board recognition, drive diagnostics, application configuration, and motor-control functions before returning the to service.

ABB’s spare-parts documentation places AMC 34, INT-2, ribbon cable, terminal hardware, power supply, and IOEC hardware in the same incoming/control section, so the replacement should be checked as an integrated cabinet assembly rather than as an isolated PCB.

Buyer’s FAQ

Q1. What HS tariff code should be used for ABB 3BHE024577R0101?

Do not classify it as a generic circuit board without reviewing its technical function. ABB identifies the item as an AMC 34 application and motor-control board for the medium-voltage drive. A provisional review may consider headings covering electrical control apparatus or parts thereof, but the final tariff classification is jurisdiction-specific.

For the commercial invoice, use a precise description such as “ABB AMC 34 Application and Motor Control Board, P/N 3BHE024577R0101” and have the importer or customs broker confirm the final national tariff code.

Q2. What Country of Origin should appear on the COO?

Use the actual manufacturing origin of the physical board being shipped, supported by the nameplate and supplier records. Public commercial records give conflicting origin information for this part, so a warehouse should not copy a generic country from an old listing.

For trade-compliance purposes, retain the actual-unit photograph, serial/date-code information, supplier COO statement, and commercial invoice together.

Q3. Should I insure shipment of 3BHE024577R0101?

For an control PCB, yes, shipment insurance is advisable when the board is a critical spare or difficult to replace. Use ESD shielding, rigid PCB support, connector protection, and moisture control.

Photograph the front and rear of the board, full part number, PCB designation PP C907 BE: AMC34, revision marking, and packaging before dispatch.

Q4. Does 3BHE024577R0101 include the latest firmware pre-loaded?

Do not assume it does. The board is part of the application and motor-control architecture, and firmware/software compatibility belongs to the installed drive configuration rather than to the commercial part number alone. Before commissioning, record the existing software baseline and verify that the replacement board is approved for that drive configuration.

Q5. Is 3BHE024577R0101 equivalent to 68281059?

Yes, according to ABB’s spare-parts documentation. ABB explicitly lists 3BHE024577R0101 as the AMC 34 Control Board and identifies 68281059 as the equivalent part number.

That equivalence should still be treated as an engineering cross-reference, not permission to ignore revision, cabinet configuration, firmware, or mating-hardware checks before installation.
