ABB 3BHE024747R0101 | Crowbar Drive PCB for ACS2000

• Model & Brand: ABB 3BHE024747R0101
• ABB Type Designation: GD C801 A101
• Product Name: Rigi Crowbar Drive PCB
• Part Type: Crowbar drive/protection PCB for medium-voltage drive systems
• Primary System: ABB ACS2000 medium-voltage drive
• Secondary Application: Selected ACS5000 water-cooled configurations are identified in ABB-related spare records
• Product Net Weight: 0.74 kg
• Physical Dimensions: Exact ABB dimensions for the obsolete board are not established in the reviewed manufacturer records
• Estimated Shipping Weight: Approximately 1.0–1.4 kg packed, depending on ESD and mechanical protection
• What’s in the Box: 3BHE024747R0101 PCB, ESD shielding, connector protection, protective cushioning; documentation only when specifically included
• Cabinet Function: Crowbar protection / drive protection circuit
• Replacement Product ID: 3BHE051592R0102
• Lifecycle Position: Replaced product
• Handling: ESD-controlled storage and installation required

ABB’s spare-parts documentation lists 3BHE024747R0101 as a Crowbar Board in the ACS2000 cabinet. ABB product data identifies the same part as GD C801 A101; Rigi Crowbar Drive PCB with a net weight of 0.74 kg and replacement product 3BHE051592R0102.

Product Introduction

The crowbar circuit is a power-stage protection function, so this board belongs in the protection path of the medium-voltage converter rather than the ordinary control-I/O category. ABB’s ACS2000 spare-parts manual places 3BHE024747R0101 in the converter’s crowbar assembly, together with the crowbar stack, DC-link capacitor, DC-link resistors, inrestors, and associated power electronics.

For lifecycle planning, one point should be entered directly into the asset record: 3BHE024747R0101 is a replaced ABB product, with 3BHE051592R0102 identified as the new replacement product ID in current ABB product data. That does not mean the newer board should be treated as an automatic field substitute; the drive serial number, cabinet configuration, crowbar assembly, and approved retrofit instructions must be checked first (this distinction is critical when the spare is being held for a high-value MV drive).

Core Technical Specifications

ABB’s own spare-parts documentation confirms the part’s role as a crowbar board in ACS2000 systems, while ABB product data identifies the 0.74 kg net weight and replacement product ID.

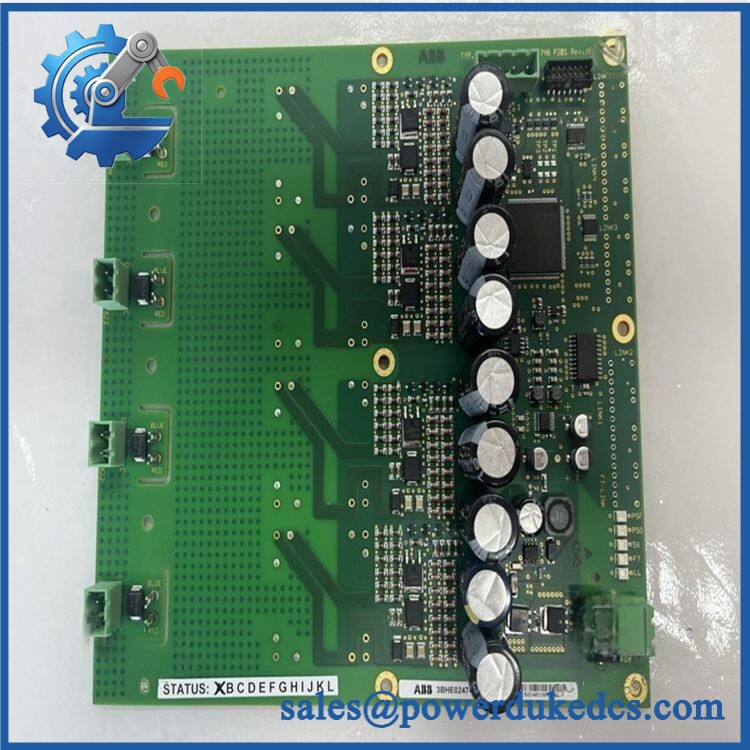

ABB 3BHE024747R0101

🚨 Global Compliance & Industry Certifications

For this board, certification should be evaluated against the complete ACS2000 drive assembly and the specific drive configuration.

• CE Mark: May apply at the complete equipment level. Do not claim independent CE conformity for the bare crowbar PCB without ABB documentation.
• UL/cUL: No reliable evidence was established for an independent UL/cUL listing of 3BHE024747R0101.
• ATEX / IECEx: No independent ATEX or IECEx certification was established for this board.
• Marine Approvals: No DNV, ABS, or Lloyd’s Register approval was established for the individual PCB from the reviewed records.
• EMC: EMC compliance should be assessed as part of the complete MV drive and cabinet assembly.
• WEEE: Current ABB product data identifies the newer replacement product within ABB’s spare-parts classification; do not infer environmental compliance markings for the obsolete PCB without revision-specific evidence.

Why this matters: The crowbar is directly associated with DC-link and power-semiconductor protection. An uncertified or incorrectly revised replacement can affect the drive’s protection behavior during a high-energy fault.

Verify specific lot certifications with OEM.

🚨 Long-Term Storage & Asset Preservation Guide

Keep the PCB sealed in ESD shielding. The board contains power-electronic interface circuitry and should not be repeatedly exposed to static discharge, dust, or fingerprints. Store it flat or in a rigid holder with the connector areas protected from impact.

Control humidity below 60% RH where practical. Avoid condensation and repeated thermal cycling. Connector oxidation may remain invisible until the board is installed into an MV drive, where even a marginal contact can cause a protection-system fault.

Preserve the old-to-new part-number relationship. The inventory label should state both 3BHE024747R0101 and 3BHE051592R0102 — replacement product ID, while clearly marking whether the physical stock is the obsolete or newer revision. ABB’s product data identifies the old number as replaced, so mixing the two in a warehouse under one generic “crowbar PCB” description is poor asset control.

Before energized testing after long storage, allow the sealed package to reach room temperature. Inspect connectors, PCB surfaces, capacitors, transformers, solder joints, and any signs of moisture exposure before installation.

Physical Installation Prerequisites

• Host Drive: Confirm the exact frame, serial number, and cabinet configuration before installation.
• Crowbar Assembly: Match the board to the installed crowbar stack and associated protection components. ABB lists the board together with the crowbar stack, DC-link capacitor, resistors, and inrestors.
• Power Isolation: Use the approved MV-drive shutdown, isolation, grounding, and lockout procedure before accessing the crowbar cabinet.
• DC-Link Safety: Do not begin board removal until the DC-link discharge and zero-energy verification procedure has been completed.
• Connector Condition: Inspect all board connectors for oxidation, contamination, bent contacts, and mechanical damage.
• Grounding: Preserve the original cabinet grounding and protective-earth arrangement.
• Clearance: Maintain sufficient service space around the crowbar assembly for inspection and safe access to adjacent power components.
• Cooling: Preserve the cabinet ventilation path and do not block airflow with temporary wiring or packaging material.
• ESD: Use a grounded wrist strap and ESD-safe work surface during board handling.
• Replacement Revision: If using 3BHE051592R0102, verify the applicable ABB replacement/retrofit instructions rather than treating the newer ID as an automatic plug-in exchange.

Buyer’s FAQ

Q1. What HS Tariff Code should be used for 3BHE024747R0101?
ABB-related catalog records show 85049099 for the Rigi Crowbar Drive PCB, while another ABB-associated record shows 85049090 for the same product data. Because tariff classification is jurisdiction-specific, the final HS code should be confirmed by the customs broker using the product function, invoice description, and destination-country tariff schedule.

Q2. What should we use for Country of Origin?
Do not infer COO from the export warehouse. ABB-associated records contain different origin fields for this part, including United States and China in product records. Retain the supplier’s actual COO evidence, invoice, packing list, and exact part-number identification with the customs file.

Q3. Can I hot-swap the 3BHE024747R0101?
Treat it as a power-off maintenance item. The board belongs to the crowbar/power-protection section of an MV drive, alongside high-energy DC-link and protection components. Safe isolation, DC-link discharge verification, grounding, and site lockout procedures must be completed before removal.

Q4. Does the New Original 3BHE024747R0101 contain the latest firmware?
Do not expect a conventional field-update firmware package. The available ABB records identify this component as a Rigi Crowbar Drive PCB, not a programmable controller. The more important lifecycle issue is that ABB now identifies 3BHE051592R0102 as its replacement product ID. Hardware revision and approved retrofit compatibility should therefore be checked before the PO is released.

Q5. What shipping insurance and warranty controls are appropriate?
Use ESD shielding, rigid cushioning around the PCB and connector areas, moisture protection, and insurance based on the actual replacement value. The quotation should state the exact 3BHE024747R0101 identity, physical condition, revision where available, warranty period, return procedure, and whether the supplied unit has passed electrical inspection. For an obsolete MV-drive protection spare, retain the serial/lot evidence and test report in the asset record.
