ABB 3BHL000385P0101 | 5SHX0845F0001 IGCT Module

Description

• Model: 3BHL000385P0101
• Brand: ABB
• Series: ABB Medium-Voltage Drive Power Semiconductors
• Core Function: High-power switching in medium-voltage drive power stages
• Type: IGCT (Integrated Gate-Commutated Thyristor) Module
• Key Specs: 5SHX0845F0001; 51 mm package; 4.5 kV class
• Associated Systems: ABB ACS1000 / ACS6000 drive spare references
• Alternate Identification: 5SHX0845F0001; also referenced as 5SXE05-0151 in secondary sources

Product Introduction

The ABB 3BHL000385P0101 is an ABB IGCT (Integrated Gate-Commutated Thyristor) power semiconductor, identified with the type designation 5SHX0845F0001. ABB parts references list it as a 51 mm, 4,500 V IGCT component used in medium-voltage drive power assemblies. Independent industrial parts catalogs also cross-reference the two numbers directly.

In practical terms, this is a power-switching component rather than a control board. It sits in the high-energy conversion stage of a medium-voltage drive, where controlled semiconductor switching is fundamental to converting and regulating motor power. Secondary ABB spare-parts references associate the device with ACS1000 and ACS6000 drive inventories, so the exact drive type, electrical arrangement, and mechanical mounting should be checked before replacement.

Key Technical Specifications

The 51 mm package and 4,500 V IGCT identification are specifically reported in ABB-related spare-parts references. Proax also lists 3BHL000385P0101 as 5SHX0845F0001; IGCT MODULE.

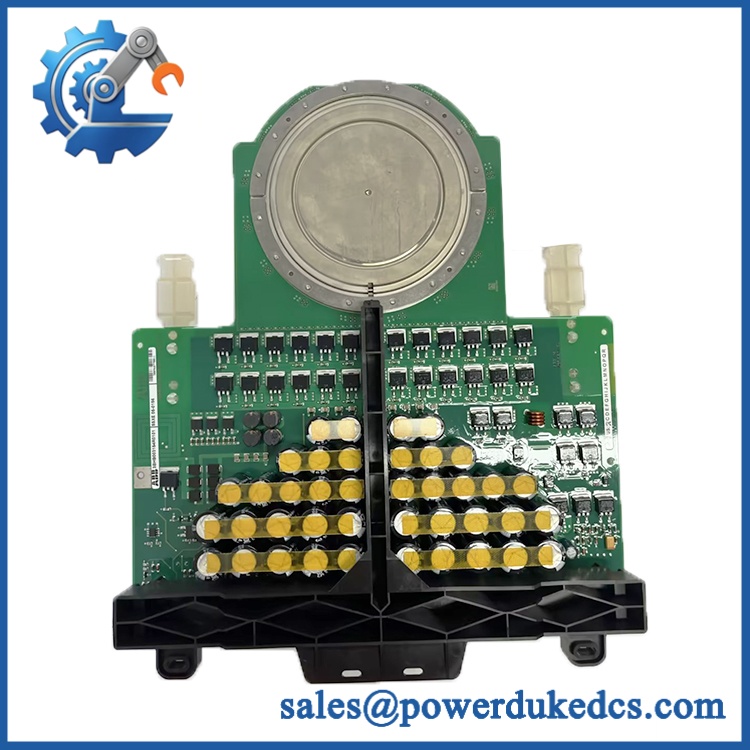

ABB 3BHL000385P0101

Key Features and Practical Value

• High-voltage IGCT switching technology for medium-voltage power conversion.
• 51 mm press-pack format for dedicated power-stack assemblies.
• 4.5 kV voltage class suited to high-energy drive applications.
• Designed as a component within ABB power-electronic assemblies.
• Useful for maintaining installed medium-voltage drive systems where semiconductor spares are no longer readily available.
• Compact semiconductor package compared with complete converter assemblies.
• Direct part-number matching can avoid unnecessary replacement of the surrounding power stack.

This is a component where electrical matching matters more than appearance. A substitute with a similar voltage rating is not automatically acceptable; gate-unit behavior, clamping arrangement, cooling interface, and stack geometry all have to agree.

Typical Applications

Typical applications include medium-voltage motor-drive systems such as:

• Compressor drives
• Large pump drives
• Fan and blower systems
• Mill and processing equipment
• Mining machinery
• Marine propulsion equipment
• Power-generation auxiliaries
• Oil and gas process machinery

ABB-related spare inventories specifically place this IGCT in ACS1000 and ACS6000 medium-voltage drive parts lists.

For an MRO engineer, the device is most relevant when the existing power stack is being preserved. Replacing the complete converter cabinet just because one IGCT has failed is a very different maintenance decision.

Related Models

5SHX0845F0001 — ABB type designation directly associated with 3BHL000385P0101 and identified as the IGCT module.

5SXE05-0151 — Alternate identification reported by some industrial parts suppliers for the same IGCT assembly. Verify the physical marking before treating it as an interchangeable ordering code.

3BHL000386P0101/CA — Related ABB 51 mm / 6 kV coated IGCT module listed in the same spare-parts family. It has a different voltage class and should not be treated as a direct substitute without engineering approval.

3BHL000390P0104 — Another ABB IGCT-related spare used in medium-voltage drive assemblies, but with a different semiconductor specification.

Installation and Maintenance

Before replacing an IGCT, record the complete semiconductor type, stack position, gate-unit connection, cooling arrangement, clamping hardware, and neighboring semiconductor configuration.

Photograph the failed device before removal.

Do not treat this like replacing a plug-in control card. The power stage must be fully isolated, discharged, and verified de-energized using the site’s approved high-voltage procedure. Mechanical clamping force and thermal interface conditions are also important because an incorrectly installed press-pack device can fail even when the electrical part number is correct.

After installation, inspect the gate connection, heatsink interfaces, insulation components, and stack hardware. Perform the applicable gate-pulse and low-energy functional checks before returning the drive to full-power operation.

Quality Inspection and Test Procedure

1. Inbound inspection

• Verify the full ABB part number and type designation.
• Check the semiconductor marking and date/lot information where available.
• Inspect ceramic, metal surfaces, contact faces, and package edges.
• Look for cracks, chips, corrosion, contamination, or signs of overheating.
• Check the press-pack contact surfaces for damage.

2. Live / System Test

Because an IGCT is a high-power semiconductor, testing should be performed only in a qualified ABB medium-voltage drive test environment.

• Verify gate-unit compatibility.
• Check gate-drive response.
• Confirm stack-level diagnostics.
• Perform controlled low-energy verification before high-power operation.
• Record applicable test results in a Test Report.

3. Electrical Testing

Perform semiconductor and gate-terminal checks using the approved ABB or engineering procedure. Generic hipot or megohmmeter testing should not be applied indiscriminately to an IGCT assembly.

4. Configuration Verification

Record gate-unit type, stack location, cooling configuration, and adjacent semiconductor part numbers. Preserve photos of the original installation.

5. Final QC

After QC approval, protect the semiconductor against mechanical impact, moisture, contamination, and electrostatic damage. Use rigid protective packaging and clearly identify the fragile power-semiconductor contents.

Technical Replacement Pitfalls

Voltage-class mismatch: A 4.5 kV device is not interchangeable with a 6 kV device simply because both are 51 mm packages. The related 3BHL000386P0101/CA is a good example of why the full rating matters.

Wrong gate unit: An IGCT depends on its gate-drive system. The semiconductor and gate unit need to be treated as one engineered switching path.

Clamping problems: Press-pack devices rely on controlled mechanical pressure. Incorrect assembly can produce excessive thermal resistance or unreliable current conduction.

Cooling interface: Old thermal interface material, contaminated heatsinks, or poor contact pressure can raise junction temperature significantly.

Part-number confusion: Some secondary catalogs associate 3BHL000385P0101 with 5SHX0845F0001 and 5SXE05-0151. Before procurement, use the physical marking and drive BOM to confirm the intended code.

ESD and contamination: Protect the gate terminals from static discharge and keep the ceramic/contact surfaces clean. A small scratch or contaminant at the wrong location can become a major power-stage problem.

Procurement Guidance

For international MRO purchasing, quote the complete identification as ABB 3BHL000385P0101 / 5SHX0845F0001, then specify condition, electrical test status, gate-terminal condition, packaging, warranty, country of origin, lead time, and Incoterms.

For customs documentation, a clear description such as “ABB IGCT power semiconductor module for medium-voltage drive” is preferable to “electronic board.” Final HS classification should be confirmed against the actual shipment and destination-country customs requirements.

One procurement point is easy to miss: a semiconductor spare should be purchased against the drive BOM and stack position, not only a keyword search. Several visually similar ABB IGCTs have different voltage classes and configurations.

Quick Conclusion

• ABB 3BHL000385P0101 is identified with ABB type 5SHX0845F0001 and is an IGCT power semiconductor.
• Published ABB-related spare references identify it as a 51 mm, 4.5 kV IGCT.
• It is used in ABB medium-voltage drive power assemblies, with secondary sources linking it to ACS1000 and ACS6000 spare inventories.
• Correct replacement requires matching the voltage class, gate unit, cooling arrangement, stack geometry, and drive configuration.
• For critical MRO stock, verify the exact marking and electrical condition before installation rather than relying on a visually similar IGCT.
