ABB 3BHL000388P0101 5SHX1060H0002 | IGCT Power Module

Description

• Brand: ABB
• Full Model Number: 3BHL000388P0101 / 5SHX1060H0002
• System/Series Family: ABB ACS1000 Medium-Voltage Drive
• One-Sentence Core Function: High-power IGCT semiconductor module used in the inverter power stage of ABB medium-voltage converter systems
• Top 3 Hardcore Specs: 6 kV class; 68 mm package; coated IGCT module
• Device Type: Integrated Gate-Commutated Thyristor
• ABB Model: 5SHX1060H0002
• ABB Product ID: 3BHL000388P0101
• Construction: 68 mm / 6 kV coated
• Typical Application: ABB ACS1000 water-cooled medium-voltage drive systems
• Inverter Position: U/V/W phase power stage
• Previous Product ID: HL000388P0101
• Product Weight: Approximately 2.1 kg net
• Stock Status: New Surplus / Factory Sealed / Fully Tested Subject to Availability

ABB-associated product records identify 3BHL000388P0101 as the 5SHX1060H0002 IGCT module, with technical identification of 68 mm / 6 kV coated. ABB product data reproduced by distributors also lists approximately 2.1 kg net weight and identifies HL000388P0101 as the previous product ID.

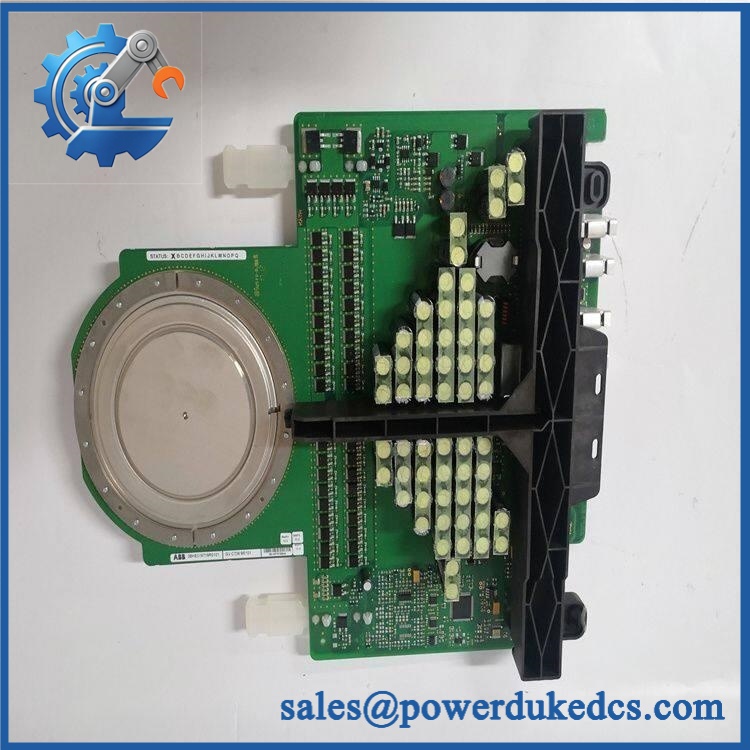

ABB 3BHL000388P0101 5SHX1060H0002

Module 3: Commercial-Technical Deep Dive

A failed power semiconductor in an ACS1000 inverter is a fundamentally different maintenance problem from a failed controller PCB. The ABB 3BHL000388P0101 / 5SHX1060H0002 is an IGCT power module used in ABB medium-voltage converter systems, with field records specifically associating the part with ACS1000 water-cooled equipment and U/V/W inverter positions. The published identification gives the critical procurement parameters: 6 kV class, 68 mm package, coated construction, and ABB model 5SHX1060H0002. This is the power-conversion device itself, so incorrect substitution can affect switching behavior, protection coordination, and the entire converter power stage.

The most important engineering constraint is exact semiconductor matching. The accessible records do not reliably establish every electrical parameter needed for a design substitution—such as continuous current rating, surge current, gate-drive limits, switching frequency, or thermal resistance—so those figures should not be invented for this PDP. The approximately 2.1 kg net weight and 68 mm package are useful physical checks, while the previous-product relationship to HL000388P0101 provides a useful traceability reference. For a production ACS1000, match the complete ABB part number, semiconductor model, mounting geometry, gate interface, cooling arrangement, and the original drive’s circuit documentation before installation.

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Primary Device: High-power IGCT semiconductor module
• ABB Product ID: 3BHL000388P0101
• IGCT Model: 5SHX1060H0002
• Package: 68 mm
• Voltage Class: 6 kV
• Construction: Coated
• Application: ABB ACS1000 medium-voltage converter systems
• Typical Position: Inverter U/V/W power stage
• Previous Product ID: HL000388P0101
• Replacement Strategy: Exact 3BHL000388P0101 / 5SHX1060H0002 matching strongly preferred
• Gate Drive: Must match the installed ABB gate-unit and associated drive electronics
• Cooling: Verify the original heat-transfer and cooling arrangement before replacement
• Logic Rewrite: Not applicable at the PLC-logic level; the device is a power semiconductor component, but drive commissioning and protection verification are required after replacement

⚠️ Field Traps (Watch Out)

1. Do not substitute by voltage rating alone.
Two semiconductor modules can both carry a nominal 6 kV designation while differing in current capability, gate-drive requirements, dynamic behavior, mounting geometry, or thermal characteristics. Match 5SHX1060H0002 and 3BHL000388P0101 rather than selecting another 6 kV device.

2. Inspect the gate interface before energization.
An IGCT depends on its dedicated gate-drive path. Check the gate connections, insulation, connector condition, mechanical mounting, and gate-unit configuration against the original assembly. A power-stage device that is electrically sound can still fail immediately if the gate circuit is incorrect.

3. Thermal contact is part of the electrical installation.
The IGCT must transfer heat into the intended cooling structure. Inspect the mounting surface, thermal interface material, clamping arrangement, and cooling path. Uneven pressure or poor thermal contact can create localized overheating after the drive returns to load.

4. Keep the phase position exact.
Field records associate this module with ABB inverter U/V/W applications. Do not move a replacement between phase positions without following the applicable drive assembly drawing and service procedure.

Module 5: Quality Assurance SOP

Each available ABB 3BHL000388P0101 / 5SHX1060H0002 should undergo a documented power-semiconductor inspection and controlled functional verification before shipment:

• OEM anti-counterfeit visual inspection: Verify ABB identification, complete 3BHL000388P0101 catalog number, 5SHX1060H0002 device marking, package geometry, terminal arrangement, coating, and manufacturing identifiers.
• Exact-part verification: Photograph the complete device marking and record the semiconductor model before testing.
• Package inspection: Check the 68 mm body, terminals, mounting surfaces, insulating interfaces, and mechanical hardware for cracks, chips, distortion, or impact damage.
• Coating inspection: Inspect the coated surfaces for cracks, delamination, contamination, moisture intrusion, or abnormal discoloration.
• Gate-terminal inspection: Examine gate and auxiliary connections for bent contacts, corrosion, contamination, and mechanical damage.
• Power-terminal inspection: Verify the main power terminals and mating surfaces are clean, flat, and free from arc damage.
• Previous-failure inspection: Look for thermal marks, localized discoloration, cracked semiconductor housing, soot, or evidence of an earlier overcurrent event.
• Static electrical screening: Perform controlled semiconductor resistance/continuity checks using the applicable ABB-approved test method. Do not apply uncontrolled high voltage to an unverified device.
• Gate-path verification: Check gate and auxiliary interfaces against the approved low-energy laboratory procedure.
• Insulation verification: Perform the applicable insulation and isolation checks required by the service procedure before installation into a production power stage.
• Thermal-interface inspection: Verify the mounting surface and thermal-interface materials before mechanical installation.
• Power-on self-test (POST): Where a qualified test fixture permits, install the device in a controlled low-risk test assembly and verify expected gate/control behavior.
• Gate-drive handshake verification: Confirm the associated gate unit correctly recognizes and drives the installed IGCT under controlled conditions.
• Controlled load test: Where suitable equipment exists, verify inverter switching behavior under a controlled load rather than connecting an untested semiconductor directly to production machinery.
• Final QC record: Record catalog number, IGCT model, visible revision/trace information, electrical screening results, gate-interface results, mounting inspection, test fixture, and technician sign-off.
• ESD-safe packaging: Use suitable ESD and moisture protection with rigid mechanical support around the ceramic/package body and terminals.

For this component, a credible QC report should not simply state “power tested.” The critical records are exact semiconductor identity, package condition, gate-interface condition, insulation results, mounting preparation, and controlled switching verification. A semiconductor that passes a basic continuity check has not necessarily been validated for service in an inverter.

Module 6: CRO-Driven Buyer FAQ

What is ABB 3BHL000388P0101?

ABB 3BHL000388P0101 is identified as the 5SHX1060H0002 IGCT module, a high-power semiconductor component used in ABB medium-voltage drive and converter applications. Published records specify a 68 mm / 6 kV coated construction.

Is 3BHL000388P0101 the same as 5SHX1060H0002?

Yes. The available product records identify 3BHL000388P0101 as the ABB product ID and 5SHX1060H0002 as the IGCT model. Both identifiers should be retained in procurement records to prevent confusion with related ABB 5SHX devices.

What drive systems use this IGCT module?

Field inventory records specifically associate 3BHL000388P0101 / 5SHX1060H0002 with ABB water-cooled medium-voltage converter equipment, including inverter U/V/W applications. Exact drive compatibility should still be confirmed from the equipment type code and power-stage documentation.

Is 3BHL000388P0101 a direct replacement for HL000388P0101?

ABB-oriented product data identifies HL000388P0101 as the previous product ID for 3BHL000388P0101. That is strong traceability evidence, but the installed revision and gate-drive configuration should still be checked before treating it as an unconditional field replacement.

Can the IGCT be replaced while the is energized?

No assumption of live replacement should be made. This is a high-voltage power semiconductor inside a medium-voltage converter. The DC link can retain hazardous energy after input power is removed, so the applicable ABB shutdown, discharge, grounding, and access procedure must be completed before the module is handled.

What warranty and technical support should I expect?

Warranty duration should be stated for the exact unit condition and test status on the quotation. Technical support should cover part-number verification, 5SHX1060H0002 matching, application review, gate-interface checking, mounting guidance, and documented semiconductor screening/testing. Medium-voltage drive commissioning, protection coordination, and power-stage engineering should be treated separately unless explicitly included.
