ABB 3BHL000390P0104 5SHX1960L0004 | IGCT RC Module

Description

• Brand: ABB
• Full Model Number: 3BHL000390P0104 / 5SHX1960L0004
• System/Series Family: ABB ACS1000 Medium-Voltage Drive
• One-Sentence Core Function: High-power IGCT RC semiconductor used as a switching device in ABB medium-voltage converter power stages
• Top 3 Hardcore Specs: 5500 V; 91 mm coated package; ACS1000 spare-part application
• Stock Status: New Surplus / Fully Tested Refurbished — device marking, package condition, and part-number traceability verified before shipment

Module 3: Commercial-Technical Deep Dive

A failed IGCT can disable a medium-voltage converter power stage while the control electronics remain fully operational. The ABB 3BHL000390P0104, Type Designation 5SHX1960L0004, is cataloged as an IGCT RC and is listed as a spare for the ACS1000 drive family. ABB-linked product data specifies a 5500 V rating and 91 mm coated construction, with the older product IDs 3BHL000390P0101 and HL000390P0104 identified as replaced identifiers. The complete order code therefore matters when sourcing a legacy power-stack device.

This is a press-pack power semiconductor, not a conventional electronic control module. The catalog data lists approximately 2.6 kg net weight, while the 91 mm coated format provides a key mechanical identification point for the installed power stack. Public sources conflict on some finer electrical values and even on the exact host-drive family, so unsupported current, gate-drive, thermal, or cooling ratings should not be copied into an engineering specification. ABB’s catalog specifically identifies the device as an IGCT RC for ACS1000, which should be the primary compatibility reference.

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: Configuration-specific IGCT RC replacement for compatible ABB medium-voltage converter assemblies.
• Official identification: 3BHL000390P0104, ABB Type Designation 5SHX1960L0004, Catalog Description 5SHX1960L0004; IGCT RC.
• Primary documented application: ABB identifies the unit as a spare for ACS1000. Do not assume universal compatibility across ABB medium-voltage drives.
• Firmware requirement: None for the semiconductor itself. The associated gate unit, control electronics, protection settings, and converter topology must remain compatible.
• Logic rewrite: Not applicable to the IGCT alone. Post-replacement commissioning belongs to the complete converter power stage.
• Legacy identifiers: ABB-linked data identifies 3BHL000390P0101 and HL000390P0104 as replaced product IDs.

⚠️ Field Traps (Watch Out)

• Do not substitute by package size alone: Another 5SHX device may physically resemble this part while having different electrical characteristics.
• Mechanical compression: Press-pack IGCTs depend on the specified power-stack clamping arrangement and thermal interface. Use the ABB procedure for the exact equipment; do not improvise clamping force.
• Gate-drive matching: Verify the installed gate-control assembly and optical/control interface before commissioning. A correct IGCT paired with the wrong gate unit is not a valid replacement.
• Thermal interface: Inspect the mating surfaces and cooling path for oxidation, contamination, uneven contact, and mechanical damage before installing a replacement device.
• Medium-voltage isolation: Treat the complete converter as energized until all stored energy has been discharged and absence of hazardous voltage has been independently verified.

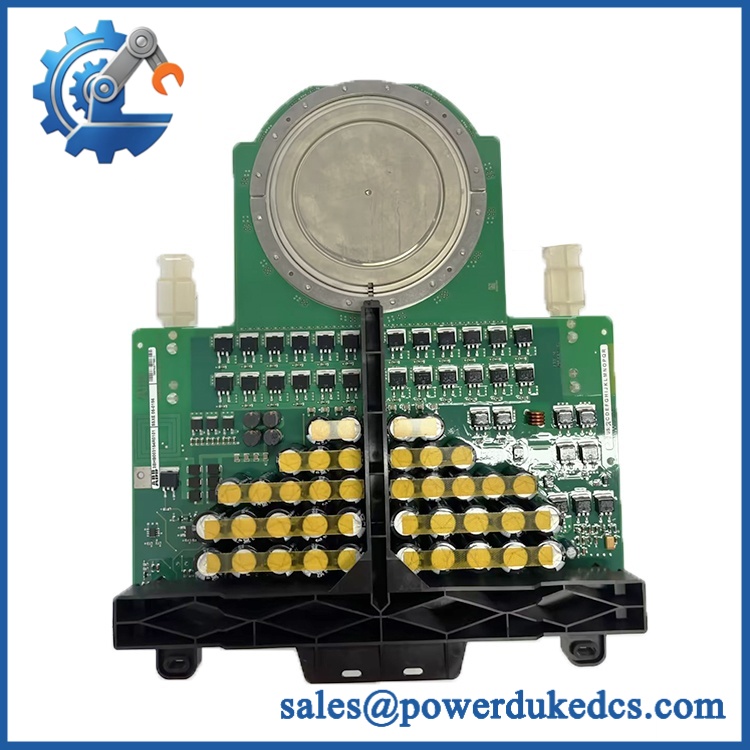

ABB 3BHL000390P0104 5SHX1960L0004

Module 5: Quality Assurance SOP

Our pre-shipment inspection for an ABB 3BHL000390P0104 / 5SHX1960L0004 focuses on semiconductor identity, package condition, and power-stack compatibility:

1. OEM anti-counterfeit visual inspection — verify ABB markings, complete 3BHL000390P0104 identifier, 5SHX1960L0004 designation, coating, package geometry, and manufacturing markings.
2. Device marking capture — photograph all readable markings and record available lot or serial information.
3. Catalog specification verification — confirm the 5500 V rating and 91 mm coated configuration against the requested part number.
4. Mechanical inspection — inspect the press-pack body, contact faces, ceramic surfaces, coating, terminals, and mounting interfaces for chips, cracks, corrosion, or impact.
5. Contact-surface inspection — verify that the semiconductor faces are clean and free from foreign material that could affect electrical or thermal contact.
6. Electrical integrity screening — where the qualified test facility and approved procedure permit, perform device-level screening appropriate to the exact IGCT without exceeding manufacturer limits.
7. Gate-interface verification — where a compatible laboratory fixture exists, verify gate/control behavior using the approved ABB test method.
8. Power-stack fit verification — confirm mechanical dimensions and interface arrangement against the customer’s installed converter documentation.
9. Controlled switching test — where qualified high-power test equipment is available, verify switching behavior under controlled conditions and monitor electrical and thermal response.
10. Extended observation — monitor for abnormal leakage, gate behavior, thermal drift, or mechanical instability during the approved test cycle.
11. Traceability record — document part number, device designation, revision or lot information, test equipment, test results, and inspection photographs.
12. Final QC review — compare the recorded semiconductor identity against the customer’s purchase specification and converter spare-parts list.
13. ESD and mechanical packaging — use suitable antistatic protection, rigid cushioning, contact-surface protection, and moisture control before shipment.

The fixed catalog acceptance points for this exact unit are 5SHX1960L0004, IGCT RC, 5500 V, 91 mm coated, approximately 2.6 kg, and ACS1000 spare-part use.

Module 6: CRO-Driven Buyer FAQ

1. Is ABB 3BHL000390P0104 obsolete, and how do I verify authenticity?

The exact orderable unit is 3BHL000390P0104 / 5SHX1960L0004; IGCT RC. ABB-linked catalog data identifies 3BHL000390P0101 and HL000390P0104 as replaced product IDs. Verify the complete marking, device designation, package geometry, coating, and traceable condition before accepting a replacement.

2. What is the voltage rating of 3BHL000390P0104?

The published catalog specification identifies 5500 V and a 91 mm coated package. This is a device-level rating, not the operating-voltage specification of the complete medium-voltage drive. Converter topology, semiconductor derating, cooling, and protection determine the actual system operating envelope.

3. Can 3BHL000390P0104 be hot-swapped?

No routine live replacement should be assumed. This is a high-power IGCT used in a medium-voltage converter power stage. Follow the applicable ABB maintenance procedure, discharge requirements, verified zero-energy checks, and site LOTO procedure before handling the device.

4. Is 3BHL000390P0104 a PCB or a power semiconductor?

It is a power semiconductor device, with ABB identifying the 5SHX1960L0004 as an IGCT RC. The 3BHL000390P0104 number is the ABB product/order identifier associated with that device.

5. What warranty and technical support should I expect?

Warranty duration should be stated on the quotation for the exact physical device supplied. Technical support should cover product-ID verification, converter compatibility checks, package inspection, installation guidance, and documented pre-shipment screening. It should not substitute for medium-voltage commissioning, gate-drive validation, or qualified electrical work.
