Description
- Brand: ABB
- Full Model Number: 3BHL000392P0001
- ABB Type Designation: 5SHX0860H0001
- System/Series Family: ABB ACS1000 Medium-Voltage AC Drives
- One-Sentence Core Function: High-power IGCT semiconductor module used in ABB ACS1000 inverter power stages
- Top 3 Hardcore Specs: 68 mm package; 6 kV class; coated construction
- Device Type: IGCT Module
- Product Category: Medium-Voltage Drive Spare
- Previous Product ID: HL000392P0001
- Product Net Weight: 2.11 kg
- Minimum Order Quantity: 1 piece
- Country of Origin Listed: Switzerland
- Customs Tariff Classification: 85413000
- Stock Status: New Surplus / Factory Sealed / Fully Tested Subject to Availability
ABB product data identifies 3BHL000392P0001 as 5SHX0860H0001; IGCT MODULE, with the technical description 68MM/6KV COATED. ABB records also identify HL000392P0001 as the previous product ID and associate the device with ACS1000 medium-voltage drives.
Module 3: Commercial-Technical Deep Dive
A failed IGCT in an ACS1000 inverter is a power-stage failure, not a routine control-board fault. The ABB 3BHL000392P0001 / 5SHX0860H0001 is an integrated gate-commutated thyristor module intended for ABB medium-voltage drive applications. ABB product records identify the device as a 68 mm, 6 kV coated IGCT module, with a listed net weight of 2.11 kg and a documented application within the ACS1000 family. That exact semiconductor identity matters because the gate characteristics, dynamic switching behavior, thermal interface, and physical mounting arrangement all have to agree with the original power-stage design.
The useful procurement distinction is between a verified replacement and a nominally similar semiconductor. The accessible ABB data does not establish every application parameter required for an engineering substitution, such as continuous current, surge current, gate-drive limits, switching frequency, or thermal resistance. Those values should therefore be taken from the applicable ACS1000 power-stage documentation rather than inferred from the 6 kV designation. The previous-product relationship HL000392P0001 → 3BHL000392P0001 provides valuable traceability, while the 2.11 kg net weight and 68 mm package give practical receiving-inspection checkpoints.

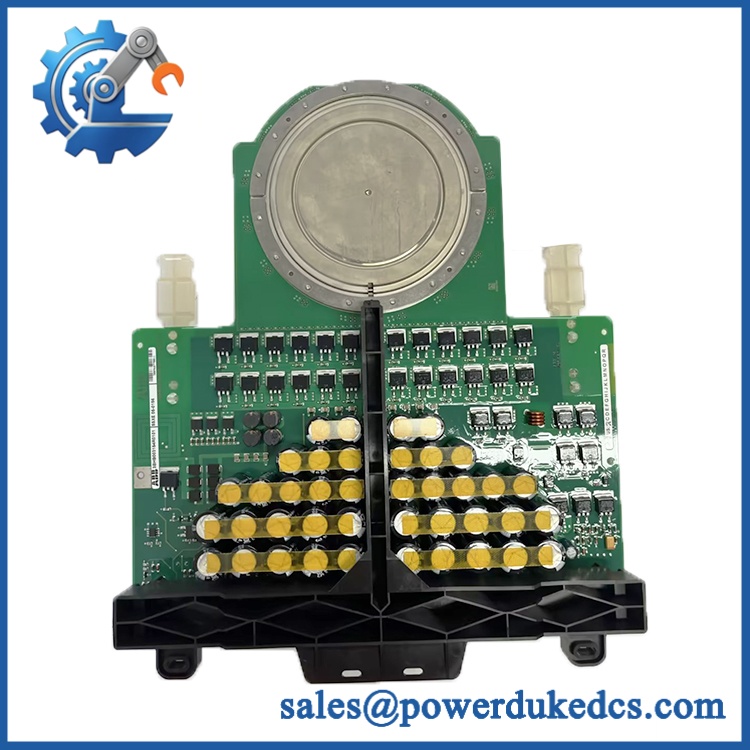

ABB 3BHL000392P0001 5SHX0860H0001
Module 4: Compatibility & Installation Traps
Migration/Compatibility
- Primary Device: Integrated Gate-Commutated Thyristor module
- ABB Product ID: 3BHL000392P0001
- Type Designation: 5SHX0860H0001
- Package: 68 mm
- Voltage Class: 6 kV
- Construction: Coated
- Application: ABB medium-voltage AC drive
- Previous Product ID: HL000392P0001
- Replacement Strategy: Exact 3BHL000392P0001 / 5SHX0860H0001 matching strongly preferred
- Gate Drive: Must match the installed ABB gate-unit architecture
- Cooling: Must match the original power-stage heat-transfer and cooling arrangement
- Logic Rewrite: Not applicable at the PLC-logic level; power-stage commissioning and protection verification are required after replacement
⚠️ Field Traps (Watch Out)
1. Do not substitute based on the 6 kV rating alone.
A different IGCT can share the same voltage class while having different current capability, dynamic behavior, gate requirements, package characteristics, or thermal limits. Match 5SHX0860H0001 exactly unless an ABB-approved engineering cross-reference says otherwise.
2. Gate-drive compatibility must be checked before energization.
The IGCT’s gate circuit is an integral part of its switching operation. Verify gate connections, auxiliary contacts, connector condition, and the installed gate-unit arrangement before applying converter power.
3. Thermal mounting is not a cosmetic detail.
Confirm the mating cooling surface, thermal interface, clamping method, and cleanliness of the mounting interface. Uneven thermal contact can produce localized overheating even when static semiconductor tests are normal.
4. Check the phase location against the original drive drawing.
Do not relocate the replacement module between converter positions without confirming the relevant power-stage documentation. Phase-specific hardware arrangements should be preserved.
Module 5: Quality Assurance SOP
Each ABB 3BHL000392P0001 / 5SHX0860H0001 should pass a controlled power-semiconductor inspection and verification sequence before shipment:
- OEM anti-counterfeit visual inspection: Verify ABB identification, complete 3BHL000392P0001 part number, 5SHX0860H0001 type designation, package geometry, terminal configuration, coating, and manufacturing markings.
- Exact-part verification: Photograph and record all visible semiconductor markings before testing.
- Package inspection: Check the 68 mm housing for cracks, chips, impact damage, deformation, or contamination.
- Coating inspection: Examine the coated surfaces for cracking, delamination, moisture intrusion, or abnormal discoloration.
- Main-terminal inspection: Inspect power-terminal contact surfaces for corrosion, arc marks, pitting, or mechanical deformation.
- Gate-terminal inspection: Check gate and auxiliary connections for bent pins, oxidation, contamination, and mechanical damage.
- Failure-evidence inspection: Look for thermal discoloration, soot, cracked ceramic/package areas, or evidence of overcurrent events.
- Static electrical screening: Perform controlled semiconductor checks using the approved ABB service method. Do not subject an unverified IGCT to uncontrolled high voltage.
- Gate-path verification: Check the gate and auxiliary interfaces using a low-energy laboratory test procedure suitable for the device.
- Insulation verification: Perform applicable insulation and isolation checks before any power-stage installation.
- Cooling-interface inspection: Verify that the mounting surface and thermal interface are suitable for installation.
- Power-on self-test (POST): Where a qualified test fixture exists, verify controlled gate-drive operation without connecting the device to an energized production power stage.
- Gate-drive handshake verification: Confirm expected gate-control behavior with the compatible ABB gate unit.
- Controlled switching test: Where laboratory equipment permits, verify switching behavior under controlled operating conditions.
- Final QC record: Record product ID, type designation, visible trace information, static screening results, gate-interface results, insulation checks, mounting inspection, and technician sign-off.
- ESD and moisture protection: Package the module using appropriate ESD-safe and moisture-resistant materials with rigid protection for the ceramic/package body and terminals.
For an IGCT, a simple continuity check is not enough. The outgoing QC record should distinguish device identity, static screening, gate-path verification, insulation, and controlled switching validation. That gives the buyer meaningful evidence of service readiness rather than a generic “tested” label.
Module 6: CRO-Driven Buyer FAQ
What is ABB 3BHL000392P0001?
ABB 3BHL000392P0001 is identified as the 5SHX0860H0001 IGCT module, used as a power-semiconductor component in ABB medium-voltage drive equipment. ABB’s product information specifies a 68 mm / 6 kV coated construction and associates the part with drive spares.
Is 3BHL000392P0001 the same as 5SHX0860H0001?
Yes. ABB product data identifies 3BHL000392P0001 as the product ID and 5SHX0860H0001 as the ABB type designation. Both identifiers should remain in procurement and QC records to avoid confusion with nearby 5SHX device families.
What is the relationship to HL000392P0001?
ABB product data identifies HL000392P0001 as the previous product ID associated with the newer 3BHL000392P0001 entry. That provides useful successor traceability, but the installed revision and gate-drive arrangement should still be checked before field replacement.
Can this IGCT be used in an ABB ?
ABB records list under the products where 3BHL000392P0101 / the related 5SHX1060H0001 device is used, and industry inventory records identify 3BHL000392P0001 as an IGCT module in the same spare-parts family. For the exact 5SHX0860H0001 device, confirm the type code, power-stage position, and service documentation before installation.
Can an IGCT be replaced while the is energized?
No assumption of live replacement should be made. This is a high-voltage semiconductor inside a medium-voltage converter. Complete the applicable shutdown, DC-link discharge, isolation, grounding, and access procedures before handling the module.
What warranty and technical support should I expect?
Warranty duration should be stated for the exact unit condition and test status on the quotation. Technical support should cover part-number verification, 5SHX0860H0001 matching, compatibility review, gate-interface checks, mounting guidance, and documented semiconductor testing. Medium-voltage commissioning, protection coordination, and converter power-stage engineering should be treated separately unless explicitly included.
