ABB 3BHL000392R0101 5SHX1060H0001 | IGCT Power Module

Description

• Brand: ABB
• Full Model Number: 3BHL000392R0101
• System/Series Family: ABB IGCT medium-voltage drive and power-conversion hardware
• One-Sentence Core Function: IGCT power module assembly used for high-power switching in ABB medium-voltage converter equipment
• Top 3 Hardcore Specs: IGCT technology; associated device marking 5SHX1060H0001; associated control/gate hardware references 3BHB003230R0101 and 5SXE05-0152
• Stock Status: New surplus / fully tested refurbished, subject to exact assembly marking

Available technical listings consistently associate 3BHL000392R0101 with the ABB 5SHX1060H0001 IGCT family. Several listings also connect the assembly with 3BHB003230R0101 and 5SXE05-0152, although the exact relationship between these identifiers varies by catalog and assembly configuration.

Module 3: Commercial-Technical Deep Dive

When an ABB medium-voltage converter develops a semiconductor-stage fault, the failed component is often one specific power module rather than the complete drive. ABB 3BHL000392R0101 is associated with the 5SHX1060H0001 IGCT family and is described in available technical records as an IGCT power module for high-power conversion applications. This is power-stage hardware, not a PLC CPU or conventional control PCB; the replacement must therefore be matched to the installed converter topology, gate-control arrangement, cooling hardware, and device revision.

The procurement advantage is targeted restoration of the power-conversion stage. The strongest identification point is the relationship between 3BHL000392R0101 and 5SHX1060H0001; secondary records also associate the same device family with 3BHB003230R0101 and gate-control hardware. Published dimensions and weights vary considerably among suppliers, which makes generic shipping data unsuitable for engineering installation decisions. For a shutdown replacement, use the physical assembly label and the applicable ABB drive documentation as the controlling reference—especially because some catalogs list R0101 and P0101 variants separately.

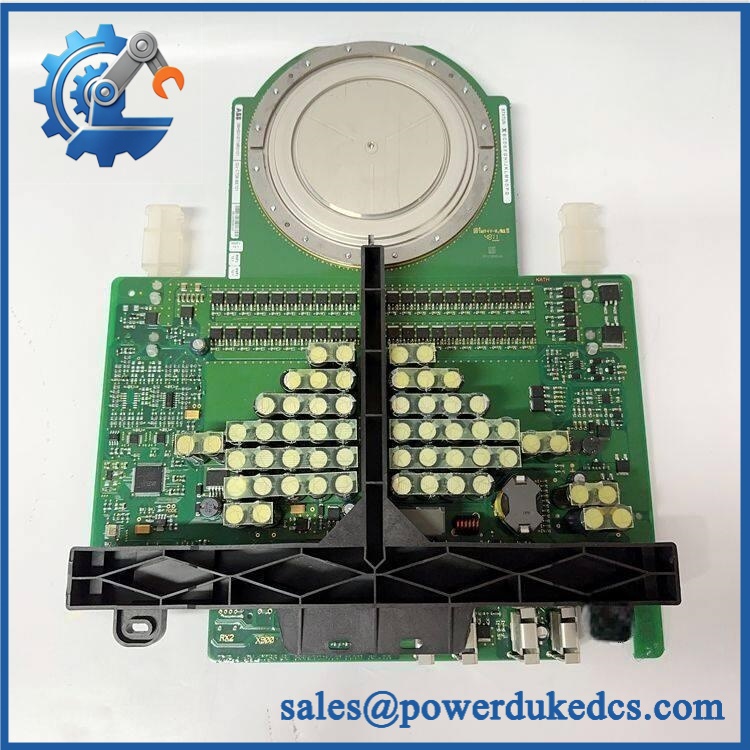

ABB 3BHL000392R0101 5SHX1060H0001

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement type: ABB IGCT power module / high-power semiconductor assembly
• Primary device association: 5SHX1060H0001
• Related hardware references: 3BHB003230R0101 and 5SXE05-0152 appear in current technical listings; exact assembly relationships must be verified against the installed equipment.
• Firmware flash: Not applicable to the IGCT power device itself
• Logic rewrite: Not applicable to the semiconductor replacement itself
• Drop-in status: Do not assume without exact assembly verification. Confirm device marking, gate-drive unit, mechanical stack, cooling arrangement, and converter model before shipment or installation.
• Variant warning: Some catalogs reference 3BHL000392R0101, while others pair the same 5SHX1060H0001 device with 3BHL000392P0101. Treat these as separate identifiers until the installed ABB documentation confirms interchangeability.

⚠️ Field Traps (Watch Out)

1. Do not substitute on the semiconductor number alone.
The 5SHX1060H0001 designation is associated with multiple ABB hardware identifiers in secondary catalogs. The correct replacement depends on the complete power-stack assembly, gate-control hardware, and mechanical arrangement—not just the semiconductor marking.

2. Press-pack and power-stack assembly procedures are critical.
An IGCT power module operates within a controlled mechanical and thermal stack. Contact-surface condition, alignment, cooling interface, and the manufacturer’s specified clamping procedure all affect device behavior. Never improvise the mounting procedure from a visually similar semiconductor.

3. Verify gate-control compatibility.
Some available records associate the 5SHX1060H0001 with GVC704AE01 / 3BHB003230R0101 gate-unit hardware. This relationship should be confirmed against the actual converter before installing a replacement.

4. Medium-voltage isolation is mandatory.
This component belongs to high-power converter hardware. Replacement requires the approved shutdown, lockout/tagout, grounding, and stored-energy discharge procedure for the specific ABB drive or converter.

Module 5: Quality Assurance SOP

Each ABB 3BHL000392R0101 unit should pass a controlled pre-shipment inspection sequence:

• OEM anti-counterfeit visual inspection: Verify ABB markings, complete 3BHL000392R0101 identifier, 5SHX1060H0001 device marking where present, connector/interface arrangement, and manufacturing labels.
• Part-number verification: Record the exact assembly number and all visible secondary identifiers, including 5SHX1060H0001 and any 3BHB003230R0101 or 5SXE05-0152 markings.
• Mechanical inspection: Check the power module housing, semiconductor interfaces, insulation components, connectors, mounting points, and cooling surfaces for cracking, contamination, corrosion, deformation, or impact damage.
• Gate-interface inspection: Verify gate-drive and auxiliary interfaces against the expected assembly configuration before any powered test.
• Electrical screening: Perform only approved non-destructive tests applicable to the exact IGCT/module assembly. Do not apply improvised high-voltage or gate-drive signals.
• Power-on self-test (POST): Not applicable to the isolated IGCT module. System POST belongs to the complete ABB converter after installation.
• Communication handshake verification: Not applicable to the semiconductor itself. System-level testing should verify the associated gate unit, converter diagnostics, and control-system response.
• Thermal-interface inspection: Confirm that mating surfaces are clean and free of damage before release.
• Final QC: Photograph all identification markings, record test and inspection results, protect the module against ESD and mechanical shock, and retain traceability records.

Module 6: CRO-Driven Buyer FAQ

1. What is ABB 3BHL000392R0101?

Available technical references identify 3BHL000392R0101 with the 5SHX1060H0001 ABB IGCT family. It is power-stage hardware used in high-power and medium-voltage conversion applications.

2. Is 3BHL000392R0101 the same as 5SHX1060H0001?

They should not automatically be treated as identical identifiers. Current listings commonly pair 3BHL000392R0101 with 5SHX1060H0001, but other catalogs pair the same device with 3BHB003230R0101 or 3BHL000392P0101. Verify the physical nameplate and the installed ABB equipment documentation before substitution.

3. Can this IGCT module be hot-swapped?

No assumption of hot-swap capability should be made. This is high-power converter hardware and requires full electrical isolation, stored-energy verification, grounding, and the applicable ABB maintenance procedure before removal.

4. What equipment does the module belong to?

Secondary technical records associate the 5SHX1060H0001 device family with ABB medium-voltage drives and power-conversion systems, including gate-control hardware such as GVC704AE01 / 3BHB003230R0101. The exact drive model should be confirmed from the installed equipment documentation before ordering.

5. What warranty and technical support are provided?

Warranty duration should be stated on the quotation for the exact inventory condition supplied. Technical support should cover part-number verification, assembly cross-reference, inspection/test documentation, and compatibility review. Medium-voltage isolation, semiconductor-stack assembly, gate-drive commissioning, and energized testing require appropriately qualified personnel.
