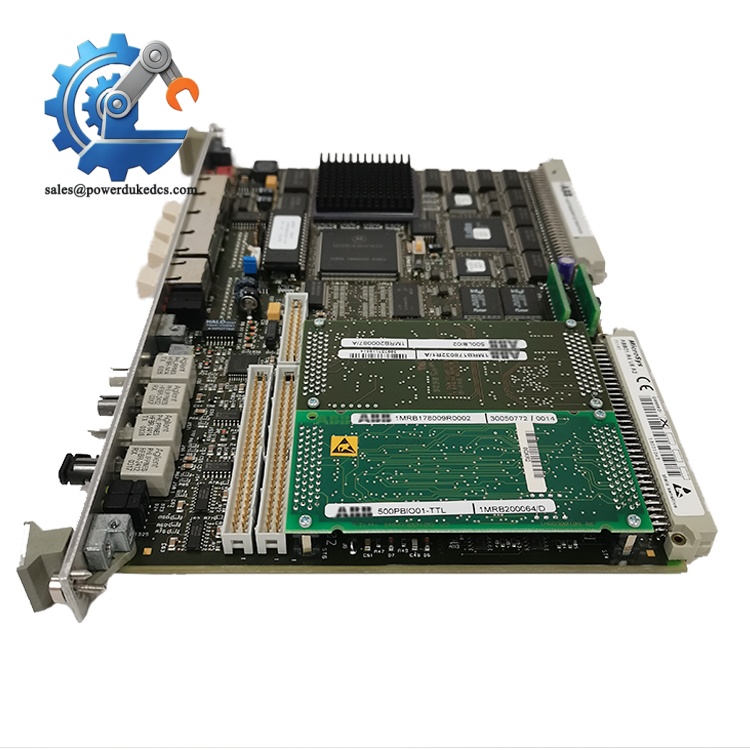

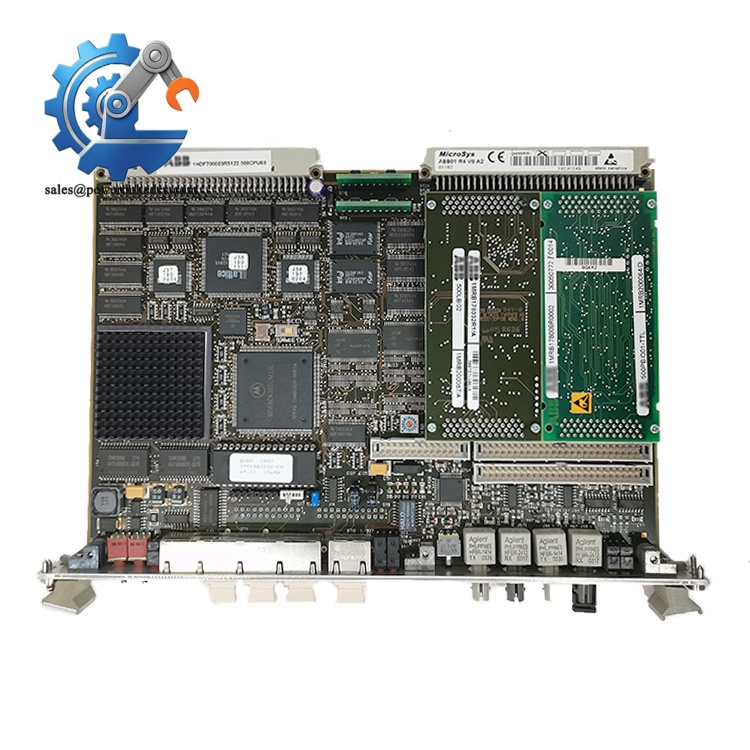

ABB 5000CC03 1MRB380084R0003 | OEM Rack Control Assembly

Description

1. ABB 5000CC03 1MRB380084R0003 | OEM Rack Control Assembly

Unboxing & Physical Snapshot

• Brand & Model: ABB 5000CC03 1MRB380084R0003
• Product Family: ABB Industrial Control System Hardware
• Product Type: Rack-mounted control/communication module for ABB automation systems.
• Approximate Physical Dimensions: Approximately 235 × 160 × 35 mm (9.3 × 6.3 × 1.4 in).
• Estimated Shipping Weight: Approximately 0.8–1.2 kg (1.8–2.6 lb), including protective packaging.
• Mechanical Construction:
  • Multi-layer printed circuit board
  • Industrial-grade edge connector
  • Front extraction handle
  • Retaining latches
  • Identification label
• Cooling Method: Passive convection through the control cabinet.
• What’s in the Box:
  • ABB 5000CC03 1MRB380084R0003 module
  • Anti-static (ESD) shielding bag
  • Protective cushioning materials
  • Product documentation (when supplied)

Product Introduction

Inside an ABB automation rack, every module depends on reliable communication and stable backplane connections. The 5000CC03 1MRB380084R0003 installs into the system chassis through its edge connector, becoming part of the controller architecture rather than functioning as a standalone device (which makes connector integrity just as important as electronic health).

Before inserting the module, inspect the gold-plated edge contacts, retaining clips, and front extraction handle. Even slight deformation of the connector can create intermittent faults that resemble software problems. During planned shutdowns, verify both hardware revision and rack compatibility before energizing the cabinet.

Core Technical Specifications

ABB 5000CC03 1MRB380084R0003

Global Compliance & Industry Certifications

Expected approvals for this class of ABB industrial hardware include:

• CE Mark for EMC and Low Voltage Directive compliance where applicable.
• UL/cUL Recognized or Listed components, depending on the complete cabinet assembly.
• RoHS Compliance for applicable production revisions.
• IEC 61131 industrial automation equipment requirements where incorporated into PLC/DCS systems.
• ATEX/IECEx suitability only when installed within an approved hazardous-area system.
• Marine approvals (DNV GL, ABS, or LR) for certified marine automation packages where specified.

For hazardous process plants, certification of the entire installation matters—not just the module itself. A Class I Division 2 or Zone 2 certified cabinet helps reduce ignition risk when flammable gases are present.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

• Keep the module inside its original ESD shielding bag until installation. Static discharge can damage integrated circuits long before visible symptoms appear.
• Store in a clean warehouse with relative humidity below 60%. Moisture accelerates oxidation on the edge connector and can affect long-term contact resistance.
• Every 12–18 months, inspect the connector fingers, extraction handle, and PCB edges (look closely for discoloration or contamination). Record inspection dates in the asset management system to maintain audit traceability.

Physical Installation Prerequisites

• Install only in a compatible ABB rack or chassis.
• Verify the backplane connector is clean before inserting the module.
• Leave at least 50 mm (2 in.) of clearance above and below the rack to promote natural convection cooling.
• Confirm the cabinet protective earth is bonded before energizing the system.
• Avoid inserting or removing the module while power is applied unless the platform explicitly supports hot swapping.
• Tighten all retaining hardware to prevent vibration-related movement.

ABB 5000CC03 1MRB380084R0003

Buyer’s FAQ (Logistics & Compliance Focus)

Q: Which HS Tariff Code is typically used for the ABB 5000CC03 1MRB380084R0003?

A: Industrial control modules are commonly classified under HS 8537, covering boards, panels, consoles, and related control equipment. Final classification should always be confirmed with the importing country’s customs authority.

Q: Why is the Country of Origin important during procurement?

A: The Country of Origin (COO) affects customs documentation, preferential trade agreements, regulatory reporting, and supplier qualification records. Always retain the original ABB identification label and shipping documentation.

Q: Is shipping insurance recommended?

A: Yes. Although compact, the module contains precision electronic assemblies and plated edge connectors. Hidden impact damage during transportation may not become apparent until commissioning.

Q: Does this module ship with the latest firmware?

A: Firmware availability depends on the hardware revision and the ABB automation platform in which the module is installed. Verify firmware compatibility against the target system before installation, as factory inventory may contain different production revisions.
