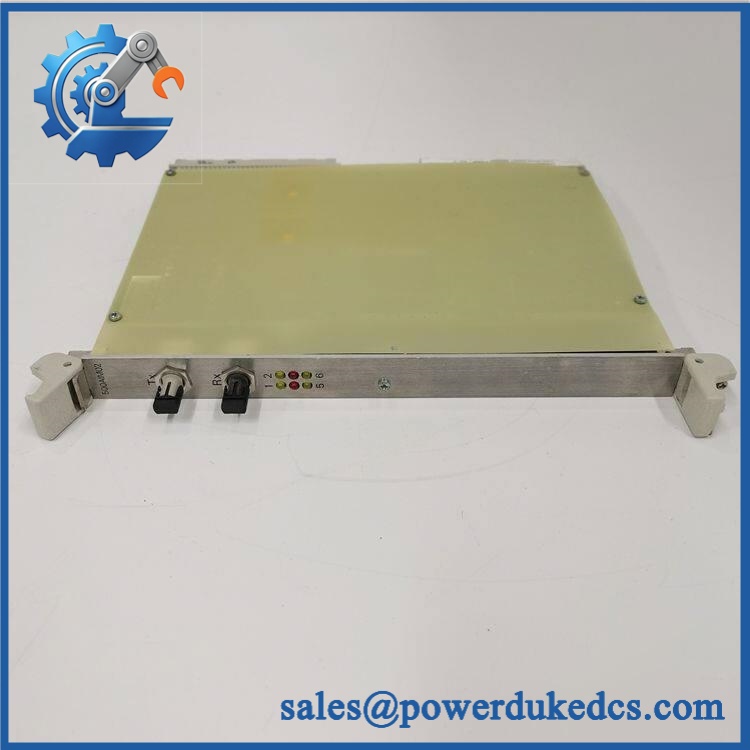

ABB 500AIM02 1HDF 930412 X010 | Replacement AIM Module for Legacy ABB Control Systems

Description

• Model: 500AIM02
• Part Number: 1HDF 930412 X010
• Related ABB Ordering Code: 1MRB150022R0002 is also associated with the 500AIM02 / 1HDF 930412 X010 combination in ABB-related parts references.
• Brand: ABB
• Series: Advant 500
• Part Type: Analog Input Module
• Core Function: Converts field analog measurements into signals usable by the ABB control system for process monitoring and control.
• Key Specs: 500AIM02 analog-input hardware; 1HDF 930412 X010 identification; designed for ABB Advant-series industrial automation installations.
• Application: Process instrumentation, power-generation equipment, plant monitoring, and legacy ABB control systems.

Product Introduction

When several process measurements suddenly become unavailable, replacing individual transmitters is not always the right first move. A common analog-input module fault can affect multiple measurement points simultaneously, making the module-level diagnosis important.

ABB 500AIM02, 1HDF 930412 X010 is identified as an Analog Input Module (AIM) associated with ABB’s Advant-era industrial automation hardware. ABB-related parts references list the 500AIM02 together with 1MRB150022R001, 1MRB150022 R0002, and the 1HDF 930412 X010 identifier.

The module is intended for acquisition of continuous process signals from field instrumentation. Typical applications include monitoring temperature, pressure, flow, level, and other analog process variables. (For an installed system, the actual input range and wiring must be verified from the cabinet documentation rather than inferred from the generic 500AIM02 designation.)

For purchasing, use the complete marking 500AIM02 / 1HDF 930412 X010 and, where present on the existing unit, the corresponding 1MRB150022 ordering code. This avoids confusion between different 500AIM02 revisions listed in the aftermarket.

Core Technical Specifications

ABB 500AIM02 1HDF 930412 X010

ABB-related documentation lists 500AIM02 1MRB150022 R0002 1HDF 930412 among ABB automation hardware identifiers.

Important procurement note: Publicly available sources disagree on detailed electrical specifications for the 500AIM02. Some aftermarket listings claim specific channel counts, signal ranges, resolution, and isolation values, but those figures are not sufficiently supported by ABB primary documentation. The exact installed configuration should therefore be verified from the module label and applicable system manual before specifying electrical limits.

Application Scenarios & Pain Points

A multi-channel analog-input failure should be treated as a control-system problem until the field instrumentation has been ruled out.

1. Power Generation

Within a generator or turbine control installation, analog inputs can collect measurements such as temperature, pressure, flow, and process conditions. If multiple values disappear simultaneously, checking the common AIM module is a logical diagnostic step.

2. Process Control

Chemical and petrochemical plants depend on continuous analog measurements for closed-loop process control. A defective input channel can produce an incorrect process value, while a broader module fault can affect several loops at once.

3. Boiler and Utility Systems

Boiler auxiliary systems use numerous analog measurements for pressure, temperature, level, and flow monitoring. A failed input module can therefore affect operator displays and automatic control simultaneously.

4. Substation and Electrical Monitoring

Industrial electrical systems may use analog acquisition hardware to monitor electrical or equipment-related measurements. Where the installed 500AIM02 is part of a legacy ABB architecture, maintaining an exact spare can shorten recovery time.

5. High-Temperature Cabinets

At 50°C+ cabinet temperatures, inspect ventilation, power supplies, terminal connections, and adjacent electronics before replacing the AIM. Thermal stress can produce intermittent analog-input faults that resemble sensor problems.

Common Error Codes & Diagnostic Symptoms

No reliable ABB source was found that assigns dedicated numerical fault codes specifically to 500AIM02 1HDF 930412 . The following symptoms are therefore more useful for hardware diagnosis than unsupported numerical codes.

• Symptom/Code: Multiple analog channels simultaneously invalid → Diagnosis: A common module, rack connection, or module power problem is more likely than simultaneous transmitter failures → Action: Check module power, rack connections, and field supply before replacing individual transmitters.
• Symptom/Code: One analog channel fixed at an abnormal value → Diagnosis: Possible input-channel circuitry failure, open/shorted field wiring, incorrect transmitter output, or terminal problem → Action: Test the field signal directly and compare it with another known-good channel; replace the AIM if the fault follows the module.
• Symptom/Code: Analog value intermittently jumps or becomes unstable → Diagnosis: Possible loose termination, electrical interference, degraded input circuitry, or unstable field transmitter → Action: Check wiring, shielding, grounding, and the transmitter before substituting the 500AIM02.

Cross-Reference & Lifecycle Migration

Related Identifiers

ABB-related references associate the following identifiers with the same 500AIM02 hardware family:

ABB’s parts reference explicitly lists multiple 500AIM02 variants alongside the 1HDF 930412 identifier.

Compatibility

The existence of several 1MRB150022 variants means that R001, R0002, and other revision identifiers should not automatically be treated as interchangeable.

Before ordering a replacement, compare:

• Complete module designation
• 1HDF hardware marking
• 1MRB ordering number
• Revision suffix
• Rack position
• Field terminal arrangement
• Input signal type
• Existing controller configuration

Previous Revision / Replacement

A universal direct-drop-in replacement for 500AIM02 1HDF 930412 cannot be established from the available documentation. Do not substitute a 500AIM01 or another 500AIM02 revision solely because the front-panel designation appears similar.

Firmware / Configuration

This is an analog-input module rather than a standalone PLC CPU. Configuration is therefore primarily related to the host control system, channel assignment, signal range, scaling, and application database.

Before replacement, document the existing channel configuration and scaling. After installation, verify each connected measurement against a calibrated field source.

Lifecycle Status

Lifecycle: Legacy / Mature

The 500AIM02 belongs to an older ABB control-system generation. ABB-related parts references continue to identify the hardware, while current aftermarket listings classify the module as legacy/discontinued. For an operating Advant installation, maintaining an exact tested spare is a sensible buffer-stock strategy.

Field Engineer’s Tech Notes

Tech Note 1 — Do not confuse an input-card fault with a transmitter fault.
If several analog values fail at the same time, inspect the common AIM module and rack interface first. Replacing multiple transmitters without checking the shared electronics can waste considerable troubleshooting time.

Tech Note 2 — Verify the actual signal type before connecting a replacement.
Different process transmitters can use different current or voltage arrangements. Do not assume that a terminal labeled for an analog signal accepts every common industrial signal. Check the original wiring diagram and module documentation before energizing the channel.

Strict QA & Testing SOP

For an ABB 500AIM02 1HDF 930412 , the recommended inspection sequence is:

1. Part Number Verification
   Confirm 500AIM02 and 1HDF 930412 on the physical module.
2. Ordering-Code Verification
   Record any additional 1MRB150022 number and revision printed on the label.
3. Visual Inspection

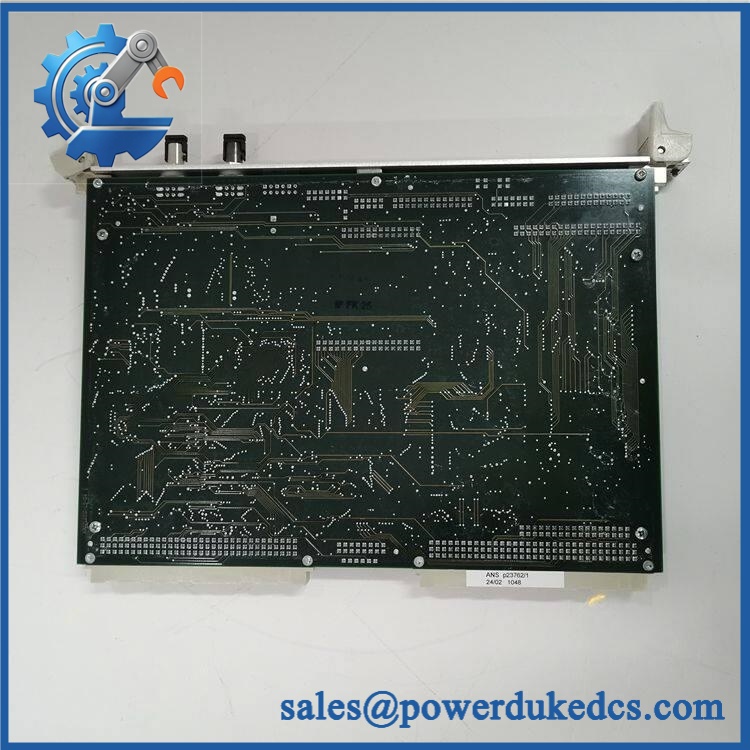

   Inspect the PCB, connectors, terminals, housing, labels, and mounting hardware for damage.
4. Connector Inspection
   Check contacts for oxidation, contamination, bent pins, or mechanical deformation.
5. Power Test
   Install the module in an appropriate test rack and verify the required supply conditions.
6. Input Simulation
   Use calibrated current/voltage simulation equipment appropriate to the documented input configuration.
7. Channel-by-Channel Test
   Apply known input values to each applicable channel and verify the corresponding control-system reading.
8. Linearity Verification
   Test several points across the documented measurement range rather than checking only one input value.
9. Noise / Stability Test
   Monitor each channel for unexpected drift, intermittent readings, or excessive signal fluctuation.
10. Rack Communication Test
    Verify that the host ABB system correctly recognizes and communicates with the module.
11. Final QC Documentation
    Record the part number, revision, serial information, test points, measured values, photographs, and inspection status.
12. ESD-Safe Packaging
    Place the tested module in anti-static packaging with adequate mechanical protection for shipment.

Test videos can be provided with the inspection record when required.

Buyer’s FAQ

Q: Can the 500AIM02 be hot-swapped?
A: Do not assume live replacement is permitted. This is legacy analog-input hardware integrated into a larger control-system architecture. Follow the installed ABB system’s approved module-replacement procedure before removing it.

Q: What is the difference between 1MRB150022R001 and 1MRB150022R0002?
A: Both identifiers are associated with 500AIM02 / 1HDF 930412 in ABB-related parts references, but they should be treated as distinct ordering variants until the installed hardware revision and system documentation confirm interchangeability.

Q: What information should I send when ordering this module?
A: Send the complete 500AIM02 designation, 1HDF 930412 marking, any 1MRB number printed on the label, and clear photographs of the actual module. This is especially important because several 500AIM02 ordering variants appear in parts references.

Q: Can a New Original unit be tested before shipment?
A: Yes. The recommended acceptance process includes physical inspection, identification verification, calibrated analog-input simulation, channel testing, stability checks, and photographic documentation. Test records and inspection videos can be provided when requested.
