ABB 500AIM02 1MRB150022R001 | Exact Part Identity

• Manufacturer: ABB
• Model: 500AIM02
• ABB Part Number: 1MRB150022R001
• Additional Identifier: 1HDF 930412 X010
• Product Type: Analog Input Unit
• Associated System: ABB REC 580 bay control terminal / related ABB protection and control architecture
• Number of Channels: 16 analog input channels
• Sampling Frequency: 1.0 kHz at 50 Hz system frequency; 1.2 kHz at 60 Hz system frequency
• Power Consumption: 6 W
• Physical Dimensions: Approximately 441 × 44 × 369 mm (W × H × D) according to one aftermarket listing; verify the mechanical drawing before cabinet planning because third-party dimensional data is not fully consistent.
• Estimated Shipping Weight: Approximately 2.7 kg based on one published listing; use actual packed weight for freight documentation.
• What’s in the Box: 500AIM02 module; mating connectors, mounting hardware, manuals, and accessories depend on the supplied configuration and condition.

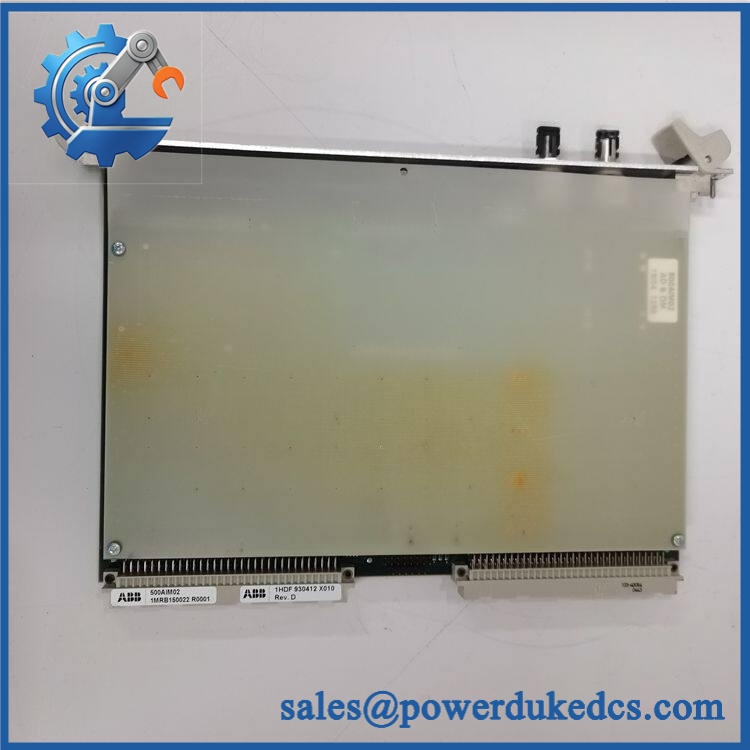

• Receiving Check: Confirm 500AIM02, 1MRB150022R001, and 1HDF 930412 X010 against the physical identification label.

ABB’s REC 580 documentation identifies the 500AIM02 as a 16-channel analog input unit with 6 W consumption. It is used to convert analog signals from input transformer or insulating-transducer modules into digital signals for processing.

Product Introduction

Architecture hook: The 500AIM02 is not a generic 24 VDC analog input card. Within the ABB REC 580 architecture, it occupies a defined rack position and works with associated measurement modules such as the 500MTM02 and 500ITM02. ABB documentation shows the 500AIM02 as the conversion stage that digitizes analog signals originating from these measurement interfaces.

Six watts of consumption is modest, but cabinet heat still matters when several rack modules operate together. The documented unit provides 16 channels, with sampling at 1.0 kHz for 50 Hz systems and 1.2 kHz for 60 Hz systems (important when validating replacement hardware against the original protection-system configuration).

Do not confuse 1MRB150022R001 with 1MRB150022R0002 or other 500AIM02 revisions. Public listings contain several similar identifiers, and revision-level compatibility should be established from ABB documentation before a substitution is approved.

Core Technical Specifications

ABB 500AIM02 1MRB150022R001

The strongest technical evidence available identifies the 16-channel architecture and 6 W consumption directly in ABB REC 580 documentation.

Be cautious with online specifications claiming 4–20 mA, 0–10 V, ±10 V, 16-bit resolution, 1,500 V isolation, or SIL 2 certification for this exact R001 version. Those values appear in third-party listings, but the available ABB-derived documentation does not substantiate all of them for 1MRB150022R001.

? Global Compliance & Industry Certifications

For a protection and bay-control assembly such as the REC 580, certification should be assessed against the complete equipment configuration and applicable ABB documentation.

Potential regulatory documentation may include:

• CE Mark — potentially applicable to the complete ABB protection/control equipment placed on the European market.
• UL / cUL — may apply to specific North American configurations.
• IEC-based conformity — relevant to protection, control, EMC, and electrical installation requirements.
• ATEX / IECEx — should not be assumed for the 500AIM02 solely because it may be installed in an industrial or energy facility.
• Marine approvals such as DNV — require confirmation for the exact equipment configuration and intended marine application.

For protection equipment, certification is not merely a paperwork issue. The module forms part of a measurement chain used by protection and control functions, so incorrect hardware revision or an undocumented substitution can affect both system behavior and the validity of the engineering file.

Verify specific lot certifications with OEM.

For audit purposes, retain the module nameplate photograph, serial/date code, hardware revision, ABB part number, COO documentation, and applicable declaration or Certificate of Conformance.

? Long-Term Storage & Asset Preservation Guide

1. Maintain ESD protection. Keep the 500AIM02 inside its original anti-static shielding bag whenever possible. Protect the rear connector and contact surfaces from dust, fingerprints, and mechanical impact.
2. Control humidity. Store indoors in a clean, dry environment, preferably below 60% RH, with no condensation. Rack-mounted electronics can tolerate long shelf periods when moisture and contamination are controlled.
3. Protect the connector and front-panel hardware. Do not stack heavy cartons directly on the module. Before installation, inspect the connector pins, retaining hardware, PCB surfaces, and any front-panel indicators for corrosion or shipping damage.

The 6 W dissipation figure is relevant during energized operation, but it does not justify unnecessary powered testing during storage. Use the applicable ABB service procedure if long-stored equipment requires functional verification.

Physical Installation Prerequisites

• Install the 500AIM02 in the specified ABB rack/backplane position for the applicable REC 580 configuration.
• Confirm that the rack has the correct mating connector and mechanical retention arrangement.
• Do not substitute DIN-rail mounting based on generic reseller descriptions.
• Provide adequate cabinet clearance for connector access, wiring, inspection, and heat removal.
• Include approximately 6 W per module in the cabinet thermal-load calculation.
• Keep analog measurement wiring separated from high-current power and switching conductors.
• Follow ABB requirements for grounding, shielding, and signal-reference connections.
• Verify the associated 500MTM02 / 500ITM02 configuration where applicable before commissioning.
• Confirm the exact R001 revision before replacing another 500AIM02 variant.

Do not apply a generic “50 mm above and below” clearance rule as an ABB requirement. Use the actual rack and cabinet drawings for the installation.

Buyer’s FAQ

Q: What HS tariff code should be used for 500AIM02?
A: There is no sufficiently reliable basis to assign one universal HS code from the model number alone. The module is a specialized analog input unit used within protection/control equipment, so the importing country’s tariff schedule and the unit’s actual function should be reviewed by the customs broker. Avoid copying a generic tariff code from an unrelated ABB I/O product.

Q: Does the Country of Origin have to match the seller’s country?
A: No. Country of Origin (COO) identifies the applicable manufacturing origin, not necessarily the seller or shipping location. Verify the COO against the physical unit, ABB documentation, or traceable supplier records before issuing the commercial invoice or COO.

Q: Should shipping insurance be purchased?
A: For international shipments, it is advisable. The reported unit weight is approximately 2.7 kg, and the electronics and rear connector can be damaged by impact even when the external carton appears intact. Photograph the nameplate, ESD packaging, carton, and shipping condition before dispatch.

Q: Does 500AIM02 arrive with the latest firmware pre-loaded?
A: Do not assume a user-selectable firmware package applies. The available ABB documentation identifies 500AIM02 as a dedicated analog input unit within the REC 580 architecture. If a supplier claims a particular firmware revision, request evidence tying that revision to 1MRB150022R001 / 1HDF 930412 X010 before accepting the claim.
