- ABB 500BIM01 | Original S500 Series PLC Module
Unboxing & Physical Snapshot
- Model & Brand: ABB 500BIM01 16-channel digital input module for the ABB AC500 / S500 PLC I/O platform. The module provides discrete signal acquisition for industrial devices such as switches, proximity sensors, and status contacts. ([turn0search5])
- Approximate Physical Dimensions: Approximately 45 × 100 × 120 mm (W × H × D).
- Estimated Shipping Weight: Approximately 0.22 kg (0.5 lb) including ESD packaging. ([turn0search5])
- What’s in the Box:
- ABB 500BIM01 digital input module
- Protective anti-static (ESD) shielding bag
- Terminal connection accessories when ordered separately
- Module identification label
- Installation documentation when supplied
Product Introduction
The ABB 500BIM01 mounts directly into the AC500 PLC I/O expansion architecture, where the module communicates through the local I/O bus and receives field signals through its terminal interface. The compact DIN-rail design allows installation inside standard automation cabinets while maintaining access to channel status indicators and wiring points. Correct terminal seating and module alignment are essential during replacement work (especially when restoring a production panel after a controlled shutdown). ([turn0search2])
This module is designed for discrete signal monitoring in industrial automation systems. It reads field device states and transfers diagnostic information back to the PLC controller. Inspect the terminal block, locking mechanism, and enclosure vents before installation. A small connector issue can create false input states that are difficult to distinguish from field device failures.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model Number | 500BIM01 |
| Product Type | Digital Input Module |
| System Platform | ABB AC500 / S500 I/O System |
| Input Channels | 16 digital inputs |
| Input Voltage | 24 VDC nominal |
| Operating Input Range | Approximately 19.2–30 VDC |
| Input Current | Approximately 3–10 mA per channel |
| Signal Type | Digital discrete input |
| Isolation | Galvanic isolation between channels and backplane |
| Response Time | ≤1 ms signal edge detection |
| Backplane Interface | AC500 local I/O bus |
| Power Consumption | Approximately 1.2 W maximum |
| Protection Functions | Reverse polarity and overvoltage protection |
| Operating Temperature | Approximately -25°C to +70°C |
| Storage Temperature | Approximately -40°C to +85°C |
| Relative Humidity | 5–95% RH, non-condensing |
| Mounting Method | DIN rail / AC500 chassis mounting |
| Protection Rating | IP20 cabinet installation |

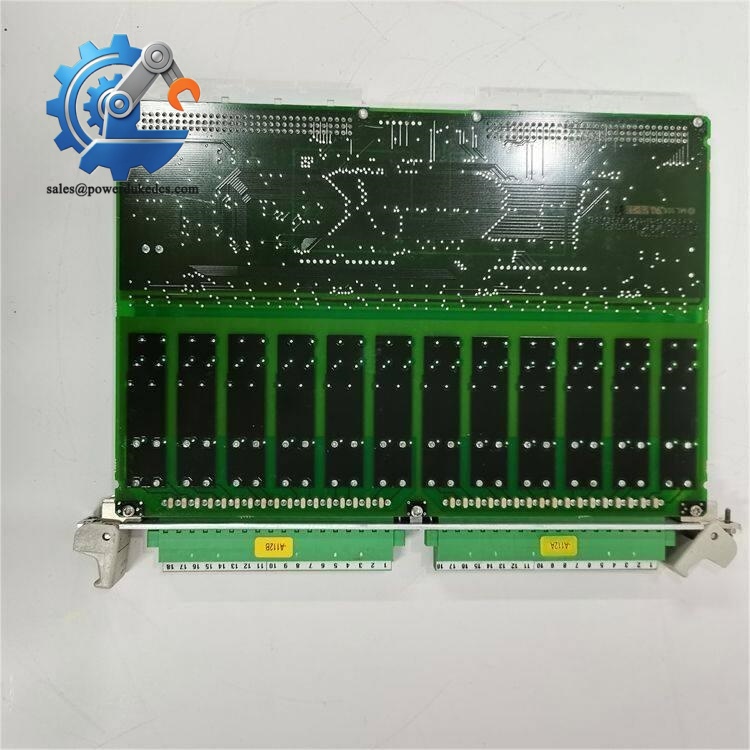

ABB 500BIM01
([turn0search5])
Global Compliance & Industry Certifications
Expected regulatory approvals and compliance considerations for the ABB 500BIM01 include:
- CE Mark compliance
- UL/cUL industrial control equipment recognition where applicable
- CSA approval where applicable
- IEC 61131-2 programmable controller equipment compliance considerations
- IEC 61000-6-2 industrial EMC immunity compliance considerations
- RoHS compliance depending on manufacturing revision
- ATEX/IECEx suitability only when installed within a certified hazardous-area system
CE and EMC compliance are important because digital input modules operate directly with field wiring that may be exposed to electrical noise, switching transients, and industrial interference. Proper cabinet grounding and wiring separation remain part of the compliance requirement.
Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
Keep the ABB 500BIM01 sealed inside its original anti-static (ESD) bag during storage. Protect the terminal contacts and backplane connector from dust, oxidation, and unnecessary handling.
Maintain warehouse humidity below 60% RH. Avoid storage near chemical vapors, welding areas, or battery charging rooms because contamination can degrade connector surfaces and plastic insulation materials.
Inspect before deployment. Record the serial number, hardware revision, date code, and packaging condition. Confirm PLC firmware compatibility and I/O configuration before releasing the spare to the maintenance team.

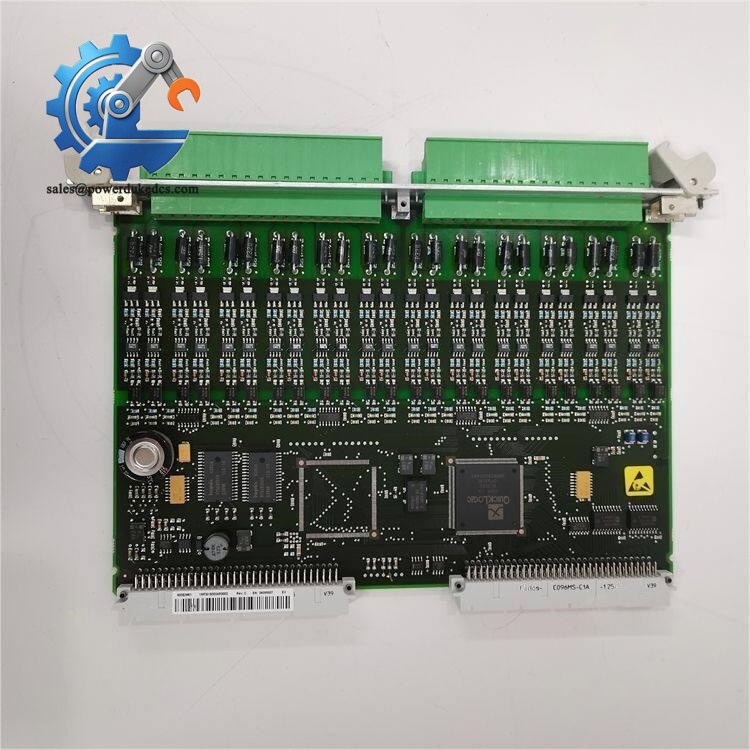

ABB 500BIM01
Physical Installation Prerequisites
- Install only within the approved ABB AC500/S500 PLC architecture.
- Mount securely on the designated DIN rail or terminal base.
- Verify terminal block seating before applying field voltage.
- Maintain approximately 50 mm clearance above and below cabinet ventilation paths where practical.
- Ensure natural convection airflow is not blocked by cable ducts or adjacent equipment.
- Confirm protective grounding and cabinet bonding.
- Separate high-voltage switching wiring from low-level digital input wiring.
- Inspect retaining clips and mechanical guides before energizing.
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the ABB 500BIM01?
A: Industrial PLC input modules are commonly evaluated under HS classifications covering electrical control equipment, often within HS 8537 categories. The final Harmonized System code depends on the module function, shipment configuration, and importing-country customs interpretation. Confirm the tariff code with your customs broker before export.
Q: Does Country of Origin affect this ABB PLC spare module?
A: Yes. Country of Origin affects customs processing, supplier qualification, and asset traceability. Verify the COO from the module label, supplier documentation, and commercial invoice before shipment.
Q: Should shipping insurance be included for the 500BIM01?
A: Recommended. Although the module is lightweight, it may support critical machine or process signals. Use ESD packaging, impact protection, moisture control, and documented receiving inspection procedures.
Q: Does the ABB 500BIM01 include the latest firmware pre-loaded?
A: The 500BIM01 is an I/O module and does not typically contain application firmware like a PLC CPU. Configuration compatibility depends on the controller firmware, engineering software version, and I/O configuration database. Verify system compatibility before commissioning. ([turn0search2])
