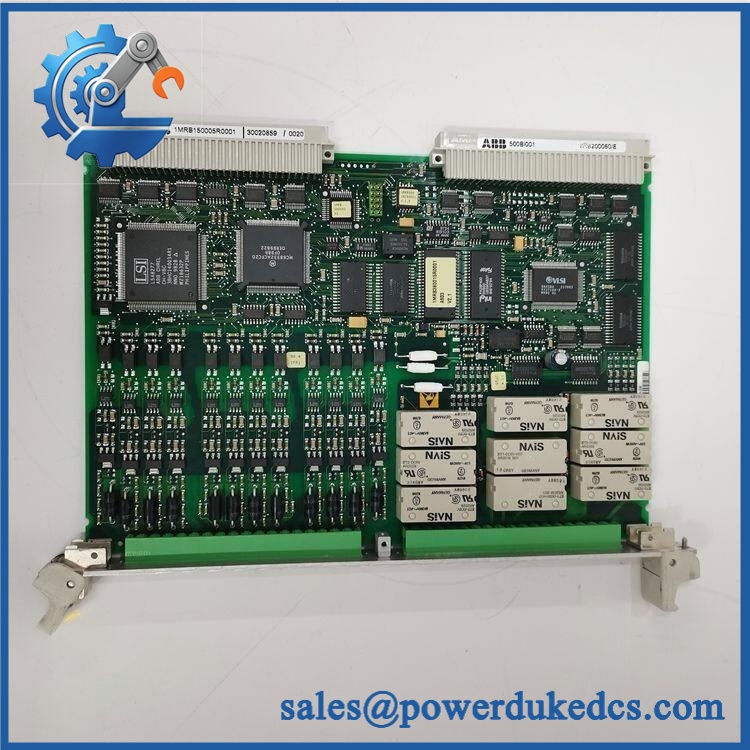

ABB 500BIO01 1MRB200060 | Original ABB Digital Input/Output Module

Description

• Model: 500BIO01
• ABB Part Number: 1MRB200060
• Brand: ABB
• Series / Family: ABB 500 Series / Procontrol P13
• Part Type: Binary Input/Output Module
• Core Function: Handles discrete field signals between compatible ABB control-system hardware and external equipment.
• Key Specs: ABB 500BIO01, ordering/reference number 1MRB200060, intended for binary signal processing within the ABB 500 Series control architecture.

Product Introduction

In a legacy ABB control cabinet, a failed binary I/O module can remove multiple discrete signals from the control system at once. The ABB 500BIO01 1MRB200060 is identified as a Binary Input/Output module within the ABB 500 Series spare-part family.

For maintenance procurement, the complete combination 500BIO01 + 1MRB200060 should be used when identifying the replacement. Binary I/O modules are hardware-specific, so the field wiring arrangement, signal levels, and rack configuration should be checked before installation (especially when replacing an older module with a different hardware revision).

Core Technical Specifications

ABB 500BIO01 1MRB200060

Application Scenarios & Pain Points

In a process-control cabinet, a single binary I/O failure can affect several discrete signals simultaneously. The 500BIO01 provides binary signal interfacing within compatible ABB 500 Series equipment, making it relevant to maintenance teams supporting legacy control installations.

For pump and motor control applications, discrete signals such as run status, trip status, permissive conditions, and interlocks depend on reliable I/O processing. A defective binary I/O module can therefore create multiple apparently unrelated alarms.

During plant shutdown maintenance, technicians should compare the replacement module against the existing field wiring before energization. A connector that fits mechanically does not by itself establish signal compatibility.

In cabinets operating around 50°C ambient temperature, inspect terminal connections, module ventilation, and surrounding components. Elevated temperature combined with aging electronics can contribute to intermittent digital-signal problems.

Common Error Codes & Diagnostic Symptoms

Symptom: Multiple digital input points remain inactive
→ Diagnosis: A module-level fault, rack connection issue, or field-side supply problem can prevent binary input states from reaching the control system.
→ Action: Verify field power and wiring, inspect the rack connection, then replace the 500BIO01 if module failure is confirmed.

Symptom: Binary outputs fail to change state
→ Diagnosis: Internal output circuitry, module power, configuration, or field wiring may be preventing the expected output response.
→ Action: Check the output circuit and load conditions before replacing the module.

Symptom: Inputs or outputs operate intermittently
→ Diagnosis: Loose terminal connections, backplane contact problems, thermal stress, or internal electronic degradation can cause unstable I/O states.
→ Action: Inspect connections and module seating, then replace the 1MRB200060 if the fault follows the module.

Note: No reliable ABB-specific numerical fault-code list has been established for 500BIO01 1MRB200060. Host-system diagnostics should be interpreted using the applicable ABB control-system documentation.

Cross-Reference & Lifecycle Migration

• Primary model: 500BIO01
• ABB ordering number: 1MRB200060
• Product family: ABB 500 Series / Procontrol P13.
• Function: Binary input/output signal processing.
• Direct replacement: Use 500BIO01 1MRB200060 as the primary replacement identifier unless an ABB-approved successor is specified for the installed system.
• Related modules: Other ABB 500-series I/O modules may have different signal types or electrical characteristics and should not be assumed interchangeable.
• Revision compatibility: Verify the hardware revision and field-wiring configuration before substitution.
• Firmware: No standalone firmware-flashing requirement has been established specifically for this I/O module.
• Lifecycle: Legacy maintenance spare. Plants retaining ABB 500 Series equipment should maintain accurate spare identification because replacement availability can become more limited over time.
• Buffer-stock strategy: For critical control loops containing numerous binary signals, maintaining one tested spare can reduce troubleshooting and recovery time.

Field Engineer’s Tech Notes

Warning 1 — Check the field voltage before connecting the module.
Do not assume every binary signal uses the same voltage level. Verify the actual field circuit against the host-system documentation before applying power. An incorrect field voltage can damage the I/O circuitry.

Warning 2 — Label every wire before removal.
With multi-channel binary I/O, a single misplaced field wire can create confusing interlock and alarm behavior. Photograph and document the original terminal arrangement before removing the 500BIO01 (particularly during a rushed shutdown).

Strict QA & Testing SOP

1. Part identification — Verify 500BIO01 and 1MRB200060.
2. Label inspection — Record ABB identification, serial number, and revision markings.
3. Physical inspection — Check the housing, PCB, connectors, terminals, and mounting interface.
4. Damage screening — Look for corrosion, contamination, cracked components, discoloration, and overheating.
5. Terminal inspection — Verify terminal condition and connector integrity.
6. Electrical verification — Check applicable module supply conditions and signal specifications against ABB documentation.
7. Input simulation test — Apply controlled binary input signals using an appropriate test fixture.
8. Output test — Command individual binary outputs and verify correct switching behavior with suitable loads or test equipment.
9. Channel verification — Test the available input and output channels systematically and record results.
10. System integration — Install the module into a compatible ABB 500 Series test rack where available.
11. Extended operation — Monitor for intermittent channel changes, resets, abnormal heating, or communication problems.
12. Final QA — Record measurements, photographs, test results, and packaging condition.
13. ESD-safe packaging — Package the module using antistatic protection and appropriate mechanical cushioning.

Test videos are available upon request for units that undergo functional testing.

Buyer’s FAQ

Q: What is ABB 500BIO01 1MRB200060?
A: It is an ABB Binary Input/Output Module associated with the ABB 500 Series control-system family. The complete identification is 500BIO01 / 1MRB200060.

Q: Can I replace it with another 500 Series I/O module?
A: Not automatically. Different 500 Series I/O modules can have different signal functions and electrical characteristics. Match the exact part number and field-circuit requirements before substitution.

Q: Can the module be hot-swapped?
A: Do not assume energized replacement is permitted. Unless the applicable ABB system documentation explicitly supports hot replacement, isolate power and follow the approved maintenance procedure.

Q: What should I confirm before purchasing?
A: Request photographs showing the 500BIO01 and 1MRB200060 markings, confirm the hardware revision, verify the unit’s condition and functional-test status, and obtain the supplier’s warranty terms before ordering.
