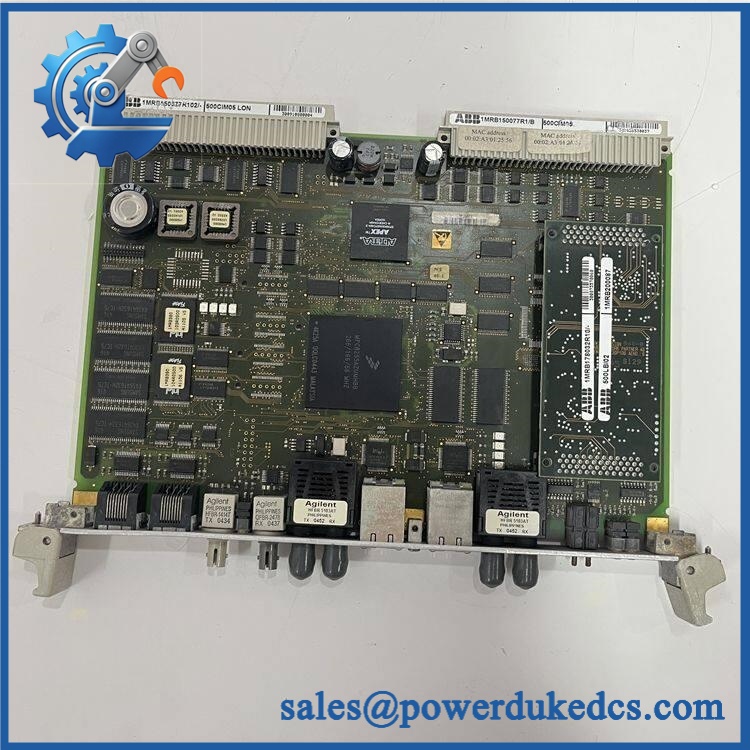

ABB 500CIM05 1MRB150077R1 | Original Communication Card

Description

• Model & Brand: ABB 500CIM05 / 1MRB150077R1
• Product Family: ABB 500 Series automation hardware
• Part Type: Communication Interface Module
• Approx. Physical Dimensions: Approximately 100 × 160 × 120 mm (W × H × D); verify the exact enclosure and mounting variant before freight booking.
• Estimated Shipping Weight: Approximately 0.5–1.0 kg packed, depending on protective packaging and included accessories.
• What’s in the Box: Module assembly, factory-fitted connector hardware, and protective packaging. Terminal accessories and manuals should be confirmed against the actual purchase configuration.
• Physical Inspection Points: Check the PCB, front identification label, connector pins, retaining hardware, and housing for impact damage or oxidation.

Asset-control note: The complete identification should be recorded as 500CIM05, 1MRB150077R1. Do not substitute a visually similar ABB 500 Series communication module without checking the hardware revision and system configuration.

Product Introduction

Architecture Hook

The ABB 500CIM05 1MRB150077R1 is installed as a communication interface component within the ABB 500 Series control architecture. Its role is to provide the communication path required by the associated control system rather than perform field signal conversion directly.

For replacement work, the part number matters at the revision level. The 1MRB150077R1 suffix identifies the specific ABB hardware version (which is critical when maintaining an older installed base). Check the mating connectors, bus arrangement, firmware compatibility, and cabinet documentation before removing the existing card.

Core Technical Specifications

ABB 500CIM05 1MRB150077R1

Important: Publicly available information for 1MRB150077R1 is limited. Exact communication protocol, electrical ratings, dimensions, and environmental limits should therefore be taken from the ABB hardware manual or the nameplate for the specific revision rather than inferred from the 500CIM05 designation.

? Global Compliance & Industry Certifications

For an ABB legacy communication module, certification should be established from the exact hardware revision and original ABB documentation.

• CE Mark: May apply where the complete ABB system configuration was placed on the European market under applicable directives.
• UL/cUL: May apply to specific ABB equipment configurations and market variants.
• ATEX/IECEx: Do not assume hazardous-area approval. A communication module installed inside a certified cabinet does not automatically become an ATEX/IECEx-certified standalone device.
• Marine approvals: DNV or similar marine certification should only be claimed when the exact assembly and installation configuration are covered by the relevant certificate.

For customs documentation, use the tariff classification associated with the actual commercial description and jurisdiction. Communication/control modules can fall under different HS classifications depending on their function and configuration.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Keep the module inside its original ESD shielding bag. The exposed PCB, connector contacts, and interface circuitry should not be handled repeatedly without an approved ESD workstation.

Control warehouse humidity. Aim for below 60% RH, with no condensation or rapid temperature cycling. This reduces oxidation at connector contacts and helps protect conformal-coated and exposed PCB areas during multi-year storage.

Protect the connector interface. Keep the original protective caps or packaging in place. Do not stack heavy cartons directly on the module housing (the connector pins and retaining clips are particularly easy to damage through compression).

Record the date code, serial number, storage date, and inspection status in the spare-parts register. For a legacy communication module, traceability can be more valuable than simply counting physical units.

Physical Installation Prerequisites

• Install only in the ABB-approved chassis or mounting position associated with the 500CIM05 configuration.
• Confirm the backplane connector is clean and free of oxidation before insertion.
• Maintain sufficient cabinet clearance for natural convection; as a general cabinet practice, 50 mm above and below the assembly is preferable unless the ABB installation drawing specifies another value.
• Keep power wiring separated from sensitive communication wiring where the cabinet design permits.
• Connect the cabinet protective-earth system according to the applicable ABB installation documentation.
• Do not force the module into the backplane. The guide rails and retaining hardware should align naturally before engagement.
• Confirm all communication termination and addressing requirements before commissioning.

Buyer’s FAQ — Logistics & Compliance

Q: What HS tariff code should I use for 500CIM05?

There is no single tariff code that should be assigned solely from the model number. Classification depends on the module’s verified function and the importing country’s tariff schedule. Have the customs broker classify the item using the ABB technical description and commercial invoice.

Q: Does the Country of Origin need to match the invoice?

The COO should accurately identify the actual origin of the supplied unit and remain consistent with the supporting commercial documentation. Do not copy the country from another 500 Series listing; legacy ABB products can have different manufacturing origins.

Q: Is shipping insurance worthwhile for this module?

Yes. For international shipment, use ESD shielding, anti-static cushioning, a rigid carton, and insurance based on the declared commercial value. Photograph the module and packaging before dispatch for receiving and freight-claim records.

Q: Does this module come with the latest firmware pre-loaded?

Do not assume so. The 500CIM05 1MRB150077R1 is a hardware-specific legacy component, and any firmware or configuration compatibility must be checked against the installed ABB system. Record the existing hardware revision before replacement rather than treating all 500CIM05 units as interchangeable.
