Description

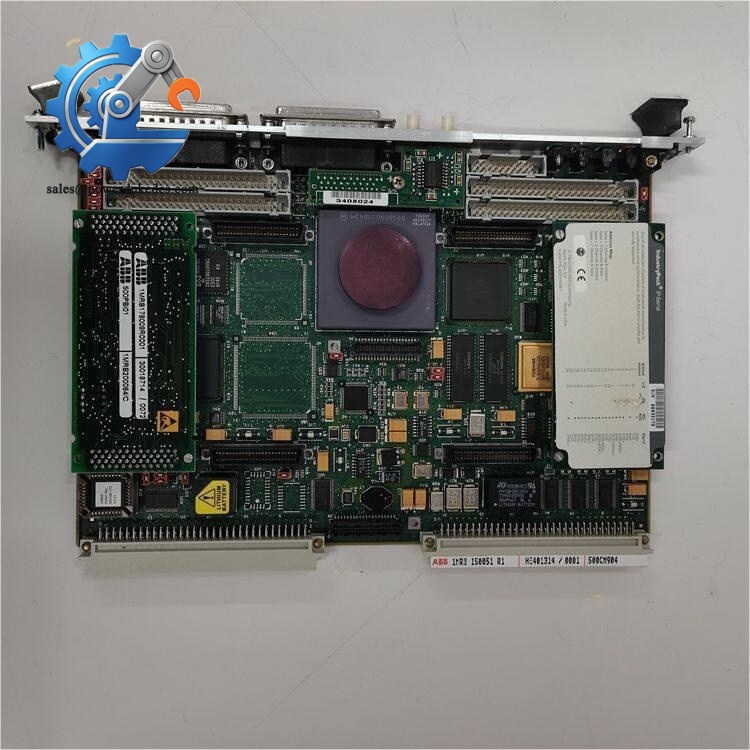

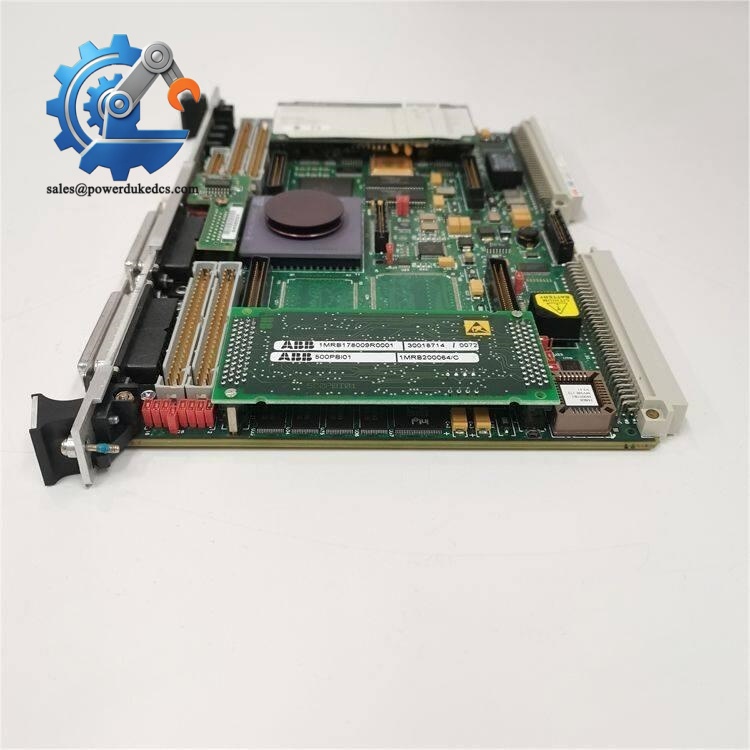

- ABB 500CMP04 | Traceable Process Control Hardware
Unboxing & Physical Snapshot
- Model & Brand: ABB 500CMP04
- Product Type: Symphony/Harmony Communication Processor Module
- Approximate Physical Dimensions (W × H × D): 105 × 235 × 125 mm (4.1 × 9.3 × 4.9 in)
- Estimated Shipping Weight: Approximately 1.3 kg (2.9 lb), including standard industrial packaging
- What’s in the Box:
- ABB 500CMP04 communication module
- Factory-installed front panel with status indicators
- Protective connector covers (when supplied)
- Anti-static (ESD) shielding bag
- Product identification label with serial/date code
- Original documentation if shipped in OEM packaging
Product Introduction
Mounted within the controller rack of an ABB Symphony or Harmony control cabinet, the 500CMP04 serves as a communication interface between distributed controllers and the plant network. Proper seating into the backplane connector is essential because every communication path depends on reliable electrical contact (especially after scheduled turnaround maintenance when multiple modules are reinstalled simultaneously).
Unlike a simple interface card, the 500CMP04 participates directly in controller communications and system synchronization. Before commissioning, inspect the gold-plated edge connector, retaining clips, and front-panel LEDs for signs of corrosion or mechanical damage. Even slight deformation of the guide rails can prevent full engagement with the backplane—which may result in intermittent communication faults that resemble network failures rather than hardware issues.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model Number | 500CMP04 |
| Product Family | Symphony / Harmony |
| Product Type | Communication Processor Module |
| Primary Function | System communication interface |
| Mounting Method | Rack-mounted backplane installation |
| Communication Interface | ABB proprietary control network |
| Supply Voltage | Rack-supplied DC power |
| Typical Power Consumption | Approximately 7–10 W (application dependent) |
| Heat Dissipation | Approximately equal to operating power consumption |
| Memory | Internal firmware memory (capacity depends on hardware revision) |
| Cooling Method | Natural convection inside control cabinet |
| Front Indicators | LED communication and status indicators |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% RH, non-condensing |
| Protection Rating | IP20 (installed inside enclosure) |
ABB 500CMP04
Global Compliance & Industry Certifications
Industrial communication hardware in this equipment class is commonly designed to meet applicable regulatory requirements, including:
- CE Mark for EMC and Low Voltage Directive compliance where applicable.
- UL/cUL Listed or Recognized when installed within certified industrial control panels.
- ATEX/IECEx system compatibility when incorporated into approved hazardous-area control systems.
- DNV GL or equivalent marine approvals for qualified offshore and marine automation installations.
For facilities handling combustible gases or vapors, hazardous-area approvals are significant because they help ensure the installed control system does not become an ignition source when used within its certified operating limits.
Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
- Leave the module inside its original anti-static shielding bag until installation. The exposed edge connector should never be left uncovered during warehouse storage.
- Maintain storage humidity below 60% RH. Extended exposure to moisture can affect connector plating and gradually weaken the conformal coating on the printed circuit assembly.
- Inspect inventory every 18–24 months. Check electrolytic capacitors for swelling, verify date-code traceability, and examine the retaining clips for stress cracking (small defects often appear before electrical problems develop).
Physical Installation Prerequisites
- Verify compatibility with the installed ABB Symphony/Harmony controller revision before replacement.
- Leave at least 50 mm (2 in.) above and below the rack to support natural convection cooling.
- Confirm cabinet protective earth bonding before inserting the module.
- Install only with approved backplane guides fully engaged.
- Observe ESD handling procedures throughout installation.
- Separate communication cabling from high-current motor and VFD wiring to reduce electrical interference.
ABB 500CMP04
Buyer’s FAQ (Logistics & Compliance Focus)
Q: Which HS Tariff Code is commonly used when importing the ABB 500CMP04?
A: Communication modules for industrial control systems are frequently classified under HS 8537 or related electrical control equipment headings. Final classification should always be confirmed with the destination country’s customs authority before shipment.
Q: Why is Country of Origin documentation important?
A: COO documentation influences customs clearance, applicable duties, qualification requirements, and asset traceability. Preserve the OEM product label and receiving inspection records throughout the equipment lifecycle.
Q: Is shipping insurance recommended for this module?
A: Yes. Although compact, the communication processor contains multilayer PCBs, precision connectors, and surface-mounted electronic components. Use rigid packaging, moisture barriers, and declared-value insurance during domestic and international transport.
Q: Does the ABB 500CMP04 arrive with the latest firmware installed?
A: Firmware depends on the hardware revision and the original production configuration. Always verify firmware compatibility with the existing Symphony or Harmony engineering database before commissioning, and update only in accordance with ABB maintenance procedures.
