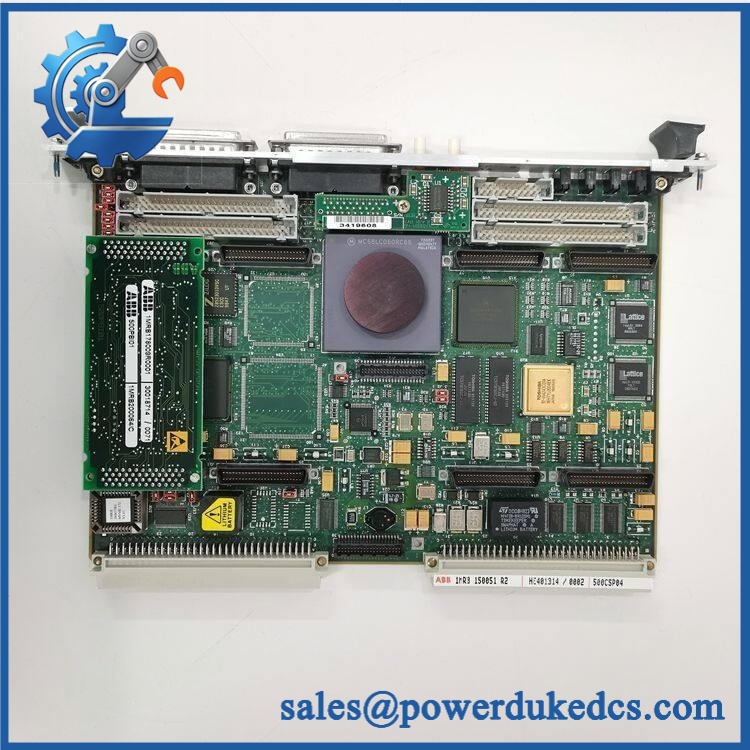

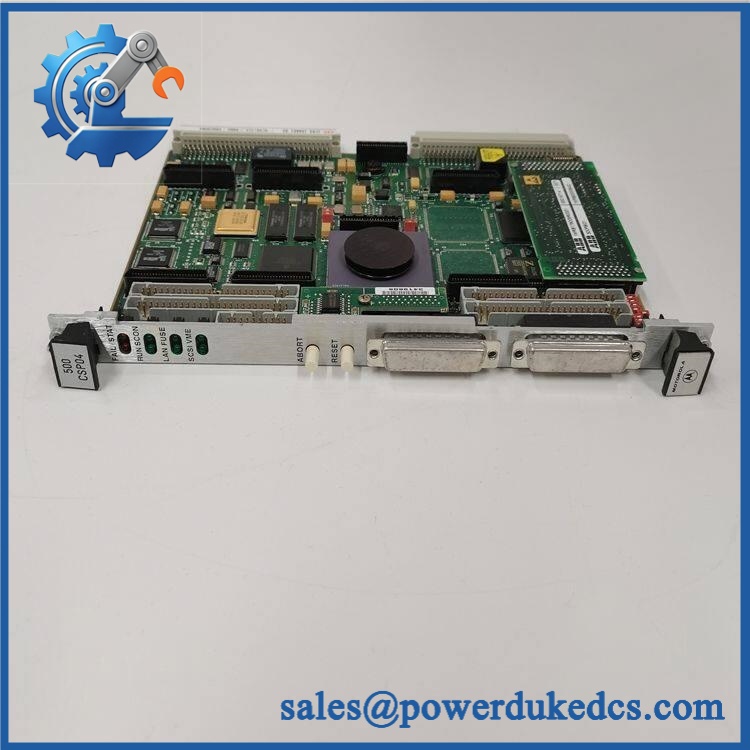

ABB 500CSP04 1MRB150051R2 | ABB Procontrol P13 Processor Card

Description

• Model: ABB 500CSP04
• Order Number: 1MRB150051R2
• Brand: ABB
• Series: ABB 500 Series / Procontrol P13
• Part Type: Control System Processor / Control System Module
• Core Function: Provides processing and control-system functions within ABB 500-series industrial control architecture.
• Key Specs: 500CSP04, 1MRB150051R2, legacy ABB control-system hardware, rack-mounted electronic module, and Procontrol P13-related application.

Product Introduction

A processor-module failure in an established ABB control installation can stop communication between the control logic and downstream system hardware even when field instruments and I/O modules remain operational. In that situation, identifying the exact CSP variant is critical.

ABB 500CSP04 1MRB150051R2 is a 500-series control-system module identified by the complete ABB ordering reference 1MRB150051R2. The CSP04 designation indicates its position within the 500-series control-system processor family.

For legacy ABB installations, procurement should use the complete part number rather than searching only for “500CSP04.” (The R2 suffix is part of the identification.) Hardware revision, rack position, connector configuration, and system configuration should all be checked before commissioning.

Important specification note: Reliable public documentation for the exact 500CSP04 1MRB150051R2 is limited. Processor speed, RAM, firmware version, communication ports, exact voltage, dimensions, and I/O specifications should therefore not be fabricated or borrowed from another ABB 500-series module. They must be confirmed from the installed unit or applicable ABB system documentation.

Application Scenarios & Pain Points

In a legacy ABB process-control rack, the 500CSP04 can form part of the central control architecture. A processor fault may affect multiple downstream functions simultaneously, making an exact spare valuable during corrective maintenance.

For power and utility installations, maintaining the original control architecture is often preferable to redesigning a mature system. A matching processor module can reduce the amount of engineering modification required during an emergency repair.

On older Procontrol P13 systems, procurement can become difficult because several 500-series modules have similar physical formats. A complete 500CSP04 / 1MRB150051R2 identification is therefore more useful than a generic “ABB CPU board” description.

When cabinet temperatures reach 50°C or higher, verify the environmental limits of the complete rack assembly before installation. The temperature rating of another 500-series module should not be applied automatically.

Common Error Codes & Diagnostic Symptoms

No verified public source establishes dedicated 500CSP04-specific error codes. The following are hardware-level diagnostic symptoms:

• CPU/Control System Not Starting → Diagnosis: Possible processor-board failure, rack power problem, backplane fault, or configuration issue. → Action: Verify rack power and system connections, then replace the 500CSP04 if the processor module fails testing.
• Control System Communication Lost → Diagnosis: Processor, backplane, communication interface, or associated configuration may be defective. → Action: Check communication status and physical interfaces before replacing the module.
• Repeated Processor Reset / System Restart → Diagnosis: Unstable power, memory/configuration fault, watchdog condition, or internal processor failure may cause repeated resets. → Action: Check system diagnostics and supply stability; replace the module when board-level failure is confirmed.

Cross-Reference & Lifecycle Migration

Cross-Reference

ABB 500CSP04 1MRB150051R2

No verified evidence supports assigning another 500-series CSP model as a direct replacement for 500CSP04 1MRB150051R2.

Compatibility

Before replacement, compare:

• Complete part number
• Hardware revision
• PCB revision
• Rack position
• Backplane connector arrangement
• Firmware/configuration
• Associated 500-series modules
• Existing system database/configuration

Firmware

A processor module may contain firmware or system configuration, but no specific firmware version for 1MRB150051R2 has been reliably established from the available product identification.

If the replacement module has a different firmware revision, verify compatibility before installation. Do not perform firmware flashing merely because the replacement is a different serial-number unit.

Lifecycle

Recommended classification: Legacy / Limited Availability.

For a mature ABB 500-series installation, maintaining at least one tested processor spare is prudent. Processor failure can have a much broader production impact than failure of an individual field I/O channel.

Field Engineer’s Tech Notes

1. Record the existing configuration before pulling the processor.
Photograph the front label, hardware revision, rack position, connectors, indicators, and any configuration switches. On legacy systems, this record can save considerable troubleshooting time during restoration.

2. Do not assume every 500-series processor is interchangeable.
The physical rack format may look similar across several modules, but the firmware, backplane function, memory configuration, and system role can differ. Match 500CSP04 + 1MRB150051R2 exactly unless ABB documentation confirms an alternative.

Strict QA & Testing SOP

1. Inbound identification — Confirm ABB marking, 500CSP04, and 1MRB150051R2.
2. Nameplate inspection — Record serial number, revision, manufacturing information, and labels.
3. PCB inspection — Examine the board for corrosion, damaged components, cracked solder joints, contamination, and previous repair work.
4. Connector inspection — Check backplane and external connectors for bent or oxidized contacts.
5. Configuration inspection — Record jumpers, switches, links, and configuration markings.
6. Power-on test — Install the module in a compatible test rack and verify startup behavior.
7. Processor diagnostics — Check status indicators and system diagnostic information.
8. Communication test — Verify communication with the associated rack/control-system equipment where the test setup permits.
9. Memory/configuration check — Confirm that the processor initializes correctly and does not generate configuration or memory faults.
10. Extended run test — Operate the module for a controlled period to identify intermittent resets or communication loss.
11. Final QA documentation — Record serial number, test results, photographs, and condition.
12. ESD packaging — Package the processor in antistatic material with adequate mechanical protection.

Test videos can be provided when available, showing the actual module identification, power-up sequence, diagnostic indicators, and functional test.

ABB 500CSP04 1MRB150051R2

Buyer’s FAQ

Q1: Is 500CSP04 1MRB150051R2 a PLC CPU?
A: It is best described as an ABB 500-series control-system processor/control module. It should not automatically be classified as a modern PLC CPU because its architecture belongs to ABB’s legacy control-system platform.

Q2: Can another CSP module replace 500CSP04?
A: Not without documented compatibility. The complete 500CSP04 / 1MRB150051R2 identification should be matched before substitution.

Q3: Can this module be hot-swapped?
A: Do not assume hot-swapping is permitted. Follow the shutdown and electrical-isolation procedure specified for the particular ABB 500-series system.

Q4: Does the replacement need firmware flashing?
A: Not necessarily. Firmware requirements depend on the installed system and module revision. Verify compatibility first rather than automatically flashing a replacement processor.

Q5: How do I verify an original ABB unit?
A: Check the ABB label, 500CSP04, 1MRB150051R2, serial/traceability information, PCB markings, hardware revision, and physical construction. Request photographs of the actual unit before purchase.

Q6: What warranty should I request?
A: Confirm the warranty period and coverage in the quotation. For a legacy processor module, requesting an actual-unit functional test report and test video is recommended before shipment.
