Description
- Model: 500ITM02
- ABB Part Number: 1MRB150021R0116
- Additional Reference: 1HDF930712X010 is also associated with this module in distributor listings.
- Brand: ABB
- Series: 500 Series / REC 580 Bay Control Terminal
- Part Type: Isolating Transducer Module
- Core Function: Provides isolated analog measurement interfaces for voltage and current signals within the REC 580 bay-control architecture.
- Key Specs: Up to 16 channels, voltage/current signal measurement, accuracy down to 0.1% below 100 Hz for current input, 0.1 mV offset, and ±0.1% linearity. ABB documentation identifies 500ITM02 specifically as an isolating transducer module.
Product Introduction
In the ABB REC 580 Bay Control Terminal, the 500ITM02 occupies a dedicated I/O position for analog transducer signals. ABB’s REC 580 documentation lists the module in the basic rack configuration and identifies it as an Isolating Transducer Module.
The module is intended for measurement circuits where voltage or current signals must be transferred into the bay-control system while maintaining appropriate electrical isolation. Its documented channel arrangement provides eight channels on connector JA and eight additional channels on connector JB, giving a total of 16 channel positions. (The terminal mapping is important when replacing a module during an outage.)
For protection and substation automation maintenance, exact identification matters. The 500ITM02 should not be confused with the related 500AIM02 analog input unit, which ABB documents separately.
The channel-to-terminal mapping and measurement specifications above come from ABB’s REC 580 documentation.
Application Scenarios & Pain Points
During a substation retrofit, a failed transducer interface can interrupt measurement channels even when the main protection processor remains healthy. The 500ITM02 provides the analog isolation interface required within the REC 580 architecture.
Electrical substations: Voltage and current transducer signals can be routed through the 500ITM02 for bay-control measurement applications. Its documented current-input accuracy is 0.1% below 100 Hz, making the module suitable for measurement circuits where phase and amplitude accuracy matter.
Protection and control panels: The module is installed within the REC 580 rack architecture alongside CPU, communications, binary I/O, analog input, and other modules.
Power-grid modernization: During legacy migration, retaining the original 500ITM02 architecture can avoid unnecessary changes to field wiring and bay-control engineering.
High-frequency measurement checks: Although the current-input specification extends to less than 1000 Hz, the published accuracy changes from 0.1% below 100 Hz to 0.2% below 1000 Hz. This distinction should be considered when evaluating unusual transient or measurement requirements.
Common Error Codes & Diagnostic Symptoms
ABB’s available REC 580 documentation provides electrical performance and terminal information but does not establish a universal numeric fault-code table specifically for the 500ITM02. Diagnosis should therefore begin with the measured signal and channel behavior.
- Symptom/Code: Multiple analog channels suddenly show invalid or missing values → Diagnosis: Inspect the 500ITM02 module seating, rack connections, common signal wiring, and associated transducer circuits. A simultaneous loss across several channels points toward a common interface problem rather than independent field-device failures → Action: Verify rack and connector integrity; replace the module if module-level testing confirms failure.
- Symptom/Code: One channel has abnormal offset or inaccurate measurement → Diagnosis: Compare the affected channel with a calibrated reference and inspect the corresponding two-terminal connection. The documented current-input offset is 0.1 mV, so a substantially abnormal fixed offset warrants investigation. → Action: Check field wiring and transducer output first, then replace the affected module if the error remains.
- Symptom/Code: Incorrect phase relationship between voltage and current measurements → Diagnosis: Check channel assignment, terminal polarity, transducer wiring, and signal frequency. ABB specifies phase-displacement limits that vary with frequency. → Action: Correct wiring/configuration or replace the 500ITM02 after controlled testing.
Cross-Reference & Lifecycle Migration
The 500ITM02 1MRB150021R0116 belongs to an older ABB bay-control hardware generation, so replacement should be based on the exact REC 580 configuration rather than on a generic “analog module” description.
- Exact identification: 500ITM02 is documented as an Isolating Transducer Module for REC 580.
- Part-number reference: The requested number is 1MRB150021R0116. Distributor records also associate the module with 1HDF930712X010.
- Related module: 500AIM02 is a separate analog-input unit in the REC 580 architecture and should not be treated as a direct replacement for 500ITM02. ABB lists the two as separate module types.
- Rack compatibility: ABB’s REC 580 documentation shows 500ITM02 as an allowable module in the basic rack configuration.
- Terminal compatibility: Confirm JA/JB connector arrangement before installation. Channels 1–8 are assigned to JA, while channels 9–16 use JB.
- Firmware: The 500ITM02 is an analog interface module rather than a programmable CPU. Firmware flashing should not be assumed as part of a normal replacement procedure.
- Direct replacement: Do not claim that another 500-series analog module is a drop-in replacement unless ABB documentation confirms the exact rack, connector, electrical, and software compatibility.
- Lifecycle: This module is associated with the legacy REC 580 architecture. For installed systems, maintaining a tested spare is prudent because an obsolete or hard-to-source measurement module can create a disproportionate outage risk.

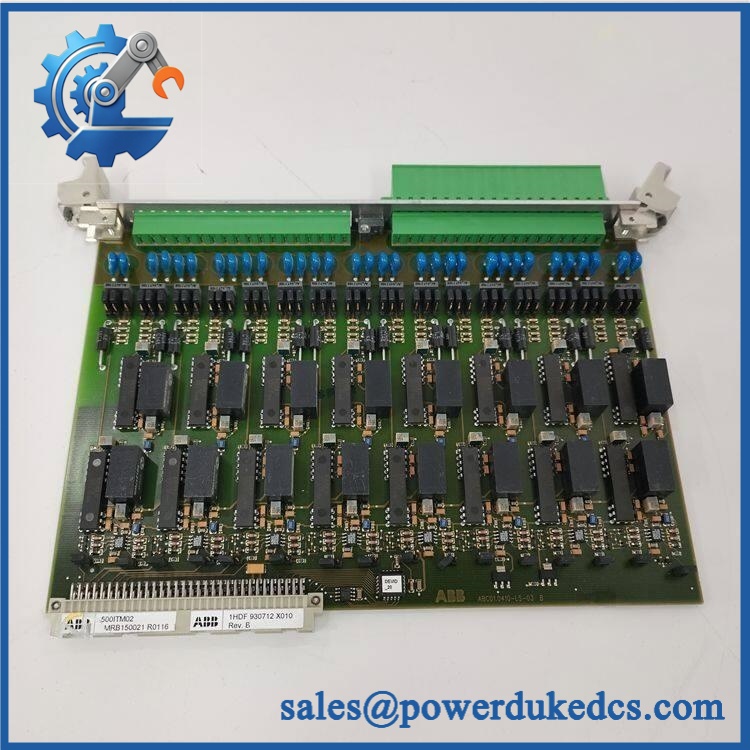

ABB 500ITM02 1MRB150021R0116
Field Engineer’s Tech Notes
Warning 1 — Terminal mapping is not optional. The module uses two separate terminal groups: JA handles channels 1–8 and JB handles channels 9–16. Reconnecting a field circuit to the wrong channel can create apparently plausible but completely incorrect protection or measurement data.
Warning 2 — Do not substitute a 500AIM02 based on the word “analog.” The REC 580 documentation distinguishes the 500ITM02 isolating transducer module from the 500AIM02 analog input unit. Their electrical functions are different.
Strict QA & Testing SOP
- Part identification — Confirm ABB 500ITM02 / 1MRB150021R0116 against the purchase order.
- Secondary identification — Record any additional marking such as 1HDF930712X010.
- Nameplate inspection — Photograph the module label, revision, serial number, and manufacturer markings.
- Physical inspection — Check the housing, connectors, mounting hardware, and PCB enclosure for impact or corrosion.
- Terminal inspection — Verify JA and JB connector condition and confirm that no pins are bent or contaminated.
- Rack compatibility check — Confirm the intended REC 580 rack configuration accepts 500ITM02.
- Channel verification — Confirm the complete 16-channel terminal mapping before applying signals.
- Continuity testing — Check applicable signal paths and connector continuity against the approved service documentation.
- Reference-signal test — Apply controlled voltage/current signals to representative channels.
- Accuracy test — Compare measured values against a calibrated reference.
- Offset test — Verify unloaded or reference-zero behavior and investigate abnormal fixed offsets.
- Linearity test — Test multiple signal points rather than relying on a single measurement.
- Frequency test — Where applicable, verify performance at representative frequencies; ABB specifies current-input accuracy at both <100 Hz and <1000 Hz.
- Phase test — For applications requiring phase measurement, verify the phase relationship against the applicable frequency specification.
- System integration — Install the module in an approved REC 580 test environment and confirm that expected measurement channels are received correctly.
- Final inspection — Record test results, photographs, serial information, and any deviations.
- ESD packaging — Place the module in an anti-static bag with suitable mechanical protection.
- Test evidence — Test videos can be provided when available, particularly for powered measurement and channel verification.
Buyer’s FAQ
Q: What exactly is the ABB 500ITM02?
A: It is an isolating transducer module used in the ABB REC 580 Bay Control Terminal architecture. ABB documentation distinguishes it from the separate 500AIM02 analog input unit.
Q: How many channels does 500ITM02 have?
A: The documented terminal arrangement provides 16 channels: channels 1–8 through connector JA and channels 9–16 through connector JB.
Q: Is 1MRB150021R0116 the same part as 500ITM02?
A: Yes. 500ITM02 is the module designation, while 1MRB150021R0116 is the ABB part-number identification supplied for this unit. Some distributor records also associate 1HDF930712X010 with the same model.
Q: Can I replace it with 500AIM02?
A: Do not assume so. ABB’s REC 580 documentation identifies 500ITM02 as an isolating transducer module and 500AIM02 as a separate analog-input unit. Their functions should be treated as different unless the specific system documentation authorizes substitution.
Q: Can the module be hot-swapped?
A: Do not assume live removal is safe merely because the module is plug-in hardware. Follow the REC 580 maintenance procedure and isolate the relevant protection/control circuits before removing the module.
Q: How can I verify a New Original 500ITM02?
A: Request clear photographs of the ABB nameplate showing 500ITM02 and 1MRB150021R0116, together with serial/revision markings. For a critical substation spare, request powered functional-test evidence and channel measurement records.
Q: What warranty should I request?
A: Obtain the warranty period and condition in writing. The supplier should state whether the unit is New Original, New Surplus, refurbished, or previously installed, and whether the warranty covers functional failure after installation.
