ABB 500MBA02 1MRB150003R000/B | MVB Process Bus Module

Description

• Model: 500MBA02
• ABB Part Number: 1MRB150003R000/B
• Brand: ABB
• Part Type: MVB bus controller module
• System Application: ABB REC 580 bay control / process-bus architecture
• Power Consumption: Approximately 3 W according to ABB technical documentation

Technical Introduction

500MBA02 is a bus controller, not a conventional analog or digital I/O module.

ABB documentation for the REC 580 platform identifies 500MBA02 as the Bus Controller Module, with the specific function of controlling data exchange with the MVB process bus. The same documentation lists a power consumption of approximately 3 W. The part reference 1MRB150003R000/B is also directly associated with ABB 500MBA02 in ABB-indexed technical material.

For maintenance teams working on legacy bay-control equipment, this distinction matters: the module sits in the internal process-bus architecture, so replacement should be checked against the applicable REC 580 configuration, bus topology, and hardware revision rather than treated as a generic communication card.

Engineer’s Takeaway: Verify the exact 500MBA02 / 1MRB150003R000/B reference and the installed REC 580 configuration before replacement; the module’s role is MVB process-bus data control, with approximately 3 W consumption.

Core Technical Specifications

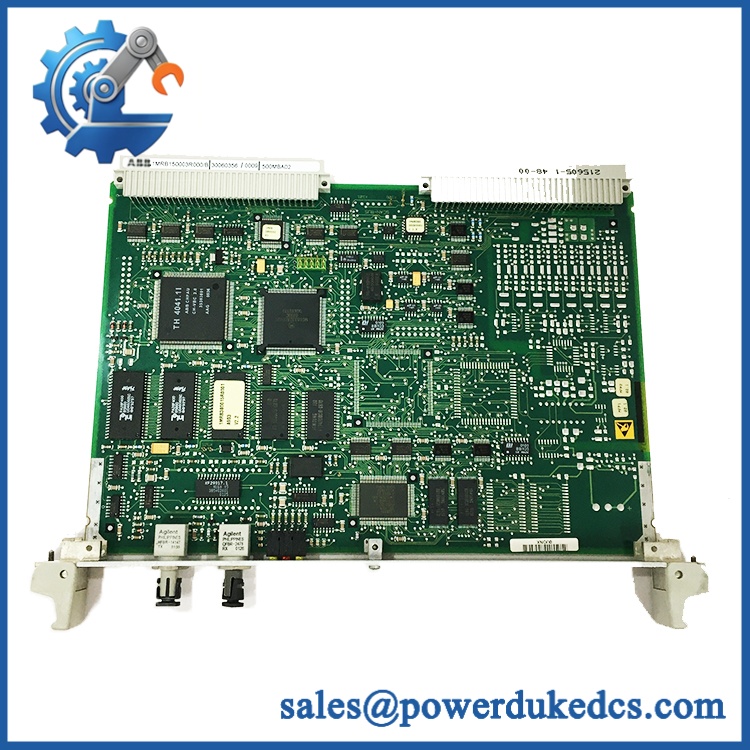

ABB 500MBA02 1MRB150003R000/B

ABB’s REC 580 documentation specifically identifies 500MBA02 as the Bus controller module and states that its function is to control data exchange with the MVB process bus. The same table specifies 3 W consumption.

Field Engineer’s Tech Notes

1. Do not confuse MVB bus control with Ethernet or RS-485 communications. The ABB documentation identifies this module specifically with the MVB process bus. A replacement selected only because its connector or card size appears similar can be functionally wrong.
2. Check the complete part number and hardware revision. ABB references include both 500MBA02 1MRB150003R000/B and related 500MBA02 part-number variants. Maintain the suffix exactly as shown on the installed unit when purchasing a replacement.

Adaptive QA & Testing Protocol

Incoming inspection for 500MBA02 / 1MRB150003R000/B includes part-number verification, PCB and connector inspection, label and revision recording, and comparison with the customer’s installed module.

Functional testing should focus on the MVB process-bus role. In an approved REC 580 test environment, verification should include module initialization, correct bus-controller status, and successful MVB data exchange with the connected bay-control equipment. Communication diagnostics should be checked before the module is released for field installation.

Test reports, inspection photographs, and available test videos can be supplied upon request.

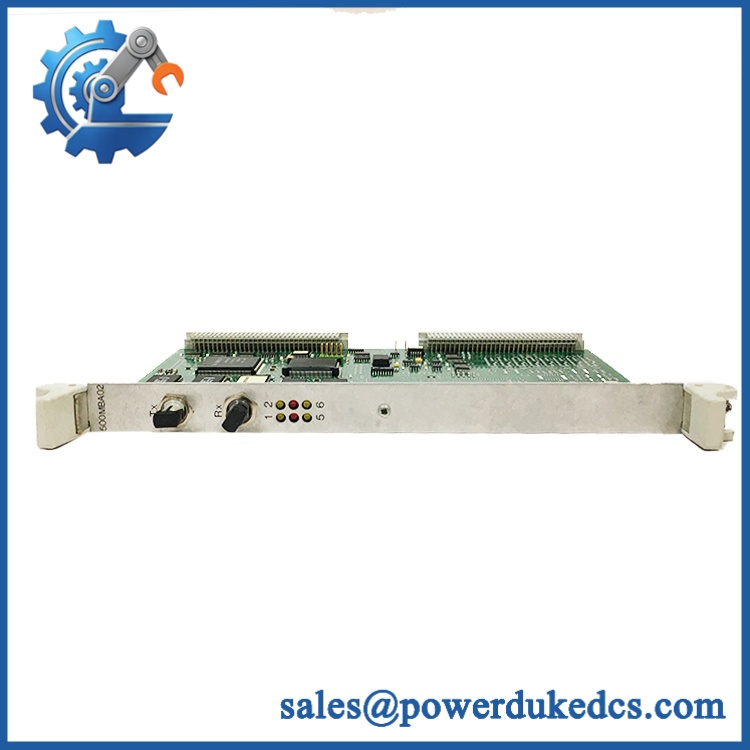

ABB 500MBA02 1MRB150003R000/B

Buyer’s FAQ

Q: What is ABB 500MBA02 used for?
A: ABB documentation identifies it as a Bus Controller Module that controls data exchange with the MVB process bus in the REC 580 platform.

Q: Is 1MRB150003R000/B the ABB part number for 500MBA02?
A: Yes. ABB-indexed references associate 500MBA02 with 1MRB150003R000/B.

Q: What is the power consumption?
A: ABB’s REC 580 technical documentation lists approximately 3 W for the 500MBA02 bus controller module.

Q: Can another 500-series communication module be used as a substitute?
A: Not automatically. The MVB bus function, hardware revision, connector arrangement, system configuration, and applicable REC 580 documentation must all be checked before substitution.
