ABB 500MBA02 1MRB150003R000 | Redundant Power Module

Description

• Brand: ABB
• Full Model Number: 500MBA02 1MRB150003R000
• System/Series Family: ABB 500 Series / Advant OCS
• One-Sentence Core Function: Redundant power module for supplying control-system hardware within ABB 500 Series architectures
• Top 3 Hardcore Specs: Redundant power architecture; 500 Series control-system integration; 24 VDC-class control power application
• Stock Status: New Surplus / Fully Tested Refurbished subject to actual inventory inspection

Module 3: Commercial-Technical Deep Dive

Power-supply faults in a legacy control system are deceptively disruptive. A controller may report a processor or I/O problem when the real failure is upstream in the redundant power path. The ABB 500MBA02, 1MRB150003R000 family is identified in available ABB-related documentation as a 500 Series power module, and current reference listings associate the 500MBA02 with redundant control-power applications. The same documentation set distinguishes it from the closely related 500MBA01 1MRB150003R0002, so the complete part number should be matched rather than treating the two assemblies as interchangeable.

The ROI is operational continuity. A correctly matched redundant power module allows the control cabinet to maintain the intended power architecture instead of forcing an emergency redesign around a failed supply. Available technical listings describe the 500MBA02 as a dual-redundant power module associated with the ABB 500 Series, while ABB-related documentation confirms that the part belongs to the same family of power modules used with control-system hardware. Because published secondary sources disagree on some detailed electrical ratings, do not order this unit on a generic “24 VDC power supply” description alone; the installed system schematic and original nameplate remain the governing references.

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: Configuration-specific ABB 500 Series redundant power module.
• Logic rewrite: Not normally required. This is a power-system component rather than an application-logic processor.
• Firmware flash: Not applicable under normal replacement conditions.
• Drop-in status: Potentially direct when the replacement carries the same complete ordering code and matches the existing rack, power-input arrangement, and downstream load.
• Part-number discipline: Confirm the complete 500MBA02 / 1MRB150003R000 identification before substituting the related 500MBA01 or another 500 Series power assembly. ABB-related reference material lists these as separate modules.

⚠️ Field Traps (Watch Out)

• Redundancy wiring mistake: Do not assume that two connected supplies are automatically operating as a correctly configured redundant pair. Verify the actual input/output arrangement against the cabinet wiring drawing before energizing.
• Stored energy and multiple sources: ABB safety documentation for the associated UPS/power architecture warns that equipment can receive energy from more than one source and stresses qualified service procedures. Apply LOTO and isolate all relevant sources before removing the module.
• Voltage assumption: Some third-party listings describe detailed input/output ratings that are not consistently supported by the available ABB documentation. Treat the original nameplate and approved system schematic as authoritative rather than copying an unverified web specification.

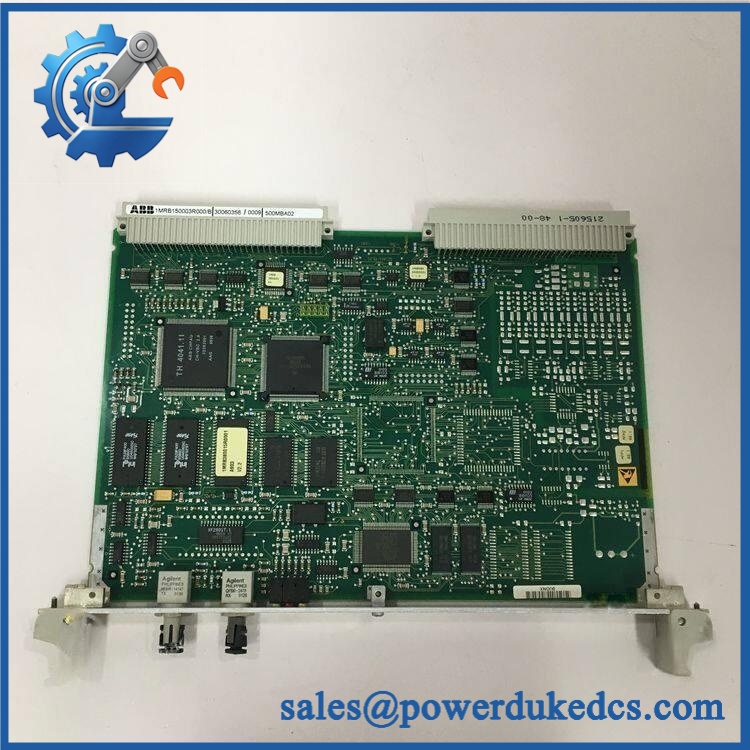

ABB 500MBA02 1MRB150003R000

Module 5: Quality Assurance SOP

Before shipment, the ABB 500MBA02 1MRB150003R000 should pass a power-module-specific inspection sequence:

1. OEM anti-counterfeit visual inspection — verify ABB markings, complete catalog/ordering identification, labels, terminal arrangement, enclosure construction, and PCB layout.
2. Mechanical inspection — check mounting hardware, terminal blocks, connectors, cooling surfaces, covers, and visible PCB condition for impact, corrosion, contamination, or unauthorized modification.
3. Nameplate verification — record the exact 500MBA02 designation and associated 1MRB part number; do not rely on family-level identification.
4. Insulation and continuity checks — where supported by the approved test procedure, verify appropriate isolation and protective-earth continuity before functional energization.
5. Controlled power-up — energize the module using a correctly rated laboratory source and verify startup behavior and status indications.
6. Output-voltage verification — measure the module’s specified output under no-load and controlled-load conditions against the approved documentation for that exact revision.
7. Redundancy verification — where the test fixture supports it, verify transfer or fault-isolation behavior between redundant power paths under controlled conditions.
8. Load test — apply a representative resistive/electronic load and monitor output stability and temperature rise for the defined test interval.
9. Alarm/status verification — verify available power-good, fault, or diagnostic indications.
10. Final QC record — document model, full part number, serial/identification information where available, test conditions, measured values, photographs, and packaging condition.

For a redundant power module, a successful no-load power-up is not sufficient acceptance evidence. Output stability, protective behavior, and redundancy performance are the useful commissioning checks.

Module 6: CRO-Driven Buyer FAQ

1. Is ABB 500MBA02 1MRB150003R000 obsolete, and how do I verify an authentic replacement?

The 500MBA02 is associated with ABB’s legacy 500 Series control-system hardware, and current reference material still identifies the part within that ecosystem. For procurement, verify the complete 500MBA02 / 1MRB150003R000 identification, physical nameplate, revision, and connector arrangement. Do not substitute 500MBA01 simply because the two part families look similar.

2. Can I hot-swap the 500MBA02?

Do not assume hot-swap capability. ABB safety documentation for associated power and UPS equipment stresses isolation of multiple energy sources and qualified service procedures. Shut down the applicable control system, isolate all relevant power sources, and follow site LOTO requirements before removing the module.

3. Will replacing the 500MBA02 require reprogramming the controller?

Normally no. The module is part of the power architecture rather than the controller’s application-processing layer. After replacement, however, verify downstream control power, redundant-source status, alarms, and all affected I/O before returning the system to operation.

4. What is the correct electrical rating for 500MBA02?

Do not rely on a generic online specification. Available secondary listings describe the module as a redundant power unit and associate it with 24 VDC control-power applications, but the detailed ratings published online are not consistent across sources. Use the original nameplate, cabinet schematic, and applicable ABB documentation for the exact revision before energization.

5. What warranty and technical support are available?

Warranty duration should be stated according to the actual stock condition, such as new surplus or tested refurbished. Technical support should cover complete part-number verification, electrical compatibility review, installation guidance, and documented bench-test results. Live cabinet modification and energized power-system work should remain under the customer’s qualified electrical and controls personnel.
