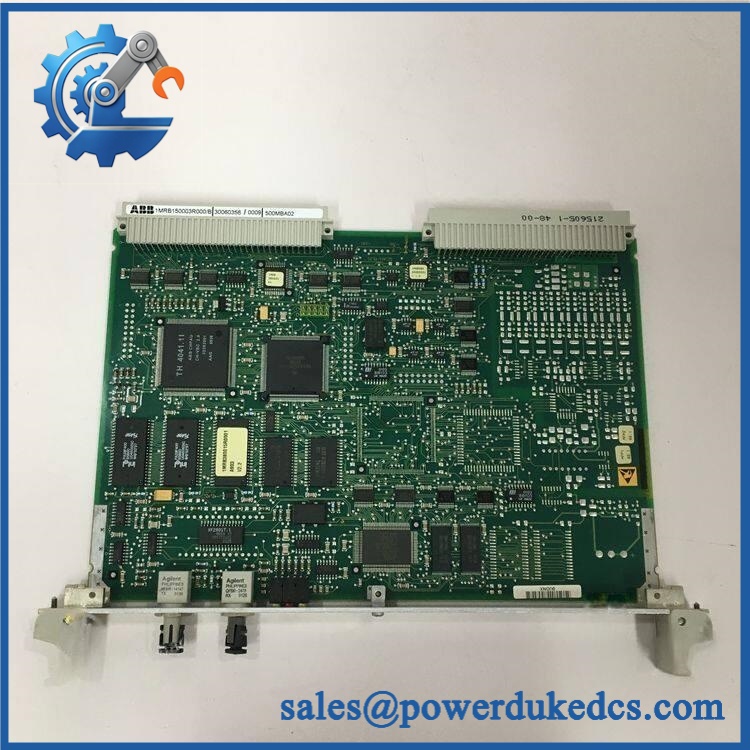

ABB 500MBA02 1MRB200053/M | Drive Interface Board

Description

• Model & Brand: ABB 500MBA02, associated with 1MRB200053/M and 1MRB150003R0003 in published equipment records.
• Product Type: Control/interface board used within ABB industrial drive and power-conversion equipment. The available records do not support treating it as a generic PLC CPU.
• Physical Dimensions: Approximately 140 × 100 × 35 mm is reported by one supplier; this dimension should be treated as provisional because the available listings are inconsistent.
• Estimated Shipping Weight: Approximately 0.5–1.5 kg packaged for preliminary freight planning. Confirm the actual packed weight before issuing customs documents.
• What’s in the Box: 500MBA02 board, protective packaging, and documentation if supplied. Do not assume terminal blocks, mounting hardware, cables, or a complete drive assembly are included.
• Identity Check: Record the complete 500MBA02 / 1MRB200053/M designation and the PCB revision before installation. Similar-looking 500-series boards are not automatically interchangeable.

Product Introduction

This board belongs inside the drive-control architecture rather than operating as a standalone PLC module. The ABB 500MBA02 is documented in supplier records as a control/interface board associated with ABB industrial drive and conversion equipment, where it conditions signals and interfaces with the host control electronics. The board-level installation uses the host cabinet’s card guides and mating connectors (mechanical alignment is critical).

Part-number discipline matters here. Public databases also associate 1MRB200053/M with descriptions ranging from controller module to control/interface board, while ABB-related listings associate the 500MBA02 with 1MRB150003R0003. Do not approve a substitute solely because the board dimensions or connector pattern appear similar. Confirm the complete ABB ordering code and host-drive application first.

Core Technical Specifications

ABB 500MBA02 1MRB200053/M

The published data is not sufficiently consistent to assign a definitive power-consumption figure, heat dissipation value, or environmental rating to the board itself. Those values should be taken from the specific ABB drive manual and hardware revision, rather than copied from generic 500MBA02 listings.

One supplier listing claims a 24 VDC control supply and gives several I/O specifications, but those claims conflict with other descriptions of the board. For an audit-grade asset record, mark unverified electrical specifications as TBD — OEM confirmation required.

? Global Compliance & Industry Certifications

For this type of ABB drive-control board, certification is normally evaluated as part of the complete drive/cabinet system, not necessarily as an independent certification of the replacement PCB.

Check the applicable documentation for:

• CE Mark — relevant to applicable European-market drive equipment.
• UL/cUL — verify the certification of the complete drive or conversion system.
• RoHS — verify the applicable product revision and production date.
• ATEX/IECEx — do not assume hazardous-area approval from the board alone.
• Marine approvals — DNV, ABS, or other marine certifications require verification against the complete approved equipment configuration.

A CE-marked drive assembly does not automatically mean that an individually shipped PCB can be represented as independently CE-certified equipment. That distinction matters when preparing compliance files and customs documentation.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

1. Keep the board in ESD shielding. Store the PCB inside its original anti-static bag whenever possible. The edge connector and exposed PCB contacts should not be handled with bare hands (oil and contamination can compromise contact quality).
2. Control humidity aggressively. Maintain a dry, stable warehouse environment and target below 60% RH where practical. Avoid rapid temperature changes that can create condensation on the PCB and connector surfaces.
3. Protect the edge connector and board geometry. Store the board horizontally in a rigid protective package rather than allowing it to flex or rest against other PCBs. Before installation, inspect the connector fingers, retaining hardware, PCB coating, and any electrolytic capacitors for corrosion, swelling, or physical damage.

Do not erase or cover the original PCB identification labels. The 1MRB200053/M designation and revision information may be required to establish compatibility years after the spare enters inventory.

Physical Installation Prerequisites

• Install the 500MBA02 only in the specified ABB host drive/cabinet assembly.
• Use the appropriate card guides and mating backplane connectors. Do not force the board into position; connector misalignment can damage both the PCB and motherboard.
• Maintain sufficient cabinet clearance for the host equipment’s cooling path. The board itself should not be used to establish cabinet airflow requirements.
• Verify the cabinet grounding and EMC bonding arrangement before reconnecting the board.
• Remove control power and follow the host-drive discharge procedure before PCB replacement.
• Use ESD protection during handling and installation.
• Verify the hardware revision and complete part number against the drive’s parts list before energization.
• After replacement, perform the applicable drive diagnostic and commissioning procedure rather than assuming functional equivalence from the board’s physical fit.

Buyer’s FAQ

Q: Which HS tariff code should be used for 500MBA02?
Do not assign a tariff code from the model number alone. Because this is a control/interface board rather than a complete drive, classification can depend on the importing country’s interpretation of electrical control-board assemblies and their principal function. Have the customs broker validate the national tariff subheading before shipment.

Q: Does the Country of Origin affect the shipment?
Yes. COO can affect preferential tariffs, import documentation, and origin declarations. Do not copy the origin from another ABB 500-series board; use the physical marking, OEM documentation, or supplier declaration applicable to this exact unit.

Q: Should shipping insurance be purchased?
For international shipment, yes. A PCB can suffer connector or component damage without obvious external deformation. Use an ESD bag, rigid board protection, cushioning, and insurance based on the actual replacement value.

Q: Does 500MBA02 include the latest firmware pre-loaded?
Do not treat this as a conventional firmware-bearing PLC CPU. The available evidence identifies the 500MBA02 primarily as a control/interface board. Any software or firmware dependency belongs to the host ABB drive/controller architecture and must be verified against the installed system revision.
