ABB 500MTM02 1HDF930512X010 | Legacy ABB Control Card Replacement

Description

• Model: ABB 500MTM02
• Part Number: 1HDF930512X010
• Related ABB Reference: 1MRK001967-AA
• Brand: ABB
• Series: ABB 500 Series
• Part Type: Main Control Interface Board / Control Card
• Core Function: Provides control and interface processing within ABB 500-series control-system hardware.
• Key Specs: 500MTM02 designation, 1HDF930512X010 hardware reference, 1MRK001967-AA associated identification, rack-mounted PCB construction, and legacy industrial control application.

Product Introduction

When a legacy control rack develops an intermittent control fault, replacing a board with the correct hardware reference is critical. A visually similar ABB 500-series card may have a different electrical function even when the board format appears nearly identical.

ABB 500MTM02 1HDF930512X010 is identified in industrial automation product listings as a 500MTM02 control card / main control interface board. The same product references associate 1HDF930512X010 with 1MRK001967-AA, making both identifiers useful when searching for an exact replacement.

This distinction is important for procurement. The 500MTM02 family has appeared with multiple ABB ordering references, so the complete hardware number should be matched before a replacement is approved (especially for long-running Procontrol installations).

Important Identification Note

Available industrial listings specifically associate 500MTM02, 1MRK001967-AA, and 1HDF930512X010.

However, detailed electrical specifications such as processor type, memory size, exact I/O configuration, supply voltage, communication protocol, and environmental limits are not sufficiently established for this exact hardware reference. Those parameters should be verified from the installed board and applicable ABB documentation rather than inferred from another 500MTM02 variant.

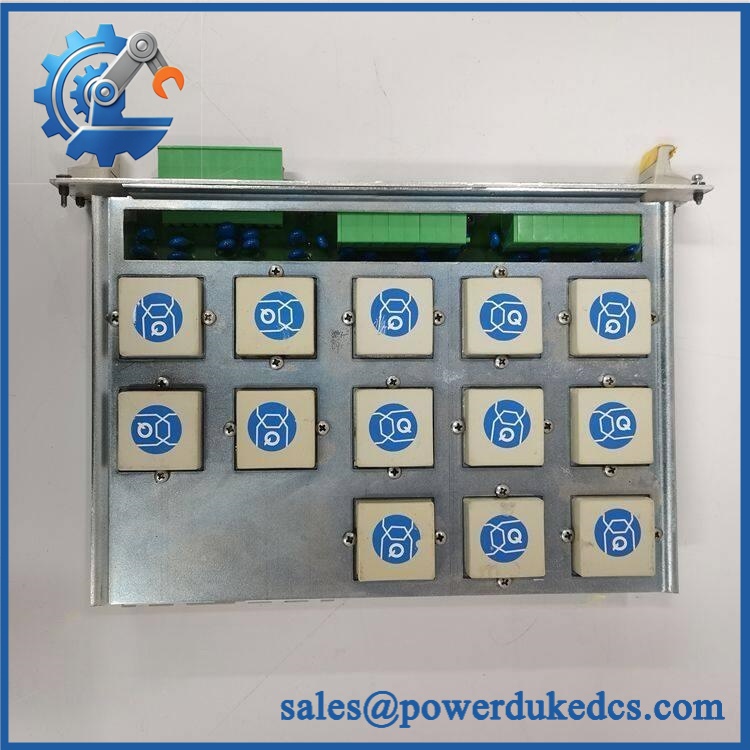

ABB 500MTM02 1HDF930512X010

Application Scenarios & Pain Points

In an ABB legacy control cabinet, the 500MTM02 serves as a board-level control/interface component. When this card becomes defective, the fault may appear as a broader control-system problem rather than an isolated PCB failure.

For power-generation equipment, an exact spare can reduce restoration time because replacing the existing architecture avoids unnecessary cabinet modifications. The 1HDF930512X010 marking is particularly useful when searching aftermarket inventory.

Within older Procontrol-related systems, engineers may encounter several 500-series modules with similar physical dimensions. Matching the full hardware reference prevents accidental substitution with a different module type.

At ambient temperatures around 50°C, inspect cabinet ventilation and thermal loading before commissioning a replacement. Do not transfer the environmental rating of another ABB 500-series card to this module without documentation.

Common Error Codes & Diagnostic Symptoms

No verified public documentation establishes dedicated 500MTM02 1HDF930512X010-specific fault codes. The following are practical hardware symptoms:

• Control Function Not Responding → Diagnosis: Possible internal board failure, rack power issue, connector problem, or backplane fault. → Action: Verify system power and interfaces, then replace the module if board failure is confirmed.
• Intermittent Control Signals → Diagnosis: Aging components, connector oxidation, cracked solder joints, or unstable board circuitry can produce intermittent behavior. → Action: Inspect the PCB and connectors and perform controlled bench/rack testing.
• Module Not Recognized by System → Diagnosis: Possible hardware-revision mismatch, configuration issue, backplane fault, or failed control card. → Action: Compare the complete 500MTM02 / 1HDF930512X010 / 1MRK001967-AA identification before replacement.

Cross-Reference & Lifecycle Migration

Cross-Reference

The 1HDF930512X010 reference is associated with 1MRK001967-AA for 500MTM02 in available industrial product listings.

Related 500MTM02 Variants

The 500MTM02 family is also associated with other ABB ordering references in aftermarket databases. These should not automatically be considered direct replacements.

A matching model name does not prove identical I/O, firmware, hardware revision, or backplane behavior.

Firmware

No verified firmware version or mandatory flashing procedure has been established specifically for 1HDF930512X010.

If the board contains programmable configuration, compare the replacement firmware/configuration with the existing system before commissioning.

Lifecycle

Recommended classification: Legacy / Limited Availability.

For a mature ABB control installation, holding one tested spare is useful because the failure of a main control/interface card can affect multiple system functions simultaneously.

Field Engineer’s Tech Notes

1. Photograph both identification labels before removal.
Capture 500MTM02, 1HDF930512X010, 1MRK001967-AA, serial information, revision markings, connectors, and switch settings. These details are valuable if the replacement arrives with different labeling.

2. Do not substitute based on the 500MTM02 name alone.
The family designation is not enough for engineering approval. Match the complete ABB reference and compare the PCB revision and connector layout before inserting the card.

Strict QA & Testing SOP

1. Inbound identification — Verify ABB, 500MTM02, and 1HDF930512X010 markings.
2. Cross-reference check — Confirm the associated 1MRK001967-AA identification where present.
3. Visual inspection — Check the PCB, components, solder joints, connectors, mounting hardware, and board surface.
4. Label inspection — Record serial number, revision, date codes, and traceability information.
5. Connector inspection — Check contacts for oxidation, bending, contamination, or mechanical damage.
6. Configuration check — Record jumpers, DIP switches, links, and visible hardware settings.
7. Electrical inspection — Perform applicable board-level measurements using the approved ABB/system test procedure.
8. Rack installation test — Install the card in a compatible test rack.
9. System recognition test — Verify correct module initialization and system recognition.
10. Functional test — Check control/interface functions supported by the available test environment.
11. Extended operation — Monitor for intermittent faults, resets, or communication abnormalities.
12. Final QA documentation — Record actual test results and photographs.
13. ESD packaging — Package in antistatic material with adequate mechanical protection.

Test videos can be provided when available, showing the actual board identification, startup condition, diagnostic indicators, and functional test.

Buyer’s FAQ

Q1: Is 1HDF930512X010 the same as 1MRK001967-AA?
A: Available industrial listings associate both references with the 500MTM02 control-card variant. For purchasing, request photographs showing the actual markings on the board.

Q2: Is 500MTM02 a PLC CPU?
A: It is better described as an ABB 500-series control/interface card. Do not automatically classify it as a modern PLC CPU.

Q3: Can another 500MTM02 part number replace this unit?
A: Not without compatibility confirmation. Different ordering references can represent different hardware variants or configurations.

Q4: Can I hot-swap the card?
A: Do not assume hot-swapping is supported. Follow the shutdown and electrical-isolation procedure specified for the particular ABB 500-series system.

Q5: Does 1HDF930512X010 require firmware flashing?
A: No specific firmware procedure has been verified for this exact reference. If the host system uses configurable firmware, match the installed system requirements before commissioning.

Q6: How can I verify a New Original ABB unit?
A: Check the ABB label, 500MTM02, 1HDF930512X010, associated 1MRK001967-AA marking, serial/traceability information, PCB revision, and physical construction. Request actual-unit photographs and functional test evidence before purchase.
