ABB 500MTM02 1MRB150020R0712 | ABB Legacy PLC Spare for Industrial Systems

Description

• Model: 500MTM02

• ABB Product ID: 1MRB150020R0712
• Brand: ABB
• Series: Procontic 500
• Part Type: Master Test Module
• Core Function: Provides test and maintenance functions within the ABB Procontic 500 automation architecture.
• Key Specs: 500 Series hardware, MTM02 designation, 1MRB150020R0712 ordering code, and dedicated system-test functionality.
• Typical Application: Legacy PLC maintenance, system diagnostics, commissioning, troubleshooting, and spare-part replacement.

Product Introduction

When a legacy PLC installation develops an intermittent hardware problem, technicians need more than a replacement CPU to determine whether the fault originates in the controller, I/O, wiring, or system interface. Dedicated test hardware can significantly shorten that troubleshooting process.

The ABB 500MTM02 1MRB150020R0712 is associated with the ABB Procontic 500 family and carries the MTM02 master-test-module designation. The unit is intended for test and maintenance functions within the corresponding 500 Series control architecture.

For plants still operating Procontic 500 equipment, this type of maintenance module can be valuable during commissioning and fault isolation. The full ABB ordering code should be retained when purchasing because legacy 500 Series hardware contains numerous specialized assemblies.

Core Technical Specifications

Application Scenarios & Pain Points

A manufacturing plant running a long-established Procontic 500 installation may use dedicated test hardware during troubleshooting when conventional PLC diagnostics do not isolate the source of a fault. The MTM02 can form part of the maintenance toolkit for this legacy architecture.

In process-control maintenance, technicians may need to distinguish between an internal PLC fault and an external I/O or wiring problem. A dedicated test module helps provide a structured path for system-level diagnosis.

During a scheduled shutdown, maintenance personnel can inspect and test legacy control hardware before production resumes. This is especially useful where control cabinets have been operating continuously for years and replacement parts are no longer stocked locally.

For system integrators maintaining multiple older ABB installations, holding an exact 500MTM02 spare reduces sourcing delays. A replacement can be prepared and tested before an outage rather than being purchased only after a failure occurs.

At cabinet temperatures above 50°C, inspection should include connectors, power supplies, PCB condition, and ventilation. Thermal stress can accelerate deterioration in older electronic assemblies.

Common Error Codes & Diagnostic Symptoms

Symptom/Code: Test module not recognized by the control system
→ Diagnosis: Check module seating, system power, backplane connections, and the applicable Procontic 500 configuration. A poor backplane connection can produce symptoms similar to an internal module fault.
→ Action: Verify the installation and replace the 500MTM02 when the fault remains associated with the module.

Symptom/Code: Diagnostic function unavailable
→ Diagnosis: Inspect the module’s connections, system supply, and test-interface circuitry. Confirm that the surrounding Procontic 500 hardware is operating normally.
→ Action: Remove the suspect unit for controlled bench testing and replace it when defective.

Symptom/Code: Intermittent test or diagnostic response
→ Diagnosis: Inspect contacts, connectors, PCB solder joints, and power stability. Repeated intermittent behavior can indicate aging electronic components or poor mechanical contact.
→ Action: Clean and inspect the interface, then replace the module if the fault follows the 500MTM02.

•

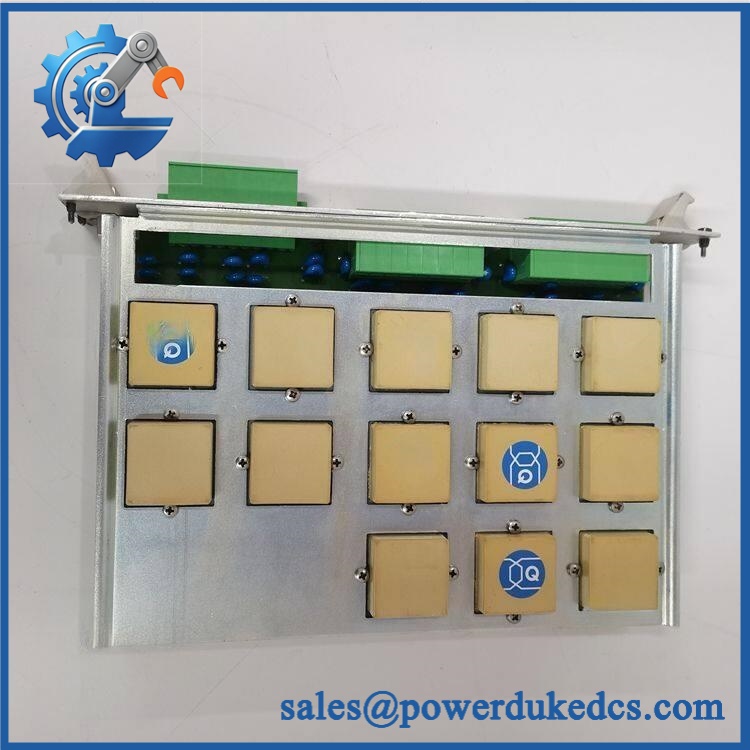

  ABB 500MTM02 1MRB150020R0712

Cross-Reference & Lifecycle Migration

Product Identification

The correct procurement identity is:

• ABB Model: 500MTM02
• ABB Part Number: 1MRB150020R0712
• Product Family: Procontic 500
• Module Type: Master Test Module
• Function: System testing / diagnostics / maintenance

The complete 1MRB150020R0712 number should be used on purchasing documents. Avoid ordering only by the shortened “500MTM02” designation because legacy ABB hardware can have related model names with different hardware configurations.

Related 500 Series Hardware

The ABB Procontic 500 family includes CPUs, communication modules, I/O modules, power-related components, and specialized maintenance hardware. Similar-looking modules should not be treated as direct substitutes without checking:

• Complete part number
• Module designation
• System generation
• Backplane/interface arrangement
• Electrical characteristics
• Installed PLC configuration

Lifecycle Strategy

The Procontic 500 platform is a legacy automation architecture. For facilities still depending on these systems, maintaining tested spare hardware is an important part of lifecycle management.

A practical buffer-stock record should include:

• 500MTM02 part number
• Hardware revision
• Serial number
• Host PLC/system model
• Installation position
• Test procedure
• Test results
• Storage date
• Replacement history

For a migration project, retain the 500MTM02 during the transition period until the legacy control architecture has been fully decommissioned. The module is a maintenance component for the existing system rather than a direct modern PLC replacement.

Field Engineer’s Tech Notes

Tech Note 1 — Check the backplane first.
Before replacing the module, inspect the card-edge contacts, backplane connection, mounting position, and system power. A poor connection can mimic a failed electronic board and lead to unnecessary replacement.

Tech Note 2 — Keep the original configuration records.
When removing legacy test hardware, photograph the installation and record all switch, connector, and configuration information. Older PLC systems often depend on physical configuration details that are not obvious from the part number alone (a five-minute photo record can save substantial troubleshooting time).

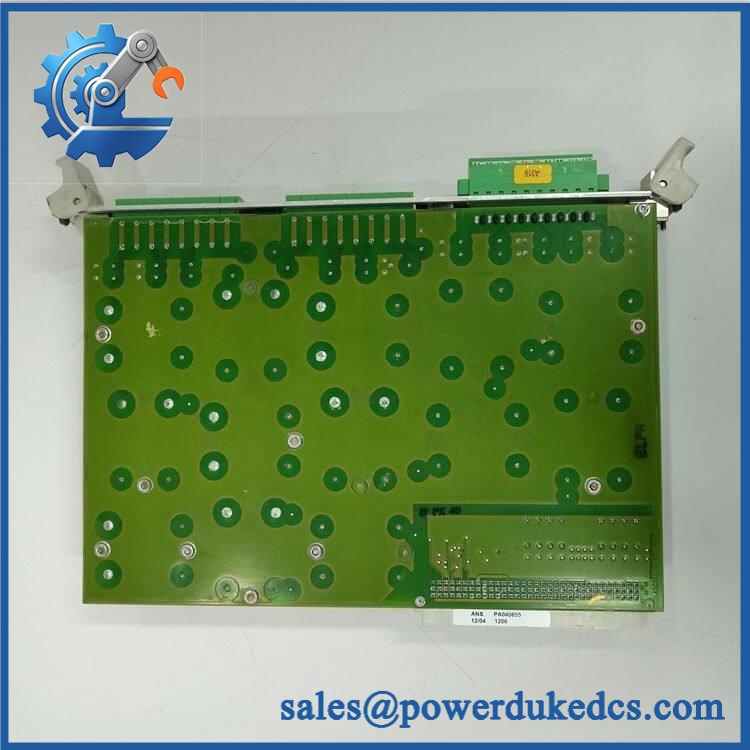

ABB 500MTM02 1MRB150020R0712

Strict QA & Testing SOP

1. Part Number Verification
   Confirm 500MTM02 / 1MRB150020R0712 against the purchase order.
2. Nameplate Inspection
   Photograph the ABB identification label, serial number, and visible revision markings.
3. Visual PCB Inspection
   Check the board for corrosion, contamination, cracked components, damaged connectors, and previous repair work.
4. Mechanical Inspection
   Inspect the housing, mounting hardware, card-edge interface, and mechanical locking components.
5. Contact Inspection
   Examine interface contacts for oxidation, contamination, or deformation.
6. Electrical Pre-Test
   Perform suitable resistance and continuity measurements before controlled energization.
7. Controlled Power-Up
   Energize the module using an appropriate Procontic 500 test configuration.
8. Diagnostic Function Test
   Verify the available test and diagnostic functions under controlled conditions.
9. Interface Test
   Confirm communication or interaction with the applicable 500 Series hardware.
10. Extended Operation
    Run the module for an appropriate test period and monitor stability.
11. Thermal Inspection
    Check for abnormal heating during operation.
12. Final QA Documentation
    Record identification data, test conditions, results, and inspection date.
13. ESD Packaging
    Place the electronic module in anti-static packaging with suitable cushioning for shipment.

Test videos can be provided when available, along with product photographs and inspection documentation.

Buyer’s FAQ

Q1. Can 500MTM02 be hot-swapped?

Do not assume hot-swapping capability. The Procontic 500 system should be placed into the appropriate maintenance condition before removing the module, following the applicable ABB procedure and site electrical-safety requirements.

Q2. What does 500MTM02 do?

The MTM02 designation identifies the unit as a Master Test Module associated with the ABB Procontic 500 family. It is intended for system test, diagnostic, and maintenance functions rather than serving as a conventional PLC CPU.

Q3. Is 500MTM02 interchangeable with other 500 Series modules?

No. Different 500 Series modules have different electrical and functional roles. Use 500MTM02 1MRB150020R0712 as the primary replacement identification and verify the host-system configuration before installation.

Q4. Is this suitable for legacy PLC maintenance?

Yes. Its primary value is supporting maintenance and diagnostic work on installations that continue to use the ABB Procontic 500 architecture. Keeping a tested spare can be useful where replacement sourcing requires extended lead time.

Q5. What should I provide when requesting a quotation?

Provide the complete ABB 500MTM02 1MRB150020R0712 part number, quantity, product condition, destination, and photos of the existing unit. For critical systems, also provide the host PLC model and installation information.

Q6. What warranty should I request?

Specify the condition category—New Original, New Surplus, Refurbished, or Tested Used—and request the warranty duration, test report, product photographs, and return terms in the quotation.
:::
