ABB 500MTM02 1MRK001967 | Legacy ABB Power System Control Board

Description

• Model: ABB 500MTM02
• Part Number: 1MRK001967
• Related Identification: 1MRK001967-AA / 1HDF930512X010
• Brand: ABB
• Series: 500MTM02
• Part Type: Main Control Interface Board / Control Card
• Core Function: Provides control and interface functions within ABB’s 500-series power-system hardware.
• Key Specs: 500MTM02 designation, 1MRK001967-AA variant identification, 1HDF930512X010 hardware reference, and board-level control/interface construction. ABB-related listings identify the 500MTM02 as a control card and main control interface board.

Product Introduction

A control-board failure in an older power-system installation can be difficult to troubleshoot because several 500-series boards have closely related model names and part-number formats. Ordering by the family name alone can therefore result in the wrong hardware revision arriving at the site.

ABB 500MTM02 1MRK001967 is identified in available industrial automation listings as a control card / main control interface board. The more detailed identification 1MRK001967-AA is also associated with 1HDF930512X010 in ABB-related product databases.

A particularly important procurement point is that 500MTM02 has multiple part-number variants. Other listings associate the same 500MTM02 family with numbers such as 1MRB150020R0712 and 1MRB150020R1102. These should not automatically be treated as interchangeable with 1MRK001967-AA.

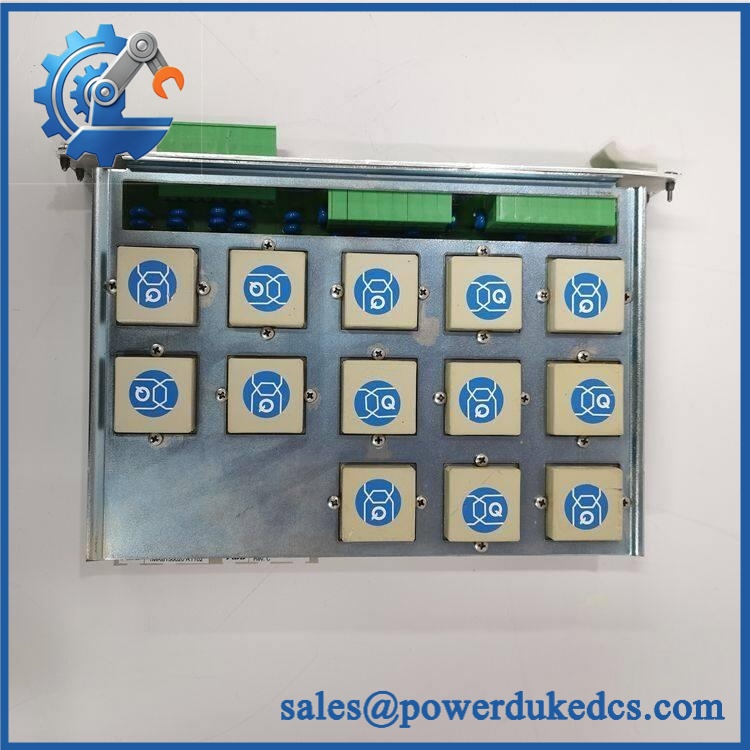

ABB 500MTM02 1MRK001967

The available sources do not provide a sufficiently reliable OEM specification for voltage, I/O channel count, processor, memory, or communication protocol for 1MRK001967-AA. Those values should therefore be taken from the installed system documentation rather than borrowed from unrelated 500MTM02 variants.

This distinction matters because another 500MTM02 listing identifies 1MRB150020R0712 as a digital I/O module with a completely different specification set.

Application Scenarios & Pain Points

For ABB power-system installations, the 500MTM02 control card can serve as part of the electronic control and interface architecture. A failed board may leave the surrounding power equipment intact while preventing normal system operation.

In substation-related applications, exact hardware identification becomes important when multiple ABB 500-series boards are installed together. The 1MRK001967-AA / 1HDF930512X010 identification should be compared with the original board before ordering.

For industrial maintenance teams, legacy board availability can become a problem after many years of operation. A verified spare can reduce the recovery window when the original board develops an intermittent fault.

Within electrical control cabinets operating near 50°C, thermal conditions should be checked against the actual host-system specification. Do not apply the temperature rating of another 500-series module to this board.

Common Error Codes & Diagnostic Symptoms

No reliable public documentation found establishes dedicated 500MTM02 1MRK001967 fault codes. The following are practical diagnostic symptoms rather than official ABB error-code definitions:

• Control Interface Not Responding → Diagnosis: Possible board-level electronics failure, power-supply problem, connector fault, or backplane/interface issue. → Action: Check supply and system connections before replacing the control card.
• Intermittent Control Signal / System Instability → Diagnosis: Aging components, connector problems, cracked solder joints, or unstable board circuitry may cause intermittent operation. → Action: Inspect the board and connectors and perform controlled functional testing.
• System Does Not Recognize Control Board → Diagnosis: Hardware revision mismatch, board failure, configuration problem, or communication-interface fault may prevent recognition. → Action: Verify 1MRK001967-AA / 1HDF930512X010 against the original unit and inspect the system configuration.

Cross-Reference & Lifecycle Migration

Cross-Reference

The 1MRK001967-AA / 1HDF930512X010 combination is specifically associated with 500MTM02 in multiple industrial listings.

Other 500MTM02 references exist, including 1MRB150020R0712 and 1MRB150020R1102. These should be considered related variants rather than confirmed drop-in replacements.

Firmware

No specific firmware requirement has been established for the exact 1MRK001967-AA board from the available documentation. If the board is part of a programmable control system, firmware and configuration should match the installed system revision.

Lifecycle

Recommended procurement classification: Legacy / Limited Availability.

The 500-series hardware appears across aftermarket industrial automation inventories, while current listings use different 500MTM02 part-number variants. This makes exact revision matching particularly important for buffer-stock planning.

Field Engineer’s Tech Notes

1. Check the complete hardware number, not just “500MTM02.”
The 500MTM02 family has multiple associated ABB numbers. 1MRK001967-AA / 1HDF930512X010 should be compared directly with the failed board before purchasing a replacement.

2. Do not copy specifications from another 500MTM02 variant.
This is a common procurement trap. One 500MTM02 listing is identified as a binary I/O module, while another identifies the 1MRK001967-AA version as a control card. The shared model name does not prove identical electrical functionality.

Strict QA & Testing SOP

1. Inbound identification — Verify ABB marking and the complete 500MTM02 / 1MRK001967 identification.
2. Variant check — Confirm whether the actual board carries 1MRK001967-AA and 1HDF930512X010 markings.
3. Visual inspection — Examine PCB components, solder joints, connectors, mounting hardware, and board surfaces.
4. Revision recording — Photograph all labels, serial numbers, revision markings, and configuration identifiers.
5. Connector inspection — Check contacts for oxidation, bending, contamination, and mechanical damage.
6. Configuration check — Compare jumpers, switches, links, and hardware settings with the original board.
7. Electrical inspection — Perform applicable measurements using the approved system test procedure.
8. Bench testing — Use a compatible ABB test platform where available.
9. Functional verification — Check board recognition, control/interface operation, diagnostics, and communication with associated equipment.
10. Extended test — Monitor for intermittent faults during controlled operation.
11. Final documentation — Record test results and photographs of the actual unit.
12. ESD packaging — Protect the board with antistatic packaging and suitable mechanical cushioning.

Test videos can be provided when available, showing the actual board identification, physical condition, startup behavior, and applicable functional test.

Buyer’s FAQ

Q1: Is ABB 500MTM02 1MRK001967 a binary I/O module?
A: The exact 1MRK001967-AA / 1HDF930512X010 version is identified by available sources as a control card / main control interface board. Other 500MTM02 variants are separately described as binary I/O modules, so the complete part number matters.

Q2: Is 1MRK001967-AA the same as 1HDF930512X010?
A: Available product listings associate both references with the same 500MTM02 control-card variant. For purchasing, it is best to request photographs showing both markings on the actual unit.

Q3: Can 1MRB150020R0712 replace 1MRK001967-AA?
A: Do not assume so. Both are associated with 500MTM02 in aftermarket databases, but they are different ABB ordering references and are described differently. Compatibility requires system-level confirmation.

Q4: Can this board be hot-swapped?
A: Do not assume hot-swapping is supported. Follow the shutdown, isolation, and board-replacement procedure for the specific ABB 500-series equipment.

Q5: How do I verify a New Original ABB unit?
A: Check the ABB label, 500MTM02, 1MRK001967-AA, 1HDF930512X010, serial/traceability markings, PCB revision, and physical construction. Request actual-unit photographs before purchase when the part is offered as New Original or New Surplus.

Q6: What warranty should I request?
A: Confirm the exact warranty period and functional coverage in the quotation. For a legacy control board, requesting a functional test report and test video is also useful before shipment.
