1. ABB 500MTM02 | Traceable Process Control Module

2. Unboxing & Physical Snapshot

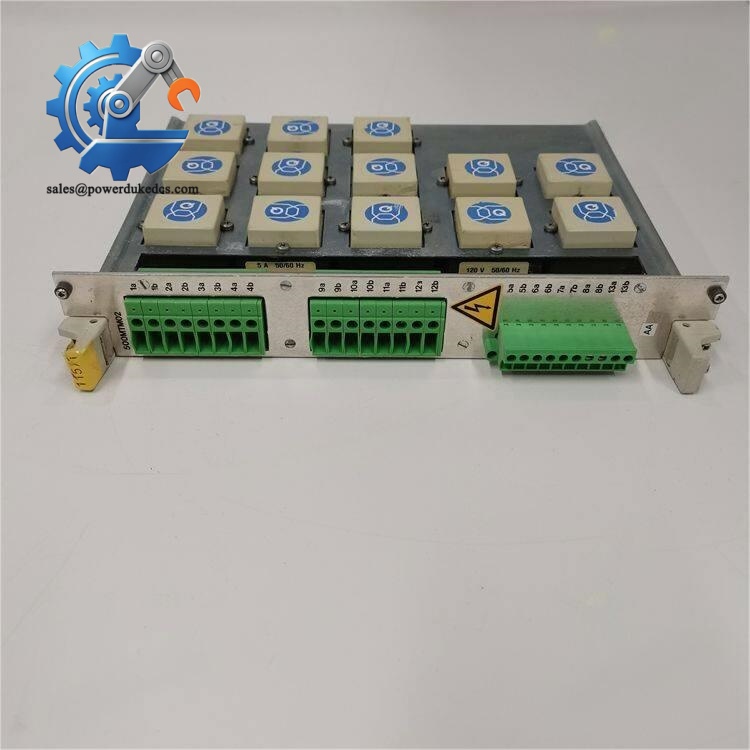

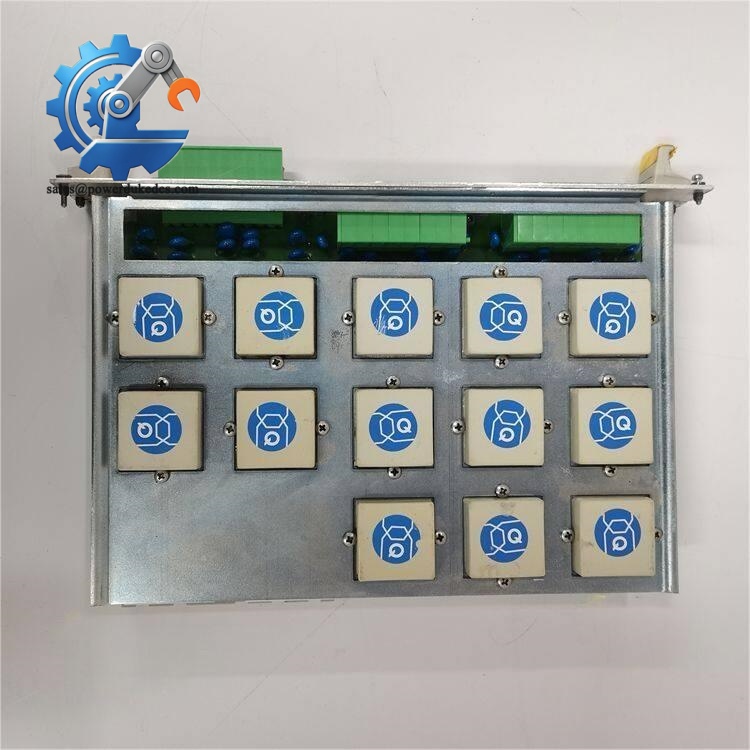

• Brand & Model: ABB 500MTM02
• Product Category: Symphony / Harmony Modular I/O Hardware Module
• Application: ABB industrial control system spare used within Symphony and related process automation architectures. The 500MTM02 is associated with ABB Harmony/Symphony modular control hardware used for process I/O and control cabinet integration.
• Approximate Physical Dimensions:
  • Width: approximately 190 mm
  • Height: approximately 140 mm
  • Depth: approximately 100 mm
  • Dimensions vary depending on mounting carrier and terminal assembly configuration.
• Estimated Shipping Weight: Approximately 1.0-1.5 kg including protective packaging.
• What’s in the Box:
  • ABB 500MTM02 module assembly
  • Front identification label
  • Terminal/interface components when supplied as a complete assembly
  • ESD shielding bag
  • Protective foam packaging
  • Documentation when included with OEM shipment

3. Product Introduction

The ABB 500MTM02 is installed within an industrial control cabinet where accurate field signal termination and dependable module communication are essential for process availability. It belongs to ABB’s modular control hardware ecosystem, providing the physical interface required for integration between field wiring and the associated Symphony/Harmony control platform (cabinet organization is especially important during shutdown maintenance windows).

This hardware should be handled as a controlled automation spare, not as a generic replacement board. Confirm the exact cabinet position, associated controller type, and revision compatibility before installation. Inspect the terminal interfaces, connector pins, retaining hardware, and enclosure surfaces before energizing the system (long-stored modules often fail first at contact points rather than internal electronics).

4. Core Technical Specifications

Parameter	Value
Manufacturer	ABB
Model Number	500MTM02
Product Family	ABB Symphony / Harmony Control System
Product Type	Modular I/O Hardware Module
Application	Process automation control cabinet installation
Mounting Method	Rack / cabinet mounted assembly
Signal Interface	Dependent on installed system configuration
Communication Interface	Harmony/Symphony system bus architecture
Power Supply	Control system supplied DC power
Power Consumption	System configuration dependent
Heat Dissipation	Dependent on module loading and cabinet airflow
Operating Environment	Industrial control room cabinet
Cooling Method	Natural cabinet convection
Installation Category	Fixed industrial automation equipment
Service Replacement Type	OEM automation spare

ABB 500MTM02

5. Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for this class of ABB industrial automation hardware may include:

• CE Mark for applicable EMC and electrical safety requirements.
• UL/cUL Recognition where installed within approved industrial control panels.
• ATEX/IECEx consideration when the module is used as part of a certified hazardous-area automation system.
• Marine approvals such as DNV GL when incorporated into qualified offshore or vessel control installations.

For process plants operating in classified areas, certification depends on the complete control installation. The module alone does not establish hazardous-area suitability; cabinet design, wiring methods, barriers, and field equipment must also comply.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

• Store the 500MTM02 in the original anti-static packaging until deployment. Keep connector surfaces protected from dust and airborne contaminants.
• Maintain warehouse humidity below 60% RH. Excess moisture can degrade connector plating, PCB coatings, and mounting hardware over extended storage periods.
• Inspect stored inventory every 12-24 months. Check labels, connectors, mechanical mounting points, and enclosure condition (asset identification damage can create audit problems even when the hardware remains functional).

7. Physical Installation Prerequisites

• Confirm the module revision matches the existing ABB Symphony/Harmony system configuration before replacement.
• Install only in the designated rack or cabinet mounting location.
• Maintain approximately 50 mm clearance above and below cabinet assemblies where required for convection cooling and service access.
• Verify cabinet grounding and protective earth connections before applying power.
• Ensure connector locking mechanisms are fully engaged.
• Keep signal wiring separated from high-voltage feeders and high-noise switching equipment.
• Confirm engineering database configuration matches the installed hardware revision before commissioning.


  ABB 500MTM02

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly reviewed for the ABB 500MTM02?
A: Industrial control modules are commonly evaluated under electrical control equipment classifications, frequently within HS 8537 or related categories. The final classification depends on the importing country, customs interpretation, and declared function.

Q: Does Country of Origin (COO) documentation matter for this ABB spare?
A: Yes. COO records support customs clearance, supplier qualification, warranty tracking, and automation asset audits. Maintain OEM labels, packing slips, and receiving inspection records.

Q: Should shipping insurance be purchased for the 500MTM02?
A: Yes. Electronic control modules can suffer hidden impact damage, connector deformation, or ESD-related failures during transportation. Use ESD packaging, shock protection, and declared-value coverage.

Q: Does the ABB 500MTM02 include the latest firmware pre-loaded?
A: Firmware availability depends on the specific Symphony/Harmony hardware configuration. Verify the installed system revision, application software version, and module compatibility before commissioning.
