Description

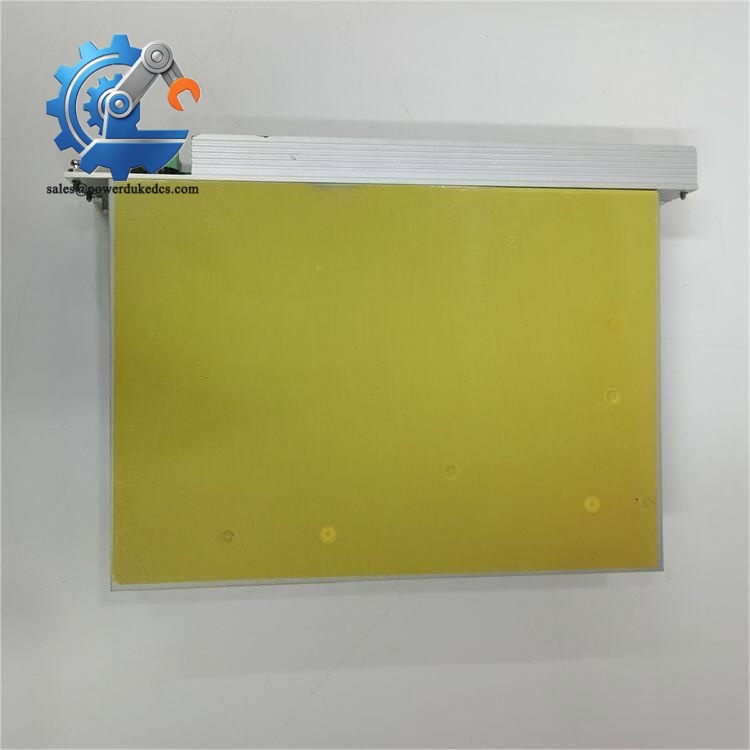

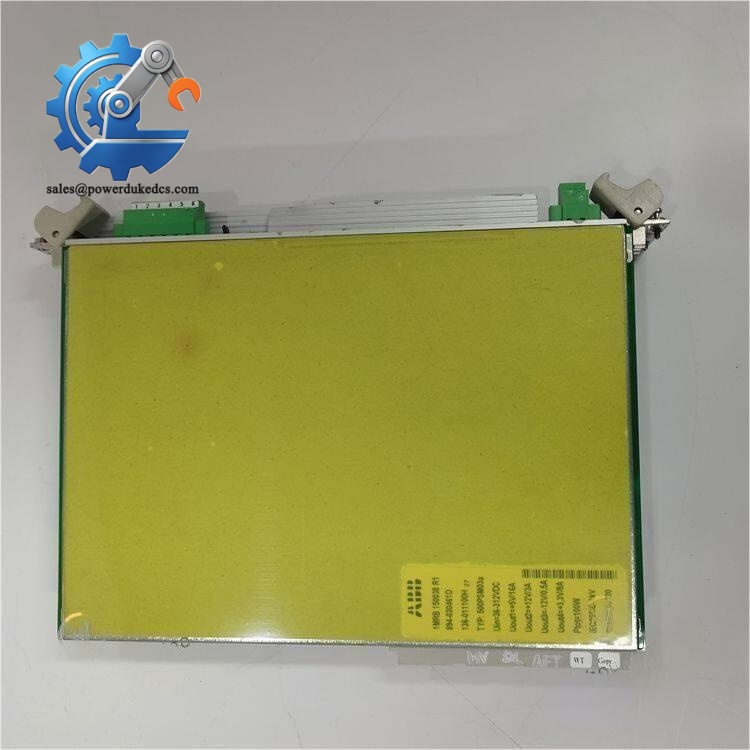

- ABB 500PSM03A | DIN Rail Control System Supply
Unboxing & Physical Snapshot
- Model & Brand: ABB 500PSM03A
- Product Type: AC500 PLC power supply module designed to provide regulated 24 VDC power for ABB automation control hardware. The module is used in industrial control panels where stable DC supply is required for PLC processors and associated I/O components.
- Approximate Physical Dimensions (W × H × D): Approximately 120 × 140 × 110 mm (4.72 × 5.51 × 4.33 in.)
- Estimated Shipping Weight: Approximately 1-1.5 kg including DIN-rail hardware protection and transport packaging
- What’s in the Box:
- ABB 500PSM03A power supply module
- Terminal connection interface
- DIN-rail mounting mechanism
- Protective anti-static packaging
- Product identification label
- Documentation package when supplied
Product Introduction
The ABB 500PSM03A is installed at the power distribution layer of an automation cabinet, where it converts incoming AC power into regulated DC power for connected control components. The module mounts on a DIN rail and interfaces with the PLC power architecture (which is critical because unstable supply conditions can cause processor resets, communication faults, and unexpected shutdown events).
This power supply module is typically maintained as a controlled spare in AC500-based automation systems. The hardware provides a 24 VDC output rated at 3 A continuous current and includes protective functions for overload conditions. Replacement requires verification of input voltage range, output capacity, wiring arrangement, and cabinet heat loading before energization.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | 500PSM03A |
| Product Family | ABB AC500 Automation System |
| Product Type | Industrial Power Supply Module |
| Input Voltage | 100-240 VAC ±10% |
| Input Frequency | 50/60 Hz ±5% |
| Maximum Input Current | 3.5 A at 100 VAC |
| Inrush Current | ≤30 A peak |
| Output Voltage | 24 VDC ±2% |
| Output Current | 3 A continuous |
| Output Protection | Overload protection, hiccup mode |
| Overload Threshold | Approximately 110-150% |
| Efficiency | ≥88% at full load |
| Mounting Method | 35 mm DIN rail |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5-95% RH, non-condensing |
| Power Dissipation | Load dependent |
| Heat Dissipation | Generated primarily through internal switching components |
ABB 500PSM03A
? Global Compliance & Industry Certifications
Expected regulatory approvals and compliance considerations for the ABB 500PSM03A include:
- CE Mark: Applicable for approved ABB automation system installations meeting European EMC and electrical safety requirements.
- UL/cUL Recognition: May apply for North American industrial control panel installations.
- RoHS Compliance: Expected for applicable production revisions.
- ATEX / IECEx: Not typically a standalone approval for this power supply; hazardous-area suitability depends on the complete cabinet design, enclosure rating, and certified associated equipment.
- Marine Approvals (DNV GL): Applicable only when supplied as part of an approved marine automation package.
Power supplies are often overlooked during compliance audits. A failed or incorrectly substituted supply can affect the certification status of the entire control cabinet because voltage stability and protective separation are part of the safety design.
Verify specific lot certifications with OEM.
? Long-Term Storage & Asset Preservation Guide
Keep the ABB 500PSM03A inside its original protective packaging during warehouse storage. The terminal contacts, PCB assemblies, and internal capacitors should remain isolated from dust and moisture.
Maintain storage humidity below 60% RH to reduce oxidation risk on electrical contacts. Avoid storage locations with chemical vapors, condensation cycles, or direct sunlight exposure.
Inspect stored units every 12-24 months. Check the DIN-rail latch, terminal screws, enclosure condition, and identification labels. For units stored several years, evaluate capacitor condition before applying full operating voltage (especially after extended shelf periods).
Physical Installation Prerequisites
- Install the 500PSM03A on a compatible 35 mm DIN rail.
- Confirm AC input voltage matches the module rating before energizing.
- Connect protective earth according to cabinet grounding standards.
- Leave at least 30-50 mm clearance above and below ventilation areas to support convection cooling.
- Avoid installing directly beside high-heat devices such as contactors, braking resistors, or large drives.
- Use approved wire sizes and terminal torque settings.
- Verify output polarity before connecting PLC electronics.
- Ensure cabinet airflow prevents internal temperature accumulation.
ABB 500PSM03A
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for an ABB 500PSM03A shipment?
A: Industrial power supplies are commonly classified under HS heading 8504 for electrical transformers, static converters, and related power supply equipment. Final classification depends on customs interpretation and declared function.
Q: Does Country of Origin affect import processing for this ABB spare?
A: Yes. COO information supports customs clearance, warranty tracking, and industrial asset documentation. Verify the country marking on the module label before receiving it into controlled inventory.
Q: Should this power supply module ship with insurance coverage?
A: Recommended. Although the enclosure is compact, internal switching electronics and capacitors can be damaged by shock, moisture, or improper transport conditions.
Q: Does the ABB 500PSM03A include the latest firmware pre-loaded?
A: No. The 500PSM03A is a power supply device and does not contain user firmware. Verification should focus on electrical compatibility, hardware revision, input voltage range, and output current capability.
