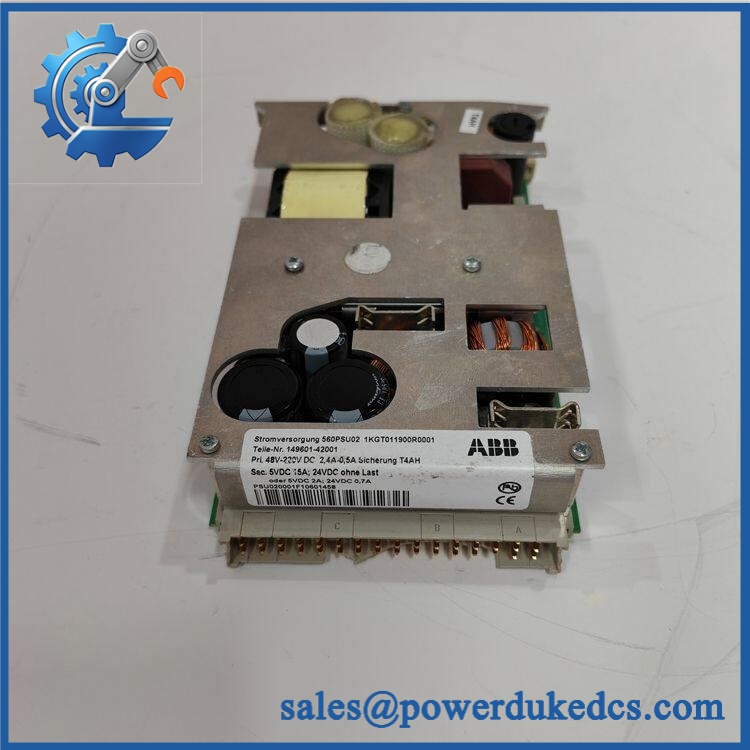

ABB 560PSU02 1KGT011900R0001 | Factory-Sealed Spare

Description

1. • Model: ABB 560PSU02
   • ABB Part Number: 1KGT011900R0001
   • Brand: ABB
   • Product Type: Power Supply Unit / Power Supply Module
   • System Association: ABB AC 800M / Advant Controller 500 family hardware; exact cabinet application should be verified against the installed system documentation.
   • Physical dimensions: Approximately 45 × 132 × 103 mm (W × H × D) for the 560PSU02 module body. Verify the actual mechanical drawing before cabinet-fit planning.
   • Estimated net weight: Approximately 0.5 kg; use the actual weighed unit for freight calculation.
   • Shipping weight: Do not use net weight as gross weight. Add the ESD bag, cushioning, carton, and outer shipping packaging.
   • What’s in the box: Normally the 560PSU02 power supply module. Do not assume mounting hardware, terminal accessories, or manuals are included unless listed on the supplier packing list.
   • Receiving inspection: Record the ABB type, 1KGT011900R0001, serial number, revision, date code, and package condition.

   Product Introduction

   The ABB 560PSU02 is a power-supply component rather than a controller or I/O module. Its role is to provide the required electrical supply to associated ABB automation hardware, making correct voltage, connector, and cabinet compatibility essential before installation.

   From an asset-management perspective, power supplies deserve separate control. A visually similar ABB PSU can have different output characteristics or mechanical interfaces (which can cause immediate hardware damage if incorrectly substituted). Match 560PSU02 / 1KGT011900R0001 against the installed cabinet documentation and the existing nameplate before releasing the spare.

   Core Technical Specifications

   Parameter	Value
   Manufacturer	ABB
   Model	560PSU02
   ABB Part Number	1KGT011900R0001
   Product Type	Industrial Power Supply Unit
   Application	ABB Automation / Controller Hardware
   Input Supply	Verify against nameplate and applicable ABB manual
   Output Supply	Verify against nameplate and system configuration
   Power Rating	Verify against the applicable hardware revision
   Mounting	ABB system-specific mounting
   Cooling	Natural / cabinet air cooling, subject to installation
   Operating Temperature	Verify against applicable ABB documentation
   Storage Temperature	Verify against applicable ABB documentation
   Dimensions	Approx. 45 × 132 × 103 mm
   Net Weight	Approx. 0.5 kg
   Firmware	Not normally applicable to the PSU itself



   ABB 560PSU02 | 1KGT011900R0001

   Important: The electrical ratings above should be taken from the actual unit and its ABB installation documentation before energization. Do not infer input or output voltage from the model number.

   ? Global Compliance & Industry Certifications

   For international procurement, treat certification as a document-verification exercise:

   • CE Mark: Verify the marking and applicable ABB Declaration of Conformity for the specific revision.
   • UL/cUL: Confirm whether the exact 560PSU02 revision carries the required North American certification.
   • ATEX / IECEx: Do not assume the power supply is suitable for direct installation in a hazardous area. The complete cabinet and certified system configuration must be evaluated.
   • Marine approvals: For offshore or marine applications, verify DNV, ABS, or the project-required marine certification.
   • RoHS: Confirm the environmental compliance declaration applicable to the manufacturing revision.

   A PSU certification does not automatically certify the complete automation cabinet. The final installation, enclosure, wiring, protection, and associated equipment must meet the applicable requirements.

   Verify specific lot certifications with OEM.

   ? Long-Term Storage & Asset Preservation Guide

   Keep the PSU in its original ESD-safe packaging. Do not leave the module exposed on a warehouse shelf, particularly where airborne dust or conductive contamination can accumulate around ventilation openings.

   Control moisture. Store the unit in a clean, dry environment with stable temperature and low condensation risk. Repeated temperature cycling can produce moisture on internal metal surfaces and connector contacts.

   Record date code and condition at receipt. For a spare power supply, this information provides useful traceability when several revisions have accumulated in the warehouse. Keep the original label and carton with the asset whenever practical.

   Before installation, inspect the terminal area, connector pins, ventilation openings, and enclosure for corrosion, deformation, or contamination. Do not energize a unit that shows evidence of moisture ingress.

   Physical Installation Prerequisites

   • Mounting: Use the specified ABB mounting arrangement for the 560PSU02. Do not modify the enclosure or mounting points to force installation.
   • Clearance: Maintain the cabinet clearance specified by the applicable ABB system manual. A generic 50 mm rule should not replace the manufacturer’s thermal installation requirements.
   • Cooling: Keep ventilation openings unobstructed. Do not bundle cables directly against the PSU’s heat-dissipation surfaces.
   • Grounding: Connect protective earth according to the ABB cabinet wiring diagram before applying power.
   • Input protection: Verify the upstream fuse or circuit-breaker rating against the applicable ABB documentation.
   • Connector and terminal check: Confirm polarity, terminal assignment, and connector seating before energization.
   • ESD: Handle the electronic assembly with an ESD wrist strap and grounded work surface.

   Check the input voltage first. A replacement PSU should never be energized based solely on a matching connector.

   Buyer’s FAQ

   Q1: What HS tariff code should be used for ABB 560PSU02?

   Do not assign a tariff code solely from 560PSU02. The correct HS classification depends on the confirmed electrical function and the importing country’s tariff schedule. Provide the customs broker with the ABB part number, technical description, datasheet, and electrical specifications.

   Q2: Does the Country of Origin have to match the invoice?

   The COO should reflect the actual origin of the supplied unit, not the seller’s location or dispatch country. If a Certificate of Origin is issued, its information should remain consistent with the commercial invoice and packing list.

   Q3: How should I calculate shipping weight?

   Use the actual gross packed weight for freight booking. The approximate module weight is not the same as shipping weight; include the ESD packaging, cushioning, inner carton, and outer carton.

   For high-value automation PSUs, shipping insurance should be based on the documented commercial value. Photograph the ABB label and packaging before dispatch.

   Q4: Does the 560PSU02 include the latest firmware?

   A power supply module does not normally have user firmware in the same sense as an ABB controller or communication processor. Firmware status should therefore not be used as the primary acceptance criterion. Instead, verify the exact hardware revision, electrical ratings, and system compatibility of 1KGT011900R0001 before installation.
