ABB 5SGX1060H0003 | OEM Original IGCT Power Module

Description

Module 2: The 10-Second Buyer’s Brief

• Brand: ABB
• Full Model Number: 5SGX1060H0003
• System / Series Family: ABB IGCT Power Electronics / Medium-Voltage Drive Systems
• Core Function: Integrated gate-commutated thyristor used as a high-power semiconductor switching device
• Top 3 Hardcore Specs: IGCT technology / Press-pack semiconductor construction / High-power converter switching
• Device Type: Integrated Gate-Commutated Thyristor (IGCT)
• Application Class: Medium-voltage drives and power-conversion equipment
• Gate Drive: Requires the corresponding compatible gate-drive arrangement
• Cooling: System-level thermal management required
• Stock Status: New Surplus / Factory Sealed — exact physical condition to be confirmed before quotation

Module 3: Technical Product Introduction

A failed IGCT inside a medium-voltage converter is not a normal control-board swap. The semiconductor sits directly in the power path, so its voltage class, current capability, mechanical stack-up, gate-drive interface, cooling arrangement, and associated protection circuit all have to match the installed design. ABB 5SGX1060H0003 is identified as an IGCT module, or Integrated Gate-Commutated Thyristor, intended for high-power switching applications. Available technical listings associate this device with ABB medium-voltage drive and power-conversion equipment, including ACS-series power-electronics architectures.

The replacement value is therefore tied to electrical and mechanical matching, not simply to the part number. The 5SGX1060H0003 is a power semiconductor device rather than a programmable I/O module, so specifications such as PLC scan time, fieldbus protocol, or CPU memory do not apply. Its operating performance depends on the complete converter design: gate unit timing, clamping arrangement, DC-link conditions, snubber network, cooling path, and protection settings all matter. —The exact permissible operating limits should be taken from the applicable ABB hardware documentation for the installed converter before energization.

Module 4: Application Scenarios & Field Realities

• In medium-voltage motor drives, the 5SGX1060H0003 can serve as a power-switching element within converter topologies used for large motors. Typical plant loads include compressors, pumps, fans, and other continuously operated equipment where a semiconductor failure can immediately stop the driven process.
• For active rectifier and converter sections, IGCT devices are used to control high-power electrical energy between the AC and DC portions of the system. The replacement must match the original device’s electrical class and gate-drive arrangement; changing only the semiconductor while ignoring the gate unit is not a valid maintenance strategy.
• During an ACS-series drive overhaul, mechanical fit deserves the same attention as the electrical rating. Press-pack devices depend on the correct clamping arrangement and thermal interface. Incorrect stack pressure or an unsuitable heat-transfer interface can create localized thermal stress even when the drive initially starts normally.
• At high-load industrial sites, maintenance teams should also inspect the surrounding power circuit after an IGCT failure. Check gate-drive components, snubber components, bus connections, cooling paths, and signs of overcurrent or overvoltage before installing the replacement. A failed semiconductor can be the consequence of another fault rather than the original cause.

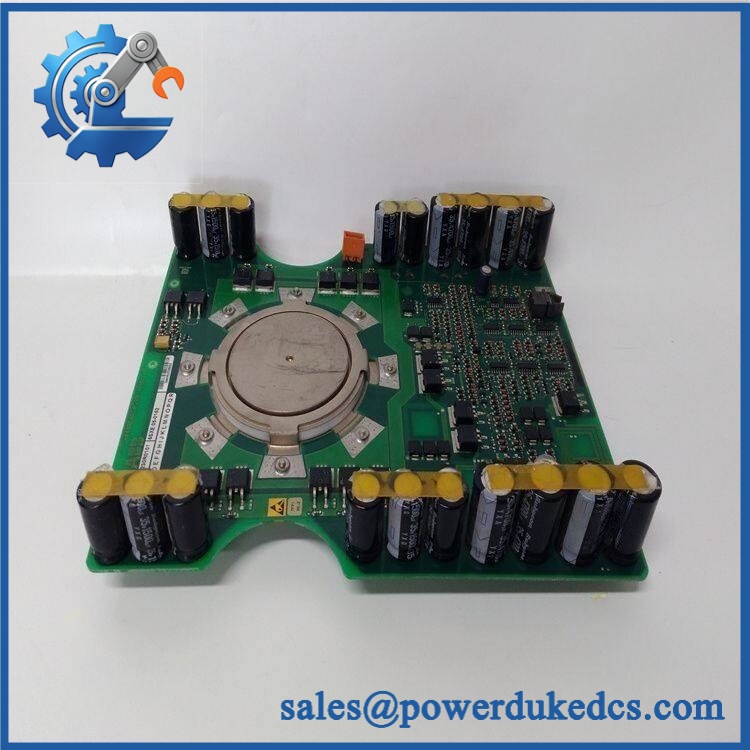

ABB 5SGX1060H0003

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Field Traps — Watch Out

Gate-drive mismatch: An IGCT is not an independent plug-and-play control component. The gate unit must deliver the required drive characteristics for the installed semiconductor. Verify the complete gate-drive path before applying DC-link voltage. Available technical references specifically identify gate-drive compatibility as an important installation requirement.

Mechanical clamping: Press-pack semiconductor devices require controlled mechanical installation. Clamping force, contact surfaces, alignment, and thermal interfaces affect current sharing and heat transfer. Do not reuse a damaged or deformed clamping assembly simply because the replacement device has the same external diameter.

Snubber and protection circuit: Inspect the associated snubber components and power connections after a semiconductor failure. A damaged capacitor, loose bus connection, or abnormal switching condition can destroy a replacement device during the first energization.

Do not infer the electrical rating from the model number alone: The “1060” designation should not be treated as a verified 1 kA rating without the applicable ABB datasheet. One available source makes that inference, but it should not replace the manufacturer’s electrical specification.

Module 6: Quality Assurance SOP

The pre-shipment inspection for an ABB 5SGX1060H0003 should focus on semiconductor identity, physical condition, and installation-critical interfaces:

1. Part-number verification — Confirm the device marking against 5SGX1060H0003. Record all visible ABB markings, date codes, revision information, and traceability identifiers.
2. OEM anti-counterfeit visual inspection — Inspect the device body, terminal areas, markings, surface finish, package geometry, and manufacturing identifiers for inconsistent printing, alteration, or signs of unauthorized rework.
3. Mechanical inspection — Check the press-pack surfaces, terminals, ceramic or insulating structures, contact faces, and enclosure for cracks, chips, corrosion, deformation, contamination, or impact damage.
4. Electrical condition screening — Perform the applicable controlled semiconductor tests using equipment suitable for the device type. Check for abnormal open/short behavior or other readings outside the approved test limits.
5. Gate-interface inspection — Verify the gate connection area and associated interface components for physical damage. Do not apply an improvised gate-drive signal merely to demonstrate operation.
6. Power-stage compatibility review — Before dispatch, cross-check the quoted part number against the customer’s existing converter model, gate unit, mechanical arrangement, and semiconductor configuration where those details have been provided.
7. System-level verification — Where a suitable ABB converter test environment is available, verify the device within the approved power-electronics test procedure. A standalone bench check cannot substitute for a complete converter commissioning test.
8. Final inspection and packaging — Photograph the exact device markings, record inspection results, apply suitable protective packaging, prevent contamination of contact surfaces, and protect the semiconductor against mechanical shock and electrostatic handling risks.

The acceptance record should connect the exact 5SGX1060H0003 identification, physical inspection, electrical screening, and packing record to the unit shipped. For this component class, traceability and application matching are more important than simply confirming that the package looks unused.
