ABB 5SGX10H6004 | Original IGCT Power Device With Warranty

Description

Module 2: The 10-Second Buyer’s Brief

• Brand: ABB
• Full Model Number: 5SGX10H6004
• System/Series Family: ABB IGCT Power Semiconductor Family
• Core Function: High-power integrated gate-commutated thyristor for medium-voltage power conversion and drive applications
• Top 3 Hardcore Specs: 6 kV VDM class; 910 A maximum turn-off current ITGQM; 4.8 Ws turn-off energy Eoff
• Stock Status: New Surplus — exact package condition and date code to be confirmed before shipment

ABB’s published technical material places 5SGX10H6004 in its 6 kV VDM / 3.3 kV DC IGCT product family. The same table specifies a 68 mm silicon diameter, 910 A ITGQM, 4.8 Ws Eoff, 350 A maximum reverse-recovery current, and 433 A/cm² maximum di/dt-related figure.

Module 3: Technical Product Introduction

A failed semiconductor in a medium-voltage converter is not an ordinary component replacement. Gate-drive behavior, commutation conditions, snubber design, cooling, and device ratings all have to remain within the converter’s original design envelope. The ABB 5SGX10H6004 is an IGCT device intended for high-power switching applications. ABB’s own technical publication places this exact device in the 6 kV VDM class, corresponding to 3.3 kV DC, with a 68 mm silicon diameter.

The important numbers are substantial: 910 A maximum turn-off current, 4.8 Ws turn-off energy, and 350 A reverse-recovery current for the associated diode at turn-off. ABB’s table also lists the device alongside the lower-rated 5SGX06F6004 and higher-rated 5SGX19L6004, which makes the electrical rating differences clear. These ratings should not be interpreted as a license to substitute devices by current rating alone. Gate-drive parameters, mechanical construction, thermal interface, commutation circuit, and the converter’s protection settings must all match the original design.

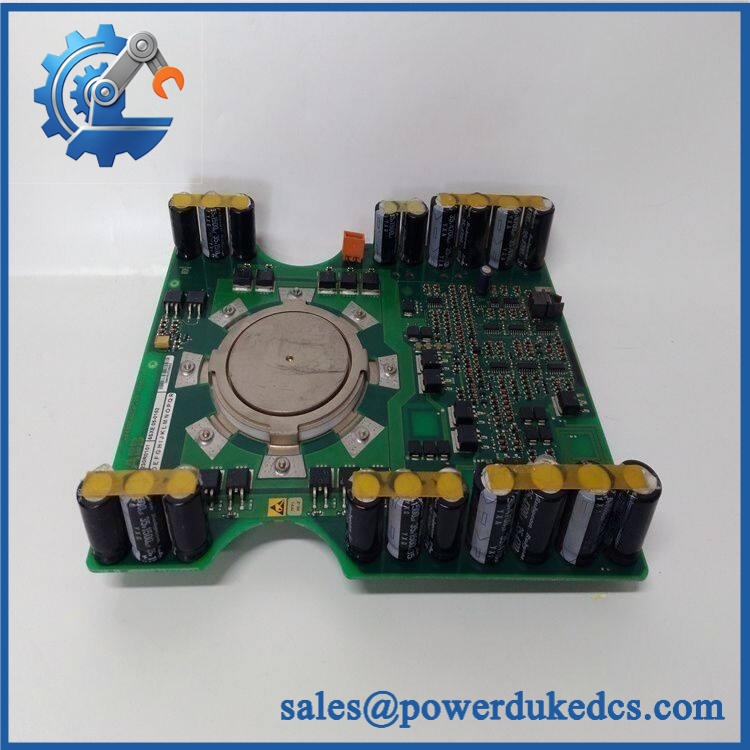

ABB 5SGX10H6004

Module 4: Application Scenarios & Field Realities

• In medium-voltage variable-speed drives, an IGCT failure can disable an entire power-conversion stage. The 5SGX10H6004’s 6 kV VDM class and 910 A turn-off-current rating make it relevant to high-power converter architectures designed around this device family.
• For high-power industrial converters, the integrated reverse-conducting diode is an important part of the device specification. ABB’s published table gives a 350 A reverse-recovery-current figure for the 5SGX10H6004 entry, so the replacement must be evaluated together with the converter’s commutation circuit rather than as an isolated switch.
• During a planned drive overhaul, compare every installed semiconductor against the original device designation before removing the old unit. A visually similar 5SGX-family device may have a different voltage or current class. That difference matters under fault and commutation conditions.
• When investigating repeated semiconductor failures, replacing the IGCT alone may only restore operation temporarily. Check gate-drive pulses, gate-circuit inductance, cooling, clamping pressure, snubber components, DC-link conditions, and abnormal load transients first. ABB’s technical literature specifically discusses the demanding gate-drive requirements associated with high-current IGCT switching.

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Field Trap 1 — Do not substitute by amperage alone:
The 5SGX10H6004 is a specific 6 kV VDM / 3.3 kV DC device with a 910 A ITGQM rating. ABB’s same product table shows 5SGX06F6004 at 520 A and 5SGX19L6004 at 1,820 A. A higher-current device is therefore not automatically an acceptable replacement for the 5SGX10H6004.

Field Trap 2 — Gate-drive circuit is critical:
IGCTs require a high-current gate-drive circuit with controlled inductance and pulse characteristics. ABB’s technical discussion describes substantial gate-current requirements and stresses the effect of gate-circuit inductance on switching behavior. Verify the gate unit, gate leads, contact surfaces, and mounting arrangement before energizing the converter.

Installation note: Follow the converter manufacturer’s semiconductor replacement procedure, including isolation and DC-link discharge. The mounting interface must be clean and correctly torqued, and the specified thermal interface material and clamping arrangement must be preserved. Do not energize a replacement IGCT merely because static visual inspection looks satisfactory.

Module 6: Quality Assurance SOP

For a high-power IGCT, QA should focus on device identity, physical condition, and controlled electrical verification rather than a simple visual inspection.

1. OEM identification inspection — Verify the ABB designation 5SGX10H6004, package markings, date/lot information, and device labeling against the required specification.
2. Physical inspection — Examine the semiconductor package, terminals, gate connection area, mounting surfaces, ceramic insulation, and housing for cracks, contamination, oxidation, impact damage, or evidence of previous installation.
3. OEM anti-counterfeit visual inspection — Compare markings, package geometry, terminal construction, labeling, and manufacturing references with known ABB device characteristics.
4. Electrical screening — Where suitable test equipment is available, perform controlled semiconductor checks appropriate to the device type. Verify that measured characteristics fall within the applicable test limits before release.
5. Gate-interface inspection — Check the gate connection and associated interfaces for mechanical damage or contamination. For a device intended for an existing converter, verify that the gate interface corresponds to the customer’s installed configuration.
6. Rating verification — Confirm the exact 6 kV VDM class, 910 A ITGQM, 4.8 Ws Eoff, and 350 A Irr values against ABB’s published device data before the part is allocated to a specific application.
7. Traceability record — Photograph and record the complete device marking, packaging condition, date/lot information where visible, inspection result, and final packing status.
8. Pre-shipment protection — Use appropriate ESD protection and mechanical packaging. Keep the semiconductor protected from impact, moisture, and contamination during storage and transportation.

For this component, exact device identification is more important than a generic “IGCT compatible” description. ABB’s own published table provides the strongest basis for confirming the electrical identity of 5SGX10H6004.
