ABB 5SGY35L4510 | Original OEM Asymmetric IGCT Module

Description

Module 2: The 10-Second Buyer’s Brief

• Brand: ABB
• Full Model Number: 5SGY35L4510
• System/Series Family: ABB 5SGY Series Power Semiconductor / IGCT
• Core Function: High-power asymmetric integrated gate-commutated thyristor for medium-voltage power conversion
• Top 3 Hardcore Specs: 4,500 V blocking voltage; 2,670 A RMS on-state current; asymmetric IGCT configuration
• Device Type: Asymmetric Integrated Gate-Commutated Thyristor
• Maximum Junction Temperature: 125 °C
• Operating Temperature Range: -40 to +125 °C
• Stock Status: New Surplus / Factory-Sealed or Fully Tested Refurbished subject to actual inventory condition

The 5SGY35L4510 is identified in available ABB semiconductor documentation as an Asymmetric Integrated Gate-Commutated Thyristor (IGCT). Published device data lists a 4,500 V forward blocking voltage and approximately 2,670 A RMS on-state current.

Module 3: Technical Product Introduction

A failed IGCT in a medium-voltage drive is not an ordinary control-board replacement. The semiconductor sits directly in the power-conversion path, so a device fault can stop the converter even when the drive controller and communication electronics remain healthy. ABB 5SGY35L4510 is an asymmetric IGCT intended for high-power switching and power-conversion applications. Its published characteristics include a 4,500 V forward blocking rating, approximately 2,670 A RMS on-state current, and a maximum operating temperature of 125 °C.

The electrical margins are substantial, but they should not be interpreted as permission to substitute the device based on voltage and current alone. Gate-drive behavior, clamping, cooling, mounting pressure, commutation conditions, and the converter’s protection scheme all matter. The device is documented as an asymmetric IGCT, with a ceramic/metal-sealed round package and two main terminals in published component data. For an installed ABB drive, especially an ACS5000-class system, verify the exact device designation and converter assembly documentation before ordering a substitute.

Module 4: Application Scenarios & Field Realities

• In medium-voltage AC drive converters, the 5SGY35L4510 can serve as a high-power switching semiconductor within the converter power stage. A failed device should be investigated together with the gate unit, snubber/clamping network, cooling system, and adjacent semiconductor positions rather than treating the IGCT as an isolated failure.
• For large mining and metallurgical drive systems, semiconductor replacement is particularly sensitive to mechanical installation. The electrical rating may match, yet incorrect mounting pressure or an unsuitable thermal interface can produce excessive junction temperature during operation. The exact mounting procedure must follow the converter manufacturer’s service documentation.
• Where a converter has suffered an overcurrent event, do not install a replacement IGCT and immediately return the drive to full load. First determine why the original device failed. Gate-drive faults, commutation problems, cooling restrictions, or protection-circuit failures can destroy a second device quickly.
• During planned maintenance on older high-power converters, matching the complete device identification is more important than finding a component with a similar 4.5 kV rating. The 5SGY35L4510 is an asymmetric IGCT, while other ABB semiconductor families can have materially different electrical characteristics and mechanical interfaces. Published data confirms the 5SGY35L4510 as an asymmetric IGCT rather than a generic thyristor module.

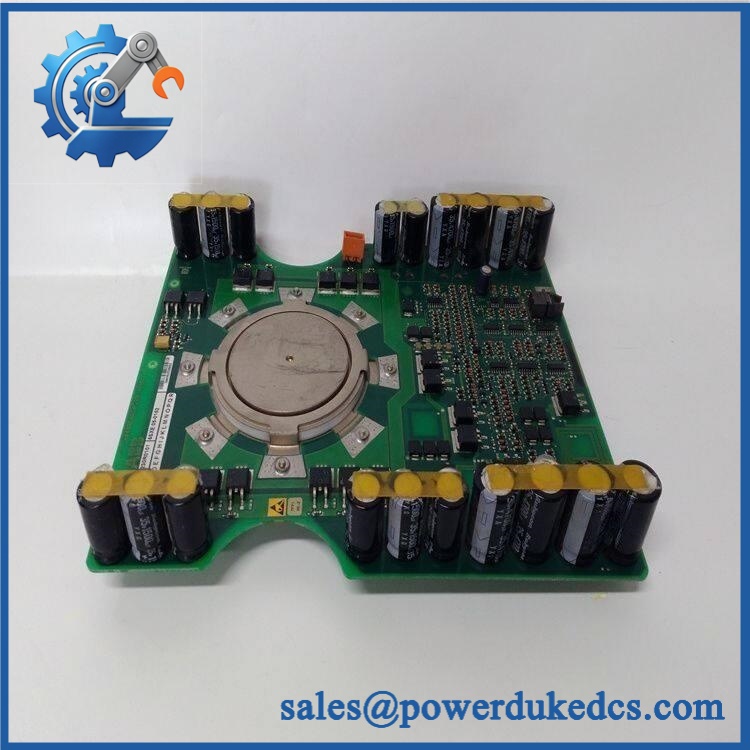

ABB 5SGY35L4510

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Field Traps — Watch Out

1. Do not select by voltage rating alone.
A 4,500 V semiconductor is not automatically an electrical substitute for the 5SGY35L4510. The device’s asymmetric topology, current capability, gate characteristics, switching behavior, and mechanical construction must all match the converter design.

2. Mounting and thermal contact are critical.
This is a high-power semiconductor. The thermal path from the device to the heatsink directly affects junction temperature. Follow the OEM-defined mounting pressure, contact-surface preparation, thermal interface requirements, and torque procedure. A visually perfect replacement can fail prematurely if installed incorrectly.

Installation note: Isolate and discharge the converter according to the site’s high-voltage maintenance procedure before touching the power stage. Verify the DC-link voltage is at a safe level using the approved measurement procedure. Do not rely solely on the drive’s display or control electronics to establish a de-energized condition.

Module 6: Quality Assurance SOP

For the ABB 5SGY35L4510, QA should focus on semiconductor identity, package condition, electrical characteristics, and traceability. This is a power-stage component; cosmetic inspection alone is insufficient.

• Part-number verification: Confirm the device marking 5SGY35L4510 against the purchasing record and physical component.
• OEM anti-counterfeit visual inspection: Examine ABB markings, laser/printed identification, ceramic package, metal surfaces, terminal construction, and manufacturing markings for inconsistencies.
• Mechanical inspection: Check the ceramic body and metal contact surfaces for cracks, chips, corrosion, deformation, contamination, or impact marks.
• Terminal inspection: Verify the main terminals and gate/control connection areas are clean and free from mechanical damage.
• Power semiconductor electrical screening: Where appropriate test equipment is available, verify the relevant blocking, conduction, and gate characteristics against the approved ABB/device test limits.
• Forward-blocking verification: Check the device’s blocking behavior using a controlled semiconductor test system rather than applying uncontrolled high voltage.
• Gate-drive verification: Confirm the gate/control interface responds correctly under the approved test conditions. Do not apply arbitrary gate pulses outside the manufacturer’s specified limits.
• Thermal/mechanical verification: Inspect the contact surfaces and confirm that no distortion or contamination could prevent correct heatsink contact.
• Converter-level verification: Where the test facility permits, verify the gate unit and associated protection circuit before installing the replacement into the customer’s converter.
• Communication handshake verification: Not applicable to the bare IGCT itself. If the device is supplied as part of a complete converter assembly, communication testing should be performed at the assembly/system level.
• Final inspection: Photograph the device marking and physical condition before packaging, particularly the semiconductor identification and terminal areas.
• Traceability: Record the exact part number, visible markings, test results, inspection date, and condition classification for the individual device.

Engineering caution: Publicly available sources contain conflicting descriptions for this exact number, including one listing that incorrectly labels 5SGY35L4510 as a different type of thyristor module. ABB semiconductor references identify the closely related 5SHY35L4510 as an asymmetric IGCT, while the exact 5SGY35L4510 designation is less consistently documented. For procurement or replacement decisions, the physical nameplate/marking and the applicable ABB converter documentation should take precedence over generic online listings.
