ABB 5SHX0660F0001 | Original ABB 6kV IGCT Module With Warranty

Description

Module 2: The 10-Second Buyer’s Brief

• Brand: ABB
• Full Model Number: 5SHX0660F0001
• Product ID: 3BHL000386P0101
• Product Type: IGCT Module
• System/Series Family: ABB High-Power Drive / Power Electronics
• Core Function: Integrated Gate-Commutated Thyristor power semiconductor for high-power switching and drive applications
• Top 3 Hardcore Specs: 6 kV | 51 mm | IGCT power semiconductor
• Product Weight: 1.81 kg net
• Replacement Reference: 3BHL000386P0101 listed as the newer product ID; HL000386P0001 listed as the older product ID
• Stock Status: New surplus / factory original condition to be confirmed per available unit

ABB product references identify 5SHX0660F0001 as an IGCT MODULE, with product ID 3BHL000386P0101 and technical information of 51 mm / 6 kV. The listed net weight is 1.81 kg. The same reference identifies HL000386P0001 as the older product ID and 3BHL000386P0101 as the newer replacement product ID.

Module 3: Technical Product Introduction

A failed IGCT in a medium- or high-power drive is not a routine low-voltage I/O replacement. It sits directly in the power-conversion stage, where incorrect semiconductor selection can lead to immediate protection trips or further power-stack damage. ABB 5SHX0660F0001 is identified as a 6 kV, 51 mm IGCT module, intended for high-power power-electronic equipment. Its function is to provide controlled high-power semiconductor switching within the converter topology.

The most important procurement figures are the 6 kV voltage class, 51 mm device size, and exact ABB type designation. The listed net weight is 1.81 kg, which is consistent with a substantial power-semiconductor module rather than a conventional control PCB. One important revision point: available ABB product references identify 3BHL000386P0101 as the newer product ID replacing HL000386P0001. Another third-party listing associates the same 5SHX0660F0001 designation with 3BHB003387R101, so the complete marking on the existing device should be checked before treating any alternate product ID as interchangeable.

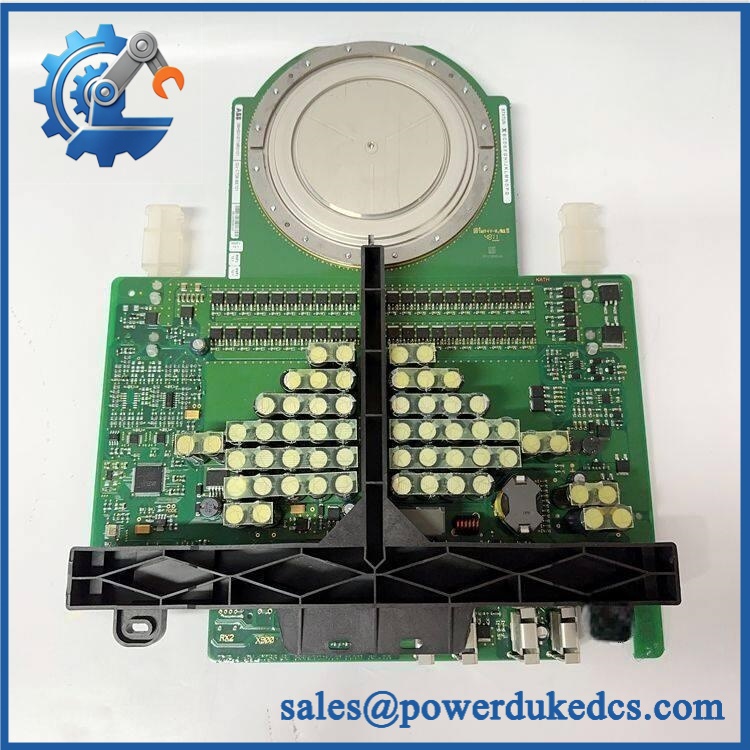

ABB 5SHX0660F0001

Module 4: Application Scenarios & Field Realities

• In high-power AC drive converter stacks, the IGCT functions as a primary power-switching device rather than a supervisory control component. A replacement must match the converter’s semiconductor configuration, voltage class, mechanical interface, and gate-drive arrangement.
• During a failed power-stack repair, do not stop at the semiconductor itself. Inspect the gate-driver circuitry, snubber network, bus capacitors, cooling interface, and associated protection components before installing a replacement. A secondary fault can destroy a new IGCT during the first switching cycle.
• For long-running industrial drive systems, thermal transfer becomes a practical concern. The module must sit correctly against its specified cooling assembly, with the required mounting pressure and thermal interface arrangement. Uneven mounting can create localized thermal stress even when the electrical ratings appear correct.
• When maintaining legacy ABB converter equipment, the complete identification is critical. The 5SHX0660F0001 designation should be checked together with the product ID and physical markings. Product references show a transition from HL000386P0001 to 3BHL000386P0101.

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Field Traps — Watch Out

1. Do not substitute by voltage rating alone.
A 6 kV IGCT with a similar physical size is not automatically a replacement. Verify the exact ABB type designation, product ID, gate-drive requirements, device orientation, terminal arrangement, and converter topology. The 51 mm / 6 kV specification is only part of the compatibility check.

2. Gate-driver compatibility must be checked before energization.
The IGCT depends on the associated gate-drive circuit for controlled turn-on and turn-off. A mismatch between the semiconductor and gate-driver assembly can produce incorrect switching behavior or device failure. Do not perform a first-power test simply because the module fits mechanically.

3. Cooling and mounting pressure matter.
The semiconductor must be installed according to the converter manufacturer’s mechanical and thermal requirements. Inspect the heat-transfer surfaces before installation and replace damaged thermal-interface materials where specified.

4. Verify the product revision.
Available product data lists 3BHL000386P0101 as the newer product ID and HL000386P0001 as the older product ID. Do not assume every older and newer identifier is interchangeable without confirming the equipment documentation.

Module 6: Quality Assurance SOP

Before shipment, each available ABB 5SHX0660F0001 should pass a controlled inspection process:

1. OEM identification inspection — Verify ABB markings, 5SHX0660F0001 type designation, product identification, date/lot markings where present, and physical labeling.
2. OEM anti-counterfeit visual inspection — Examine semiconductor housing, terminal markings, labels, fasteners, molding quality, and overall construction for signs of unauthorized modification or rework.
3. Physical inspection — Check the module body, electrical terminals, mounting surfaces, insulating areas, and contact interfaces for cracks, chips, deformation, corrosion, or impact damage.
4. Product-ID verification — Confirm the ordered designation against the available product documentation. Where applicable, record 3BHL000386P0101 and compare it with the customer’s existing device identification.
5. Electrical inspection — Perform appropriate semiconductor and insulation checks using test equipment and procedures suitable for the device. Do not apply arbitrary test voltages to a 6 kV power semiconductor.
6. Gate-drive verification — Where a compatible test fixture exists, verify the gate-drive interface and triggering behavior under controlled conditions.
7. Power-stage verification — For system-level testing, confirm correct device installation, cooling contact, electrical polarity, and associated protection circuitry before applying operating voltage.
8. Thermal/mechanical inspection — Confirm mounting surfaces and mechanical interfaces are free from contamination and damage; verify installation requirements before dispatch.
9. Final visual inspection — Recheck all identification markings and terminals after testing.
10. Test record and packaging — Record the product identification, inspection results, test date, and packaging condition before shipment.

QA note: An IGCT is a power semiconductor, not a PLC CPU or I/O board. A conventional POST check with RUN/ERR LEDs is therefore not an appropriate acceptance test for 5SHX0660F0001. Electrical condition, identification, gate-drive compatibility, mechanical installation, and controlled power-stage verification are the relevant QA checkpoints.
