ABB 5SHX0860H0001 | 68mm 6kV Coated IGCT Module

Description

• Brand: ABB
• Full Model Number: 5SHX0860H0001
• ABB Product ID: 3BHL000392P0001
• System/Series Family: ABB IGCT Power Semiconductors / ACS1000 Medium-Voltage Drives
• One-Sentence Core Function: High-power integrated gate-commutated thyristor used as a switching device in medium-voltage power-conversion equipment
• Top 3 Hardcore Specs: 68 mm package; 6 kV class; coated IGCT construction
• Stock Status: New Surplus / Fully Tested Refurbished subject to actual inventory inspection

Module 3: Commercial-Technical Deep Dive

When a single power semiconductor fails in a medium-voltage converter, the rest of the control cabinet can remain healthy while the power stage stays locked out. The ABB 5SHX0860H0001, ABB product ID 3BHL000392P0001, is an IGCT module used as a spare component in ABB drive systems. ABB product data identifies the device as a 68 mm / 6 kV coated IGCT, and ABB-related parts documentation lists it as a spare for the ACS1000 medium-voltage drive platform.

The replacement value comes from restoring the original converter topology without changing the complete semiconductor stack. IGCTs are selected for high-power switching duties where controlled turn-on and turn-off, low conduction loss, and compact high-voltage power-device construction are required. The 6 kV designation and 68 mm package identify the device class, not a universal system operating voltage or continuous-load rating; those values depend on the complete converter topology, cooling arrangement, gate unit, snubber network, and protection design. —That is why a visually similar 5SHX device should never be approved solely from package dimensions.

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: ABB 5SHX0860H0001 IGCT module
• ABB Product ID: 3BHL000392P0001
• Logic rewrite: Not normally required. The device is a power semiconductor, not a PLC or drive application processor.
• Firmware flash: Not applicable to the IGCT itself.
• Drop-in status: Only when the semiconductor, gate-unit interface, heatsink arrangement, electrical characteristics, and converter topology are all matched.
• Published technical classification: 68 mm / 6 kV coated.
• Known application: ABB product references list the device as a spare associated with ACS1000 medium-voltage drives.

⚠️ Field Traps (Watch Out)

• Gate-unit compatibility: The IGCT must be paired with the correct gate-drive hardware. A matching-looking package does not guarantee correct gate characteristics.
• Clamping force: The 68 mm press-contact package requires the specified mechanical mounting force. Incorrect clamping can increase thermal resistance or damage the device.
• Heatsink condition: Check the heatsink surface for flatness, contamination, and damage. Reusing a poor thermal interface can cause excessive junction temperature during operation.
• High-energy DC bus: Medium-voltage converters can retain hazardous DC-link energy after shutdown. Verify the bus is discharged and measured safe before accessing the power stack.

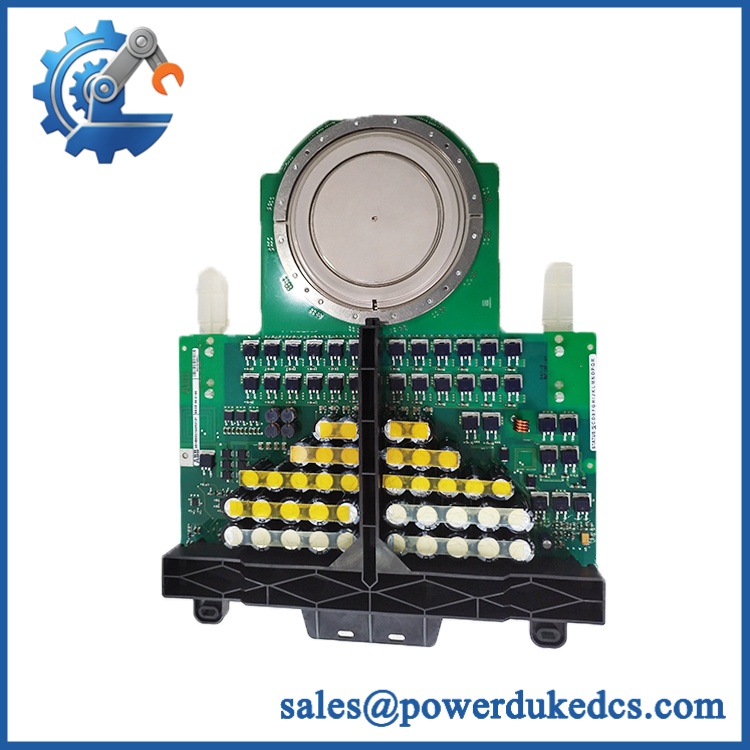

ABB 5SHX0860H0001

Module 5: Quality Assurance SOP

Before shipment, the ABB 5SHX0860H0001 / 3BHL000392P0001 should undergo a semiconductor-specific inspection sequence:

1. OEM anti-counterfeit visual inspection — verify ABB markings, complete type designation, product ID, package geometry, ceramic surfaces, gate terminals, and coating condition.
2. Part-number reconciliation — confirm the physical marking reads 5SHX0860H0001 and reconcile it with 3BHL000392P0001.
3. Mechanical inspection — examine ceramic insulation, contact surfaces, gate connections, and mounting faces for cracks, chips, corrosion, arc marks, or deformation.
4. Insulation testing — perform the applicable insulation checks with calibrated equipment and the approved device-specific test limits.
5. Forward/reverse blocking verification — use an appropriate semiconductor test fixture to verify electrical blocking characteristics without exceeding the manufacturer’s limits.
6. Gate-interface verification — where the correct gate unit or simulator is available, confirm gate-control continuity and response.
7. Mechanical interface verification — inspect and document contact-surface condition and dimensions before release.
8. Converter-level functional test — where an approved ACS1000 or equivalent test environment is available, verify controlled switching behavior with the matched gate unit and power stack.
9. Thermal observation — monitor temperature behavior during controlled operation when the complete test setup allows it.
10. Final QC record — document part number, product ID, identification markings, test equipment, measured results, gate-unit compatibility, photographs, and packaging condition.

For an IGCT, a visual inspection is only the first filter. Blocking integrity, gate response, mechanical condition, and thermal interface quality are the meaningful acceptance criteria.

Module 6: CRO-Driven Buyer FAQ

1. Is ABB 5SHX0860H0001 obsolete, and how do I verify an authentic replacement?

ABB product data identifies 5SHX0860H0001 as the IGCT module with product ID 3BHL000392P0001. The same ABB-related product record identifies the device as a 68 mm / 6 kV coated IGCT and lists it within spare-parts data. Verify the physical type marking and product ID before purchasing rather than using the generic term “IGCT.”

2. Can I hot-swap the 5SHX0860H0001?

No. Do not treat this device as hot-swappable. It belongs to a high-energy medium-voltage converter power stage. Isolate all sources, discharge the DC link, verify absence of hazardous voltage, and follow the site’s LOTO and medium-voltage maintenance procedures before removal.

3. Does replacing the IGCT require drive-program changes?

Normally no at the application level. The IGCT does not contain the PLC or converter-control program. After replacement, however, the gate unit, semiconductor protection settings, current-sharing arrangement, cooling system, and converter commissioning checks must be verified before the drive returns to service.

4. What do the 6 kV and 68 mm specifications mean?

ABB product data identifies the 5SHX0860H0001 as a 68 mm / 6 kV coated IGCT. These figures describe the semiconductor device class and package. They do not by themselves establish the complete converter’s permissible AC input, DC-link voltage, continuous current, surge current, or switching frequency.
