ABB 5SHX1060H0001 | 68mm 6kV Coated IGCT Power Module

Description

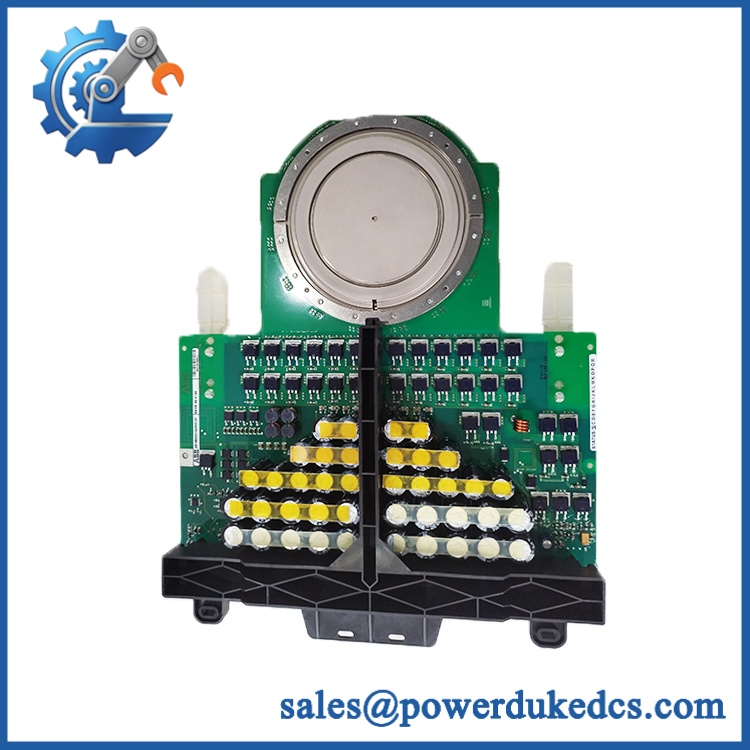

• Brand: ABB
• Full Model Number: 5SHX1060H0001
• ABB Product ID: 3BHL000392P0101
• System/Series Family: ABB ACS1000 Medium-Voltage Drives
• Core Function: IGCT power semiconductor module for medium-voltage converter power stages
• Device Type: IGCT module
• Documented Package: 68 mm
• Voltage Class: 6 kV
• Construction: Coated
• Product Net Weight: 2.11 kg
• Dimensions: 240 × 199 × 61 mm
• Country of Origin: Switzerland
• Stock Status: New Surplus / Fully Tested — verify exact device marking and lot before shipment

ABB product data identifies 3BHL000392P0101 as the product ID for 5SHX1060H0001, with the catalog description “IGCT MODULE.” ABB-related catalog data specifies 68 mm / 6 kV / coated, a 2.11 kg net weight, and lists the ACS1000 as a spare-part application.

Module 3: Commercial-Technical Deep Dive

A failed IGCT in a medium-voltage converter power stack is a power-stage event, not a routine control-board fault. The ABB 5SHX1060H0001 is an IGCT module identified by ABB product data as 68 mm / 6 kV / coated and associated with the ACS1000 medium-voltage drive family. Its ABB product ID is 3BHL000392P0101, giving procurement teams a second identifier for BOM reconciliation and incoming inspection.

The commercial value comes from maintaining the original converter power topology instead of replacing an entire power section when a single semiconductor device becomes unavailable. The listed 2.11 kg net weight and 240 × 199 × 61 mm package dimensions are useful physical checks when receiving legacy spare inventory. Detailed current, switching, gate-drive, and thermal limits should not be inferred from the part number; public third-party listings contain conflicting values. —For a controlled replacement, use the exact ABB device specification and the converter’s approved semiconductor configuration rather than relying on generic IGCT data.

ABB 5SHX1060H0001

Module 4: Compatibility & Installation Traps

Migration/Compatibility

For an existing ABB ACS1000 installation specified for 5SHX1060H0001, the preferred strategy is an exact device replacement or an ABB-approved successor where formally documented. ABB catalog information associates this part with ACS1000 applications and identifies it as a specific 68 mm, 6 kV coated IGCT.

No firmware or PLC logic rewrite applies to the semiconductor itself. The critical compatibility checks are the power-stack position, gate-unit type, cooling arrangement, mechanical clamping, protection circuit, and approved converter revision.

⚠️ Field Traps (Watch Out)

• Do not use generic IGCT ratings: Published third-party listings disagree on current and voltage details for this exact part. The reliable ABB catalog description is 68 mm / 6 kV / coated; circuit-level operating limits must be taken from the applicable ABB power-stack documentation.
• Gate-unit compatibility: The semiconductor must work with the correct ABB gate-drive assembly. Mechanical fit alone does not establish electrical compatibility.
• Thermal interface: Verify the mounting face, clamping arrangement, cooling surfaces, and approved thermal interface method. Incorrect mechanical assembly can create localized overheating.
• Medium-voltage stored energy: DC-link and converter sections can retain hazardous energy after shutdown. Use the ABB isolation, discharge, grounding, and voltage-verification procedure before opening the power stage.

Module 5: Quality Assurance SOP

1. OEM anti-counterfeit visual inspection — verify ABB markings, complete 5SHX1060H0001 designation, package geometry, device markings, coating, and evidence of unauthorized modification.
2. Part-number reconciliation — record and photograph 5SHX1060H0001 and 3BHL000392P0101 wherever visible.
3. Mechanical inspection — verify the physical condition of the semiconductor package, mounting surfaces, terminal/gate connections, insulation surfaces, and coating.
4. Dimension and weight check — compare the unit against the documented 240 × 199 × 61 mm dimensions and approximately 2.11 kg net weight where practical.
5. Static electrical inspection — perform only the semiconductor checks specified by the approved ABB test procedure and fixture.
6. Gate-interface verification — verify gate and auxiliary connections with a controlled device-specific test setup.
7. Isolation verification — perform applicable insulation and leakage tests under the approved test conditions; do not improvise a high-voltage test profile.
8. Power-stack compatibility check — confirm the device matches the intended converter position, gate unit, and cooling hardware.
9. Controlled switching test — where the laboratory setup permits, verify switching behavior using the approved power-stage test procedure.
10. Stability observation — monitor for abnormal leakage, heating, intermittent gate behavior, or other anomalies under controlled conditions.
11. Final QC release — retain identification photographs, measured test results, lot information, and packaging inspection records.

For an IGCT power device, a continuity test alone is inadequate. The acceptance evidence should cover exact identification, insulation condition, gate-interface integrity, and controlled power-stage behavior.

Module 6: CRO-Driven Buyer FAQ

1. What is ABB 5SHX1060H0001?

ABB identifies 5SHX1060H0001 as an IGCT module, with product ID 3BHL000392P0101. ABB catalog data specifies 68 mm / 6 kV / coated and lists the ACS1000 among its spare-part applications.

2. Is 5SHX1060H0001 an IGCT controller board?

No. It is a power semiconductor module, not a PLC, processor, or standalone gate-driver board. The gate-drive electronics are part of the surrounding converter architecture and must match the semiconductor device.

3. Is 5SHX1060H0001 a direct replacement for other ABB IGCT modules?

No. Do not substitute another IGCT based only on package size or nominal voltage. Confirm the exact device type, gate-unit compatibility, cooling arrangement, protection network, and converter revision before substitution.

4. Can the 5SHX1060H0001 be hot-swapped?

No. This device belongs to a medium-voltage converter power stage. Replacement requires complete electrical isolation, DC-link discharge, grounding, and verification of zero hazardous voltage according to the applicable ABB maintenance procedure.

5. Does replacing the IGCT require firmware or PLC programming?

No firmware or PLC programming is inherent to the semiconductor replacement. The important work is hardware validation: device identification, gate-drive compatibility, mechanical installation, thermal interface, insulation condition, and controlled converter testing.

6. What warranty and technical support should I expect?

The quotation should clearly state whether the device is new surplus or tested and specify the warranty period. Technical support should cover exact-part identification, compatibility review, available semiconductor test evidence, and installation guidance. Medium-voltage power-stage repair and commissioning should remain controlled engineering activities.
