ABB 5SHX1060H0002 | 6kV 68mm Symmetric IGCT Module

Description

• Brand: ABB
• Full Model Number: 5SHX1060H0002
• Related Product ID: 3BHL000388P0101
• System/Series Family: ABB IGCT Power Semiconductor / Medium-Voltage Drive Systems
• One-Sentence Core Function: High-power Integrated Gate Commutated Thyristor for switching and power conversion in medium-voltage industrial converter and drive systems
• Top 3 Hardcore Specs: 6 kV class; 68 mm package; coated IGCT construction
• Stock Status: New Surplus / Fully Tested Refurbished subject to actual inventory inspection

Module 3: Commercial-Technical Deep Dive

A failed IGCT can disable a medium-voltage converter even when the control electronics, gate unit, and surrounding cabinet remain serviceable. The ABB 5SHX1060H0002 is identified as an IGCT module, with ABB-related product references linking it to 3BHL000388P0101. Current industrial documentation identifies the device as a 68 mm, 6 kV coated IGCT, while recent ABB-part references describe the 5SHX1060H0002 as a symmetric IGCT used in high-power conversion hardware.

The replacement value is therefore tied to preserving the original semiconductor power stage rather than redesigning the converter. IGCT technology is used in high-power, medium-voltage switching applications such as industrial drives and converters, where the semiconductor must withstand substantial electrical stress and controlled high-current switching. The exact electrical operating point, gate-unit pairing, cooling arrangement, and converter topology remain system-dependent. Do not infer a complete current or switching specification from the 6 kV / 68 mm classification alone; the original converter documentation and matched gate unit determine the acceptable operating envelope.

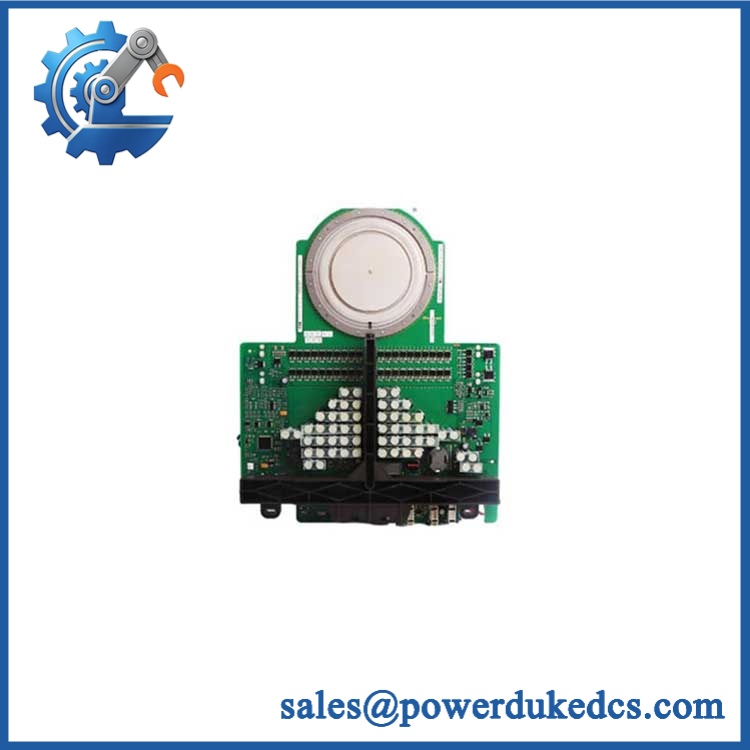

ABB 5SHX1060H0002

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: ABB 5SHX1060H0002 IGCT module
• Related Product ID: 3BHL000388P0101
• Logic rewrite: Not normally required. The IGCT is a power semiconductor device rather than the application controller.
• Firmware flash: Not applicable to the semiconductor itself.
• Drop-in status: Potentially direct only when the semiconductor specification, gate-unit interface, mechanical mounting, cooling system, and converter topology match.
• Device class: 6 kV / 68 mm coated IGCT according to current industrial product data.
• Critical pairing: Verify the installed gate-drive assembly and snubber/cooling arrangement before replacing the device. A physically similar IGCT is not automatically electrically equivalent.

⚠️ Field Traps (Watch Out)

• Gate-unit mismatch: An IGCT depends on the correct gate-control arrangement. Do not substitute a different ABB 5SHX device merely because the package diameter appears identical.
• Mounting pressure: High-power press-contact semiconductor assemblies require the specified clamping force and mounting procedure. Incorrect pressure can increase thermal resistance or damage the device.
• Thermal interface: Inspect the heatsink contact surface and thermal interface condition. A new semiconductor installed onto a contaminated or uneven heatsink can fail under load.
• Residual DC voltage: Medium-voltage converter cabinets can retain hazardous energy after shutdown. Verify the DC link is discharged to the documented safe level before touching the power stack.

Module 5: Quality Assurance SOP

Before shipment, the ABB 5SHX1060H0002 / 3BHL000388P0101 should undergo a semiconductor-specific inspection process:

1. OEM anti-counterfeit visual inspection — verify ABB markings, 5SHX1060H0002 identification, related product number, package construction, terminal/gate interfaces, and coating condition.
2. Physical inspection — check the ceramic package, contact surfaces, mounting faces, gate terminals, and insulation surfaces for cracks, chips, contamination, oxidation, or arc damage.
3. Part-number reconciliation — photograph the device marking and verify the complete 5SHX1060H0002 designation before release.
4. Insulation verification — perform the applicable high-voltage insulation checks using the approved semiconductor test procedure and calibrated equipment.
5. Electrical integrity testing — verify the applicable forward/reverse blocking characteristics with a suitable semiconductor tester; do not exceed the manufacturer’s test limits.
6. Gate-interface verification — where the correct test fixture exists, verify gate-control continuity and response with the compatible gate unit.
7. Thermal/mechanical inspection — verify contact-surface flatness, cleanliness, and the mechanical condition required for proper heatsink installation.
8. Converter-stack integration test — where an approved test rig is available, verify controlled switching behavior in the intended gate-unit and power-stack configuration.
9. Thermal observation — monitor temperature behavior under an appropriate controlled test load where the complete assembly supports such testing.
10. Final QC record — document product number, identification markings, test conditions, measured values, gate-unit compatibility, photographs, and packaging condition.

For an IGCT, a visual inspection is only the first gate. Blocking integrity, gate response, mechanical condition, and thermal interface quality are the meaningful acceptance criteria.

Module 6: CRO-Driven Buyer FAQ

1. Is ABB 5SHX1060H0002 obsolete, and how do I verify an authentic replacement?

The 5SHX1060H0002 remains referenced in current industrial sourcing data as an ABB IGCT module, associated with 3BHL000388P0101. Product references identify the device as a 6 kV, 68 mm coated IGCT. For procurement, verify the physical device marking, complete part number, package dimensions, and associated gate-unit configuration.

2. Can I hot-swap the 5SHX1060H0002?

Absolutely not under a normal maintenance procedure. This device belongs to a high-energy power-conversion stack. Isolate all sources, discharge the DC link, verify absence of hazardous voltage, and follow the site’s LOTO and medium-voltage maintenance procedures before removal.

3. Does replacing the IGCT require PLC or drive-program changes?

Normally no at the application-logic level. The semiconductor does not store the PLC or converter control application. However, the gate-unit configuration, protection thresholds, current-sharing arrangement, and converter commissioning checks must be verified after replacement.

4. What does 6 kV / 68 mm mean for this part?

Available product data identifies the 5SHX1060H0002 as a 6 kV, 68 mm coated IGCT. These figures identify the device class and package size; they do not by themselves define the permissible continuous current, surge current, switching frequency, or complete converter operating envelope.

5. What warranty and technical support are available?

Warranty duration should be stated according to the actual inventory condition, such as new surplus or tested refurbished. Technical support should cover exact device identification, 3BHL000388P0101 cross-reference verification, gate-unit compatibility, mounting requirements, insulation testing, and documented pre-shipment inspection. Medium-voltage power-stack installation and commissioning should remain under qualified high-voltage personnel.
