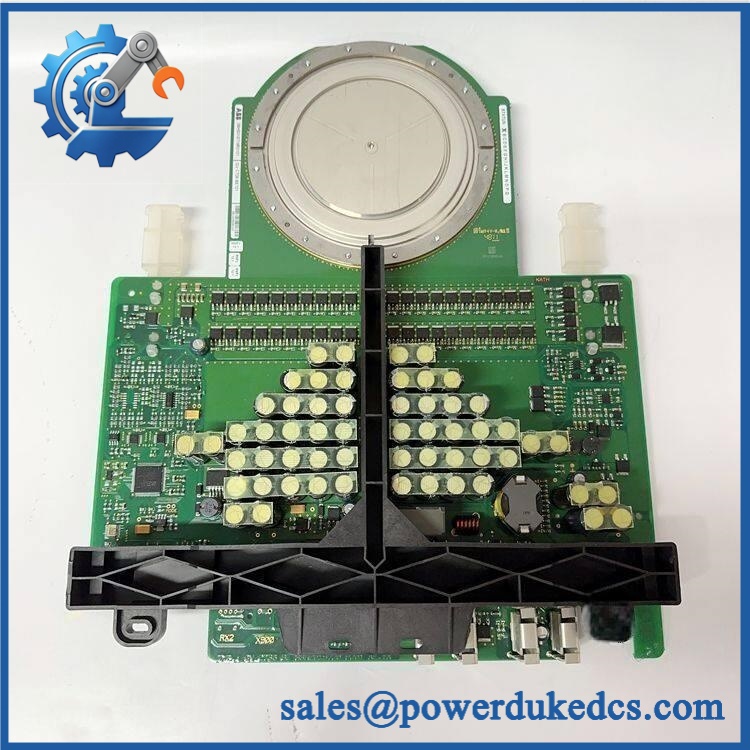

ABB 5SHX1960L0001 | ACS1000 6kV IGCT Power Module

Description

• Brand: ABB
• Full Model Number: 5SHX1960L0001
• System/Series Family: ABB ACS1000 Medium-Voltage Converter
• Core Function: Integrated Gate-Commutated Thyristor (IGCT) power device for medium-voltage converter power stages
• Device Type: IGCT power semiconductor
• Physical Diameter: 91 mm
• Voltage Class: 6 kV
• Package/Protection: Coated device
• Related Old Type: 3BHD000892R0461
• Related Assembly: IGCT firing / drive-board assemblies using this device type
• Replacement Type Reported: 5SHX1960L0004 / 5SHX1960004
• Application: ABB ACS1000 converter systems
• Stock Status: New Surplus / Fully Tested — verify exact device marking, lot, and replacement compatibility before shipment

Industry spare-parts records identify 5SHX1960L0001 as an ABB 91 mm / 6 kV coated IGCT associated with medium-voltage converter equipment. Other records identify 3BHD000892R0461 as an older type and 5SHX1960L0004 / 5SHX1960004 as a later replacement type in the same application family.

Module 3: Commercial-Technical Deep Dive

A failed IGCT in a medium-voltage converter power stage is a major hardware event, not a routine control-card fault. The ABB 5SHX1960L0001 is identified as a 91 mm, 6 kV coated IGCT used in ABB medium-voltage converter applications, including the ACS1000 platform. Unlike a PLC module, this component is one of the power-semiconductor elements responsible for high-energy switching inside the converter. Exact device identification matters because ABB converter assemblies can use different IGCT ratings and mechanically similar semiconductor packages.

The hard ROI is preserving the existing converter power topology instead of replacing an entire power section because one semiconductor device has failed. The documented 91 mm / 6 kV class gives engineers a concrete starting point for device matching, while the coated construction is relevant to the harsh electrical environment inside medium-voltage equipment. A critical limitation: public records do not establish a complete universal current rating, gate-drive specification, turn-on characteristic, or thermal limit for every 5SHX1960L0001 installation. —Those values must come from the exact ABB converter design and approved semiconductor replacement documentation; they should not be inferred from the part number alone.

ABB 5SHX1960L0001

Module 4: Compatibility & Installation Traps

Migration/Compatibility

For an existing ABB ACS1000 converter using 5SHX1960L0001, the preferred approach is an exact device replacement or ABB-approved successor, subject to confirmation of the complete converter bill of materials and gate-drive assembly.

Available field records associate the old 5SHX1960L0001 type with the newer 5SHX1960L0004 / 5SHX1960004 type, but this should be treated as a documented replacement relationship requiring engineering confirmation, not an automatic drop-in assumption.

There is no firmware or PLC-logic rewrite associated with replacing the IGCT itself. The critical issue is electrical and mechanical compatibility with the power stack, snubber network, gate-drive board, heat-transfer arrangement, and converter protection scheme.

⚠️ Field Traps (Watch Out)

• Old versus replacement type: Records identify 5SHX1960L0001 as an older RC type and 5SHX1960L0004 / 5SHX1960004 as a later type. Do not substitute the newer device without checking the ABB-approved conversion documentation for the specific converter revision.
• Gate-drive mismatch: An IGCT is not simply a two-terminal power component. Its gate-drive and firing electronics must match the semiconductor characteristics. Installing the correct package with an incompatible firing circuit can result in failed commutation or immediate device damage.
• Thermal interface: The 91 mm package must be correctly mounted against the specified heat-transfer assembly. Incorrect clamping force, surface preparation, or thermal interface material can create localized heating even when the electrical characteristics appear correct.
• Medium-voltage energy: DC-link and converter energy can remain hazardous after shutdown. Follow the ABB equipment-specific isolation, discharge, grounding, and voltage-verification procedure before accessing the power stack.

Module 5: Quality Assurance SOP

For surplus ABB IGCT inventory, QA should focus on semiconductor authenticity, physical integrity, and controlled electrical verification:

1. OEM anti-counterfeit visual inspection — verify ABB markings, complete 5SHX1960L0001 identification, device markings, package geometry, coating, and evidence of unauthorized rework.
2. Part-number reconciliation — photograph every visible type marking and compare it against the purchase specification.
3. Replacement-reference check — record whether the customer installation specifies the original 5SHX1960L0001 or an approved successor such as 5SHX1960L0004 / 5SHX1960004.
4. Mechanical inspection — inspect the ceramic/package structure, contact surfaces, mounting faces, gate connection, and protective coating for cracks, chips, corrosion, or contamination.
5. Electrical static checks — perform only the diode/thyristor/insulation tests explicitly authorized by the applicable ABB service procedure and semiconductor test fixture.
6. Gate-interface verification — verify gate and auxiliary connections using a controlled test fixture designed for the exact device family.
7. Insulation verification — perform approved insulation and leakage checks at the specified test conditions; do not improvise a high-voltage hipot test on an unverified semiconductor device.
8. Thermal-interface inspection — confirm mounting-face condition and dimensional compatibility with the intended heat sink or power-stack assembly.
9. Firing-circuit handshake verification — where the test environment supports the complete power assembly, verify the IGCT with its representative firing-card/control circuit.
10. Controlled switching test — only in an approved laboratory or manufacturer-equivalent fixture, verify switching behavior under defined voltage/current conditions.
11. Final QC release — retain type-marking photographs, measured test results, lot information, and packaging inspection records.

For a 6 kV IGCT, a simple continuity reading is not a meaningful acceptance test. Device identification, gate-drive compatibility, insulation integrity, and controlled switching behavior all matter.

Module 6: CRO-Driven Buyer FAQ

1. What is ABB 5SHX1960L0001?

It is an ABB Integrated Gate-Commutated Thyristor (IGCT) identified in industry records as a 91 mm / 6 kV coated device used in medium-voltage converter applications, including ABB ACS1000 equipment.

2. Is 5SHX1960L0001 still an active ABB device type?

Available service records identify the part as an older type and show it as discontinued in some inventories. Records also associate it with newer 5SHX1960L0004 / 5SHX1960004 replacement types. For a legacy converter, the original part number remains important for exact identification, while the successor should be confirmed against the specific ABB power-stage design.

3. Is 5SHX1960L0001 a direct replacement for 5SHX1960L0004?

Do not assume that. Available records indicate a replacement relationship, but semiconductor substitutions can require validation of gate-drive characteristics, mounting arrangement, protection circuitry, and converter revision. Engineering approval should precede substitution.

4. Can the 5SHX1960L0001 be hot-swapped?

Absolutely not. This is a medium-voltage power semiconductor associated with high-energy converter circuitry. Replacement requires complete electrical isolation, DC-link discharge, grounding, and verification of zero hazardous voltage according to the applicable ABB maintenance procedure.

5. Does replacing the IGCT require firmware or PLC programming?

No software rewrite is inherent to the semiconductor replacement itself. The important commissioning work is hardware validation: correct device type, gate-drive compatibility, mechanical installation, thermal interface, insulation condition, and controlled converter testing.

6. What warranty and technical support should I expect?

The quotation should clearly state whether the device is new surplus, unused, or tested and provide the warranty duration. Technical support should cover exact semiconductor identification, replacement-reference verification, physical compatibility, and available electrical-test documentation. Medium-voltage power-stage repair, firing-pulse validation, and converter commissioning should remain controlled engineering activities.
