ABB AO810V2 3BSE038415R1 | Short-Circuit Protected I/O Module Supporting Hot Swap Operation

Product Core Brief

Model: AO810V2 (3BSE038415R1)
Brand: ABB
Series: S800 I/O System
Core Function: Convert digital controller signals into analog current outputs to drive field actuators and control valves
Type: Analog Output I/O Module
Key Specs: 8 channels, 0/4–20 mA, 14-bit resolution, OSP predefined safety output, short-circuit protection
Condition: New Surplus, non-refurbished, full factory hardware integrity
Stock Strategy: Class B automation spare; maintain 1 unit minimum buffer stock; adopt cross-site sharing to cut overall holding costs

Product Introduction

Unstable analog control signals can cause valve hunting and inconsistent process regulation on continuous production lines. AO810V2 serves as standard analog output hardware for ABB AC800M controllers and 800xA distributed control platforms.

This 8-channel module delivers precise 4–20 mA unipolar current signals. It supports OSP predefined output states triggered by communication faults, limiting process risks during abnormal operation. Every channel comes with built-in short-circuit protection and open-circuit diagnostics. The module supports hot swap inside S800 I/O racks, allowing unit replacement without full system shutdown. Field records confirm stable long-term operation, with typical signal accuracy within ±0.1% full scale under rated load conditions.

Key Technical Specifications

Parameter	Specification
Part Number	AO810V2 / 3BSE038415R1
Channel Count	8 unipolar analog output channels
Signal Range	0–20 mA, 4–20 mA
Resolution	14 bit
Output Load	Max 500 Ω (L1+ supply); Max 850 Ω (L2+ supply)
Signal Accuracy	≤ 0.1% FS
Update Cycle Time	≤ 2 ms
Protection Features	Short-circuit current limiting, open-circuit channel diagnosis
Fail-Safe Function	OSP (Output State Preset)
Termination Compatible	TU810, TU812, TU814, TU830, TU833 terminal units
Operating Temperature	-20 ℃ ~ +70 ℃
Power Consumption	2.3 W typical
Mounting Method	DIN rail S800 rack installation
Max Field Cable Length	600 m
Indicator LEDs	Run, Fault, Warning, OSP status

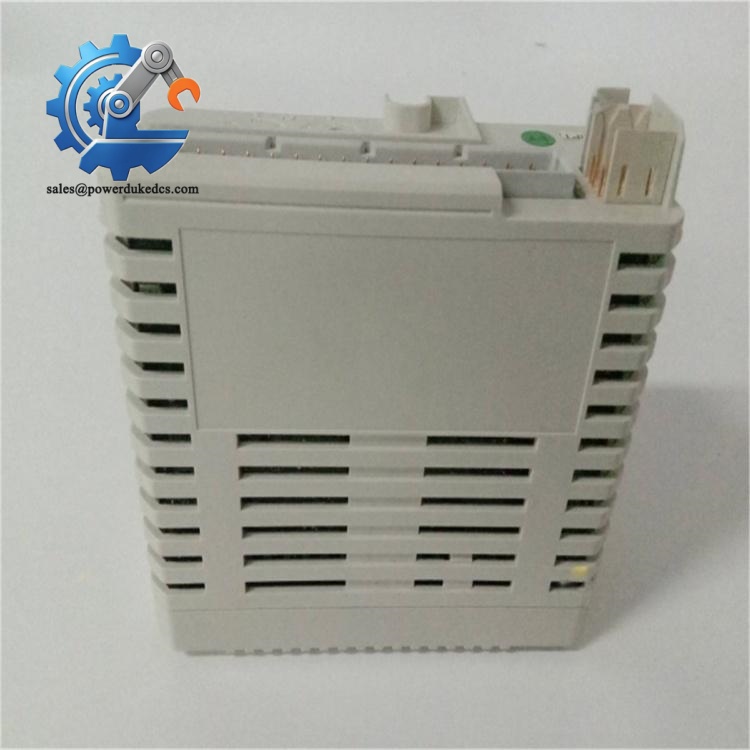

ABB AO810V2 3BSE038415R1

Strict Quality Inspection SOP (Full Transparency)

1. Warehouse Incoming Verification

Label serial number and official part code are cross-verified against factory documentation. All information is logged into inventory for full traceability.

Visual inspection checks enclosure surface, circuit board discoloration, pin integrity, and undamaged front panel LED windows. Original factory certificates and datasheets are matched as complete accessories.

2. Live Bench Functional Testing

Testing runs on a complete ABB AC800M + S800 I/O simulation rack.

Power-on self-test: Verify all LED indicators activate normally
Controller communication handshake: Stable module identification via Control Builder M
Full-range analog output test: 0–100% signal sweep on every channel
Open-circuit and short-circuit function verification
Continuous 24-hour aging test to monitor temperature stability
Standardized test report available for customer review upon demand

3. Electrical Performance Testing

Insulation resistance measured by 500V megohmmeter, readings above 10 MΩ.

Output channel anti-surge characteristics are validated. All internal circuits checked for leakage and hidden short-circuit risks, complying with IEC 61000 EMC standards.

4. Firmware & Configuration Verification

Factory default firmware version is recorded and archived. No unauthorized firmware modification exists. Module hardware configuration parameters are backed up for future commissioning reference.

5. Final QC & Packaging

Passed units are sealed in anti-static shielding bags, wrapped with bubble film and packed into export cartons. Each package carries a QC Passed label printed with inspection date.

Field Replacement Pitfall Guide (Engineer Practical Experience)

1. Confusion between AO810 and AO810V2 Hardware Revision

The older AO810 and updated AO810V2 share similar appearance, but firmware and internal circuit layout differ. Direct replacement without project recompilation triggers communication errors.

Fix: Confirm hardware revision before ordering. Re-download I/O hardware configuration after swapping.

Real case: One chemical plant encountered intermittent channel signal drift after mistakenly using AO810 to replace AO810V2.

2. Wrong Terminal Unit Matching

AO810V2 cannot work properly with incompatible TU base units. Mismatched terminals lead to unstable power supply and missing diagnostics.

Fix: Keep the original TU8xx termination base; do not mix different series terminal units randomly.

3. Ignoring OSP Parameter Configuration

Many engineers skip OSP setup. When rack communication drops, outputs will hold random values instead of safe preset states.

Fix: Define fail-safe output levels for all control loops during commissioning.

4. Exceeding Maximum Channel Load Resistance

If actuator load resistance exceeds 850 Ω, output signal distortion occurs.

Fix: Calculate total loop resistance before wiring; add signal isolators if load exceeds rated specification.

5. Improper ESD Protection

Surface-mount D/A conversion chips are sensitive to static electricity. Damage often appears as partial channel failure after weeks of operation.

Fix: Wear ESD wristbands and operate on anti-static mats. Avoid direct contact with rear connectors.

6. Hot Swap Misoperation

Hot swap is allowed only when the rack backplane is powered normally. Do not remove or insert modules while the I/O rack power is cut off.

ABB AO810V2 3BSE038415R1

Installation & Configuration Guide

Phase 1: Pre-Installation Preparation (10 min)

⚠️ Safety Reminders

Arrange planned maintenance window and lockout-tagout relevant control loops
Prepare anti-static equipment before touching the module
Confirm affected field actuators can tolerate temporary signal loss

Tools Needed: PH1 screwdriver, Fluke multimeter, laptop with Control Builder M, camera, cable labels

Backup Work: Export hardware configuration. Photograph existing module layout, terminal wiring and channel parameter mapping. Record OSP safety settings.

Phase 2: Old Module Removal (8 min)

Confirm control loop can safely tolerate signal interruption
Hold the module handle, release the rack latch and extract the module vertically
Inspect the TU terminal unit and backplane pins for bending or corrosion

⚠️ Do not pull the module horizontally; bent backplane pins cause permanent rack damage.

Phase 3: New Unit Installation (12 min)

Remove AO810V2 from anti-static packaging
Align the module with S800 rack guides and push firmly until latch clicks
Confirm solid contact between module and termination unit
Restore field wiring following photographed records

Pre-Power-On Checklist

[ ] Module fully locked inside rack

[ ] No loose wiring on terminal base

[ ] Backplane shows no physical damage

[ ] Static protection measures completed

Phase 4: Power-On & Commissioning (22 min)

Keep rack power energized during module insertion
Open Control Builder M, scan hardware and verify module identification
Load matched hardware configuration and download to controller
Verify channel signal range and OSP safety parameters
Send fixed setpoints to test every output channel
Check fault diagnosis function by simulating open circuit
Run continuous monitoring for minimum 30 minutes with no abnormal alarms

Common Troubleshooting

Fault LED steady on: Verify hardware configuration matches actual module version
No analog output: Check 24V field supply on TU terminal unit
Warning LED active: Detect open circuit or insufficient field power supply
OSP triggered unexpectedly: Check S800 fieldbus communication quality

Frequently Asked Questions (FAQ)

Can AO810V2 replace AO810 directly?

Physical rack dimensions fit, but firmware and hardware identifiers differ. You must update the hardware configuration in Control Builder M and recompile the project. Direct plug-and-play without configuration update is not recommended.
Does AO810V2 support hot swap?

Yes. Hot swap is supported within powered S800 I/O racks. Replacements should be arranged during planned maintenance to avoid unexpected actuator action.
Is HART communication available on this module?

No. AO810V2 does not support HART signals. Select AO815 if HART pass-through is required for smart positioners.
What terminal base units are compatible?

TU810, TU812, TU814, TU830 and TU833 termination units. Do not use incompatible TU variants.
Can multiple channels share one external 24V supply?

Allowed, but keep cable voltage drop within limits. Avoid daisy-chaining power across too many channels to prevent signal distortion.
What warranty coverage applies to stocked units?

We provide 12-month industrial warranty. Damage caused by wiring errors, overvoltage, static discharge or mechanical collision voids warranty coverage.
What inventory strategy fits this I/O module?

Class B process spare. Maintain one unit as site buffer stock. Set reorder trigger when spare stock falls below minimum level. Track ABB lifecycle announcements to schedule last-time-buy actions before official EOL.
